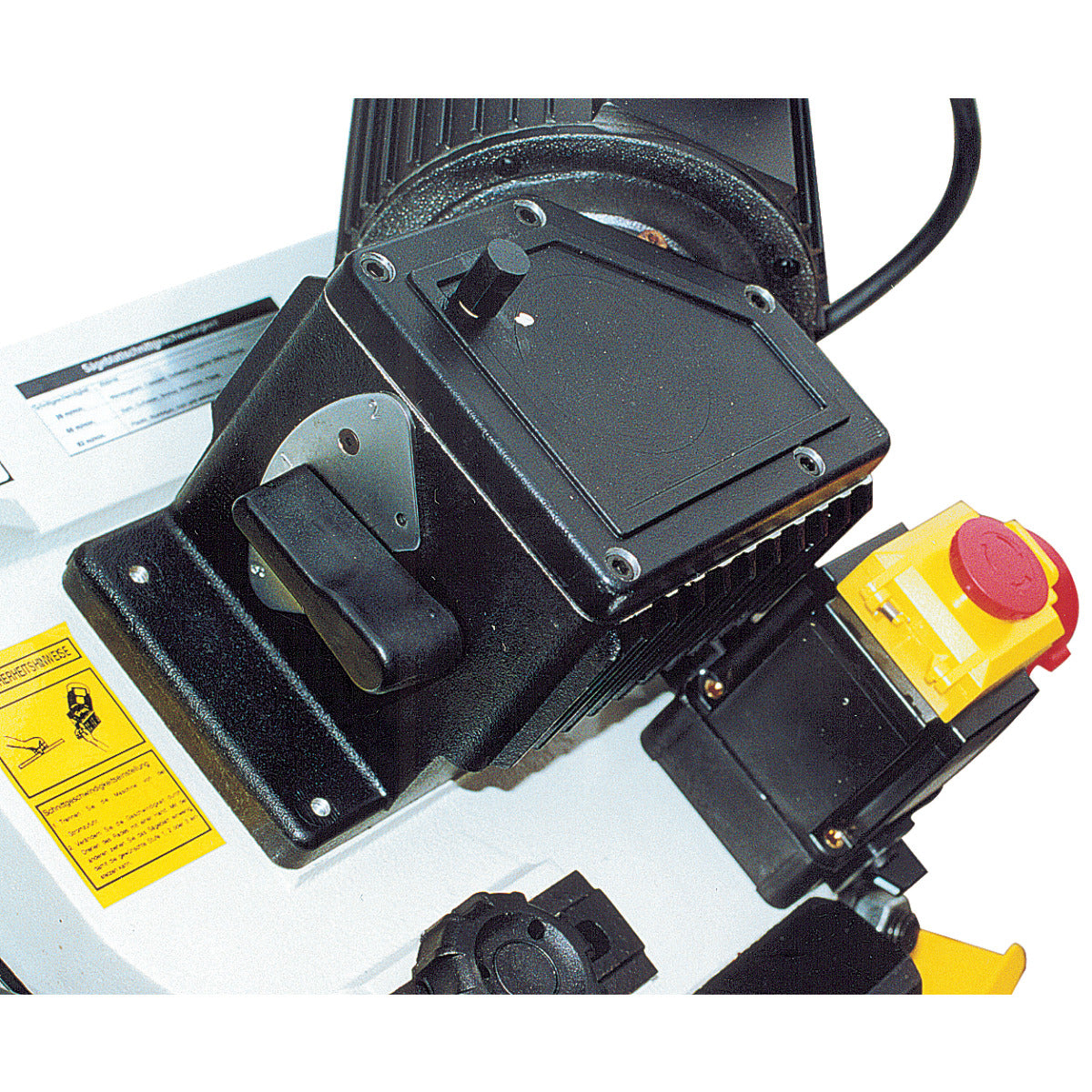

Optimum S181G Bandsaw (Geared Drive) (3 Ph 400v)

Optimum S181G Bandsaw (Geared Drive) (3 Ph 400v)

£2,394.00 GBP
£2,394.00 GBP
Sale Sold out

The metal band saw for demanding sawing work. With manual transmission and 3 sawing speeds

  • Silent run
  • Stable cast execution
  • Lowering of the saw arm via hydraulic cylinder with throttle valve infinitely adjustable
  • Micro switch for automatic limit switch
  • Easy to read scale for angle adjustment
  • As standard with high-quality bi-metal saw band
  • Ball bearing saw band guide
  • Robust machine base with large wheels and handy transport handle for easy location change of the machine
  • Saw band tension adjustable on the front side via handwheel
  • Adjustable material stop for serial work
  • Fully equipped, allowing the user to be productive immediately after commissioning

DELIVERY CONTENTS

  • Material stop
  • Bi-metal saw band
  • Machine base



    TECHNICAL SPEC

    Dimensions and Weights
    Length (product) approx. 1200mm Width/depth (product) approx. 450mm
    Height (product) approx. 1060mm Net weight approx. 130kg
    Length max. (product) approx. 600mm Max. width/depth (product) approx. 1550mm
    Height max. (product) approx. 530mm
    Electrical Data
    Drive motor output
    		 0.75kW Supply voltage
    		 400V
    Mains frequency 50Hz

    Machine Data
    Saw band speed(s) 45 / 67 / 77 m/min Saw band length 2362mm
    Saw band width 19mm Saw band thickness 0.9mm
    Cutting angle 0 – 45° Lifting the saw bow Manual
    Cutting Ranges
    Cutting range 0° round (solid material) 180mm Cutting range 0° square (solid material) 180mm
    Cutting range 0° rectangular lying (solid material) 240 x 180mm Cutting range 0° rectangular upright (solid material) 50 x 300mm
    Clamping range +45° round (full material) 110mm Cutting range +45° square (solid material) 150mm
    Cutting range +45° rectangular horizontal (solid material) 110 x 170mm
