Optimum S181 Bandsaw (1 Ph 230v) (Belt Drive)
Optimum S181 Bandsaw (1 Ph 230v) (Belt Drive)
Regular price
£2,034.00 GBP
Regular price
Sale price
£2,034.00 GBP
Unit price
/
per
Couldn't load pickup availability
Share
The metal band saw for demanding sawing work. With manual transmission and 3 sawing speeds
- Silent run
- Stable cast execution
- Lowering of the saw arm via hydraulic cylinder with throttle valve infinitely adjustable
- Micro switch for automatic limit switch
- Easy to read scale for angle adjustment
- As standard with high-quality bi-metal saw band
- Saw band tension adjustable on the front side via handwheel
- Ball bearing saw band guide

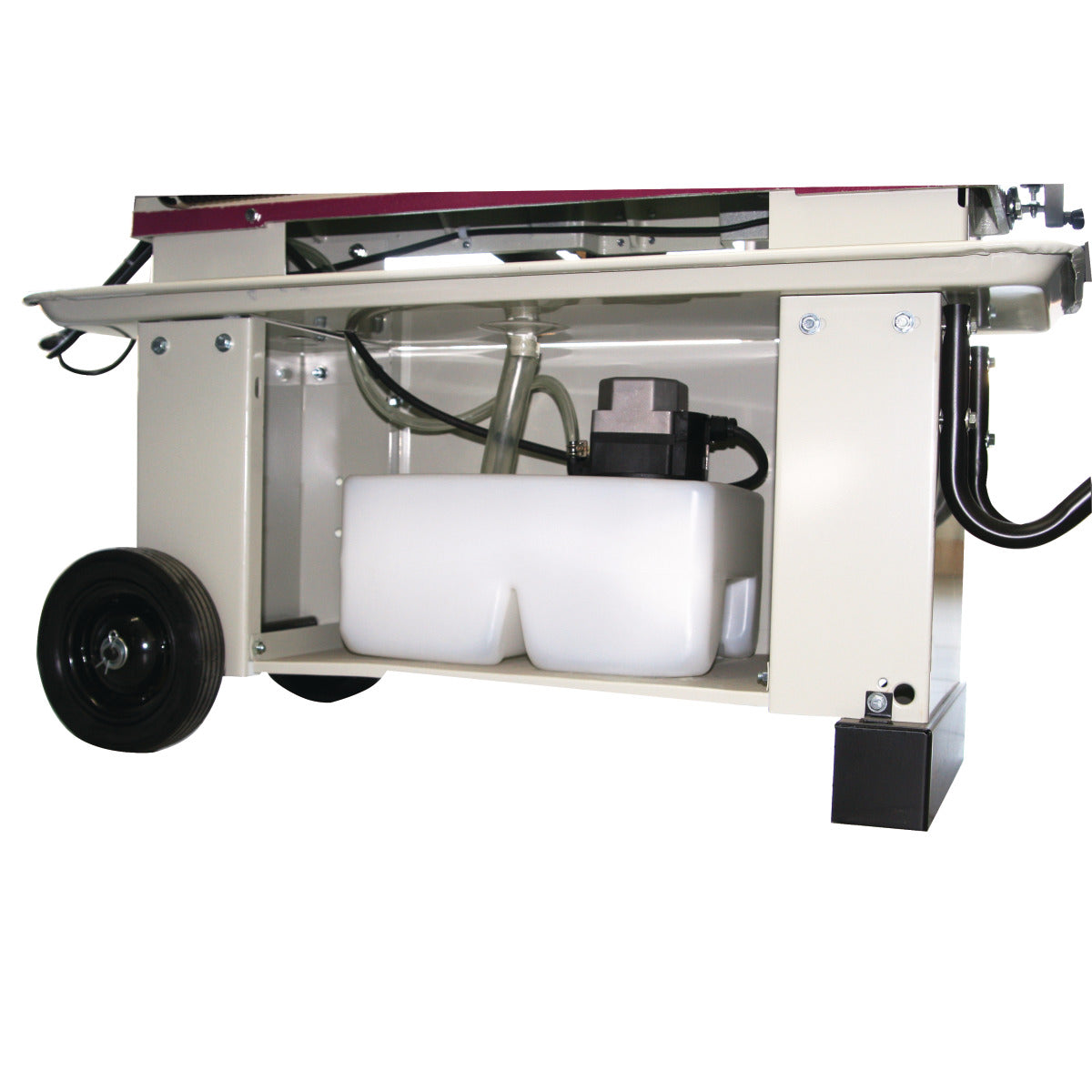

- Robust machine base with large wheels and handy transport handle for easy location change of the machine
- Adjustable material stop for serial work
- Circuit breaker for the belt cover
- Fully equipped, allowing the user to be productive immediately after commissioning
DELIVERY CONTENTS
- Bi-metal saw band
- material stop
- substructure
TECHNICAL SPEC
| Dimensions and Weights | |||
| Length (product) approx. | 1295mm | Width/depth (product) approx. | 450mm |
| Height (product) approx. | 1060mm | Net weight approx. | 130kg |
| Length max. (product) approx. | 600mm | Max. width/depth (product) approx. | 1550mm |
| Height max. (product) approx. | 530mm | ||
| Electrical Data | |||
| Drive motor output |
0.75kW | Supply voltage |
400V |
| Mains frequency | 50Hz | Engine power coolant pump | 90W |
| Machine Data | |||
| Saw band speed(s) | 21 / 33.5 / 45 / 50 m/min | Saw band length | 2362mm |
| Saw band width | 19mm | Saw band thickness | 0.9mm |
| Cutting angle | 0 – 45° | Feed |
Infinitely variable |
| Lifting the saw bow | Manual | ||
| Cutting Ranges | |||
| Cutting range 0° round (solid material) | 180mm | Cutting range 0° square (solid material) | 180mm |
| Cutting range 0° rectangular lying (solid material) | 240 x 180mm | Cutting range 0° rectangular upright (solid material) | 50 x 300mm |
| Clamping range +45° round (full material) | 110mm | Cutting range +45° square (solid material) | 150mm |
| Cutting range +45° rectangular horizontal (solid material) | 110 x 170mm |
