Optimum OPTIsaw SP 13V Portable Bandsaw (1 Ph 230v)

Optimum OPTIsaw SP 13V Portable Bandsaw (1 Ph 230v)

£780.00 GBP
£780.00 GBP
Sale Sold out

Portable mitre band saws with high cutting precision, particularly low noise. With continuously adjustable saw blade speed

  • Silent run
  • Stable cast execution
  • High cutting accuracy due to vibration-free running
  • Lowering of the saw arm via hydraulic cylinder with throttle valve infinitely adjustable
  • Micro switch for automatic limit switch
  • Coolant system
  • As standard with high-quality bi-metal saw band
  • Adjustable material stop for serial work
  • Robust machine base
  • Ball bearing saw band guide
  • Quick-action vice adjustable by handwheel. Clamping the workpiece with a handy quick release lever

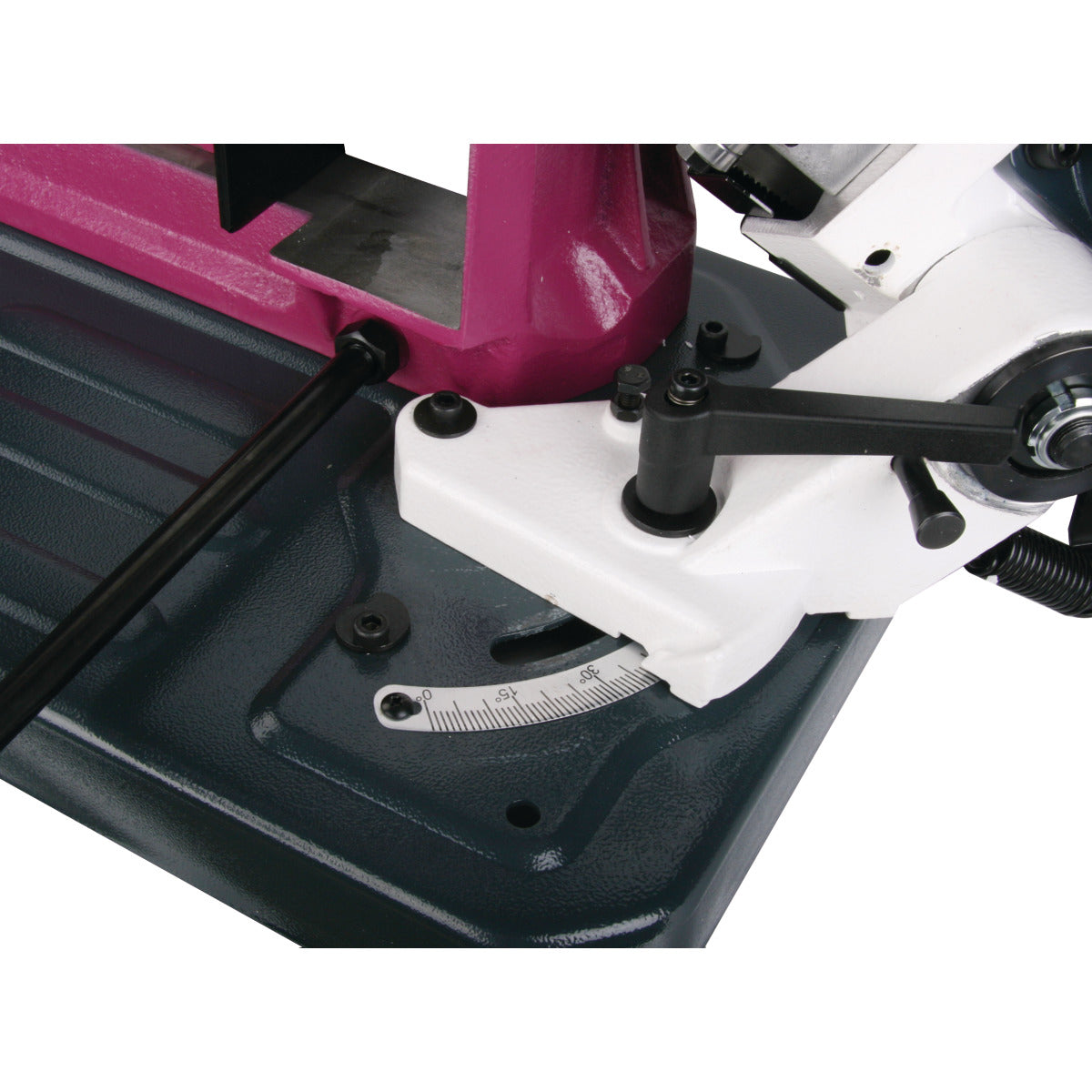

  • Easy to read scale for angle adjustment
  • Overload protection

DELIVERY CONTENTS

  •  Bi-metal saw band
  •  Material stop



    TECHNICAL SPEC

    Dimensions and Weights
    Length (product) approx. 720mm Width/depth (product) approx. 300mm
    Net weight approx. 19.5kg Max. width/depth (product) approx. 650mm
    Height (product) approx. 420mm Height max. (product) approx. 680mm
    Electrical Data
    Drive motor output
    		 1kW Supply voltage
    		 230V
    Mains frequency 50Hz

    Machine Data
    Saw band speed(s) 30 - 80 m/min Saw band length 1440mm
    Saw band width 13mm Saw band thickness 0.65mm
    Cutting angle 0 - 60°

    Cutting Ranges
    Cutting range 0° round (solid material) 125mm Cutting range 0° square (solid material) 125mm
    Cutting range 0° rectangular lying (solid material) 125 x 125mm Clamping range +45° round (full material) 85mm
    Cutting range +45° square (solid material) 85mm Cutting range +45° rectangular horizontal (solid material) 85 x 85mm
    Cutting range +60° round (solid material) 45mm Cutting range +60° square (solid material) 45mm
    Cutting range +60° rectangular horizontal (solid material) 45 x 50mm
