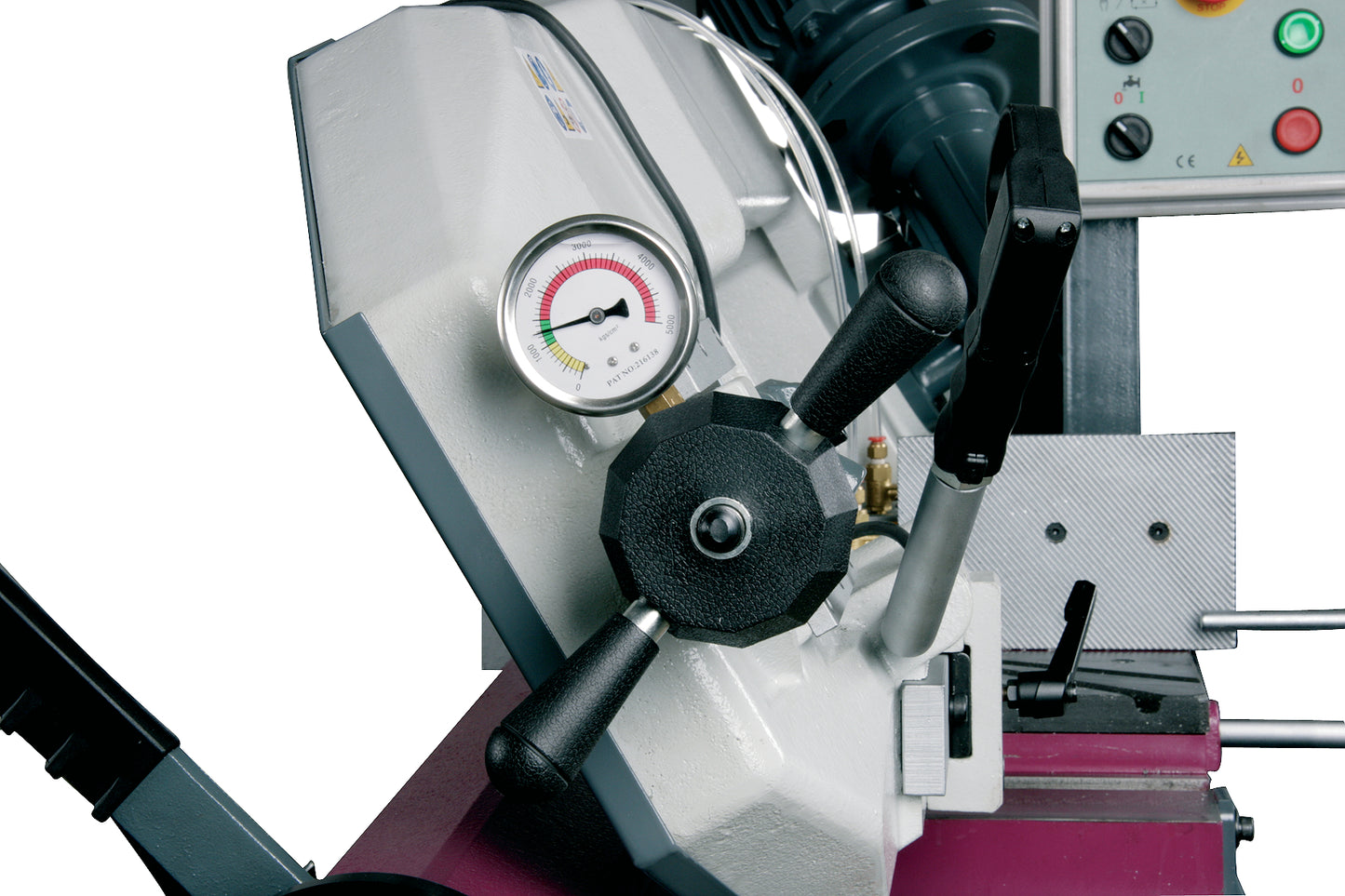

Optimum OPTIsaw S 275N Manual Metal-Cutting Saw (3ph 400v)
Optimum OPTIsaw S 275N Manual Metal-Cutting Saw (3ph 400v)
Regular price
£3,474.00 GBP
Regular price
Sale price
£3,474.00 GBP
Unit price
/
per
Couldn't load pickup availability
Share
Manual version saws for steel, iron, light metals, solid material and profiles
- Silent run
- Stable cast execution
- High cutting accuracy due to vibration-free running
- Lowering of the saw arm via hydraulic cylinder with throttle valve infinitely adjustable
- Micro switch for automatic limit switch
- Coolant system
- As standard with high-quality bi-metal saw band
- Adjustable material stop for serial work
- Robust machine base
- Ball bearing saw band guide
- Quick-action vice adjustable by handwheel. Clamping the workpiece with a handy quick release lever
- Easy to read scale for angle adjustment
- Overload protection
DELIVERY CONTENTS
- Material stop
- Bi-metal saw band
- Substructure
- Coolant pump
TECHNICAL SPEC
| Dimension and Weights | |||
| Length (product) approx. | 1400mm | Width/depth (product) approx. | 685mm |
| Net weight approx. | 185kg | Max. width/depth (product) approx.. | 985mm |
| Height max. (product) approx. | 1700mm | ||
| Electrical Data | |||
| Drive motor output | 1.1kW | Supply voltage | 400V |
| Mains frequency | 50Hz | Engine power coolant pump | 90W |
| Machine data | |||
|
Saw band speed(s) |
45 / 90m/min |
Saw band length |
2480mm |
| Saw band width | 27mm | Saw band thickness | 0.9mm |
| Cutting angle | 0 – 60° | Feed | infinitely variable |
| Lifting the saw bow | Manual | ||
| Cutting Ranges | |||
| Cutting range 0° round (solid material) | 225mm | Cutting range 0° square (solid material) | 190mm |
| Cutting range 0° rectangular lying (solid material) | 150 x 245mm | Cutting range +45° round (full material) | 145mm |
| Cutting range +45° square (solid material) | 150mm | Cutting range +45° rectangular horiz. (solid material) | 190 x 150mm |
| Cutting range +60° round (solid material) | 90mm | Cutting range +60° square (solid material) | 90mm |
| Cutting range +60° rectangular horiz. (solid material) | 120 x 90mm |
