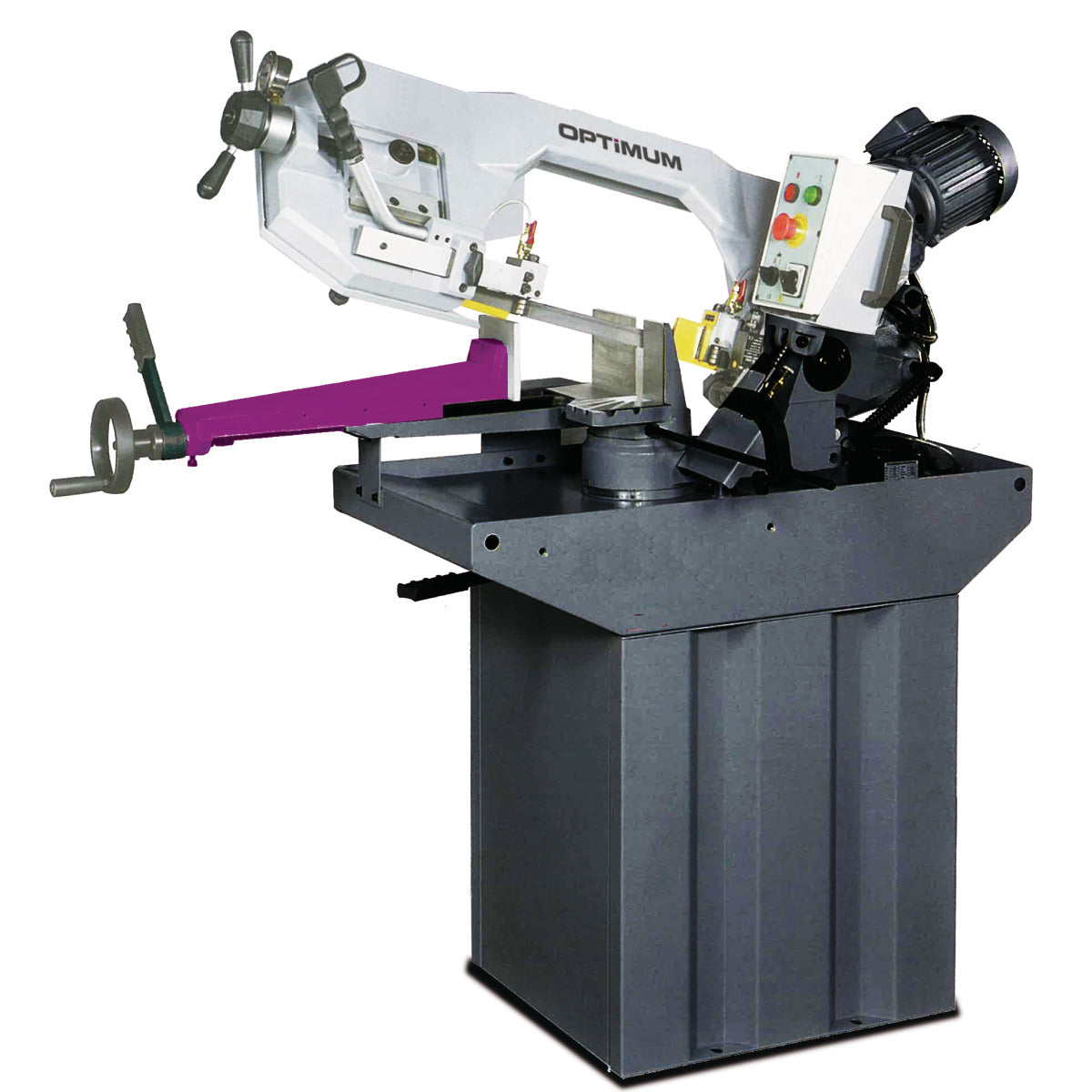

OPTIsaw S 275NV Heavy Duty Pull Down Saw (1 Ph 230v)
OPTIsaw S 275NV Heavy Duty Pull Down Saw (1 Ph 230v)
Regular price
£3,594.00 GBP
Regular price
Sale price
£3,594.00 GBP
Unit price
/
per
Couldn't load pickup availability
Share
Metal band saws with swivel saw bow. S 275NV with continuously adjustable saw blade speed
- Silent run
- Stable cast execution
- High cutting accuracy due to vibration-free running
- Lowering of the saw arm via hydraulic cylinder with throttle valve infinitely adjustable
- Micro switch for automatic limit switch
- Coolant system
- As standard with high-quality bi-metal saw band
- Adjustable material stop for serial work
- Robust machine base
- Ball bearing saw band guide
- Quick-action vice adjustable by handwheel. Clamping the workpiece with a handy quick release lever
- Easy to read scale for angle adjustment
- Overload protection
DELIVERY CONTENTS
- material stop
- Bi-metal saw band
- substructure
- Coolant pump
TECHNICAL SPEC
| Dimensions and Weights | |||
| Length (product) approx. | 1400mm | Width/depth (product) approx. | 685mm |
| Net weight approx. | 185kg | Max. width/depth (product) approx. | 985mm |
| Height (product) approx. | 1700mm | ||
| Electrical Data | |||
| Drive motor output |
1.5kW | Supply voltage |
230V |
| Mains frequency | 50Hz | Engine power coolant pump | 90W |
| Machine Data | |||
| Saw band speed(s) | 20 - 90 m/min | Saw band length | 2480mm |
| Saw band width | 27mm | Saw band thickness | 0.9mm |
| Cutting angle | 0 - 60° | Feed | Infinitely variable |
| Lifting the saw bow | Manual | ||
| Cutting Ranges | |||
| Cutting range 0° round (solid material) | 225mm | Cutting range 0° square (solid material) | 190mm |
| Cutting range 0° rectangular lying (solid material) | 150 x 245mm | Clamping range +45° round (full material) | 145mm |
| Cutting range +45° square (solid material) | 150mm | Cutting range +45° rectangular horizontal (solid material) | 190 x 150mm |
| Cutting range +60° round (solid material) | 90mm | Cutting range +60° square (solid material) | 90mm |
| Cutting range +60° rectangular horizontal (solid material) | 120 x 90mm |
