Optimum OPTIsaw S 131 GH Medium Pull Down Saw (1 Ph 230v)
Optimum OPTIsaw S 131 GH Medium Pull Down Saw (1 Ph 230v)
Regular price
£1,554.00 GBP
Regular price
Sale price
£1,554.00 GBP
Unit price
/
per
Couldn't load pickup availability
Share
Metal band saw ideal for light sawing work. Miter saws from -45 ° to 60 ° via swivelling saw bow
- Circuit breaker for the belt cover and the saw band cover in low-voltage version
- Separate emergency stop impact switch
- Low-voltage electronics 24 V
- Silent run
- Mobile machine base
- Ball bearing saw band guide
- Three speed levels for a wide range of materials
- Micro switch for automatic limit switch

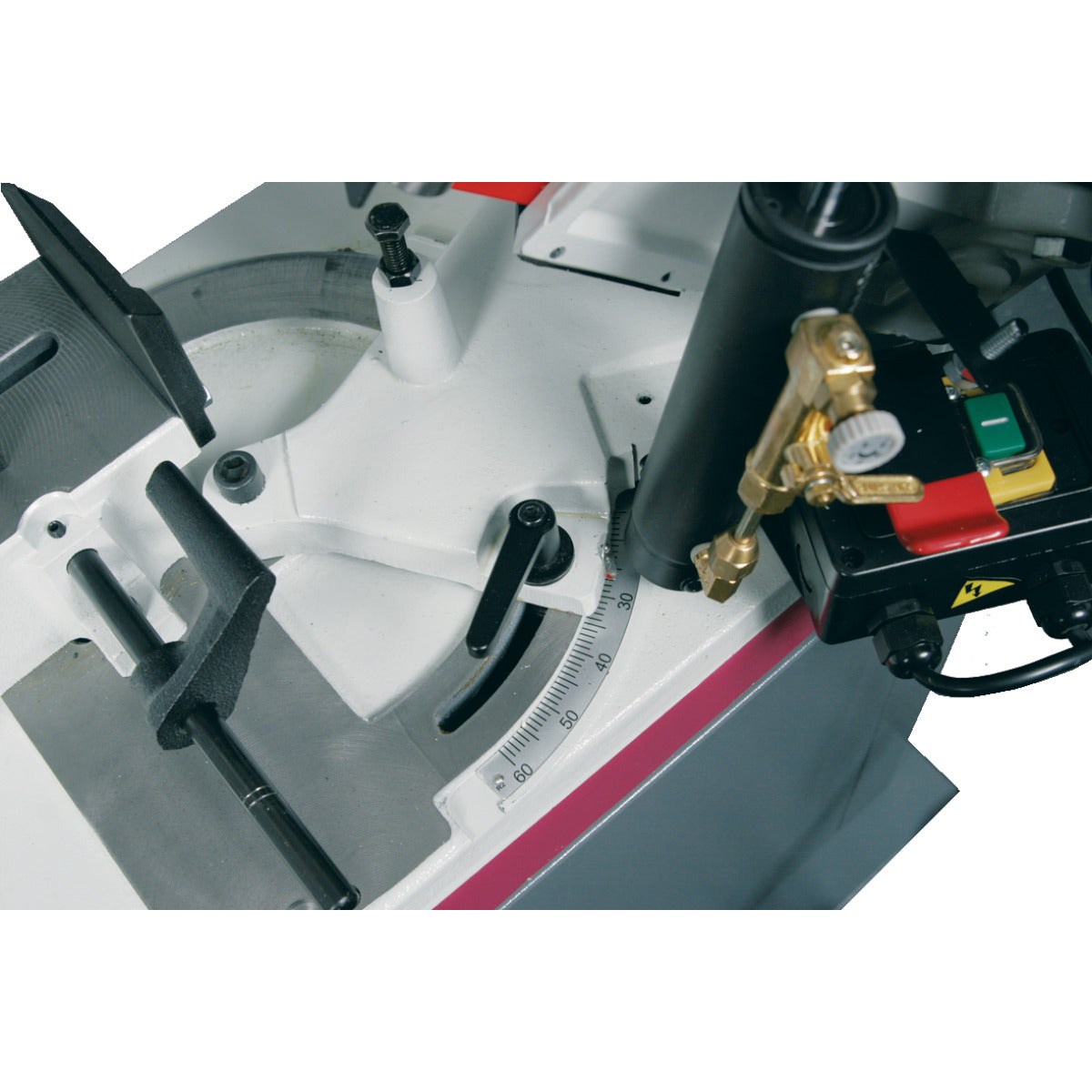

- Easy to read scale for angle adjustment
- As standard with high-quality bi-metal saw band
- Saw band tension adjustable on the front side via handwheel
- Adjustable material stop for serial work
- Quick-action vice for fast workpiece clamping
- With a powerful belt drive
DELIVERY CONTENTS
- Material stop
- Bi-metal saw band
- Machine base
TECHNICAL SPEC
| Dimensions and Weights | |||
| Length (product) approx. | 965mm | Width/depth (product) approx. | 498mm |
| Height (product) approx. | 978mm | Length max. (product) approx. | 1085mm |
| Net weight approx. |
78kg | Height max. (product) approx. | 1300mm |
| Electrical Data | |||
| Drive motor output |
1.1kW | Supply voltage |
230V |
| Mains frequency | 50Hz | ||
| Machine Data | |||
| Saw band speed(s) | 22 / 31 /55 m/min | Saw band length | 1638mm |
| Saw band width | 13mm | Saw band thickness | 0.65mm |
| Cutting angle | -45 –+ 60° | Feed |
Infinitely variable |
| Lifting the saw bow | Manual | ||
| Cutting Ranges | |||
| Cutting range 0° round (solid material) | 128mm | Cutting range 0° rectangular lying (solid material)l) | 100 x 145mm |
| Cutting range -45° round (solid material) | 90mm | Cutting range -45° round (solid material) | 70 x 85mm |
| Cutting range -45° round (solid material) | 90mm | Cutting range -45° round (solid material) | 70 x 85mm |
| Cutting range -45° round (solid material) | 45mm | Cutting range +60° rectangular horizontal (solid material) | 45 x 55mm |
