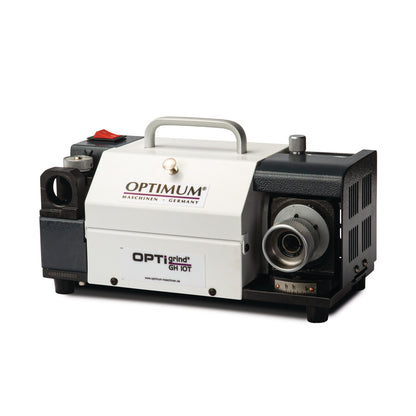

Optimum OPTIgrind GH 10T (1 Phase 230v)
Optimum OPTIgrind GH 10T (1 Phase 230v)
Regular price
£839.00 GBP
Regular price
Sale price
£839.00 GBP
Unit price
/
per
Couldn't load pickup availability
Share
The handy models - ideal for grinding twist drills
- Easy operation for precise and cost-effective grinding of double-edged twist drills
- Drill loops with no previous knowledge - clean, fast and precise
- Easy to transport
- Steel disc coated with cubic crystalline boron nitride
- Complete equipment with ER collets in the interior of the machine

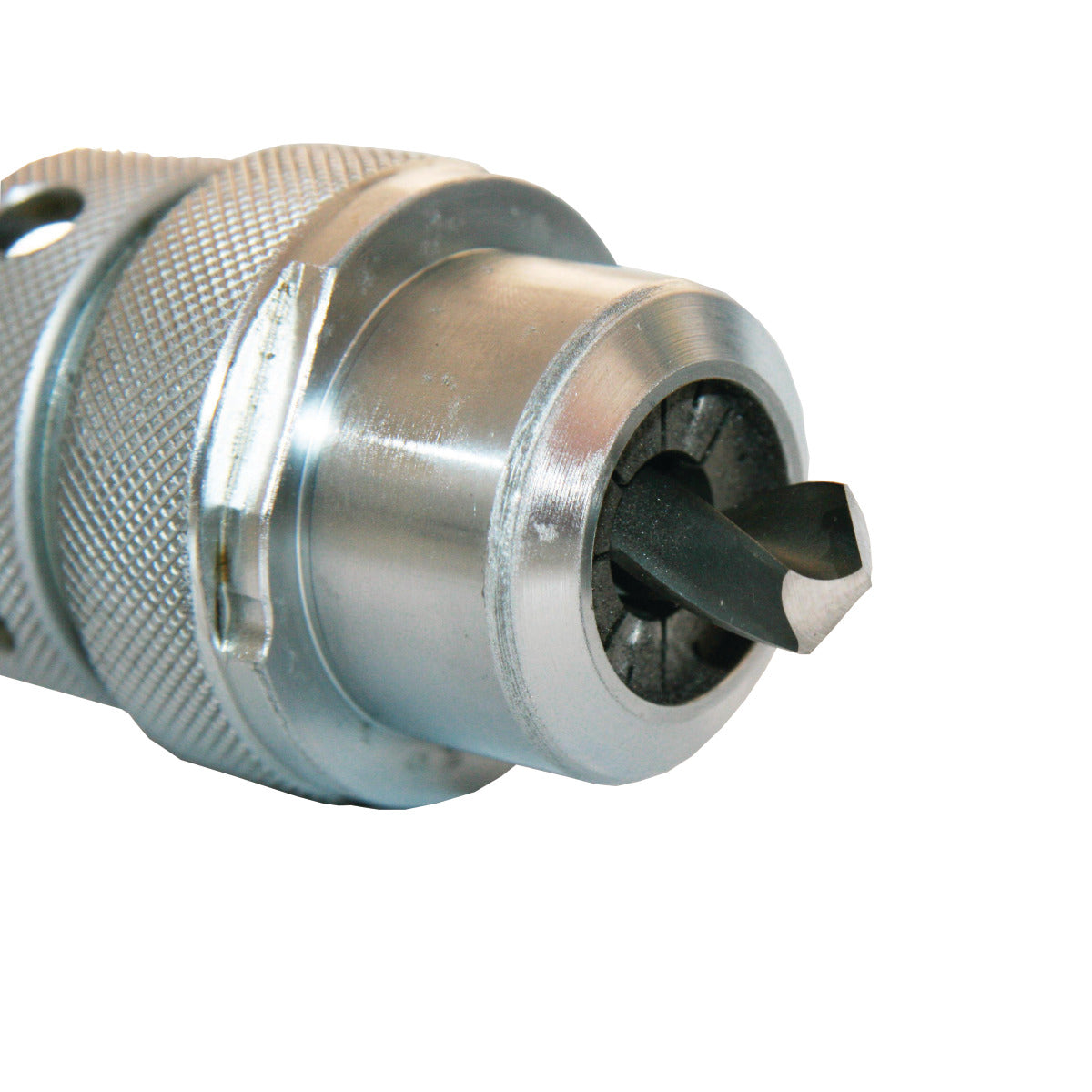

- The cutting edges of the drill are fixed in the collet holder by means of the adjusting aid in a defined position and introduced in a predetermined order in the grinding openings to grind the blades with a short rotational movement of the collet holder
DELIVERY CONTENTS
- 11 pieces collets ER 20 sizes Ø 2 to Ø 13 mm
TECHNICAL SPEC
| General Features | |||
| Speed | 5300min¯¹ | Grinding capacity drill diameter | 3 – 13mm |
| Tip sharpening angle | 90 – 135° | ||
| Dimensions and Weights | |||
| Length (product) approx. | 310mm | Width/depth (product) approx. | 180mm |
| Height (product) approx. | 190mm | Net weight approx. | 9.5kg |
| Brushes | |||
| Multi purpose wire brush outer diameter | 150mm | Multi purpose wire brush width | 20mm |
| Electrical Data | |||
| Drive motor output | 0.18kW | Supply voltage | 230V |
| Mains frequency |
50Hz |
