Optimum OPTIdrill DQ 25 Floor Drill Upright Drill (3 Ph 400v)

Optimum OPTIdrill DQ 25 Floor Drill Upright Drill (3 Ph 400v)

£780.00 GBP
£780.00 GBP
Sale Sold out
  • Precisely machined drilling table, ± 45° sideways tiltable and 360° rotatable
  • Massive, large dimensioned base plate with grooves, heavily ribbed at the backside
  • Ground multi-tooth driver
  • Best power transmission through aluminium pulleys in combination with toothed GATES quality V-belt
  • Guaranteed concentricity accuracy better than 0.03 mm measured in the drill spindle
  • Drill spindle with precision ball bearing
  • Quick action drill chuck as standard equipment
  • Belt cover with safety switch
  • Easy to use switch according to IP 54
  • Separate emergency stop pushbutton switch
DELIVERY CONTENTS
  • Quick action drill chuck 1 - 16 mm
  • T-nuts
  • Morse taper MK 3/B16 (DQ 25)
  • Morse taper MK 4/B16 (DQ 32)
  • drift punch

TECHNICAL SPEC

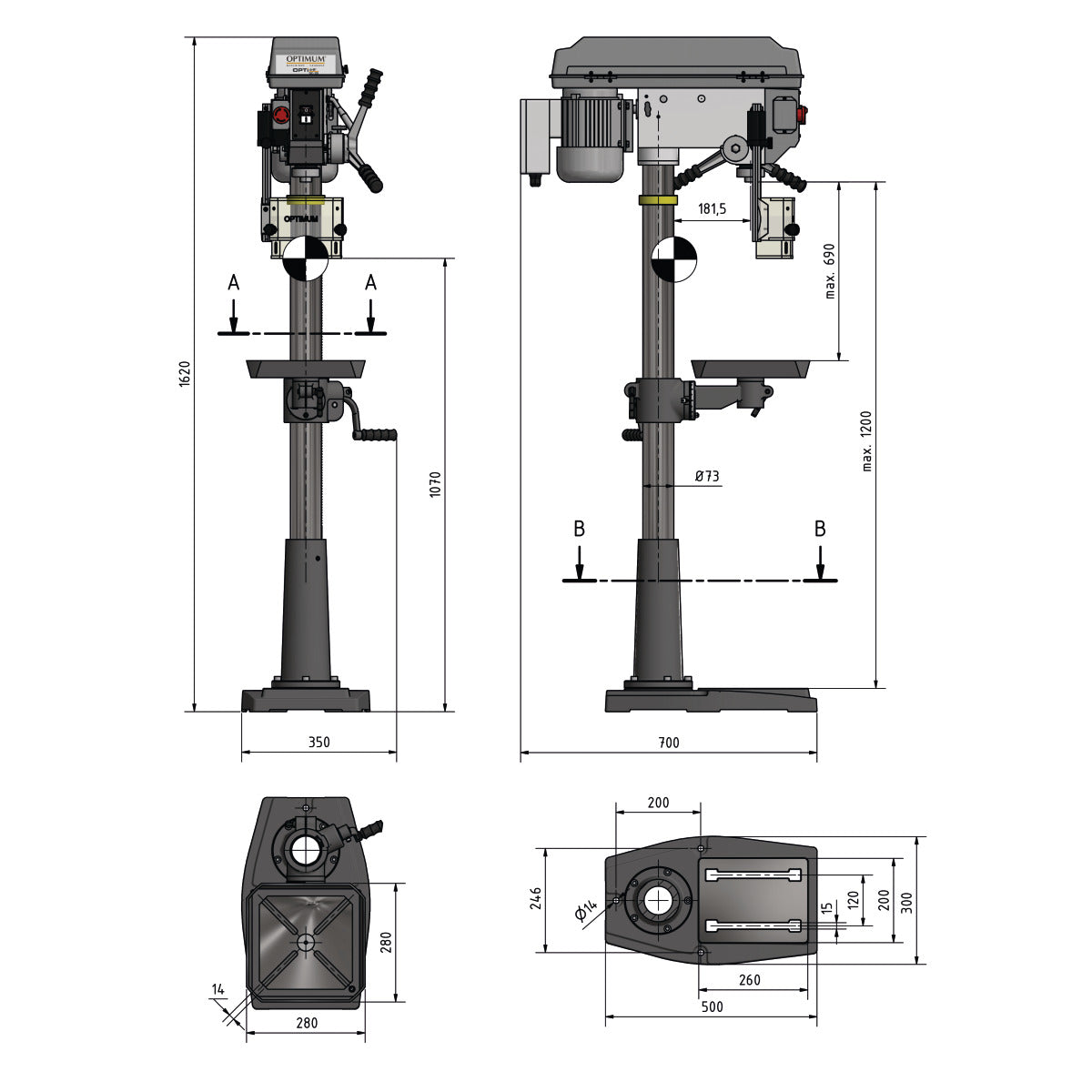

Dimensions and Weights
Column diameter 73mm Length 700mm
Width/Depth 350mm Height 1620mm
Net Weight 71kg

Drilling Performance
Drilling performance steel 25mm Continuous drilling performance steel 20mm
Drilling Table
Drilling table length 280mm Drilling table width 280mm
Drilling table T-groove type Diagonal Drilling table T-groove size 14mm
Drilling table T-groove number 2
 Drilling table rotation 360°
Drilling table angle 45°
 Drilling table load bearing capacity 40kg
Max. distance spindle - drilling table 690mm
Speed Range
Speed range 200 - 2440min¯¹ Number of gears 12
Electrical Data
Supply Voltage 400V Mains frequency 50Hz
Drive motor output 0.75kW
Machine Base
Max. distance spindle - machine base 1200mm Machine base workspace length 500mm
Machine base workspace width 300mm Machine base T-groove size 15mm
Machine base T-groove number 2 Machine base T-groove spacing 120mm
Spindle
Quill stroke 80mm Spindle chuck MK 3
Reach  181mm
