Optimum OPTIdrill DP 26-F Drilling Machine (3 Ph 400v)

Optimum OPTIdrill DP 26-F Drilling Machine (3 Ph 400v)

£1,914.00 GBP
£1,914.00 GBP
Sale Sold out
  • Heavy-duty version
  • Highly quiet running thanks to new spindle design
  • Industrial motor
  • Separate emergency-stop pushbutton
  • Drilling depth stop
  • LED machine light integrated in drill head
  • Precisely machined, Stable drilling table with diagonally running T-slots with circulating cooling water channel
  • Drilling table inclinable ± 45° and rotatable 360°
  • V-belt cover with safety switch
  • Precision spindle bore
  • Machine operation Safety electrics in 24 V DC voltage
  • Guaranteed concentricity ≤ 0.02 mm measured in the drilling spindle
  • Thick-walled steel column for high force absorption and stability
  • Massive, large dimensioned base plate with T-slots
DELIVERY CONTENTS
  • Quick-release drill chuck 0 - 16 mm
  • T-Nutensteine
  • Outing
  • Adapter MK 3-B16
  • Operating tool

TECHNICAL SPEC

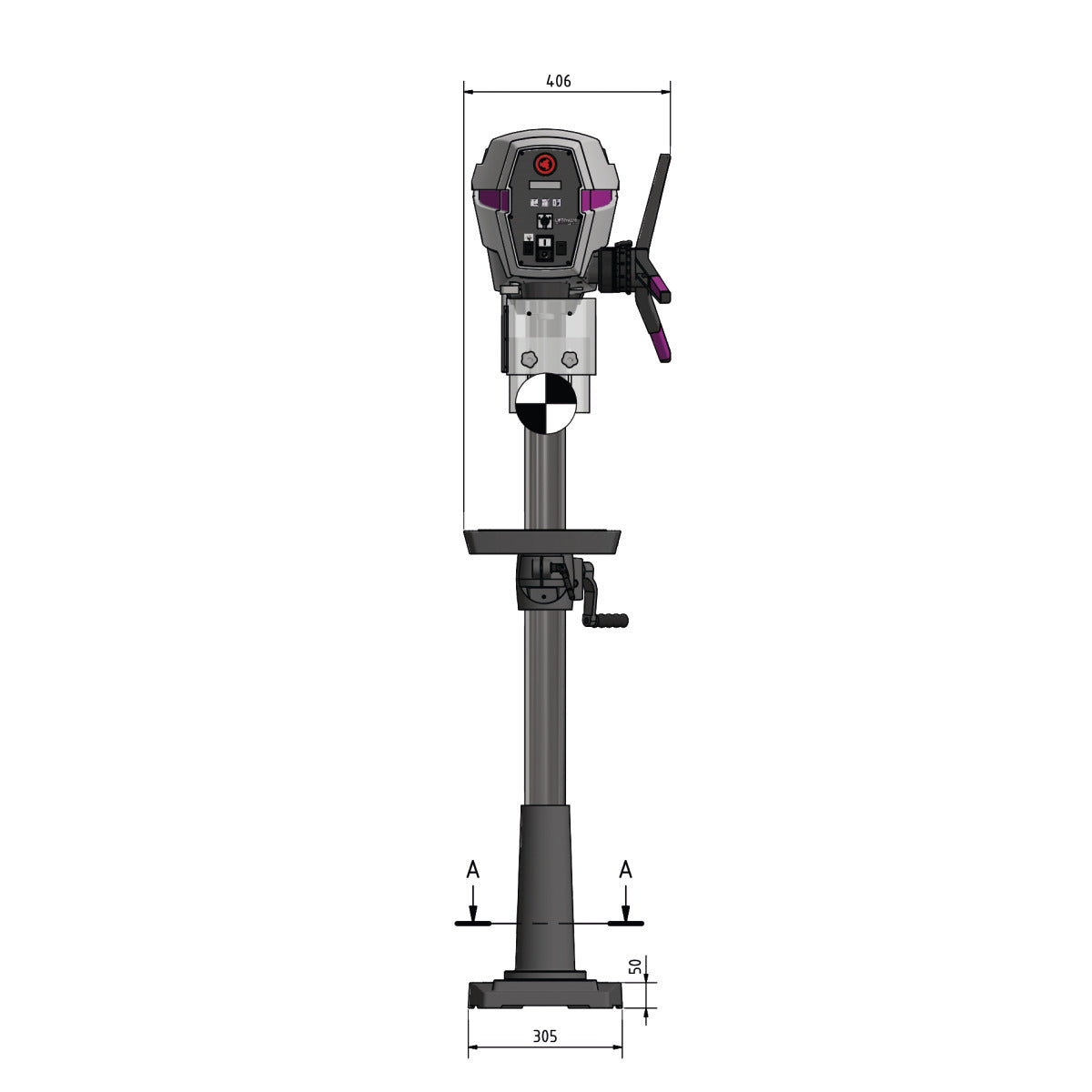

Dimensions and Weights
Column diameter 80mm Length 748mm
Width/Depth 406mm Height 1724mm
Net Weight 105kg

Drilling Performance
Drilling performance steel 25mm Continuous drilling performance steel 20mm
Drilling Table
Drilling table length 308mm Drilling table width 308mm
Drilling table T-groove type Diagonal Drilling table T-groove size 12mm
Drilling table T-groove number 2
 Drilling table rotation 360°
Drilling table angle 45°
 Drilling table load bearing capacity 45kg
Max. distance spindle - drilling table 770mm

Speed Range
Speed range 200 - 2440min¯¹ Number of gears 12
Electrical Data
Supply Voltage 400V Mains frequency 50Hz
Drive motor output 0.75kW
Machine Base
Max. distance spindle - machine base 1300mm Machine base workspace length 202mm
Machine base workspace width 265mm Machine base T-groove size 14mm
Machine base T-groove number 2 Machine base T-groove spacing 120mm
Spindle
Quill stroke 95mm Spindle chuck MK 3
Reach  209mm
