Optimum OPTIdrill DP 26-F Drilling Machine (1 Ph 230v)
Optimum OPTIdrill DP 26-F Drilling Machine (1 Ph 230v)
Regular price
£1,890.00 GBP
Regular price
Sale price
£1,890.00 GBP
Unit price
/
per
Couldn't load pickup availability
Share
- Heavy-duty version
- Highly quiet running thanks to new spindle design
- Industrial motor
- Separate emergency-stop pushbutton
- Drilling depth stop
- LED machine light integrated in drill head
- Precisely machined, Stable drilling table with diagonally running T-slots with circulating cooling water channel
- Drilling table inclinable ± 45° and rotatable 360°
- V-belt cover with safety switch
- Precision spindle bore
- Machine operation Safety electrics in 24 V DC voltage
- Guaranteed concentricity ≤ 0.02 mm measured in the drilling spindle
- Thick-walled steel column for high force absorption and stability
- Massive, large dimensioned base plate with T-slots
DELIVERY CONTENTS
- Quick-release drill chuck 0 - 16 mm
- T-Nutensteine
- Outing
- Adapter MK 3-B16
- Operating tool
TECHNICAL SPEC

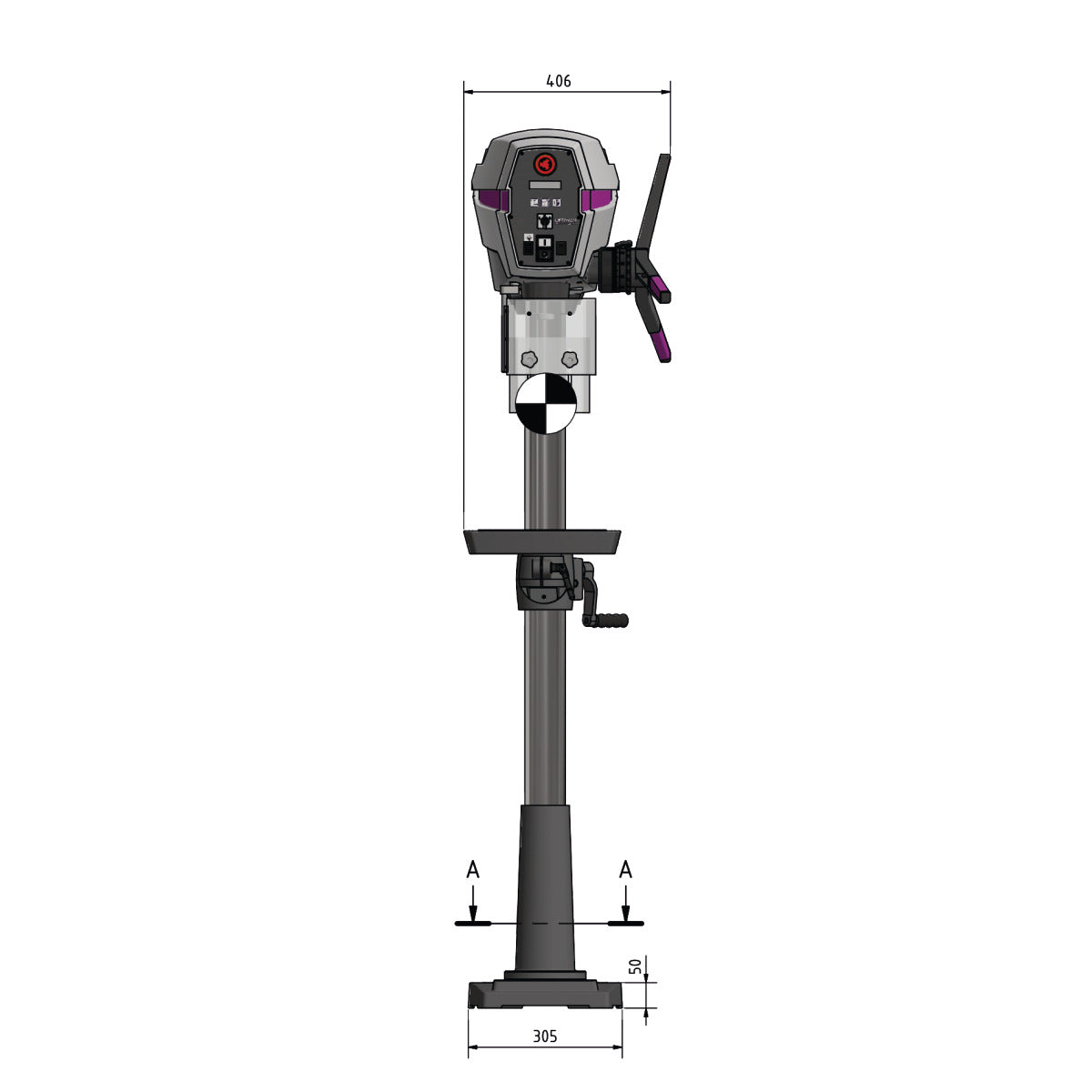

| Dimensions and Weights | |||
| Column diameter | 80mm | Length | 748mm |
| Width/Depth | 406mm | Height | 1724mm |
| Net Weight | 116kg |
||
| Drilling Performance | |||
| Drilling performance steel | 25mm | Continuous drilling performance steel | 20mm |
| Drilling Table | |||
| Drilling table length | 308mm | Drilling table width | 308mm |
| Drilling table T-groove type | Diagonal | Drilling table T-groove size | 12mm |
| Drilling table T-groove number | 2 |
Drilling table rotation | 360° |
| Drilling table angle | 45° |
Drilling table load bearing capacity | 45kg |
| Max. distance spindle - drilling table | 770mm | ||
| Speed Range | |||
| Speed range | 200 - 2440min¯¹ | Number of gears | 12 |
| Electrical Data | |||
| Supply Voltage | 230V | Mains frequency | 50Hz |
| Drive motor output | 0.75kW | ||
| Spindle | |||
| Quill stroke | 95mm | Spindle chuck | MK 3 |
| Reach | 209mm |
