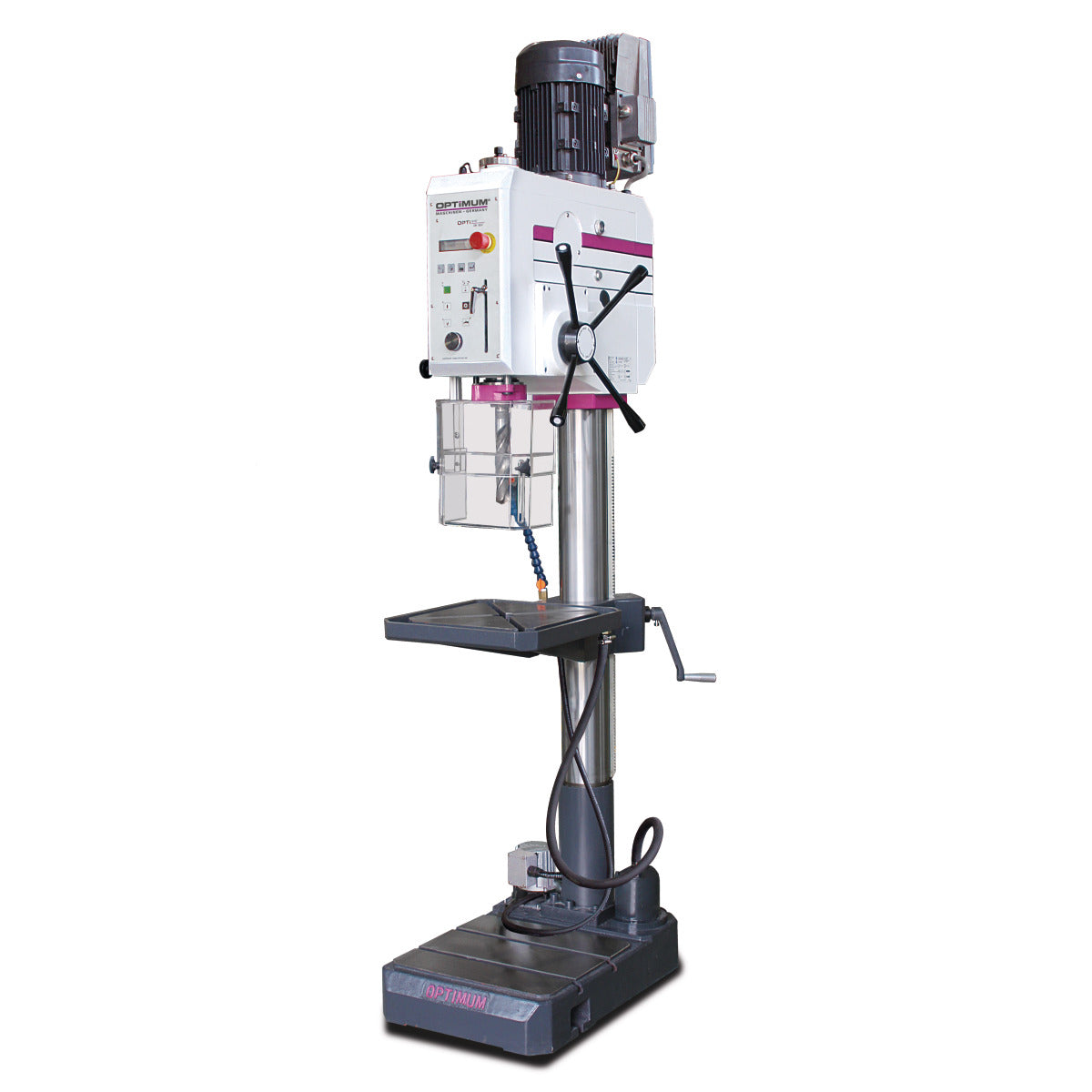

Optimum OPTIdrill DH35V Drilling Machine (3 Ph 400v)
Optimum OPTIdrill DH35V Drilling Machine (3 Ph 400v)
Regular price
£10,074.00 GBP
Regular price
Sale price
£10,074.00 GBP
Unit price
/
per
Couldn't load pickup availability
Share
- Heavy, solid cast iron construction
- Infinitely variable speed control
- High concentricity due to hardened and ground main spindle
- Thread cutting device
- Main switch
- Largely dimensioned, height-adjustable safety guard with safety switch for maximum protection of the user
- Drilling depth stop
- 24V DC electronics
- Electronic quill feed
- Dirt and water resistant, easy to clean membrane keyboard
- Optional foot switch for switching between clockwise and counter clockwise rotation and for thread cutting
- Programmable feed cut-off
- Gear in oil bath
DELIVERY CONTENTS
- Keyless chuck 1 - 16 mm
- Morse cone MK 4-B16
- Transmission oil
TECHNICAL SPEC
| Dimensions and Weights | |||
| Column diameter | 115mm | Length | 860mm |
| Width/Depth | 474mm | Height | 2175mm |
| Net Weight | 365kg |
||
| Drilling Performance | |||
| Drilling performance steel | 35mm | Continuous drilling performance steel | 26mm |
| Thread tapping steel | M42 | ||
| Drilling Table | |||
| Drilling table length | 400mm | Drilling table width | 420mm |
| Drilling table T-groove type | Diagonal | Drilling table T-groove size | 14mm |
| Drilling table T-groove number | 2 |
Drilling table rotation | 360° |
| Drilling table load bearing capacity | 200kg |
Max. distance spindle | 800mm |
| Min. distance spindle - drilling table | 65mm | ||
| Speed Range | |||
| Speed range | 30 - 2950min¯¹ | Number of gears | 4 steps |
| Speed control | electronically adjustable | ||
| Electrical Data | |||
| Supply Voltage | 400V | Mains frequency | 50Hz |
| Drive motor output | 2.2kW | ||
| Spindle | |||
| Quill stroke | 125mm | Spindle chuck | MT 4 |
| Reach | 285mm | Quill diameter | 60mm |
