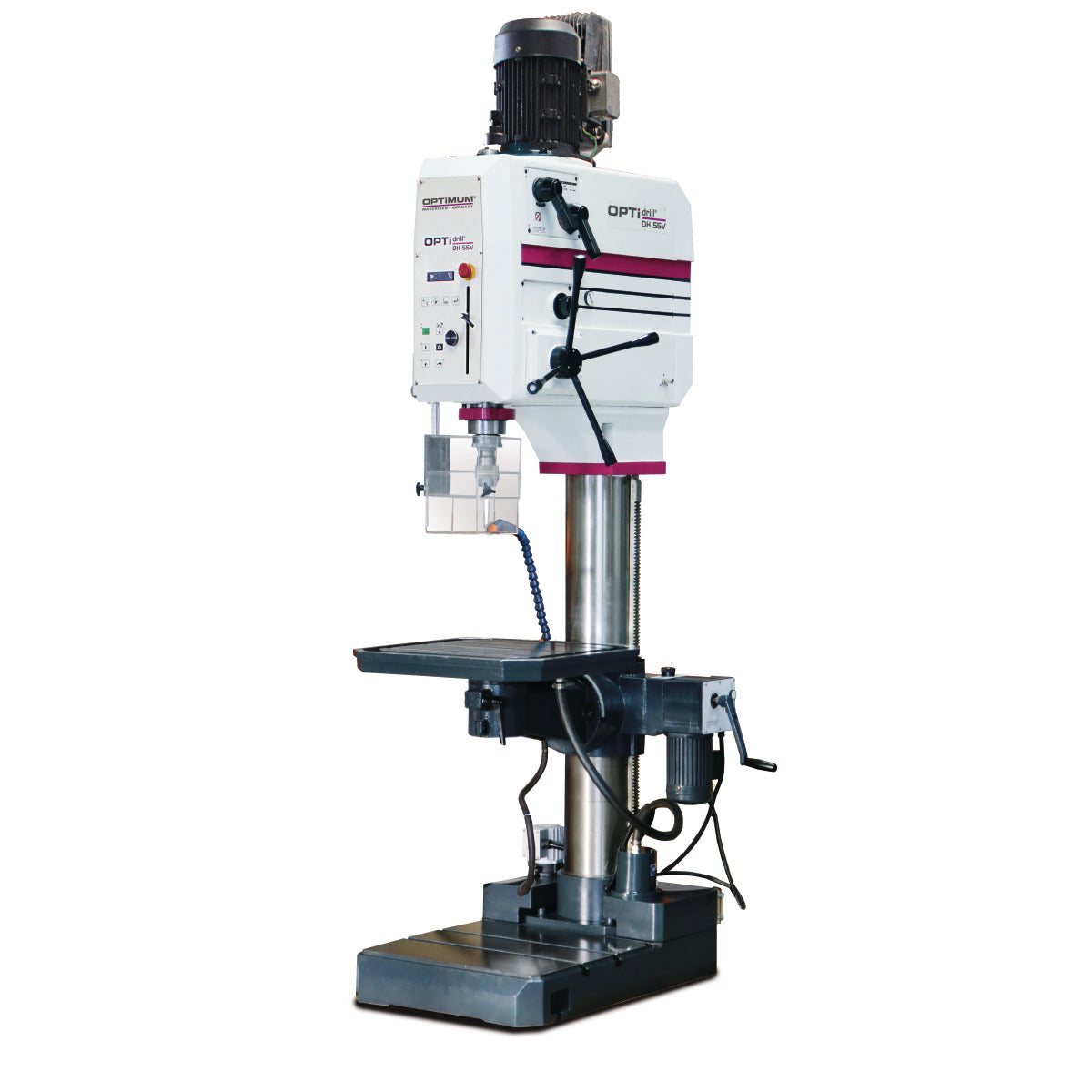

Optimum OPTIdrill DH 55V Drilling Machine (3 Ph 400v)
Optimum OPTIdrill DH 55V Drilling Machine (3 Ph 400v)
Regular price
£18,600.00 GBP
Regular price
Sale price
£18,600.00 GBP
Unit price
/
per
Couldn't load pickup availability
Share
- Infinitely variable speed control
- High concentricity due to hardened and ground main spindle
- Thread cutting device
- Main switch
- Largely dimensioned, height-adjustable safety screen with safety switch for maximum protection of the user
- Drilling depth stop
- 24V DC electronics
- Electronic quill feed
- Dirt and water resistant, easy to clean membrane keypad
- Optional foot switch for switching between clockwise and counterclockwise rotation and for thread cutting
- Programmable feed cut-off
- Easy-to-read digital display
- Digitally adjustable drilling and thread depth
- Digital zero point can be set
- External coolant tank
DELIVERY CONTENTS
- Keyless chuck 1 - 16 mm
- Morse cone MK 4-B16
- Transmission oil
TECHNICAL SPEC
| Dimensions and Weights | |||
| Length | 850mm | Width/Depth | 1060mm |
| Height | 2500mm | Net Weight | 900kg |
| Drilling Performance | |||
| Drilling performance steel | 55mm | Continuous drilling performance steel | 50mm |
| Thread tapping steel | M42 | ||
| Drilling Table | |||
| Drilling table length | 600mm | Drilling table width | 600mm |
| Drilling table T-groove size | 16mm |
Drilling table T-groove number | 3 |
| Drilling table T-groove spacing | 160mm | Drilling table load bearing capacity | 350kg |
| Max. distance spindle | 725mm | Min. distance spindle - drilling table | 130mm |
| Speed Range | |||
| Speed range | 10 - 3000min¯¹ | Number of gears | 4 steps |
| Electrical Data | |||
| Supply Voltage | 400V | Mains frequency | 50Hz |
| Drive motor output | 2.8kW | ||
| Spindle | |||
| Quill stroke | 190mm | Spindle chuck | MT 4 |
| Reach | 405mm | Quill diameter | 60mm |
