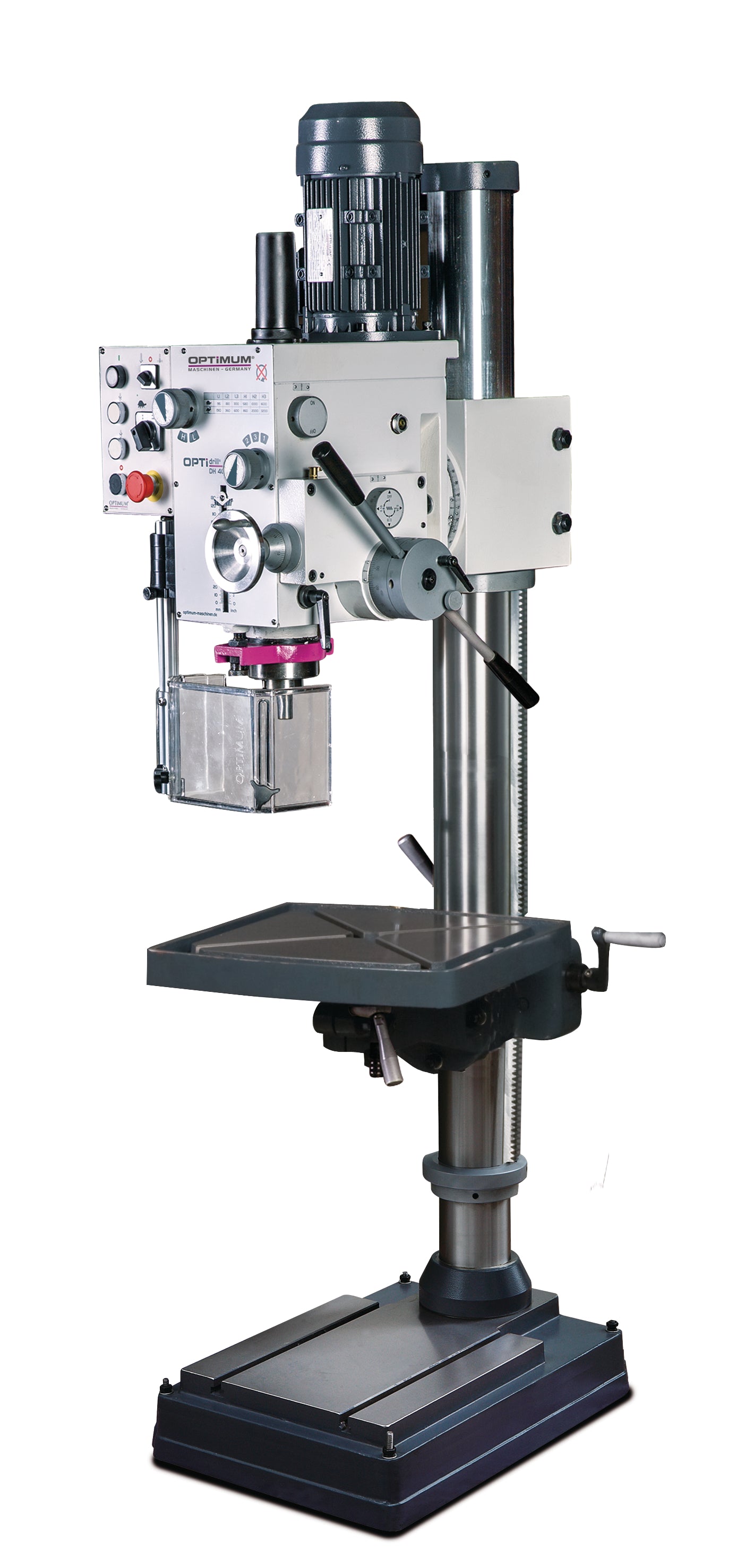

Optimum OPTIdrill DH 40GP Drilling machine (3 Ph 400v)
Optimum OPTIdrill DH 40GP Drilling machine (3 Ph 400v)
Regular price
£4,554.00 GBP
Regular price
Sale price
£4,554.00 GBP
Unit price
/
per
Couldn't load pickup availability
Share
- Heavy, solid cast construction
- Smooth running due to polished gear wheels running in oil bath
- Two-stage industrial electric motor
- Tapping function
- Gear head and table can be adjusted in height
- Large speed range of 95 - 3,200 rpm through 12 switchable speeds
- Large dimensioned, solid drilling table, precisely worked with diagonal T-slots and circumferential cooling water channel; strongly ribbed on the reverse and double clamped
- Depth stop
- Height-adjustable feed guard with micro-switch for the utmost protection of the user
- Coupling for switching from manual coarse feed to manual fine feed
- Thick-walled cast-iron column for high power absorption and stability
- Solid precision surface machined base plate; by pivoting away the drill table can be used as a work surface for particularly high workpieces
DELIVERY CONTENTS
- Gear rim drill chuck 1-13 mm/B16
- Taper mandrel for MK4/B16 drill chuck
- Tightening rod M 16
- Adapter MK4-MK3
- Operating tool
TECHNICAL SPEC
| Dimensions and Weights | |||
| Length (product) approx. | 590mm | Width/depth (product) approx. | 700mm |
| Height (product) approx. | 2050mm | Net weight approx. | 335kg |
| Drilling Performance | |||
| Drilling performance steel (S235JR) | 32mm | Continuous drilling performance steel (S235JR) | 25mm |
| Thread tapping steel (S235JR) | M16 | ||
| Drilling Table | |||
| Drilling table workspace length | 500mm | Drilling table workspace width | 460mm |
| Drilling table T-groove type | diagonal | Drilling table T-groove size | 14mm |
| Drilling table T-groove number | 2 | Drilling table load bearing capacity | 50kg |
| Speed range | |||
| Speed range | 95 – 3200min¯¹ | Number of gears | 2 x 6Steps |
| Electrical Data | |||
| Drive motor output | 1.1 / 1.5kW | Supply voltage | 400V |
| Mains frequency | 50Hz | ||
| Spindle | |||
| Quill stroke | 120mm | Spindle chuck | MT 4 |
| Reach | 280mm | Drilling head rotation | 45° |
| Drilling head angle | 360° | Quill feed | automatic |
| Quill feed speed | 0.1 / 0.18 / 0.26mm/rev | Quill feed gears | 3Steps |
| Drilling head height adjustment | 265mm |
