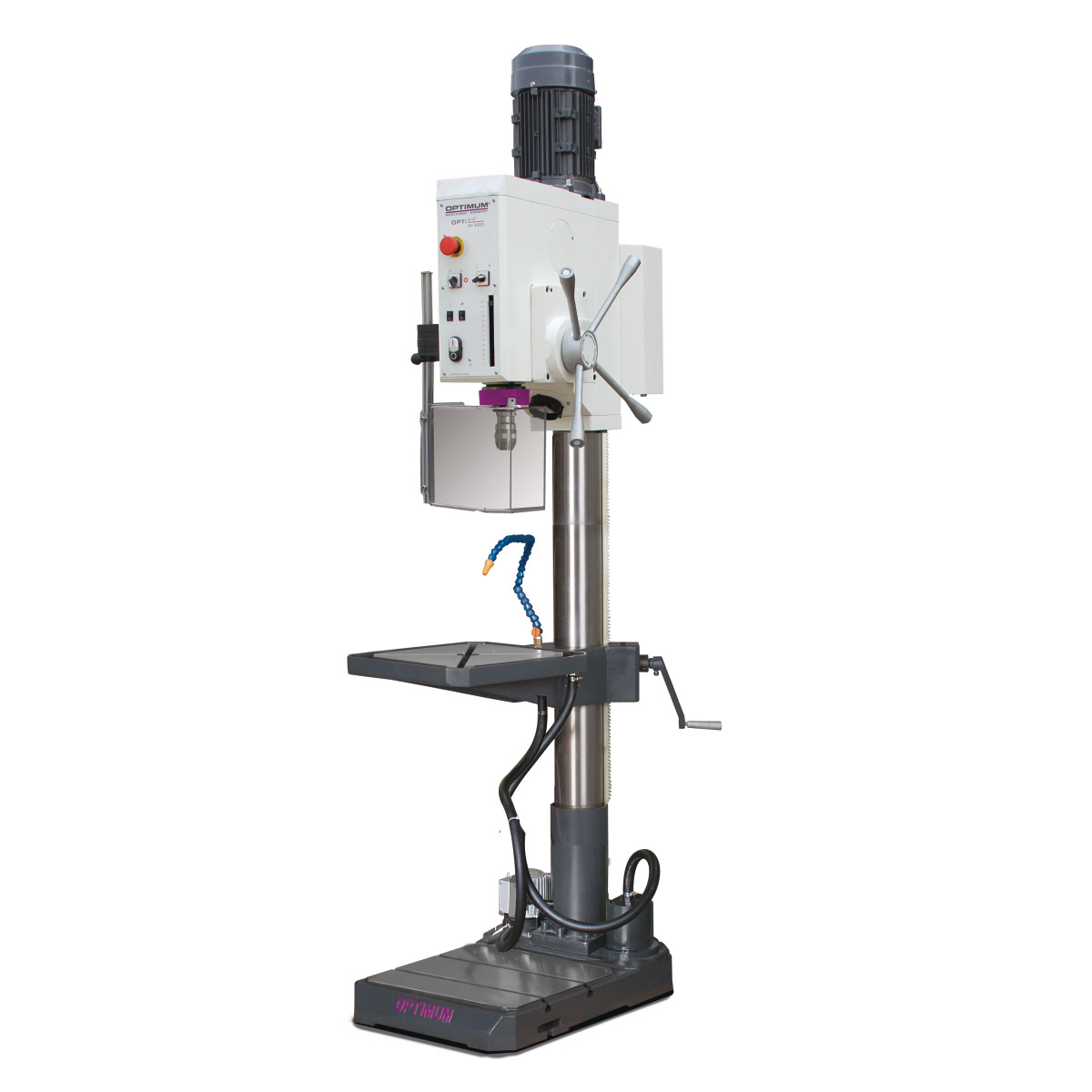

Optimum OPTIdrill DH 32GS Drilling machine (3 Ph 400v)

Optimum OPTIdrill DH 32GS Drilling machine (3 Ph 400v)

£4,620.00 GBP
£4,620.00 GBP
Sale Sold out
  • High concentricity due to hardened and ground main spindle
  • Low-maintenance gearbox with grease lubrication
  • Gearbox with PA6 gears
  • Large speed range
  • Heavy, solid cast construction
  • Large, height-adjustable protective screen with safety switch for the utmost protection of the user
  • Drilling depth stop adjustable with millimeter scale
  • Forward / reverse operation
  • Machine light integrated in the drill head
  • Integrated expeller for easy tool change
  • Precision machined drilling table with diagonal T-slots with all-round cooling water channel
  • Thick-walled cast-iron column for high power absorption and stability
  • Massive base plate, large dimensions and strongly ribbed on the back
DELIVERY CONTENTS
  • Adapter MK4-B16

TECHNICAL SPEC

Dimensions and Weights
Column diameter 115mm Length 725mm
Width/Depth 450mm Height 2200mm
Net Weight 312kg
Drilling Performance
Drilling performance steel 30mm Continuous drilling performance steel 26mm
Thread tapping steel M16 x 2mm
Drilling Table
Drilling table length 400mm Drilling table width 420mm
Drilling table T-groove type diagonal Drilling table T-groove size 14mm
Drilling table T-groove number 2 Drilling table rotation 360°
Max. distance spindle 820mm Drilling table load bearing capacity 120kg
Speed Range
Speed range 75 - 2000min¯¹ Number of gears 8 steps
Electrical Data
Supply Voltage 400V Mains frequency 50Hz
Machine Base
Max. distance spindle 1270mm Machine base length 450mm
Machine base width 395mm Machine base T-groove size 14mm
Machine base T-groove n. 2 Machine base T-groove space 150mm
Spindle
Quill stroke 125mm Spindle chuck MT 4
Reach  285mm Quill feed speed 0.05 / 0.1 mm/rev
Motor(s)
Spindle motor drive output 1.5 / 2.2kW Coolant pump drive motor output 40W
