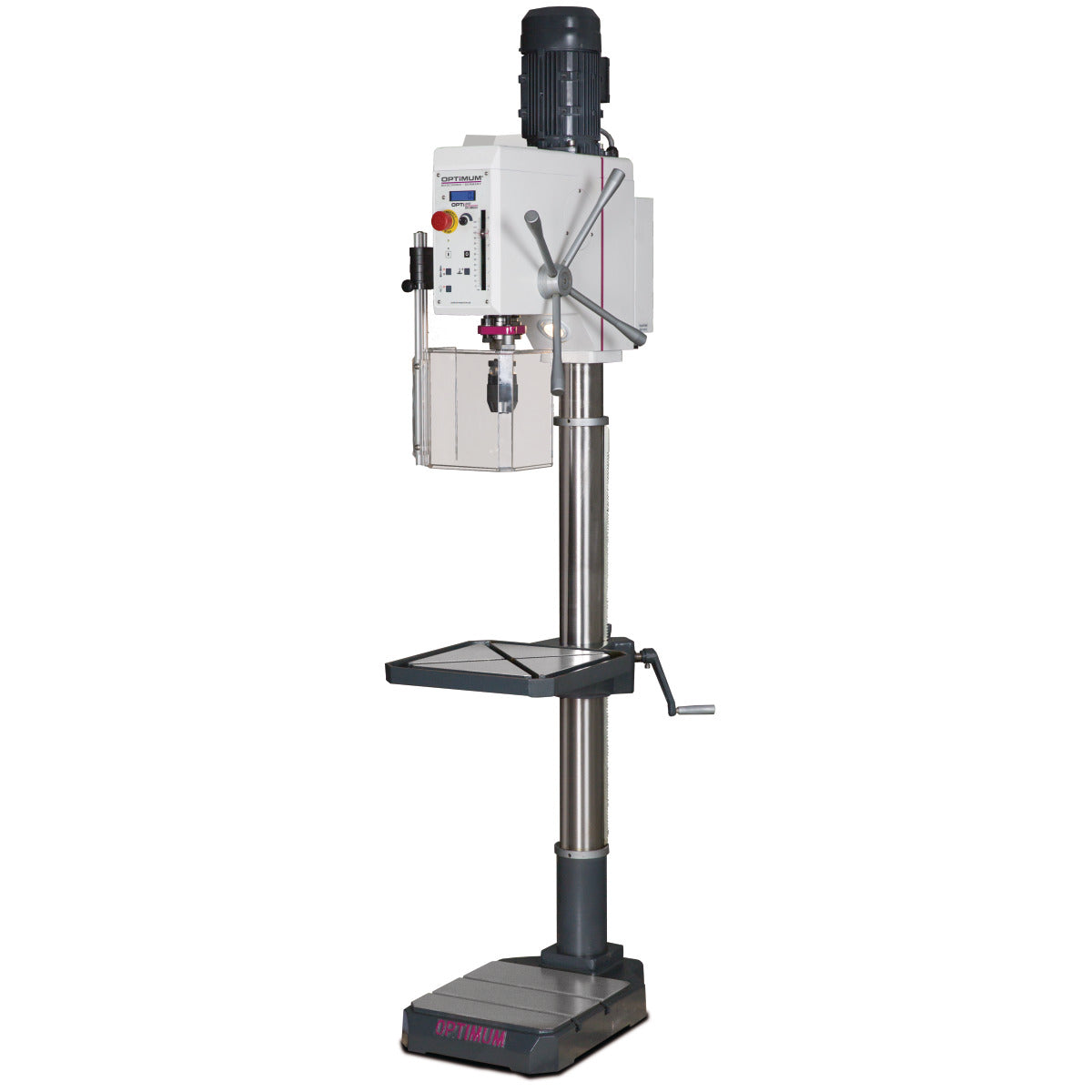

Optimum OPTIdrill DH 28GSV Drilling Machine (3 Ph 400v)
Optimum OPTIdrill DH 28GSV Drilling Machine (3 Ph 400v)
Regular price
£5,034.00 GBP
Regular price
Sale price
£5,034.00 GBP
Unit price
/
per
Couldn't load pickup availability
Share

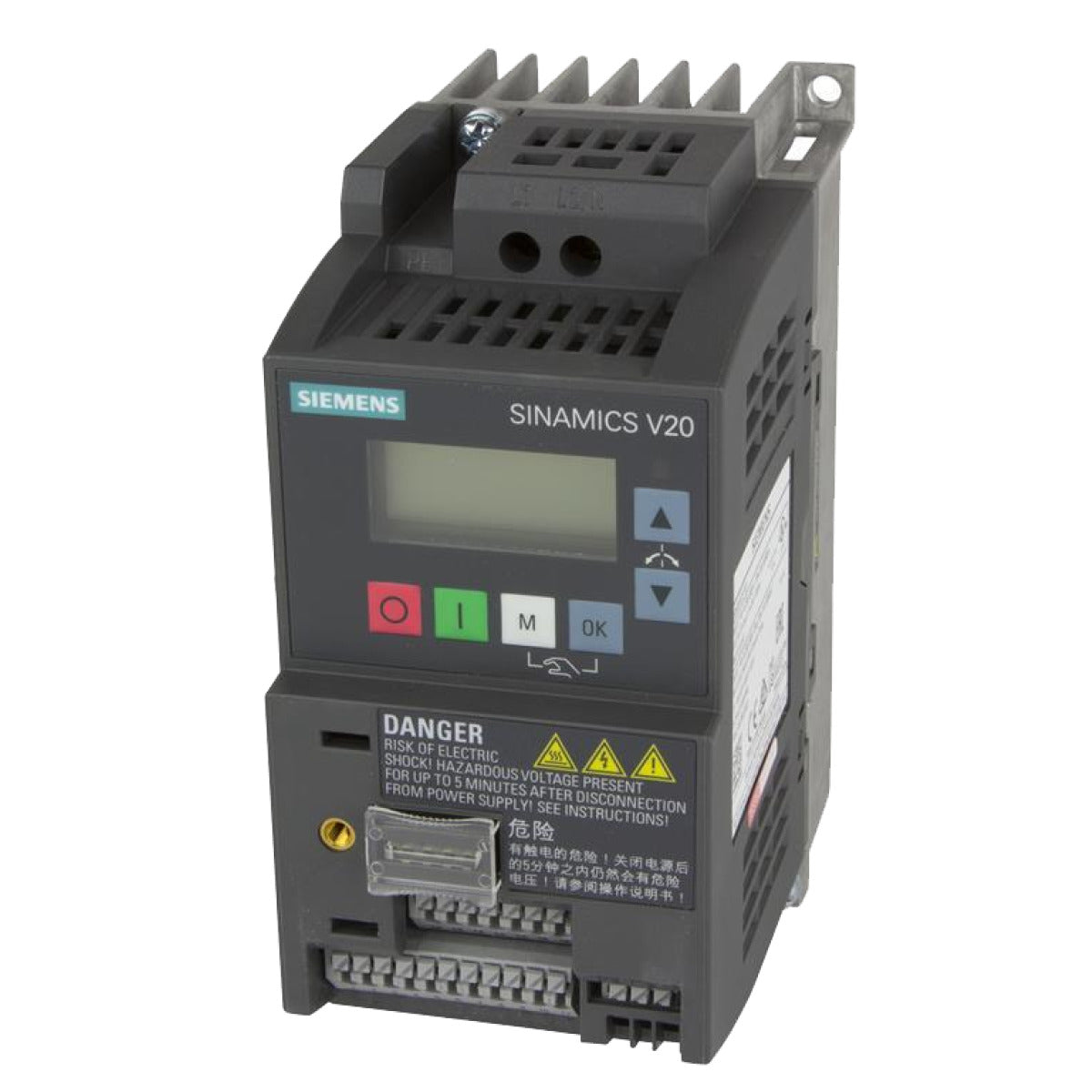

- Frequency converter

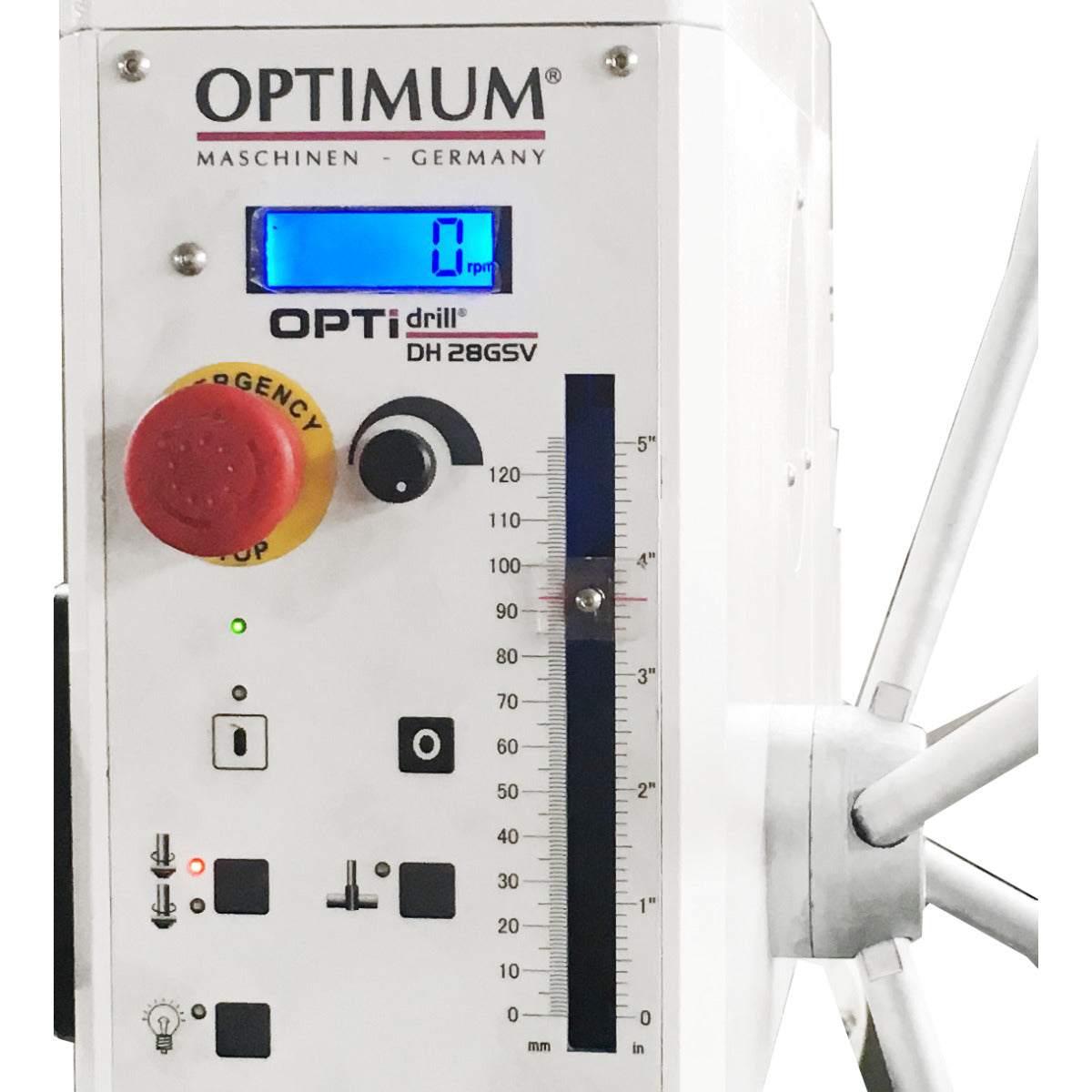

- Digital speed display
- Smooth running thanks to ground multi-tooth driver
- High concentricity due to hardened and ground main spindle
- Low-maintenance gearbox with grease lubrication
- Gearbox with PA6 gears
- Large speed range
- User-friendly membrane keyboard
- Heavy, solid cast construction
- Large, height-adjustable protective screen with safety switch for the utmost protection of the user
- Drilling depth stop adjustable with millimeter scale
- Forward/reverse operation
- Tapping function
- Machine light integrated in the drill head
- Integrated expeller for easy tool change
- Precision machined drilling table with diagonal T-slots with all-round cooling water channel
- Thick-walled cast-iron column for high power absorption and stability
- Massive base plate, large dimensions and strongly ribbed on the back
- Optional foot switch for switching between right-left rotation and thread cutting (article no. 3050032) available
DELIVERY CONTENTS
- Adapter MK3-B16
TECHNICAL SPEC

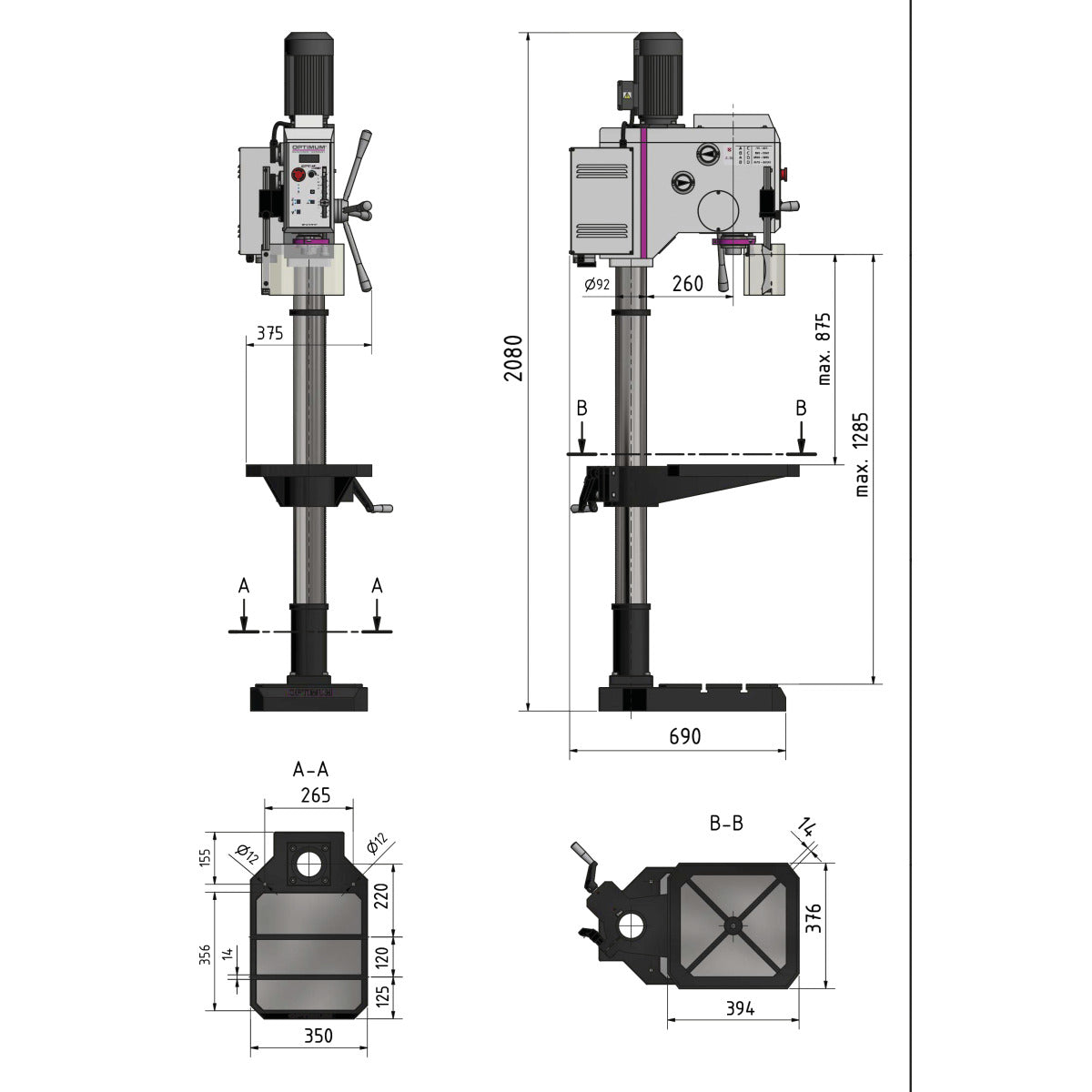

| Dimensions and Weights | |||
| Column diameter | 92mm | Length | 690mm |
| Width/Depth | 375mm | Height | 2080mm |
| Net Weight | 184kg | ||
| Drilling Performance | |||
| Drilling performance steel | 26mm | Continuous drilling performance steel | 23mm |
| Thread tapping steel | M16 x 2mm | ||
| Drilling Table | |||
| Drilling table length | 376mm | Drilling table width | 394mm |
| Drilling table T-groove type | diagonal | Drilling table T-groove size | 14mm |
| Drilling table T-groove number | 2 | Drilling table rotation | 360° |
| Max. distance spindle | 875mm | Drilling table load bearing capacity | 100kg |
| Speed Range | |||
| Speed range | 45 - 3200min¯¹ | Number of gears | 4 steps |
| Electrical Data | |||
| Supply Voltage | 400V | Mains frequency | 50Hz |
| Machine Base | |||
| Max. distance spindle | 1285mm | Machine base length | 350mm |
| Machine base width | 356mm | Machine base T-groove size | 14mm |
| Machine base T-groove n. | 2 | Machine base T-groove space | 120mm |
| Standards and Certifications | |||
| Standard | DIN EN 55011 | EMV-Class | C2 |
| Spindle | |||
| Quill stroke | 127mm | Spindle chuck | MK 3 |
| Reach | 260mm | ||
| Motor(s) | |||
| Spindle motor drive output | 1.5kW |
