Optimum OPTIdrill DH 28FS Drilling Machine (3 Ph 400v)
Optimum OPTIdrill DH 28FS Drilling Machine (3 Ph 400v)
Regular price
£2,874.00 GBP
Regular price
Sale price
£2,874.00 GBP
Unit price
/
per
Couldn't load pickup availability
Share
- Powerful brushless drive with particularly smooth running, as well as high performance with approximately constant torque over the entire speed range
- Best power transmission through aluminium pulleys in combination with toothed GATES quality wedge belt
- High smoothness thanks to ground multi-tooth handle
- Concentricity guaranteed to be less than 0.015 mm measured in the drill
- Separate emergency stop switch
- Digital speed display integrated in the housing
- High-quality OPTIMUM quick-release drill chuck as standard
- Large-sized, height-adjustable protective screen with safety switch for maximum protection of the user
- Drilling depth stop
- V-belt cover with safety switch
- V-belt clamping device
- Right/Left Run
- Machine light in the drill head Integrated
- Precisely worked, stable drilling table with 2 diagonally running T-slots, 360° rotatable and circumferential cooling water channel
- Thick-walled casting column for high force absorption and stability
- Massive base plate, large sized and heavily ribbed on the back
DELIVERY CONTENTS
- Quick-release drill chuck 1 - 16 mm
- Morsekonus
- T-Nutensteine
TECHNICAL SPEC

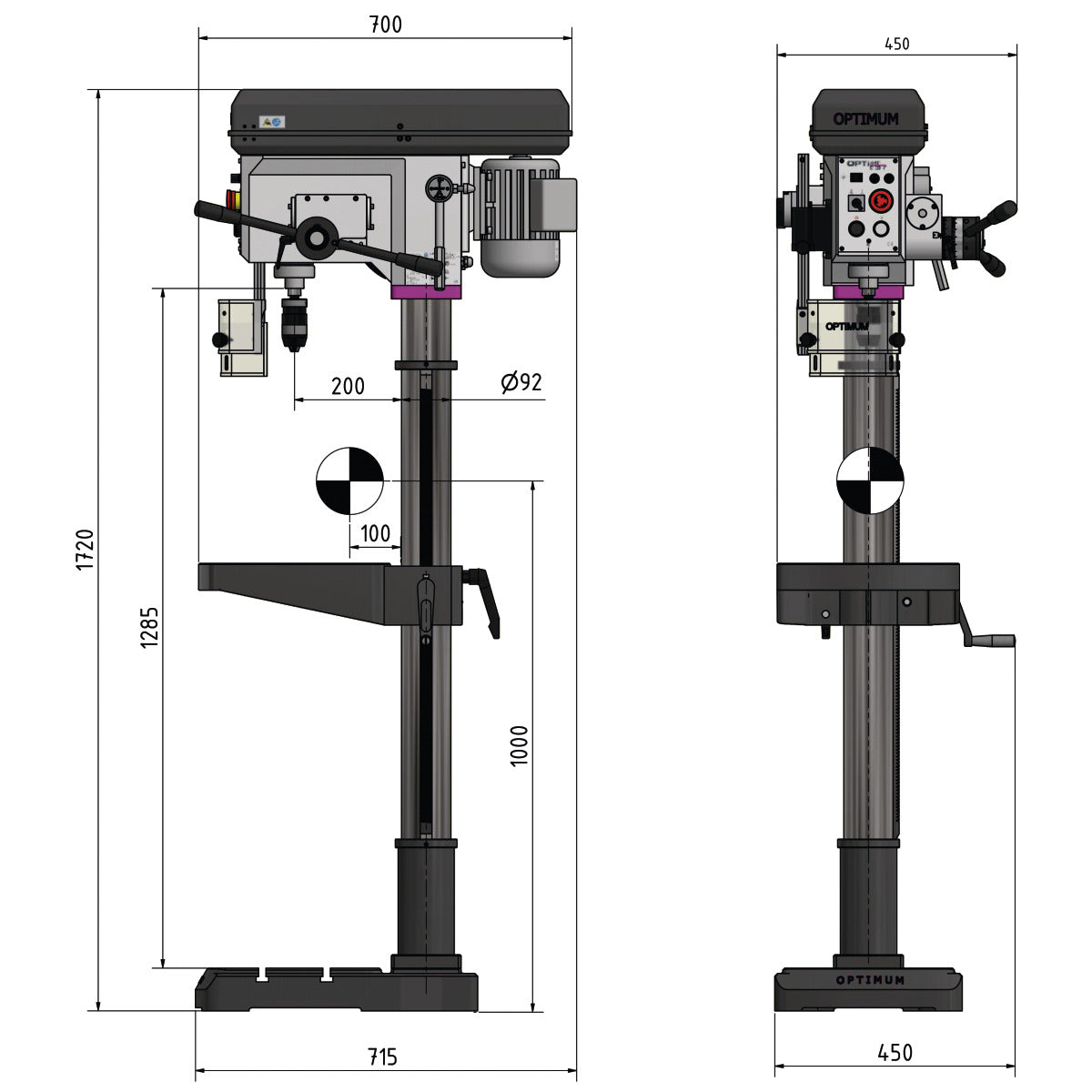

| Dimensions and Weights | |||
| Column diameter | 92mm | Length | 715mm |
| Width/Depth | 450mm | Height | 1720mm |
| Net Weight | 146kg | ||
| Drilling Performance | |||
| Drilling performance steel | 28mm | Continuous drilling performance steel | 24mm |
| Drilling Table | |||
| Drilling table length | 340mm | Drilling table width | 360mm |
| Drilling table T-groove type | diagonal | Drilling table T-groove size | 14mm |
| Drilling table T-groove number | 2 | Drilling table rotation | 360° |
| Max. distance spindle | 928mm | ||
| Speed Range | |||
| Speed range | 120 - 3000min¯¹ | Number of gears | 12 steps |
| Electrical Data | |||
| Supply Voltage | 400V | Mains frequency | 50Hz |
| Drive motor output | 0.85kW | ||
| Machine Base | |||
| Max. distance spindle | 1279mm | Machine base length | 320mm |
| Machine base width | 320mm | Machine base T-groove size | 14mm |
| Machine base T-groove n. | 2 | Machine base T-groove space | 120mm |
| Spindle | |||
| Quill stroke | 105mm | Spindle chuck | MK 3 |
| Reach | 200mm |
