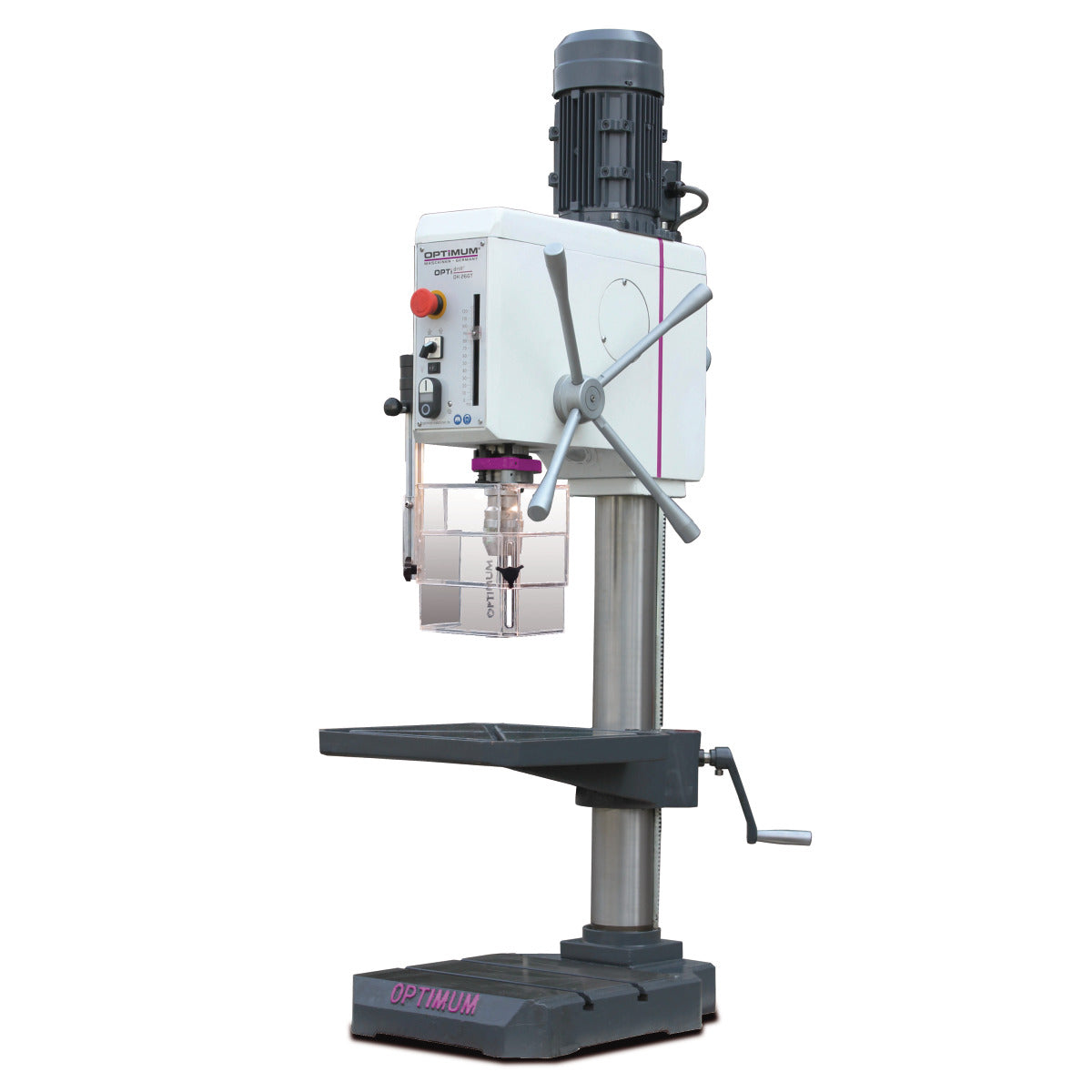

Optimum OPTIdrill DH 26GT Drilling Machine (3 Ph 400v)

Optimum OPTIdrill DH 26GT Drilling Machine (3 Ph 400v)

£2,994.00 GBP
£2,994.00 GBP
Sale Sold out
  • High concentricity due to hardened and ground main spindle
  • Low-maintenance gearbox with grease lubrication
  • Gearbox with PA6 gears
  • Large speed range
  • Heavy, solid cast construction
  • Large, height-adjustable protective screen with safety switch for the utmost protection of the user
  • Drilling depth stop adjustable with millimetre scale
  • Forward / reverse operation
  • Machine light integrated in the drill head
  •  Integrated expeller for easy tool change
  • Precision machined drilling table with diagonal T-slots with all-round cooling water channel
  • Thick-walled cast-iron column for high power absorption and stability
  • Massive base plate, large dimensions and strongly ribbed on the back
DELIVERY CONTENTS
  •  Adapter MK3-B16

TECHNICAL SPEC

Dimensions and Weights
Column diameter 92mm Length 610mm
Width/Depth 380mm Height 1430mm
Net Weight 158kg
Drilling Performance
Drilling performance steel 24mm Continuous drilling performance steel 21mm
Drilling Table
Drilling table length 380mm Drilling table width 380mm
Drilling table T-groove type diagonal Drilling table T-groove size 14mm
Drilling table T-groove number 2 Drilling table rotation 360°
Drilling table load bearing capacity 80kg Max. distance spindle 450mm
Speed Range
Speed range 75-2900min¯¹ Number of gears 8 steps
Electrical Data
Supply Voltage 400V Mains frequency 50Hz
Machine Base
Max. distance spindle 610mm Machine base length 350mm
Machine base width 356mm Machine base T-groove size 14mm
Machine base T-groove n. 2 Machine base T-groove space 120mm
Spindle
Quill stroke 127mm Spindle chuck MT 3
Reach  235mm

Motor(s)
Spindle motor drive output 1.1 / 1.5kW
