Optimum OPTIdrill D 33Pro Drilling machine (3 Phase 400v)
Optimum OPTIdrill D 33Pro Drilling machine (3 Phase 400v)
Regular price
£1,794.00 GBP
Regular price
Sale price
£1,794.00 GBP
Unit price
/
per
Couldn't load pickup availability
Share
- Industrial engine
- Easy to use safety switch according to IP 54
- Digital drilling depth and speed indicator integrated in the housing
- Separate emergency stop impact switch
- Precision Spindle bore
- Safety electronics in 24 V DC
- Guaranteed concentricity measured less than 0.02 mm in the drill quill
- Drill spindle with precision ball bearings
- High quality keyless chuck
- Depth stop
- Precision machined, stable drill table with diagonal T-slots and circumferential cooling water channel

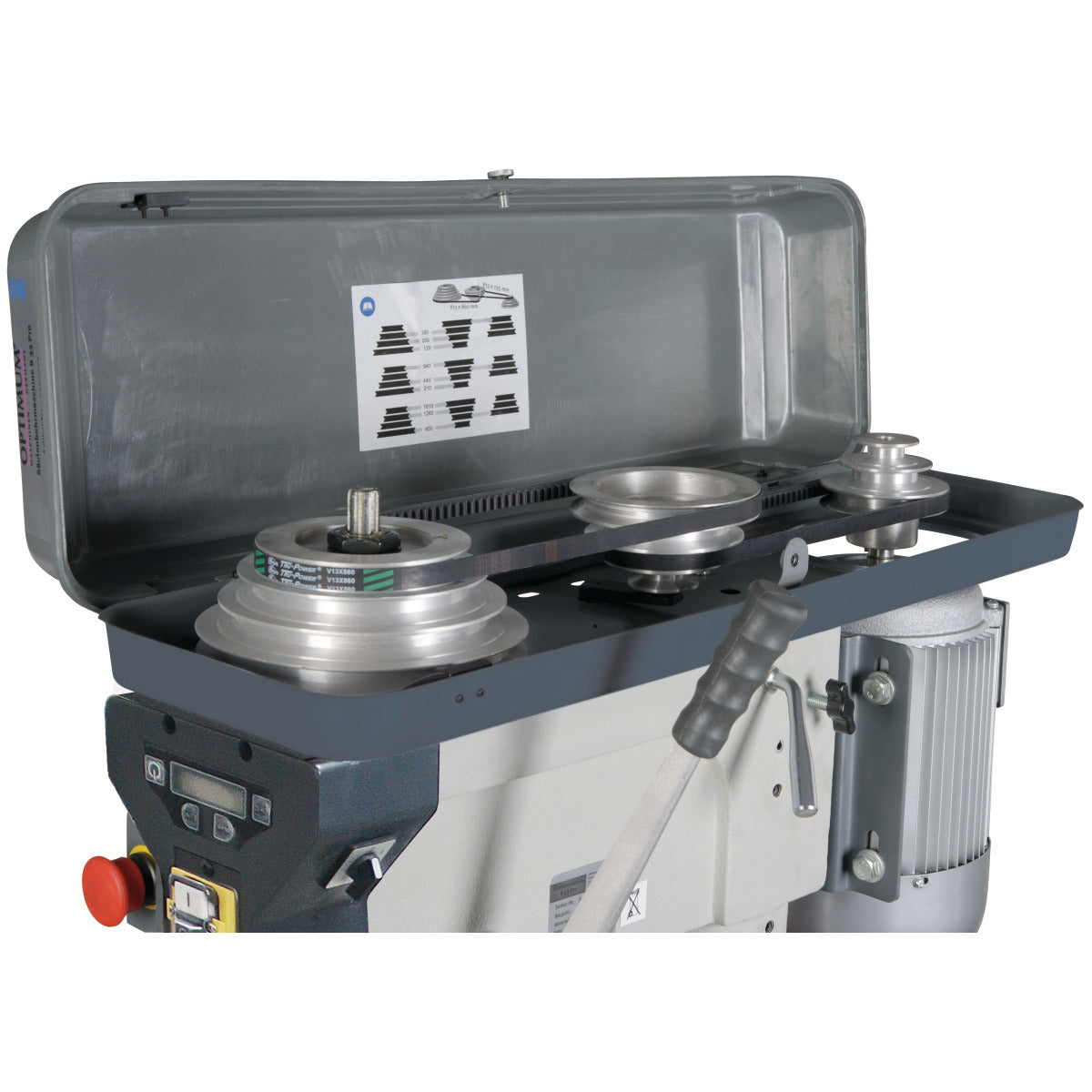

- V-belt cover with safety switch
- One piece cast aluminum die-cast quill lever with softgrip handles
- Large, height-adjustable protective screen with safety switch
- Heavy version of the entire machine
DELIVERY CONTENTS
- Keyless drill chuck 1 - 16 mm
- Morse taper MK 4/B16
- T-slots
TECHNICAL SPEC
| Dimensions and Weights | |||
| Column diameter | 92mm | Length | 915mm |
| Width/Depth | 450mm | Height | 1705mm |
| Net Weight | 132kg | ||
| Drilling Performance | |||
| Drilling performance steel | 30mm | Continuous drilling performance steel | 25mm |
| Drilling Table | |||
| Drilling table length | 475mm | Drilling table width | 425mm |
| Drilling table T-groove size | 14mm |
Drilling table rotation | 360° |
| Drilling table angle | 45° | Max. distance spindle | 695mm |
| Speed Range | |||
| Speed range | 120-1810min¯¹ | Number of gears | 9 |
| Electrical Data | |||
| Supply Voltage | 400V | Mains frequency | 50Hz |
| Drive motor output | 1.1kW | ||
| Machine Base | |||
| Max. distance spindle | 1180mm | Machine base length | 410mm |
| Machine base width | 325mm | Machine base T-groove size | 16mm |
| Machine base T-groove n. | 2 | Machine base T-groove space | 250mm |
| Spindle | |||
| Quill stroke | 120mm | Spindle chuck | MT 4 |
| Reach | 254mm |
