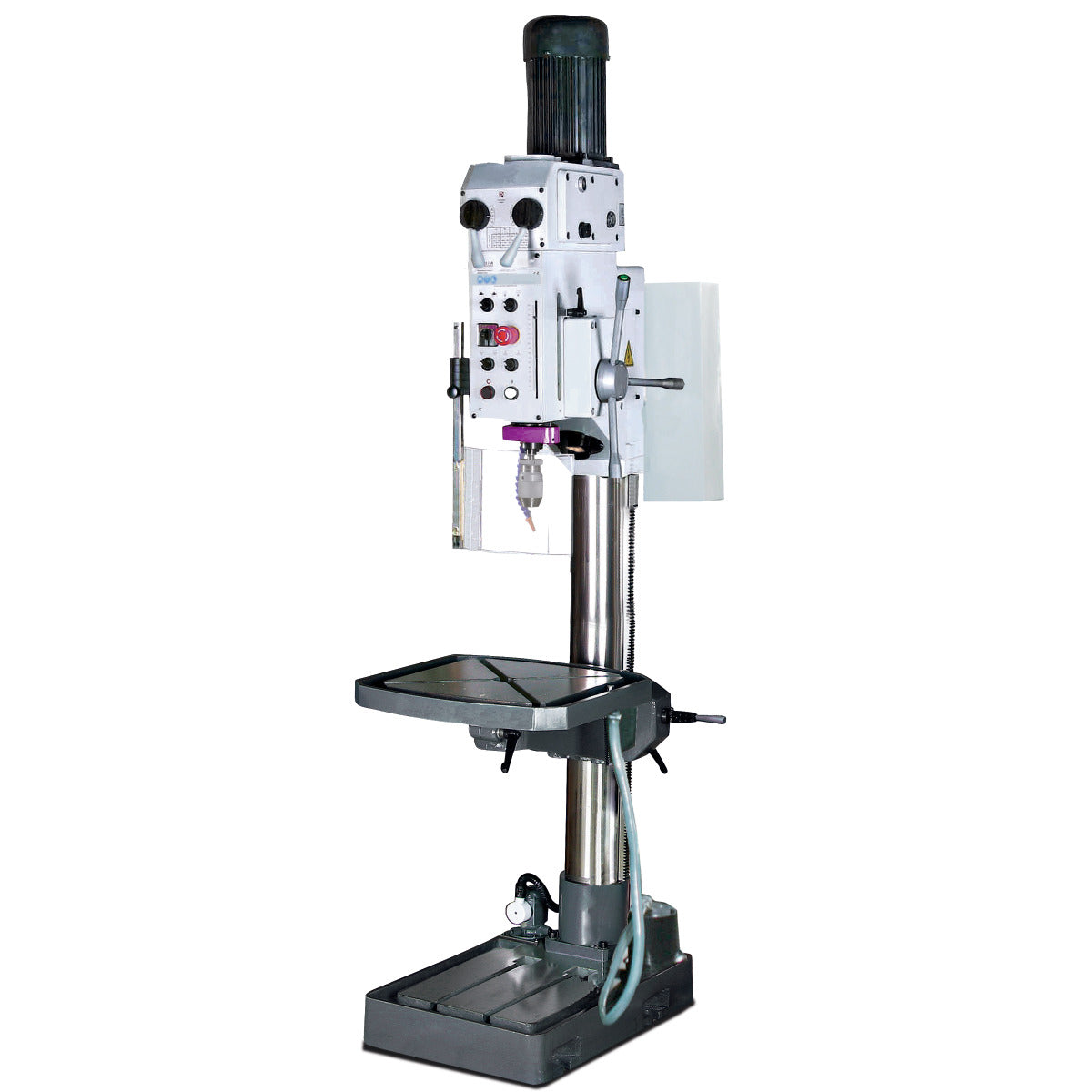

Optimum OPTIdrill B 40GSM Drilling machine (3 Ph 400v)

Optimum OPTIdrill B 40GSM Drilling machine (3 Ph 400v)

£7,434.00 GBP
£7,434.00 GBP
Sale Sold out
  • Heavy, solid cast construction
  • Automatic gear lubrication via oil pump
  • High concentricity due to hardened and ground main spindle
  • Threading attachment
  • Main switch and motor protection switch
  • Drilling depth stop adjustable with millimeter scale
  • Machine light integrated in the drill head
  • Precise machined and large-dimensioned drill table with diagonally running T-slots and circumferential cooling water channel
  • Integrated expeller for easy tool change
  • Coolant device and chip filter according to Machinery Directive
  • Thick-walled cast-iron column for high power absorption and stability
  • Solid base plate, large dimensions, extremely stable
DELIVERY CONTENTS
  •  Keyless chuck (1 - 16 mm)
  •  Morse cone MK4 / B16

TECHNICAL SPEC

Dimensions and Weights
Column diameter 150mm Length 935mm
Width/Depth 530mm Height 2280mm
Net Weight 500kg
Drilling Performance
Drilling performance steel 35mm Continuous drilling steel 30mm
Thread tapping steel M24
Drilling Table
Drilling table length 560mm Drilling table width 560mm
Drilling table T-groove type Diagonal Drilling table T-groove size 18mm
Drilling table rotation ± 90° Max. distance spindle 780mm
Drilling table T-groove number 2 Drilling table load bearing capacity 250kg
Speed Range
Speed range 50-1450min¯¹ Number of gears 18 Steps
Electrical Data
Supply Voltage 400V Mains frequency 50Hz
Machine Base
Max. distance spindle 1320mm Machine base length 510mm
Machine base width 500mm Machine base T-groove size 18mm
Machine base T-groove n. 2 Machine base T-groove space 150mm
Spindle
Quill stroke 180mm Spindle chuck MT 4
Reach  350mm Quill feed speed 0.1/0.2mm / rev
Quill feed gears 2 steps
Motor(s)
Spindle motor drive output 0.85 / 1.5 kW Coolant pump drive motor output
 40W
