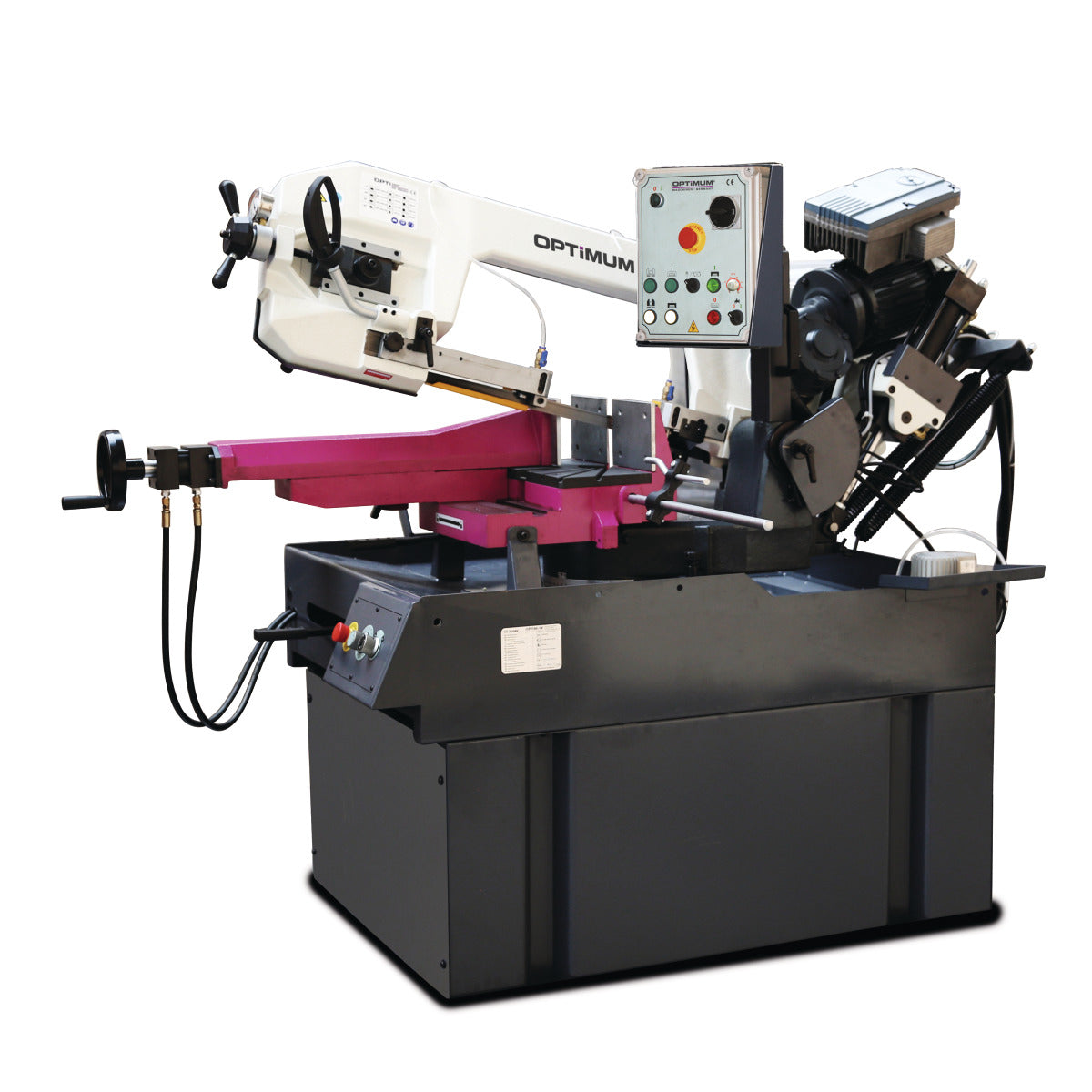

Optimum OPTISaw SD 351AV Double Mitre Metal Bandsaw (400v 3ph)
Optimum OPTISaw SD 351AV Double Mitre Metal Bandsaw (400v 3ph)
Regular price
£13,500.00 GBP
Regular price
Sale price
£13,500.00 GBP
Unit price
/
per
Couldn't load pickup availability
Share
Semi-automatic. With Siemens Inverter drive. Professional and robust saw with up to 350 mm cutting capacity.
- Heavy industrial version
- Quiet running
- Manual or semi-automatic operation
- Steplessly adjustable saw blade speed from 0-80 m/min.
- High cutting accuracy due to vibration-free running
- Mitration adjustment up to 60° by swivelling the entire saw bow
- Serially equipped with high-quality bi-metalSaw band
- End stops adjustable down to the degree
- Swarf brush
- Microswitch for automatic limit switch
- Roller support adjustable for long and heavy workpieces
- Coolant pump
- Ball bearing mounted Saw blade guide with carbide plates for optimum cutting results
- Easy adjustment of the lowering speed by means of feed control valve in the control panel

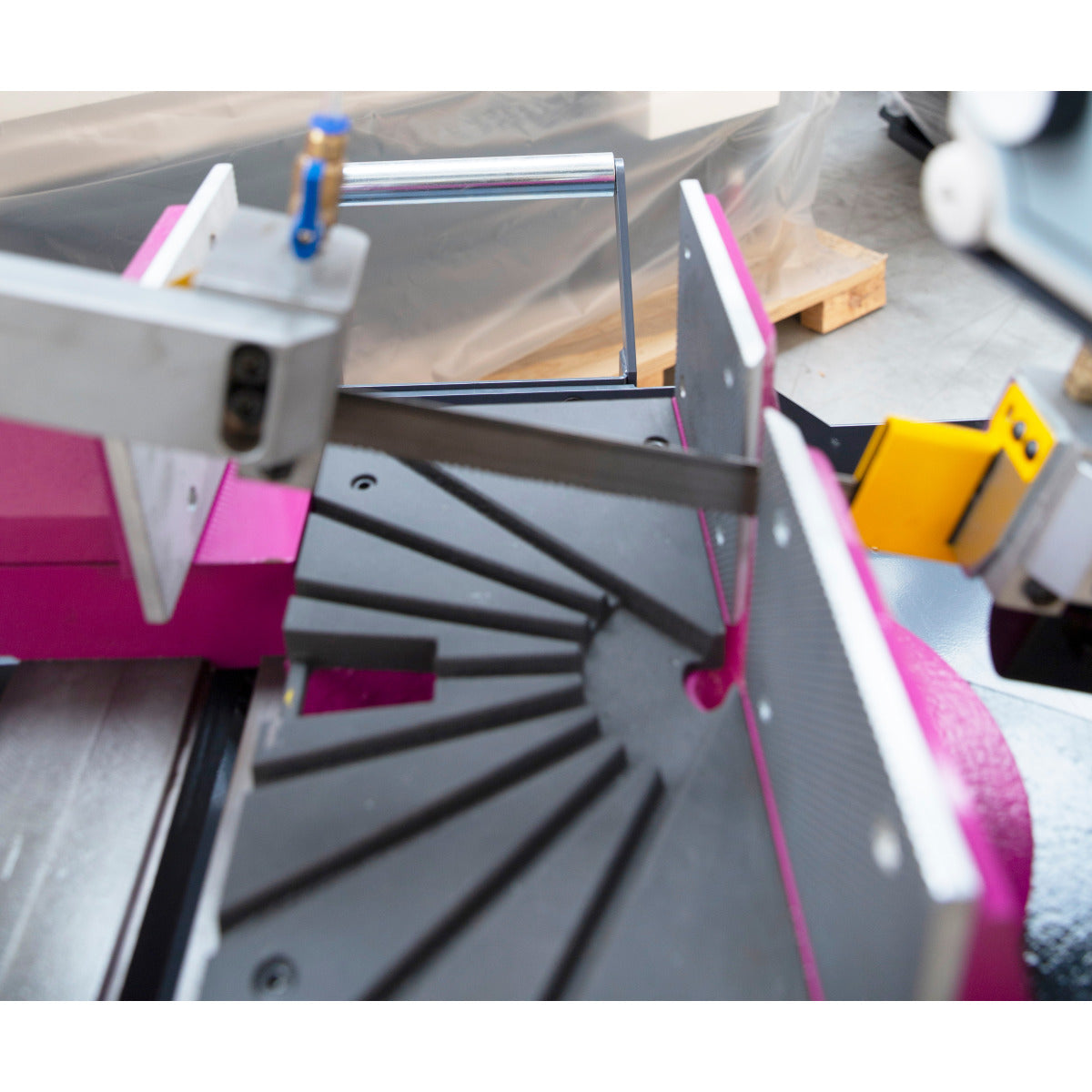

- Large dimensioned, hydraulic quick-clamping vice, self-closing, adjustable for large cross-sections
- Completely equipped machine; The user can work productively immediately after commissioning
- EMV class C2
- 2-channel safety chain with quick stop in case of emergency

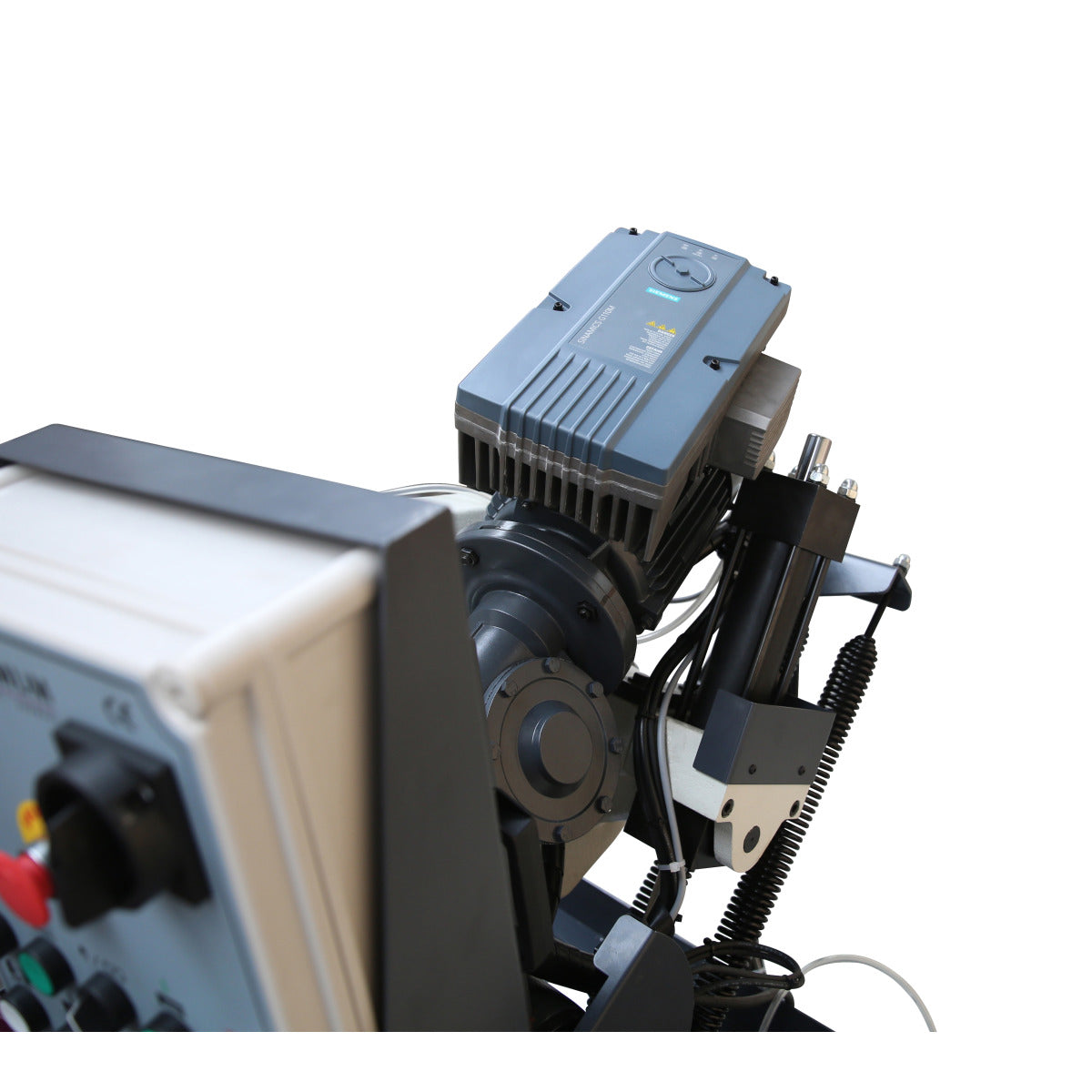

- Converter Siemens Sinamics G110M
DELIVERY CONTENTS
- Material stop
- Bi-metal saw band 4-6 ZpZ M42
- Machine substructure
- Coolant pump
TECHNICAL SPEC
| Dimensions and Weights | |||
| Length (product) approx. | 1935mm | Width/depth (product) approx. | 1425mm |
| Net weight approx. | 600kg | Height (product) approx. | 1626mm |
| Electrical Data | |||
| Drive motor output |
2.2kW | Supply voltage |
400V |
| Mains frequency | 50Hz | Engine power hydraulic pump | 1,4kW |
| Engine power coolant pump | 50W | Total connected load | 3.8kW |
| Machine Data | |||
| Saw band speed(s) | 15 – 100m/min | Speed levels | infinitely variable |
| Saw band length | 2925mm | Saw band width | 27mm |
| Saw band thickness | 0.9mm | Cutting angle | -45 – +60° |
| Manual operation | hydraulic via push button | Semi-automatic operation | automatic |
| Cutting Ranges | |||
| Cutting range 0° round (solid material) | 270mm | Cutting range 0° square (solid material) | 230mm |
| Cutting range 0° rectangular upright (solid material) | 230 x 350mm | Cutting range -45° round (solid material) | 230mm |
| Cutting range -45° square (solid material) | 170mm | Cutting range -45° rectangular upright (solid material) | 140 x 200mm |
| Clamping range +45° round (full material) | 230mm | Cutting range +45° square (solid material) | 200mm |
| Cutting range +45° rectangular upright (solid material) | 210 x 220mm | Cutting range +60° round (solid material) | 140mm |
| Cutting range +60° square (solid material) | 140mm | Cutting range +60° rectangular upright (solid material) | 140 x 220mm |
