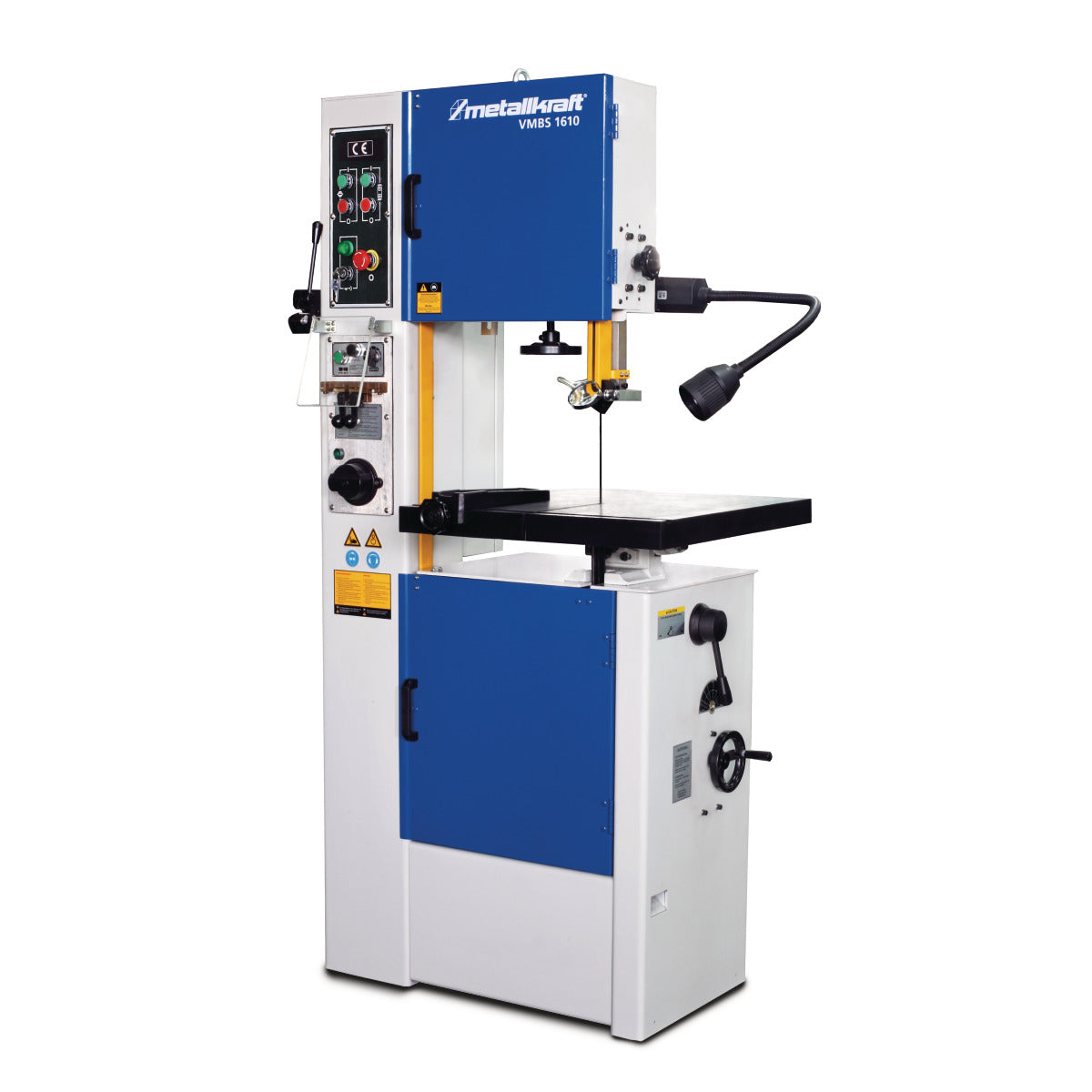

Metallkraft VMBS 1610 Vertical Metal Bandsaw (3 Phase 415v)
Metallkraft VMBS 1610 Vertical Metal Bandsaw (3 Phase 415v)
Regular price
£8,994.00 GBP
Regular price
Sale price
£8,994.00 GBP
Unit price
/
per
Couldn't load pickup availability
Share
In solid and proven construction with band welding unit.
- Extremely stable construction, entire machine body made of steel
- User-friendly operating concept

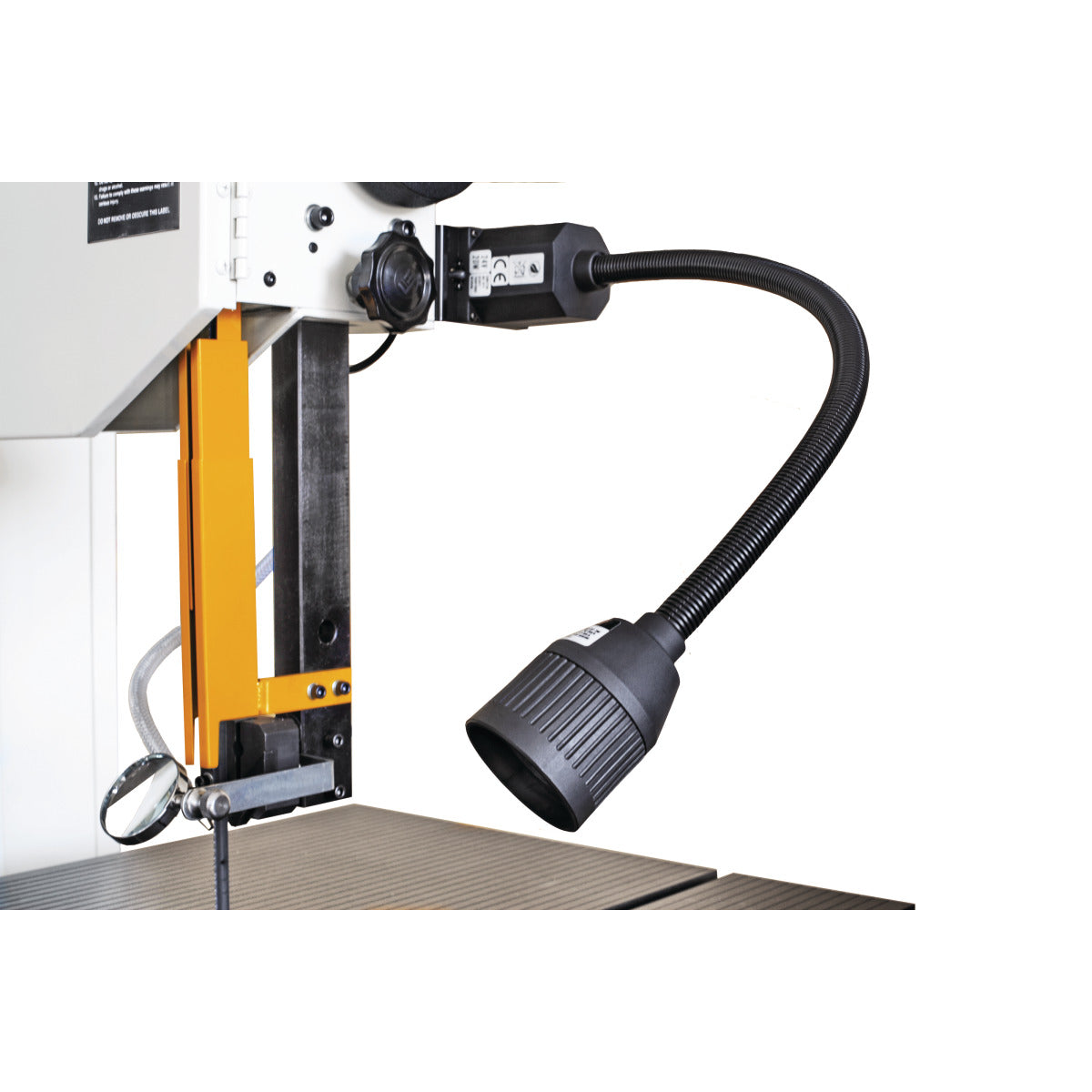

- With workplace lighting

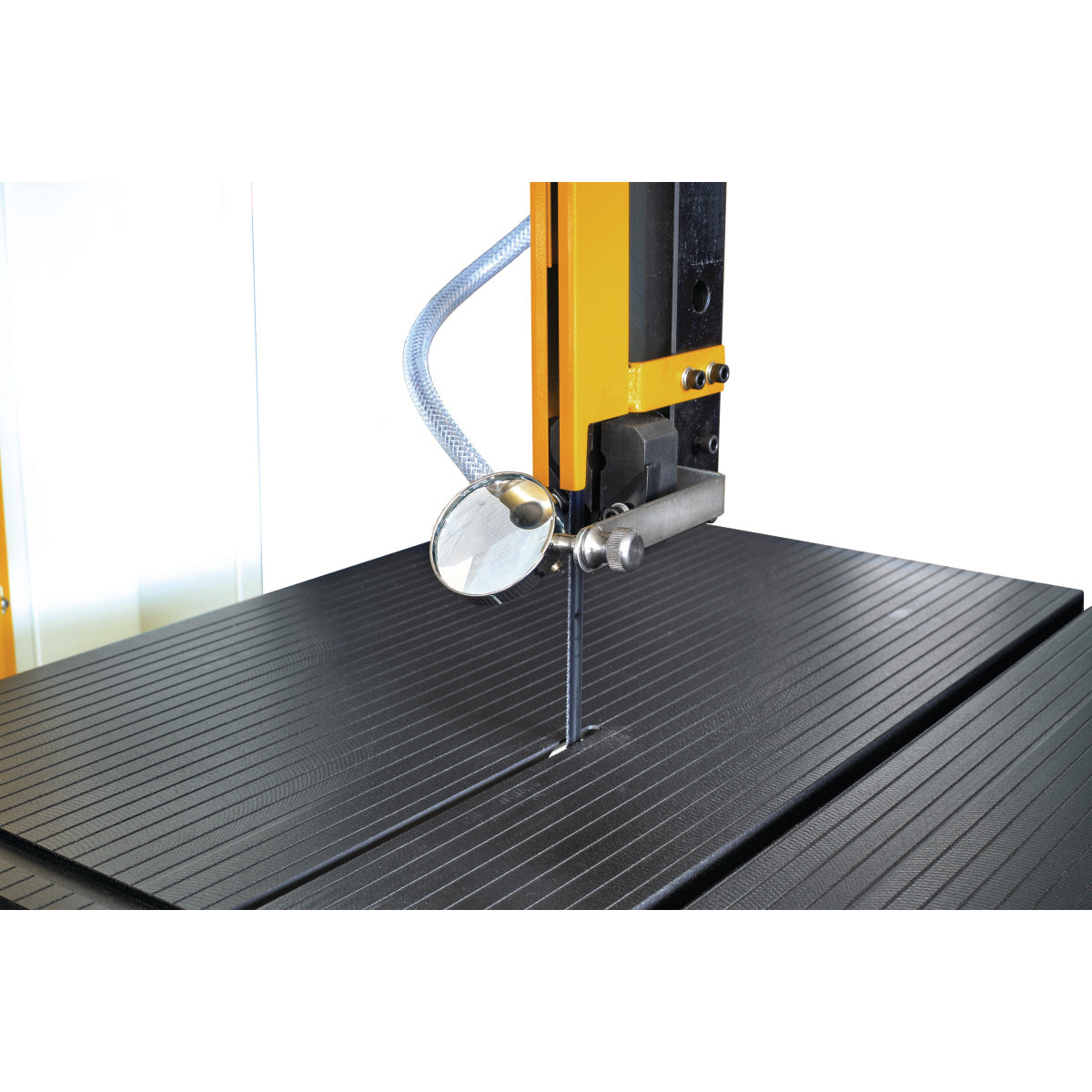

- Tilting work table made of grey cast iron
- Speed continuously adjustable
- Tape tension and tape speed indicator
- Blower for sawdust

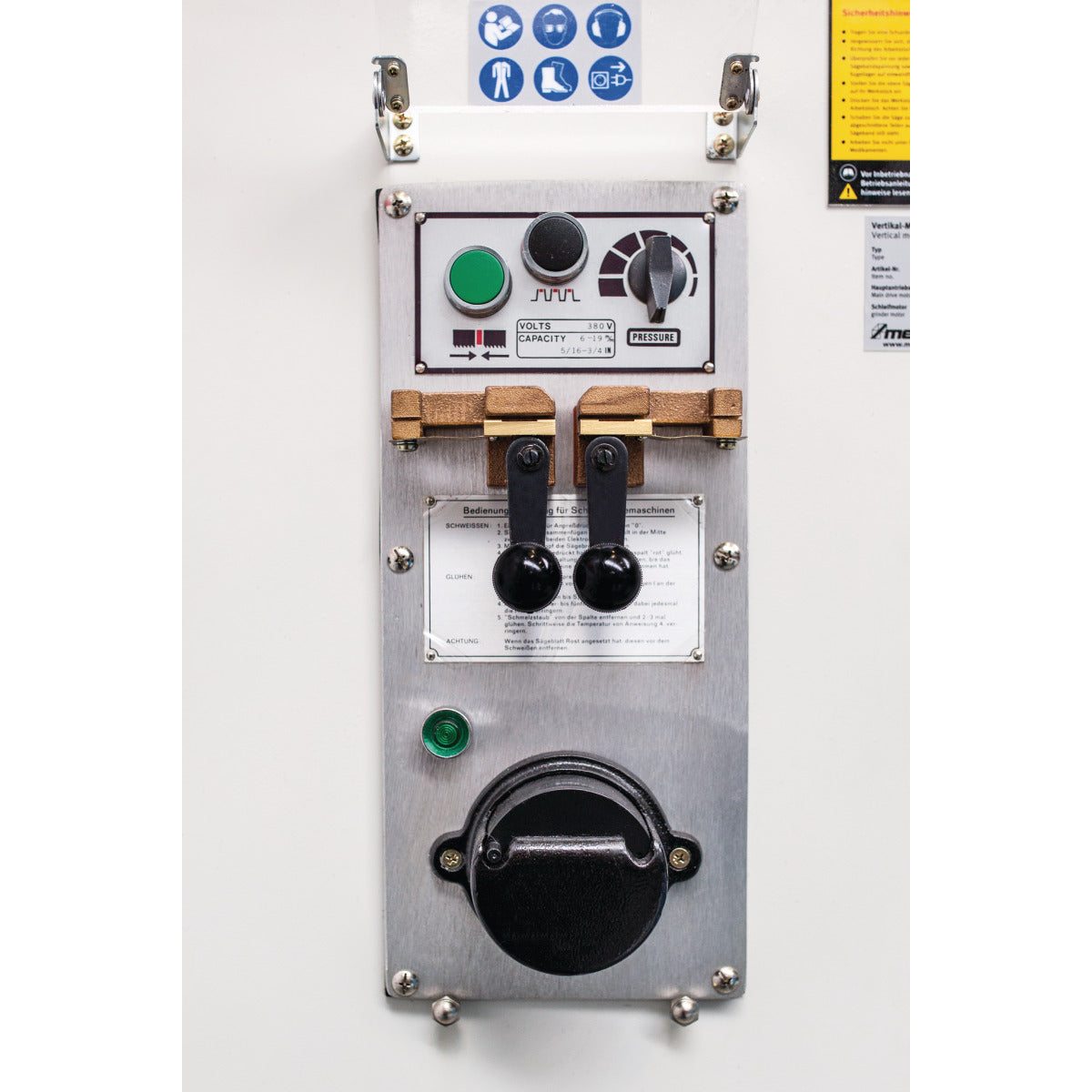

- Integrated band welding unit with annealing, cutting and grinding device
- With rip fence
DELIVERY CONTENTS
- Saw band 3150mm x 8mm x 0.65mm 14T
TECHNICAL SPEC
| General Features | |||
| Max. cutting height | 255mm | Saw band speed(s) | 20 – 80; 250 – 1000m/min |
| Saw band length | 3140mm | Saw band width | 16mm |
| Reach | 396mm | Table length | 550mm |
| Table width | 600mm | Table load max. | 150kg |
| Working height | 1000mm | Table swivel range for mitre cuts | 12/15° |
| Table swivel range to front and rear | 8 / 8° | Saw band welding device output | 16mm |
| Wheel diameter | 408mm | Sound pressure level | 70.5dB(A) |
| Dimensions and Weights | |||
| Length (product) approx. | 940mm | Width/depth (product) approx. | 675mm |
| Net weight approx. | 410kg | Height (product) approx. | 1840mm |
| Electrical Data | |||
| Drive motor output |
1.5kW | Supply voltage |
400V |
| Mains frequency | 50Hz |
