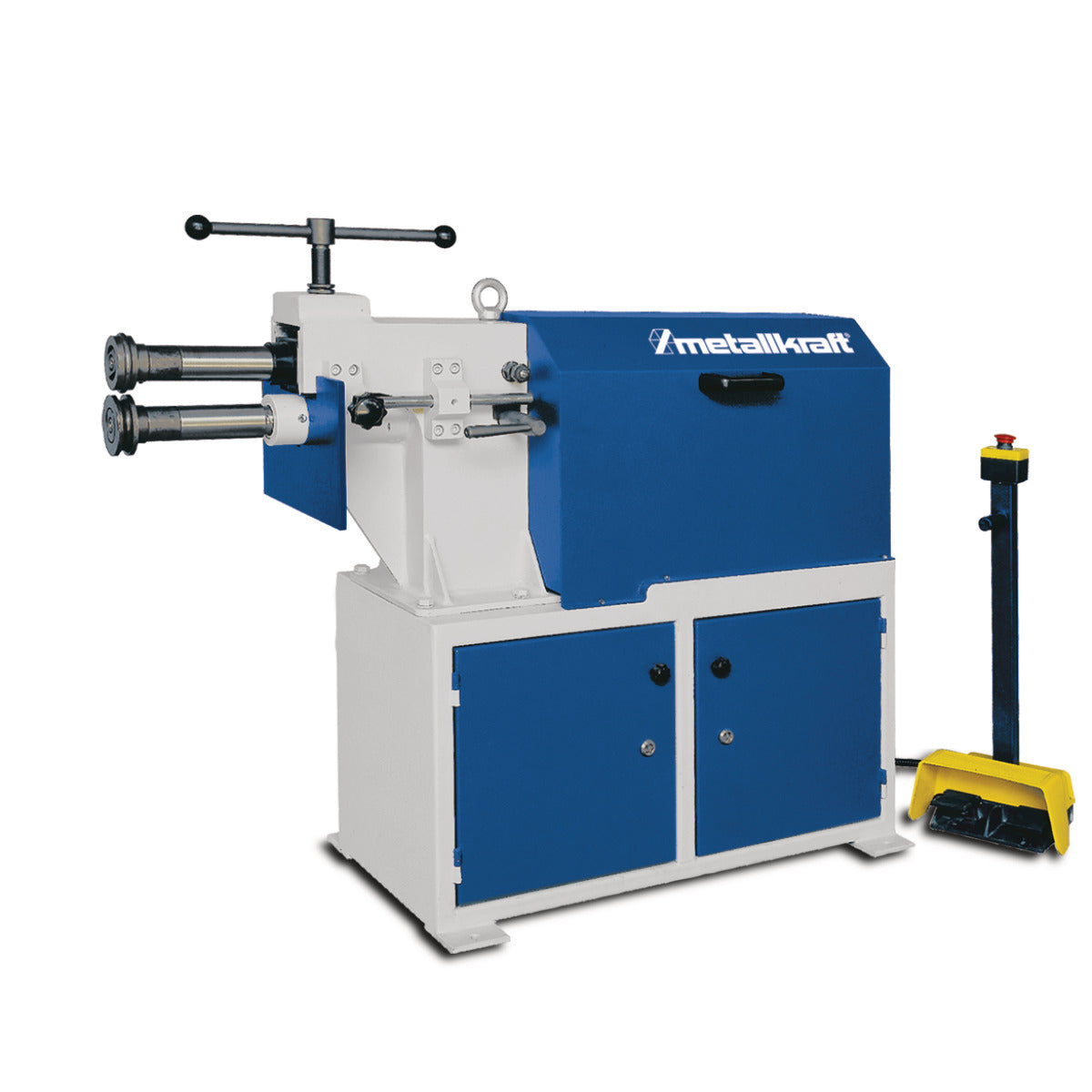

Metallkraft Motorized Bead Bending Machine SBM 250-25 E (3 Ph 400v)

Name: Metallkraft Motorized Bead Bending Machine SBM 250-25 E (3 Ph 400v)
Brand: My Store
SKU: 3814004
Price: 5994.0 GBP
Availability: InStock

£5,994.00 GBP

Sale Sold out

Product variants

Quantity

Heavy and stable steel construction
Self-braking engine
Adjustable lower shaft
Adjustable stop plate
Steel shafts mounted with bronze bushes
4 set of standard rolls
With underframe
Powerful 400 volt engine

DELIVERY CONTENTS

bending machine

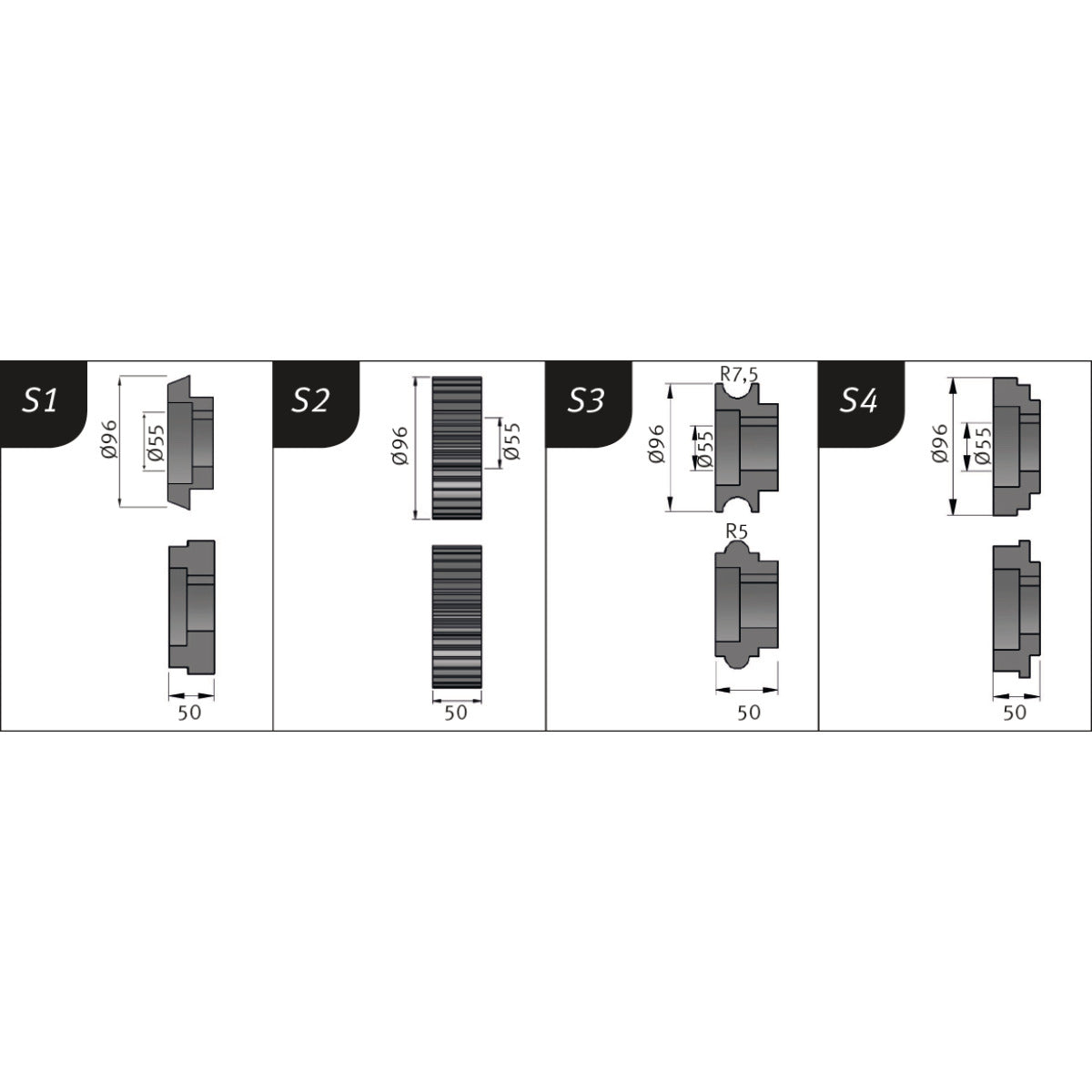

Standard wheels: S1-S4
Special key for disassembly and assembly of the rollers
pedal

TECHNICAL DATA

General Features
Roller length	250mm	Roller diameter	96mm
Max. bending performance in steel 400N/mm²	2.5mm	Collar width	160mm
Roller speed	5m/min
Dimensions and Weights
Length (product) approx.	1400mm	Width/Depth (product) approx.	550mm
Height (product) approx.	1120mm	Net Weight approx.	350kg
Electrical Data
Drive motor output	1.5kW	Supply voltage	400V
Mains frequency	50Hz
