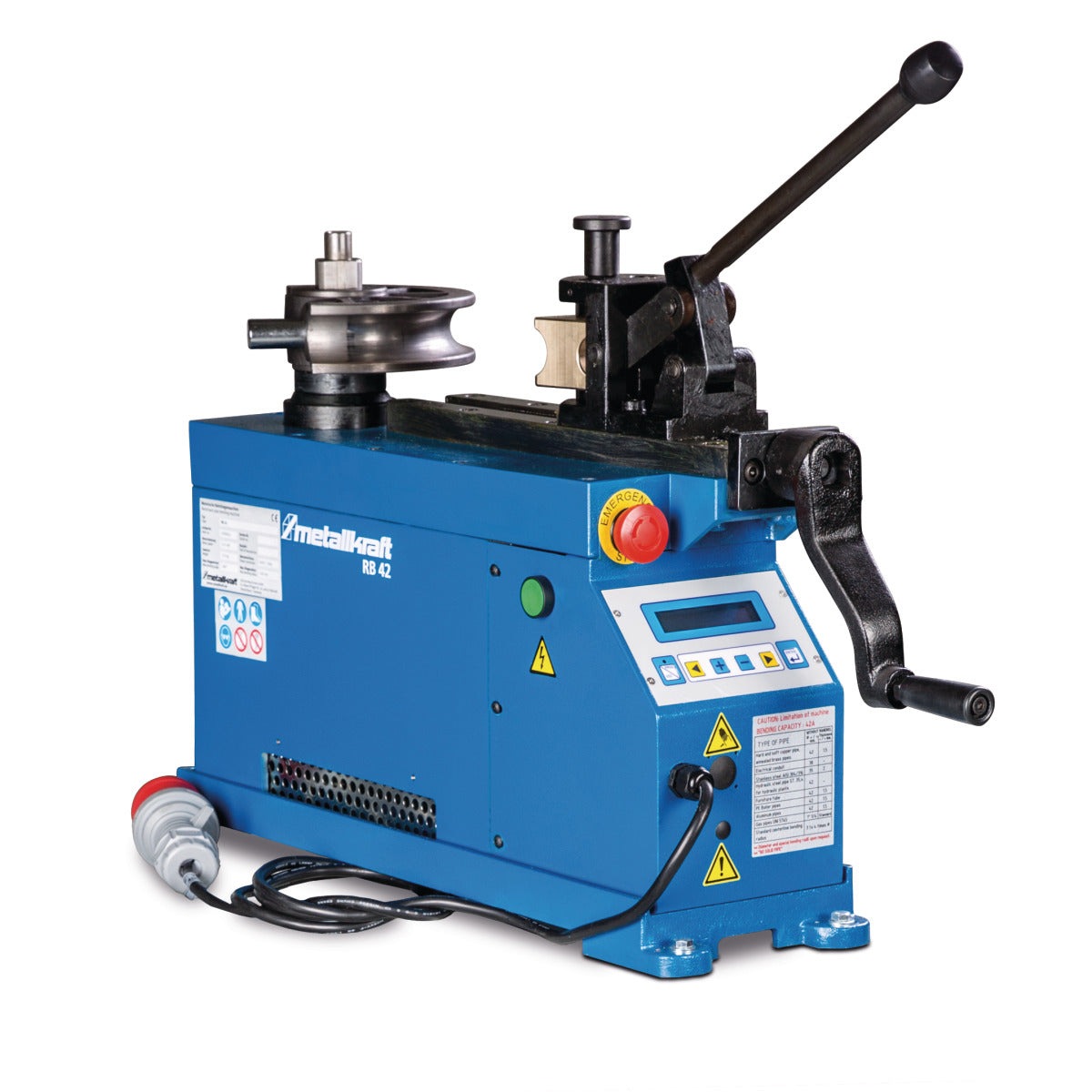

Metallkraft RB 42 Mandrelless Tube Bending Machine (3 Phase 400v)
Metallkraft RB 42 Mandrelless Tube Bending Machine (3 Phase 400v)
Regular price
£4,794.00 GBP
Regular price
Sale price
£4,794.00 GBP
Unit price
/
per
Couldn't load pickup availability
Share
NC-controlled, with large program memory
- NC control for setting the bending angle
- High-quality, robust construction
- Up to 50 programs can be stored
- Fast tool change
- Pure motor drive
- Automatically returns to the starting position
TECHNICAL DATA
| General Features | |||
| Max. bending radius | 100mm | Max. bending angle | 210° |
| Bending speeds | 2 U/min | Torque | 2341nm |
| Dimensions and weights | |||
| Length (product) approx. | 600mm | Width/depth (product) approx. | 180mm |
| Height (product) approx. | 450mm | Net weight approx. | 94kg |
| Bending performance | |||
| Bending performance tubular material 420 N/mm² (Ø x wall thickness) | 42 x 3mm | Bending performance tubular material 350 N/mm² (Ø x wall thickness) | 42 x 3mm |
| Bending performance tubular material 650 N/mm² (Ø x wall thickness) | 30 x 2mm | ||
| Electrical Data | |||
| Drive motor output | 0.55kW | Supply voltage | 400V |
| Mains frequency | 50Hz |
