- Heavy welded steel construction

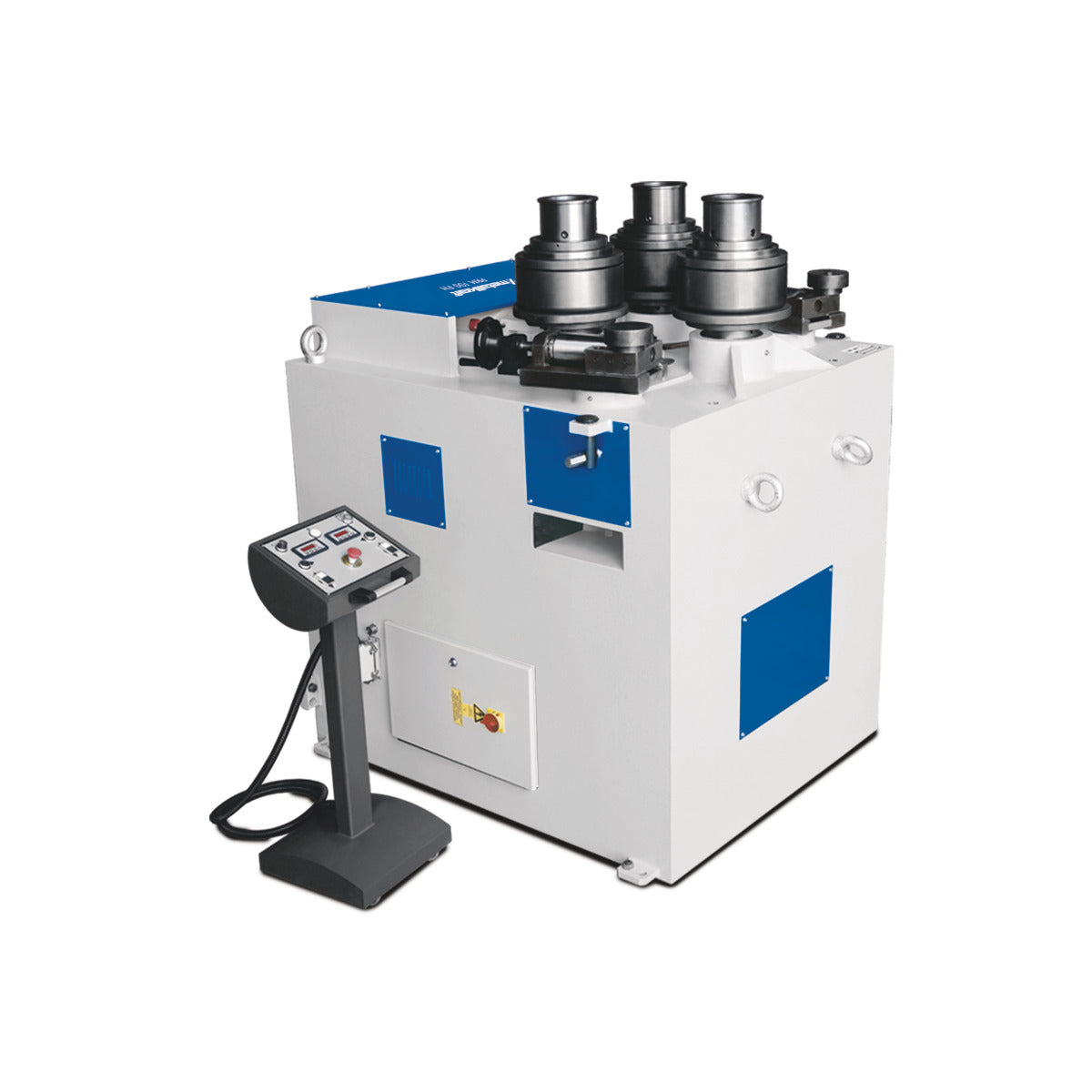

- Horizontal and vertical work possibility

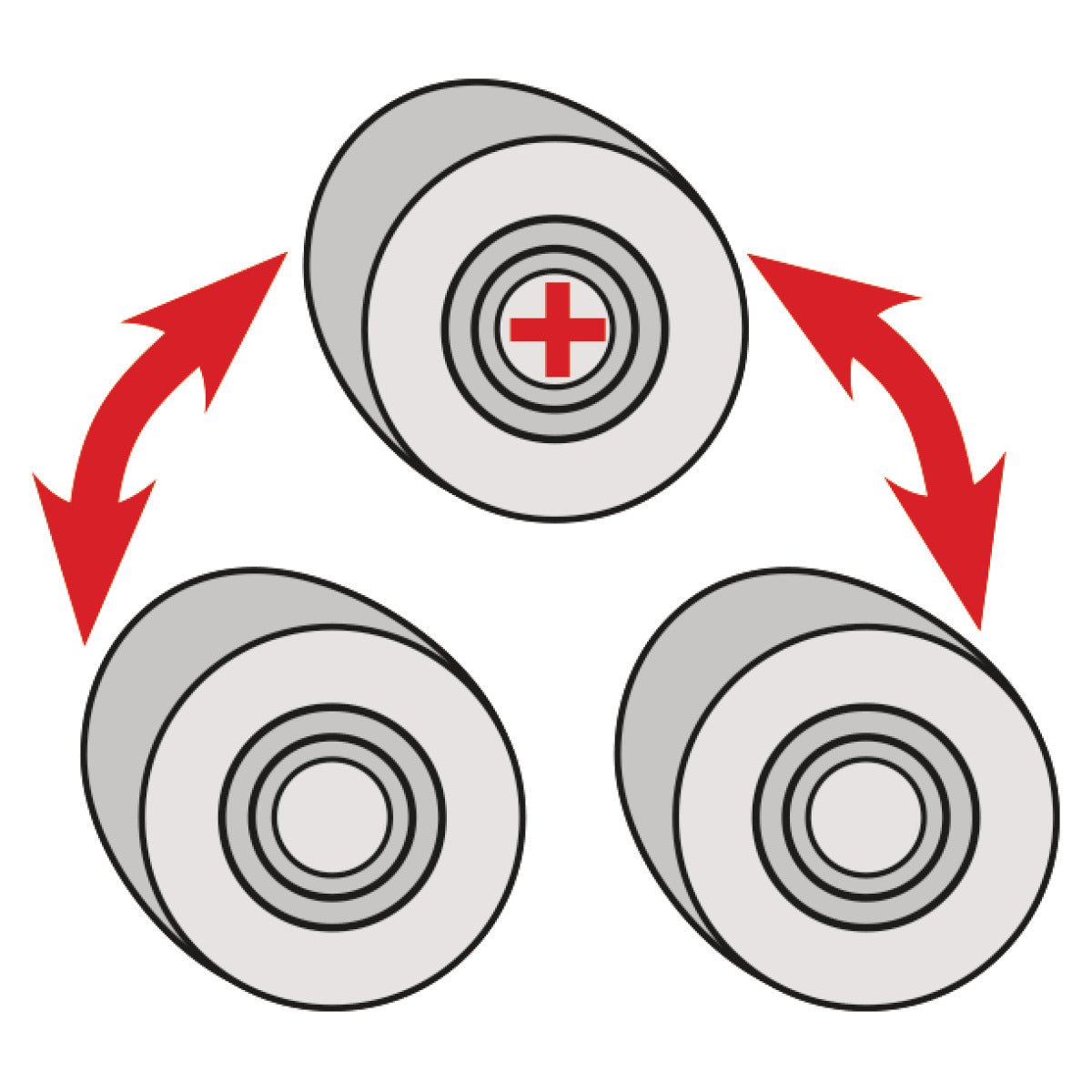

- All three rollers driven by hydraulic motor and planetary gear
- Rolls are hardened

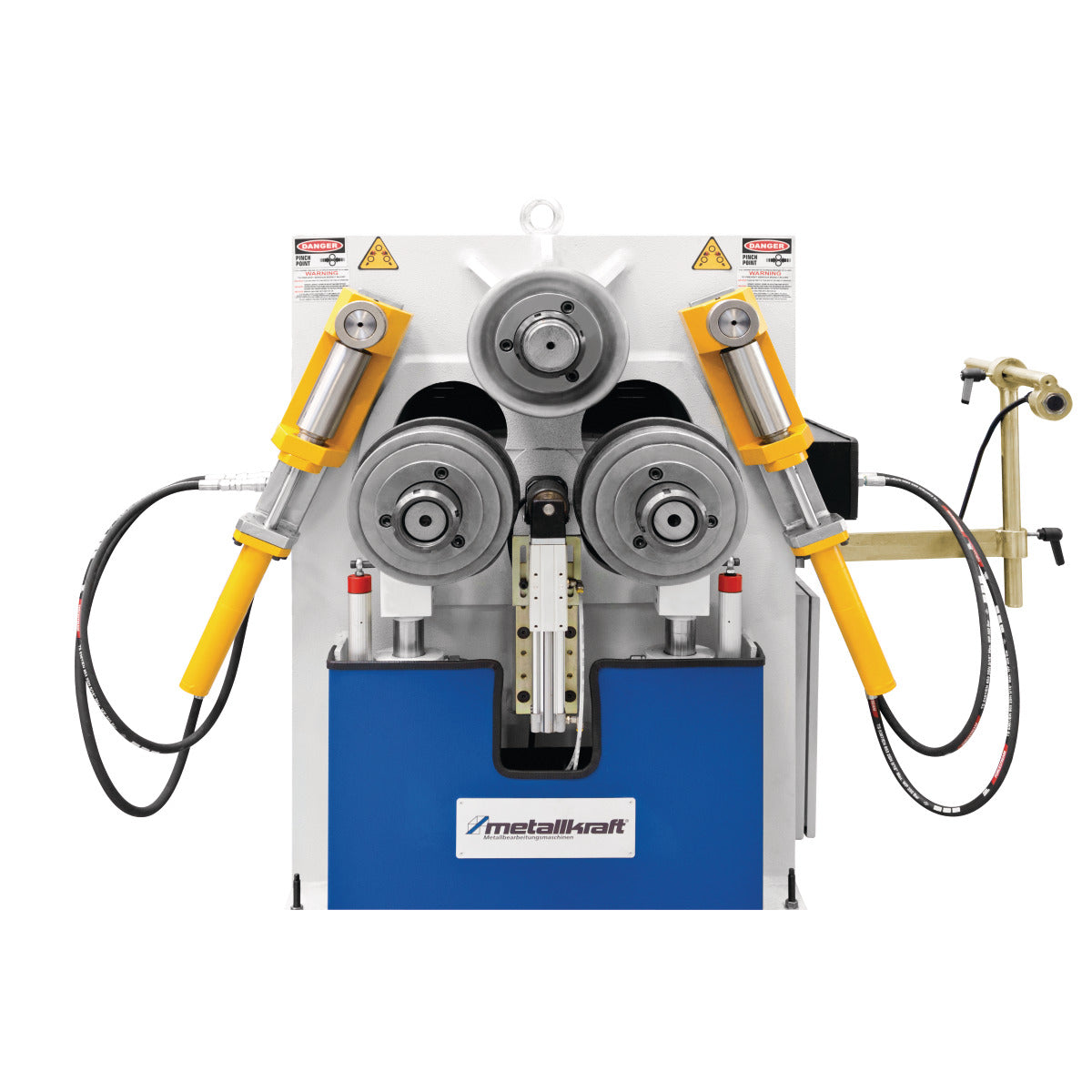

- Hydraulic delivery via two lower rollers

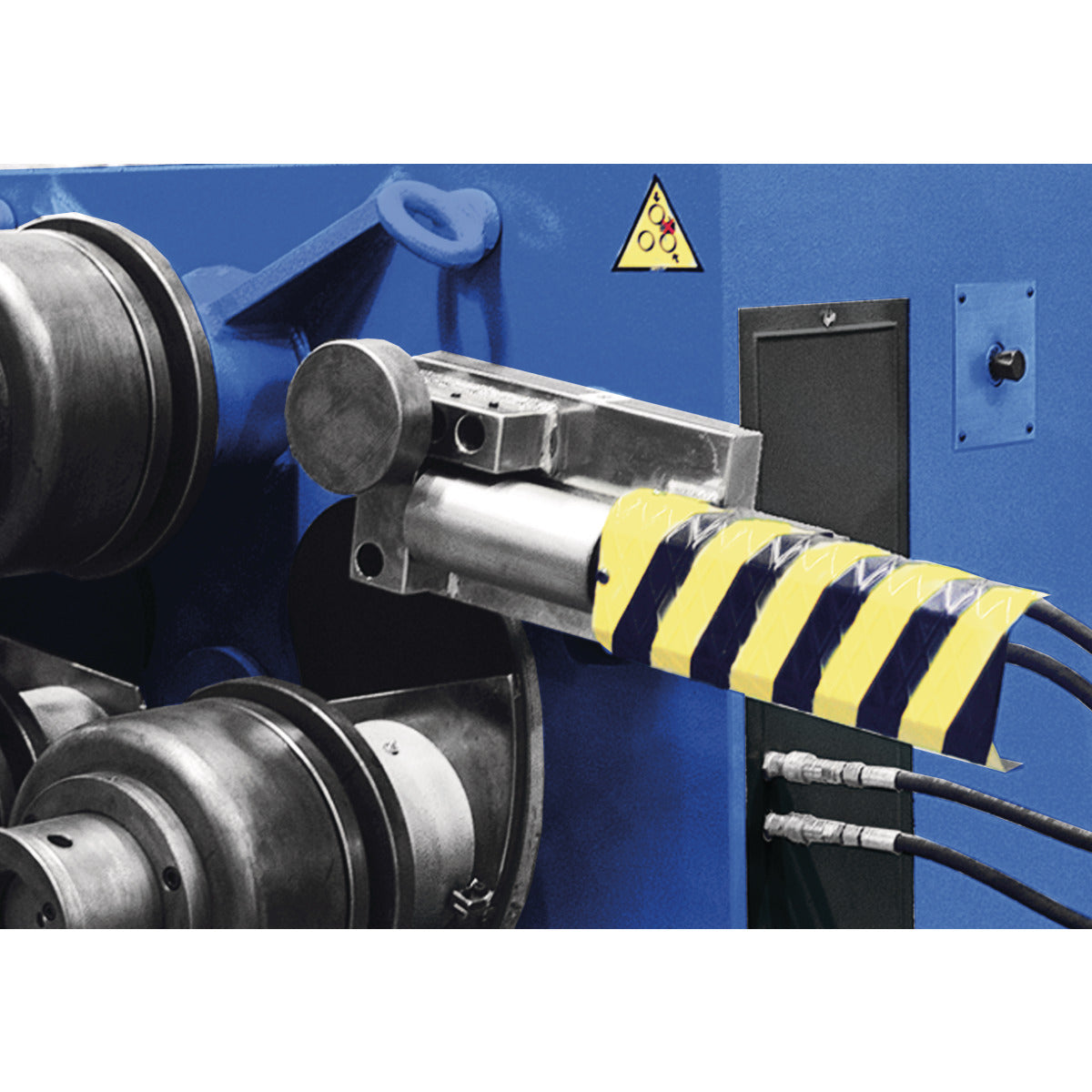

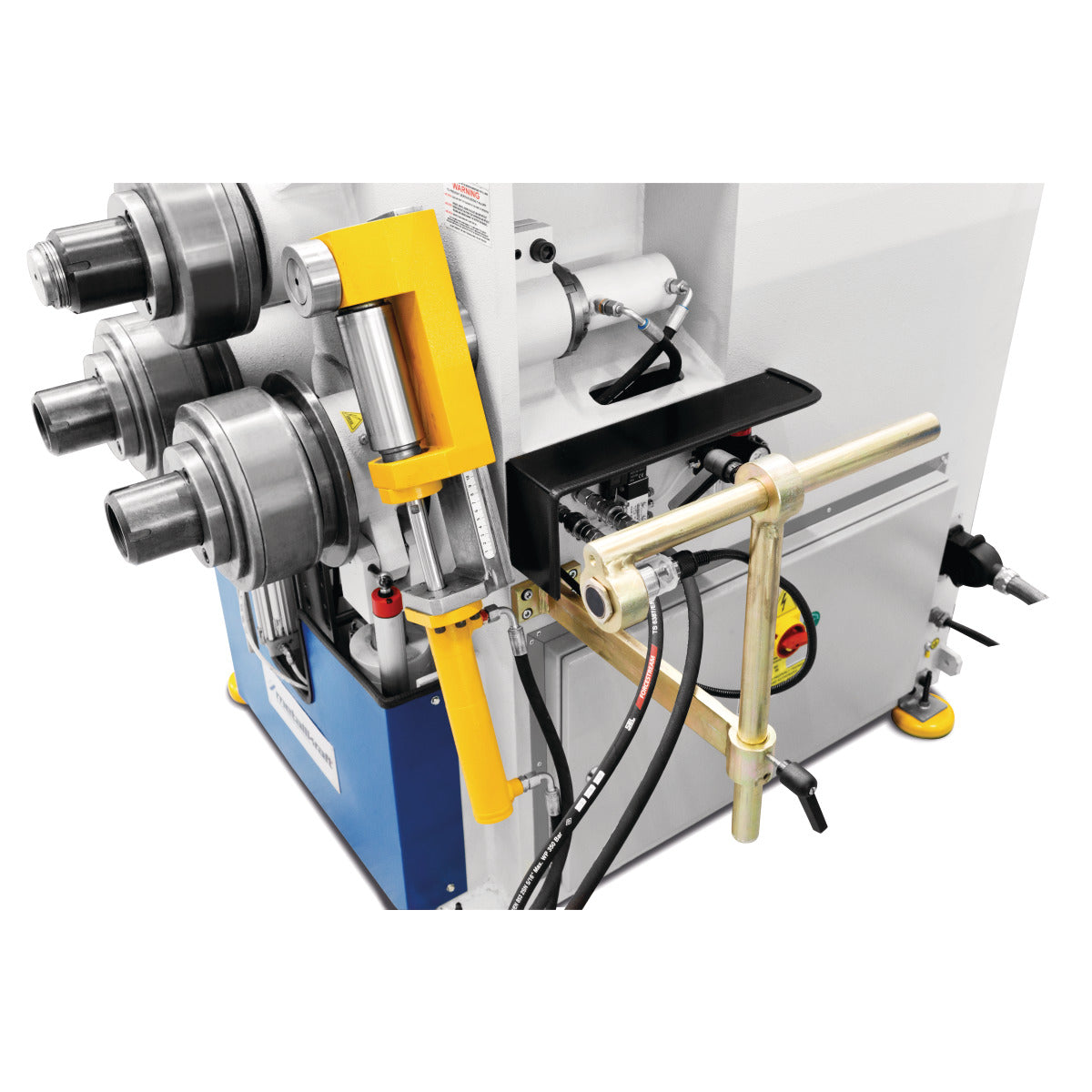

- Lateral mechanical straightening rollers, infinitely adjustable
- Separate control panel with foot control and 2 digital displays
1
/
of
6
My Store

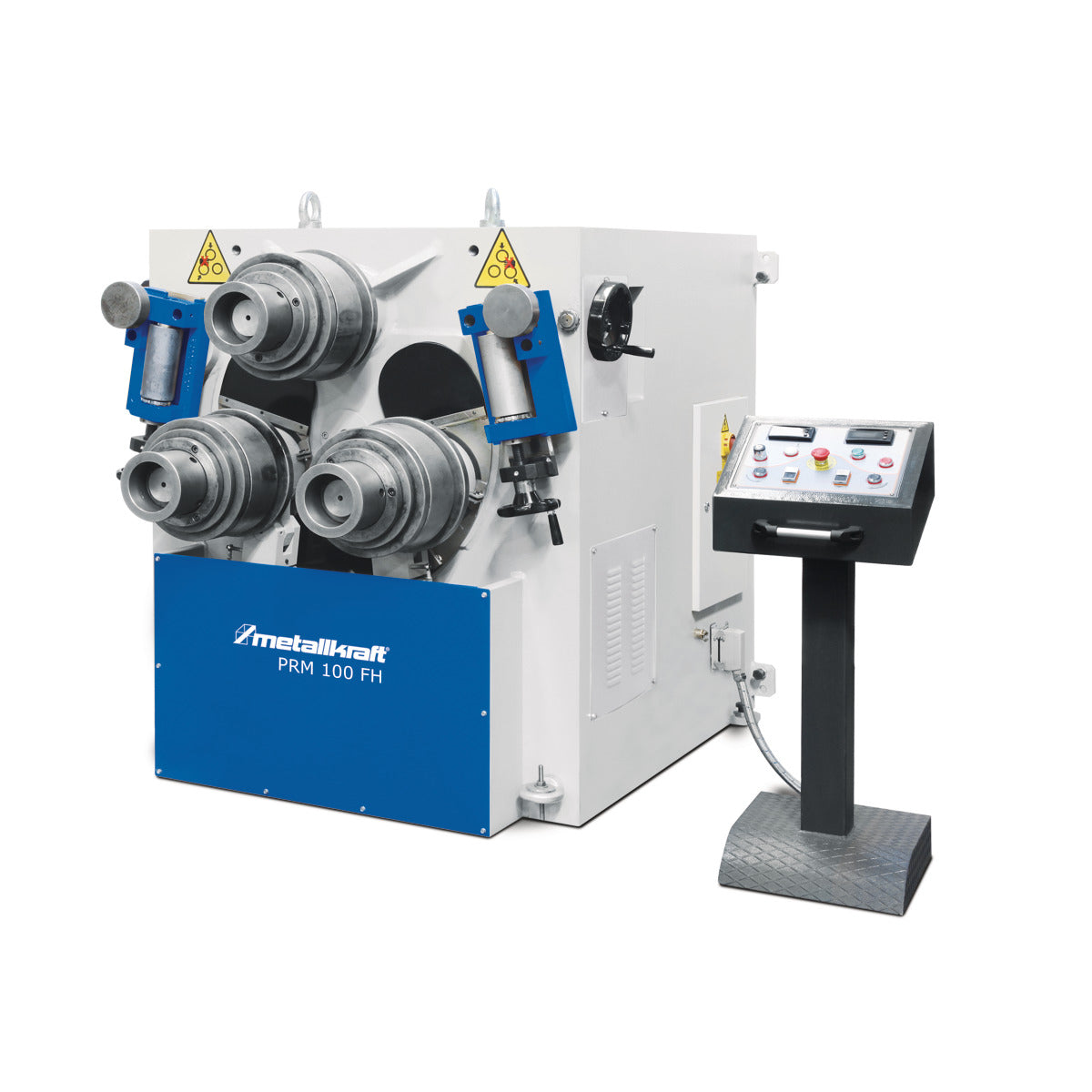

Metallkraft PRM 100 FH Hydraulic Ring Bending Machine
Metallkraft PRM 100 FH Hydraulic Ring Bending Machine
Regular price
£49,620.00 GBP
Regular price
Sale price
£49,620.00 GBP
Unit price
/
per
Couldn't load pickup availability
Share
Can be used horizontally and vertically for profiles, tubes and solid material
DELIVERY CONTENTS
- Standard bending rolls
- Mobile controller
- One digital display per lower feed roller
- Manual straightening rollers
TECHNICAL DATA
| Dimensions and weights | |||
| Length (product) approx. | 2000mm | Width/depth (product) approx. | 1450mm |
| Height (product) approx. | 1700mm | Net weight approx. |
3650mm |
| Explanation bending capacity round tubes |
Option required | Max. stroke | 285mm |
| Bending performance profile type standard | |||
|
Square material dimensions (yield point 24 kg/mm²) [1] |
60mm | Square material min. bending Ø (yield point 24 kg/mm²) [1] | 750mm |
| Square material dimensions (yield point 24 kg/mm²) [2] | 15mm | Square material min. bending Ø (yield point 24 kg/mm²) [2] | 400mm |
| Flat material light axis dimensions bending Ø (yield point 24 kg/mm²) [1] | 200 x 30mm | Flat material light axis min. bending Ø (yield point 24 kg/mm²) [1] | 1200mm |
| Flat material light axis dimensions bending Ø (yield point 24 kg/mm²) [2] | 160 x 35mm | Flat material light axis dimensions bending Ø (yield point 24 kg/mm²) [3] | 80 x 5mm |
| Flat material light axis min. bending Ø (yield point 24 kg/mm²) [3] | 400mm | Flat material heavy axis dimensions bending Ø (yield point 24 kg/mm²) [1] | 100 x 20mm |
| Flat material heavy axis min. bending Ø (yield point 24 kg/mm²) [1] | 800mm | Flat material heavy axis dimensions bending Ø (yield point 24 kg/mm²) [2] | 30 x 10mm |
| UPN profile top rib dimensions (yield point 24 kg/mm²) [1] | 100 x 11mm | T profile top rib min. bending Ø (yield point 24 kg/mm²) [1] | 1000mm |
| UPN profile top rib dimensions (yield point 24 kg/mm²) [2] | 30 x 4mm | T profile top rib min. bending Ø (yield point 24 kg/mm²) [2] | 400mm |
| Explanation for T profile rib above | Additional spacers may be required | UPN profile outside rib dimensions (yield point 24 kg/mm²) [1] | 100 x 11mm |
| T profile outside rib min. bending Ø (yield point 24 kg/mm²) [1] | 1000mm | UPN profile outside rib dimensions (yield point 24 kg/mm²) [2] | 30 x 4mm |
| T profile outside rib min. bending Ø (yield point 24 kg/mm²) [2] | 400mm | UPN profile inside rib dimensions (yield point 24 kg/mm²) [1] | 90 x 10mm |
| T profile inside rib min. bending Ø (yield point 24 kg/mm²) [1] | 1000mm | UPN profile inside rib dimensions (yield point 24 kg/mm²) [2] | 30 x 4mm |
| T profile inside rib min. bending Ø (yield point 24 kg/mm²) [2] | 400mm | UPN profile outside leg dimensions (yield point 24 kg/mm²) [1] | UPN 180 |
| UPN profile outside leg min. bending Ø (yield point 24 kg/mm²) [1] | 900mm | UPN profile outside leg dimensions (yield point 24 kg/mm²) [2] | UPN 30 |
| UPN profile outside leg min. bending Ø (yield point 24 kg/mm²) [2] | 400mm | UPN profile inside leg dimensions (yield point 24 kg/mm²) [1] | UPN 180 |
| UPN profile inside leg min. bending Ø (yield point 24 kg/mm²) [1] | 1000mm | UPN profile inside leg dimensions (yield point 24 kg/mm²) [2] | UPN 30 |
| UPN profile inside leg min. bending Ø (yield point 24 kg/mm²) [2] | 400mm | ||
| Electrical Data | |||
| Drive motor output | 7.5kW | Supply voltage | 400V |
| Mains frequency | 50Hz | ||
| Machine Data | |||
| Shaft diameter top | 100mm | Shaft diameter bottom | 100mm |
| Roller diameter top | 315mm | Roller diameter bottom | 315mm |
| Speed | 7m/min |
