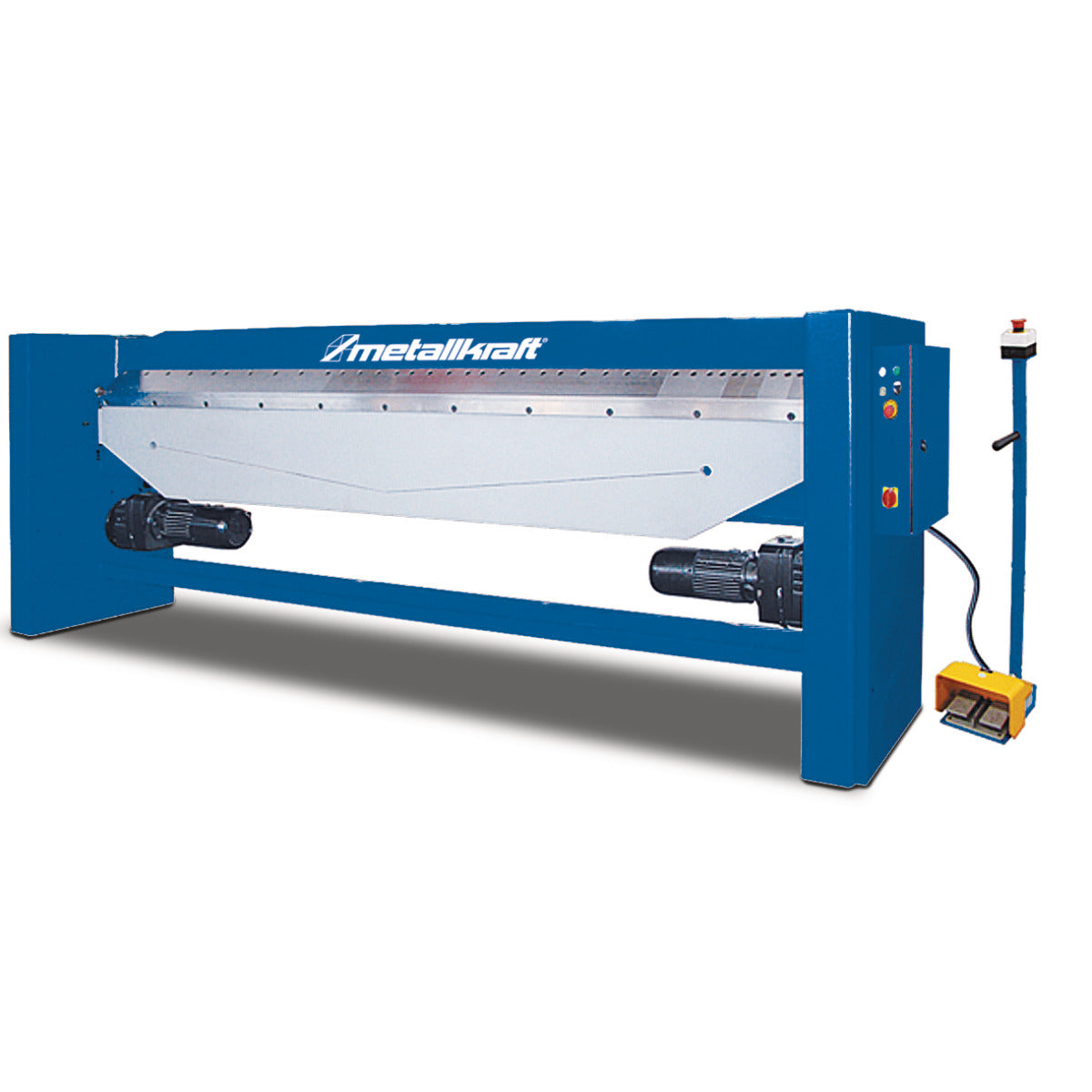

Metallkraft MSBM 2020-15 C S Motorised Swing Bending Machine (400v 3ph)
Metallkraft MSBM 2020-15 C S Motorised Swing Bending Machine (400v 3ph)
Regular price
£12,540.00 GBP
Regular price
Sale price
£12,540.00 GBP
Unit price
/
per
Couldn't load pickup availability
Share
Heavy version with motor drive of the upper and bending beam and segmented upper beam
- Foot control allows sheet positioning with both hands
- Workpiece clamping and bending are motorized via a chain drive
- Setting the bending angle manually, reading the angle on a scale ring
- Many bending options with segmented upper beam
- Accurate movement of the bending beam over large-dimensioned flat guides
- Heavy, robust welded construction
TECHNICAL DATA
| General Features | |||
| Max. working width | 2020mm | Max. passageway between top + bottom beam | 100mm |
| Max. bending angle | 135° | ||
| Dimensions and weights | |||
| Length (product) approx. | 2680mm | Width/depth (product) approx. | 640mm |
| Height (product) approx. | 1100mm | Net weight approx. | 965kg |
| Bending capacity | |||
| Bending capacity 400N/mm² | 1.5mm | Bending capacity 700N/mm² | 0.8mm |
| Bending capacity aluminium | 2.0mm | ||
| Electrical Data | |||
| Beam motor output | 0.37kW | Bending motor output |
0.75V |
| Beam motor input | 0.55kW | Bending motor input | 1kW |
| Supply voltage | 400V | Mains frequency | 50Hz |
