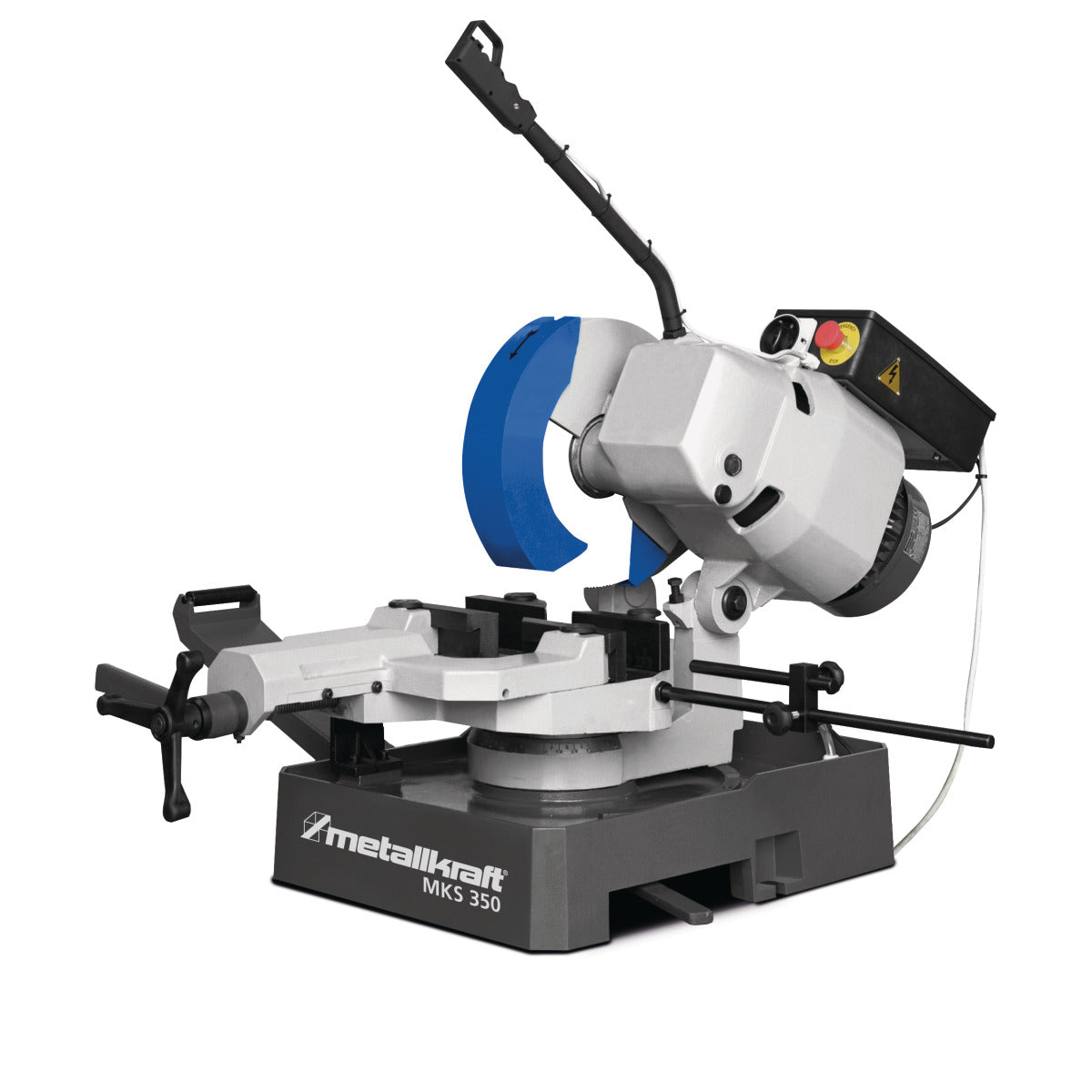

Metallkraft MKS 350 Manual Metal-Cutting Circular Saw (3ph 400v)

Metallkraft MKS 350 Manual Metal-Cutting Circular Saw (3ph 400v)

£4,740.00 GBP
£4,740.00 GBP
Sale Sold out

Two speeds and mitre-swivelling saw head and vice

  • Two cutting speeds as standard
  • Machine head can be swivelled 45° to the left and right
  • Reduction gear running in oil bath
  • With membrane coolant pump with filter
  • Double vice with counter vise and Antigratspannbacken guarantees a precise and burr-free cut
  • Quick-action vise swivels 45° to the left and 45° to the right
  • Adjustable blade guard
  • Movable guard ensures optimum safety when cutting
  • Electrical system in low voltage 24 volts, with emergency stop switch, main switch, speed selector switch and overload protection
  • Control handle with safety switch

DELIVERY CONTENTS

  •  Coolant system
  •  Length stop 500 mm
  •  operating tool
  •  without saw blade
  •  without substructure



    TECHNICAL SPEC

    General Features
    Saw blade speed(s) 40/80min¯¹ Saw blade diameter 350mm
    Mitre angle -45 – +45°

    Dimensions and Weights
    Length (product) approx. 1000mm Width/depth (product) approx. 1200mm
    Net weight approx. 231kg Height (product) approx. 1475mm
    Electrical Data
    Drive motor output
    		 1.8/2.4kW Supply voltage
    		 400V
    Mains frequency 50Hz

    Cutting Ranges
    Cutting capacity 0° (round) solid material 60mm Cutting capacity 0° (round) pipe 110mm
    Cutting capacity 0° (square) pipe 100 x 100mm Cutting capacity 0° (rectangle) pipe 120 x 80mm
    Cutting capacity -45° (round) solid material 55mm Cutting capacity -45° (round) pipe 80mm
    Cutting capacity -45° (square) pipe 80 x 80mm Cutting capacity -45° (rectangle) pipe 80 x 80mm
    Cutting capacity +45° (round) solid material 55mm Cutting capacity +45° (round) pipe 80mm
    Cutting capacity +45° (square) pipe 80 x 80mm Cutting capacity +45° (rectangle) pipe 80 x 80mm
