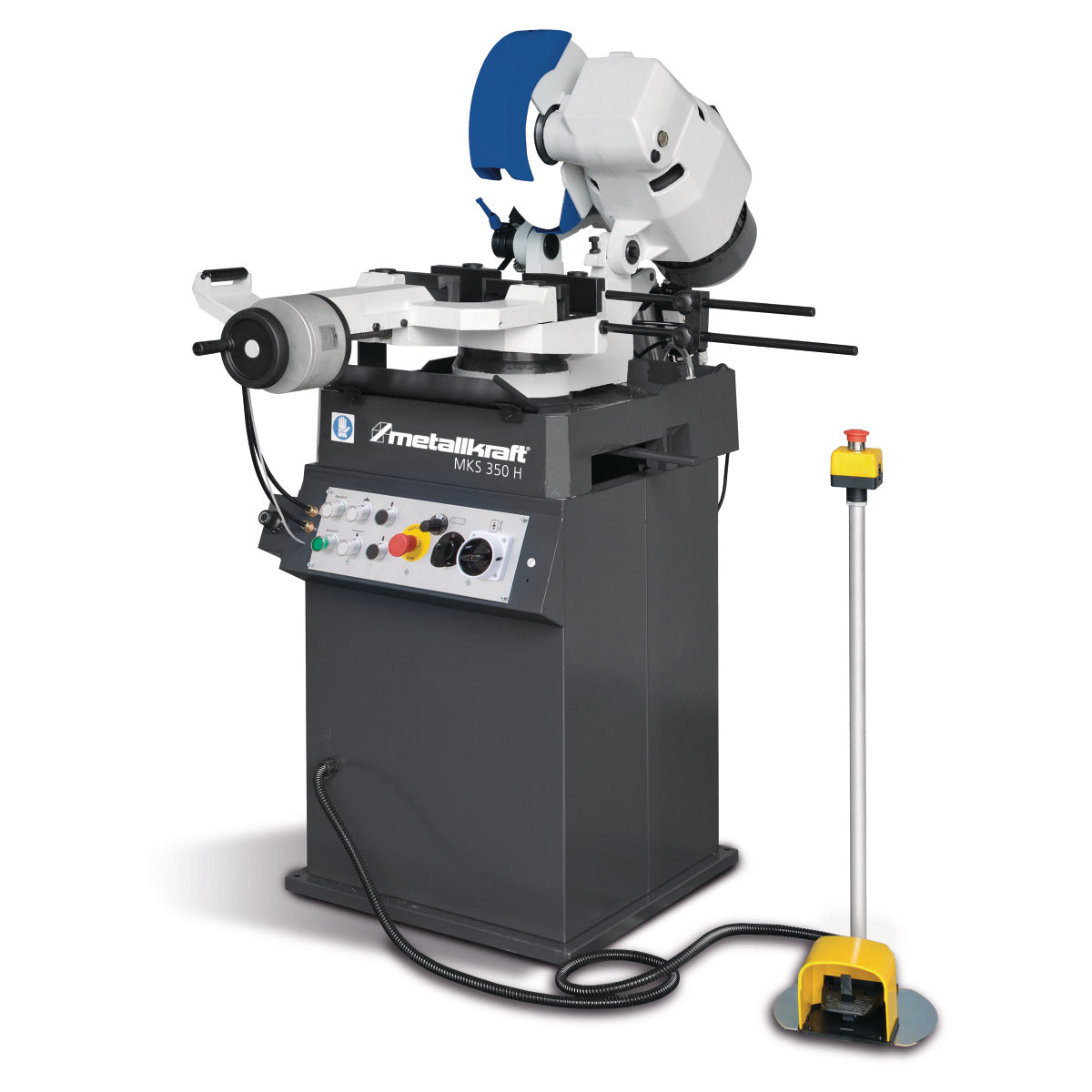

Metallkraft MKS 350 H Semi-Automatic Metal Circular Saw (3Ph 415V)

Metallkraft MKS 350 H Semi-Automatic Metal Circular Saw (3Ph 415V)

Regular price £8,700.00 GBP
Regular price Sale price £8,700.00 GBP
Sale Sold out

Two speeds and mitre-swivelling saw head and vice.

  •  Stable and robust construction
  •  Two cutting speeds as standard
  •  Pivoting machine head at 45 ° to the left and 90 ° to the right
  •  Reduction gear running in oil bath
  •  With membrane coolant pump with filter
  •  Double vice with counter vice and Antigratspannbacken guarantees a precise and burr-free cut
  •  Vice longitudinally displaceable and thus suitable for Längsschnitteund slitting
  •  Quick-action vice swivels 45 ° to the left and 45 ° to the right
  •  Movable guard ensures optimum safety when cutting
  •  Electrical system in low voltage 24 volts, with emergency stop switch, main switch, speed selector switch and overload protection
  •  Control handle with safety switch
  •  Quality Made in Europe

DELIVERY CONTENTS

  •  Activation of the engine and closing of the vice
  •  Lowering the saw head to cut
  •  Return the saw head to home position and stop the motor
  •  Opening the vice

    TECHNICAL SPEC

    General Features
    Saw blade speed(s) 40/80min¯¹ Saw blade diameter 350mm
    Mitre angle -45 – +45°

    Dimensions and Weights
    Length (product) approx. 1000mm Width/depth (product) approx. 1200mm
    Net weight approx. 280kg Height (product) approx. 1475mm
    Electrical Data
    Drive motor output
    1.8/2.4kW Supply voltage
    400V
    Mains frequency 50Hz
    Cutting Capacity
    Cutting capacity 0° (round) solid material 60mm Cutting capacity 0° (round) pipe 110mm
    Cutting capacity 0° (square) pipe 100 x 100mm Cutting capacity 0° (rectangle) pipe 120 x 80mm
    Cutting capacity -45° (round) solid material 55mm Cutting capacity -45° (round) pipe 80mm
    Cutting capacity -45° (square) pipe 80 x 80mm Cutting capacity -45° (rectangle) pipe 80 x 80mm
    Cutting capacity +45° (round) solid material 55mm Cutting capacity +45° (round) pipe 80mm
    Cutting capacity +45° (square) pipe 80 x 80mm Cutting capacity +45° (rectangle) pipe 80 x 80mm
