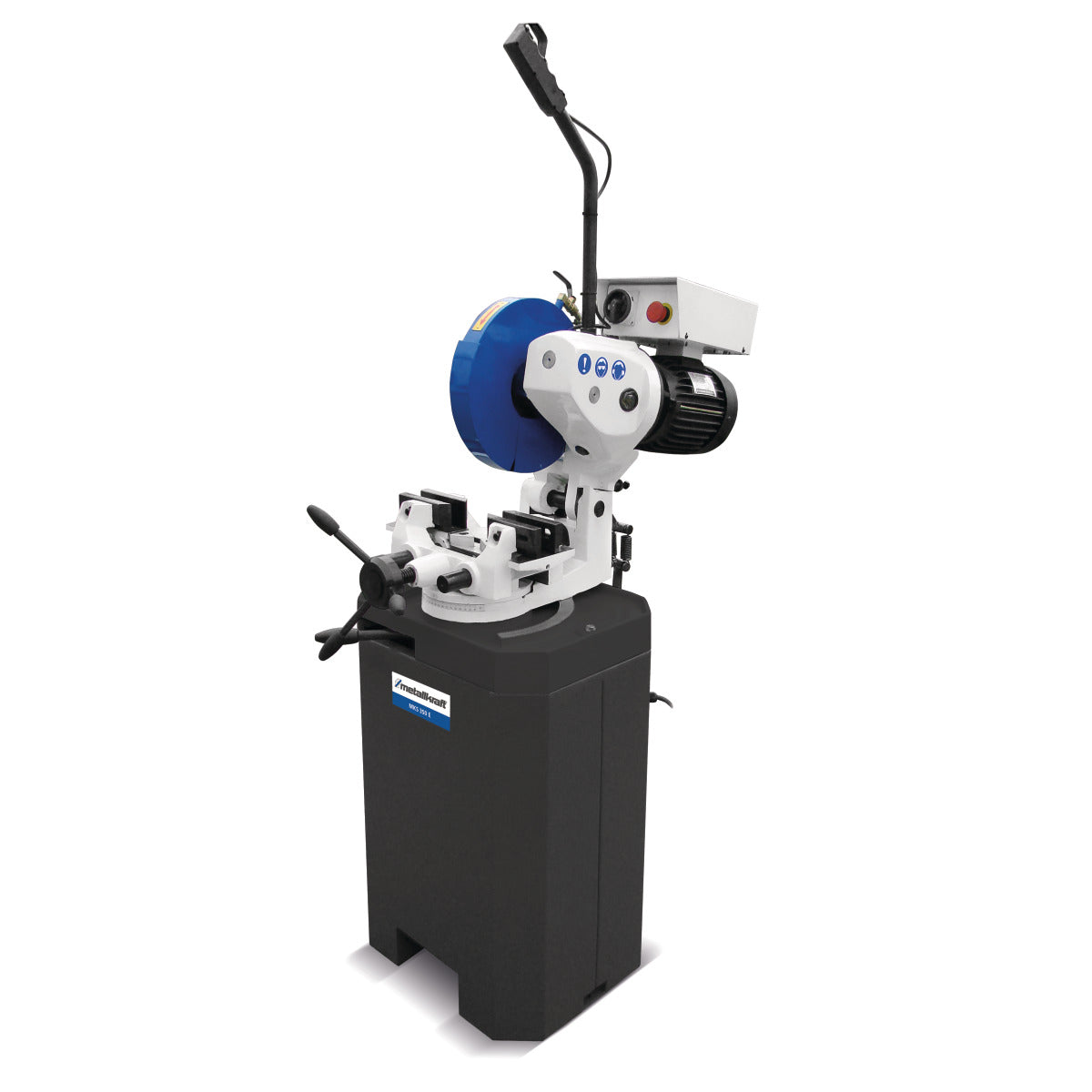

Metallkraft MKS 350 E Manual Metal-Cutting Circular Saw (3ph 400v)

Metallkraft MKS 350 E Manual Metal-Cutting Circular Saw (3ph 400v)

£2,580.00 GBP
£2,580.00 GBP
Sale Sold out

Mitre-swiveling saw head and vice

  • Two cutting speeds
  • Automatic diaphragm coolant pump with coolant filter as standard
  • Mitre adjustment from -45° to +45°
  • Release vice with double clamping device guarantees precise and virtually burr-free cutting

DELIVERY CONTENTS

  • Coolant device with filter
  • Self-centering vise
  • Substructure



    TECHNICAL SPEC

    General Features
    Saw blade speed(s) 36/72min¯¹ Saw blade diameter 350mm
    Saw blade bore 32mm Saw blade thickness 2mm
    Mitre angle -45 – +45°
    Dimensions and Weights
    Length (product) approx. 800mm Width/depth (product) approx. 600mm
    Net weight approx. 236kg Height (product) approx. 1600mm
    Electrical Data
    Drive motor output
    		 1.1/2.2kW Supply voltage
    		 400V
    Mains frequency 50Hz

    Cutting Ranges
    Cutting capacity 0° (round) solid material 55mm Cutting capacity 0° (square) solid material 50 x 50mm
    Cutting capacity 0° (round) pipe 120mm Cutting capacity 0° (square) pipe 110 x 110mm
    Cutting capacity 0° (rectangle) pipe 140 x 100mm Cutting capacity -45° (round) solid material 45mm
    Cutting capacity -45° (square) solid material 40 x 40mm Cutting capacity -45° (round) pipe 105mm
    Cutting capacity -45° (square) pipe 100 x 100mm Cutting capacity -45° (rectangle) pipe 100 x 100mm
    Cutting capacity +45° (round) solid material 45mm Cutting capacity +45° (square) solid material 40 x 40mm
    Cutting capacity +45° (round) pipe 105mm Cutting capacity +45° (square) pipe 100 x 100mm
    Cutting capacity +45° (rectangle) pipe 100 x 100mm
