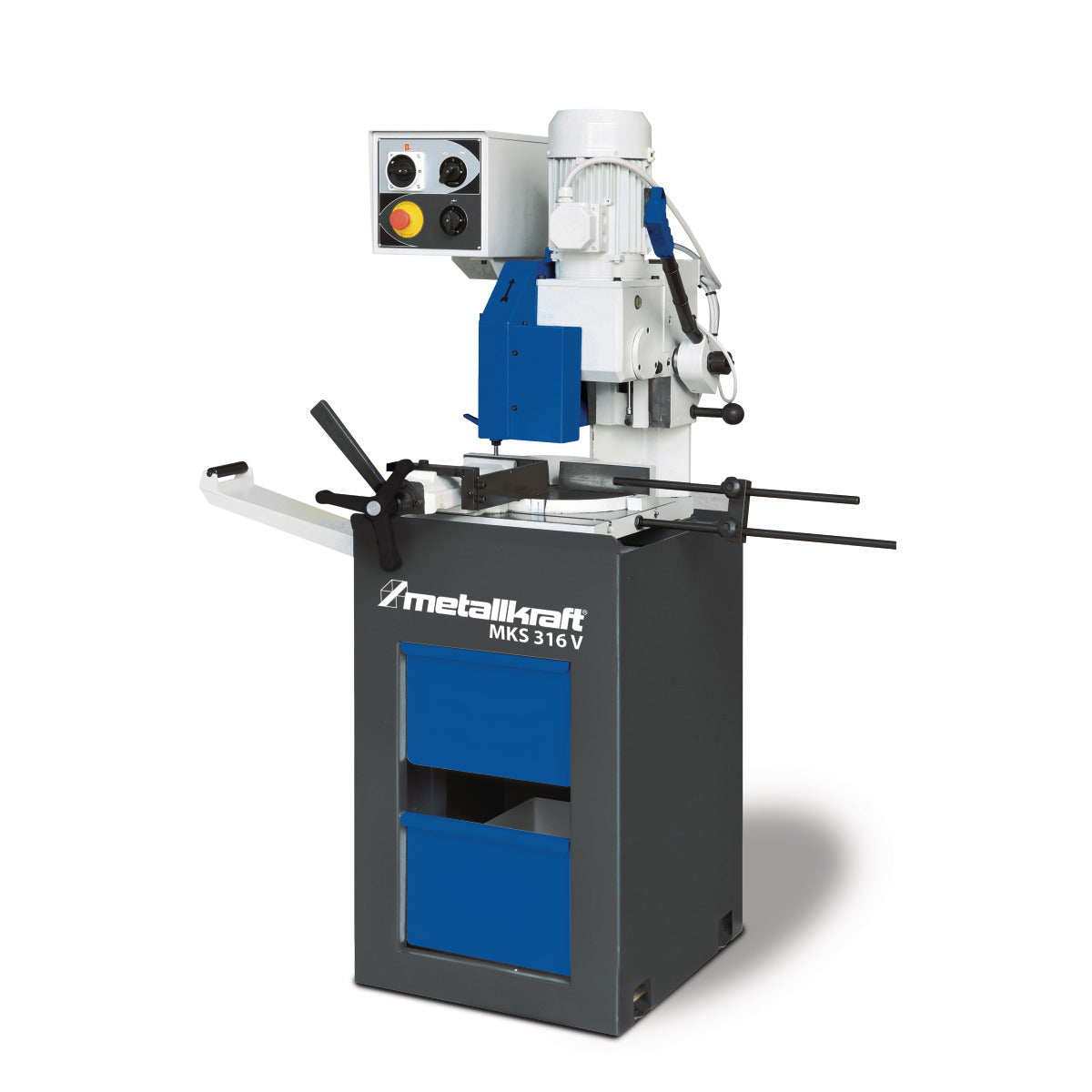

Metallkraft MKS 316V Manual Vertical Metal Circular Saw (3 Phase 415v)
Metallkraft MKS 316V Manual Vertical Metal Circular Saw (3 Phase 415v)
Regular price
£6,948.00 GBP
Regular price
Sale price
£6,948.00 GBP
Unit price
/
per
Couldn't load pickup availability
Share
Double mitre and vice with anti-burr device, slow speed for sawing stainless steel
- Machine head guided vertically, with dovetail guide and adjustable wedge bar
- Swivelling 45° to the left and 60° to the right, with locking at -45°, 0°, -45°, 60°
- Two cutting speeds
- Adjustable depth stop for the vertical stroke of the saw head
- Cross-movable vice with anti-burr device
- Stable and robust construction
- Easy and hassle-free operation
- Reduction gearbox quietly running in the oil bath
- Coolant pump with coolant filter
- Coolant jet distribution, for better lubrication of the saw blade
- Chip crusher for leaf cleaning
- Electrical system in low voltage 24 volts, with emergency stop switch, main switch, speed selector switch and overload protection
- Control handle with safety switch
DELIVERY CONTENTS
- Coolant device with filter
- Material support arm with roller
- Length stop 500 mm
- operating tool
- Chip remover T4
- without saw blade
TECHNICAL SPEC
| General Features | |||
| Saw blade speed(s) | 17/34min¯¹ | Saw blade diameter | 315mm |
| Mitre angle | -45 – +60° | ||
| Dimensions and Weights | |||
| Length (product) approx. | 1500mm | Width/depth (product) approx. | 650mm |
| Net weight approx. | 270kg | Height (product) approx. | 1700mm |
| Electrical Data | |||
| Drive motor output |
0.75kW | Supply voltage |
400V |
| Mains frequency | 50Hz | ||
| Cutting Capacity | |||
| Cutting capacity 0° (round) solid material | 70mm | Cutting capacity 0° (round) pipe | 100mm |
| Cutting capacity 0° (square) pipe | 90 x 90mm | Cutting capacity 0° (rectangle) pipe | 135 x 80mm |
| Cutting capacity -45° (round) solid material | 70mm | Cutting capacity -45° (round) pipe | 100mm |
| Cutting capacity -45° (square) pipe | 90 x 90mm | Cutting capacity -45° (rectangle) pipe | 100 x 80mm |
| Cutting capacity +45° (round) solid material | 70mm | Cutting capacity +45° (round) pipe | 80mm |
| Cutting capacity +45° (square) pipe | 70 x 70mm | Cutting capacity +45° (rectangle) pipe | 70 x 80mm |
