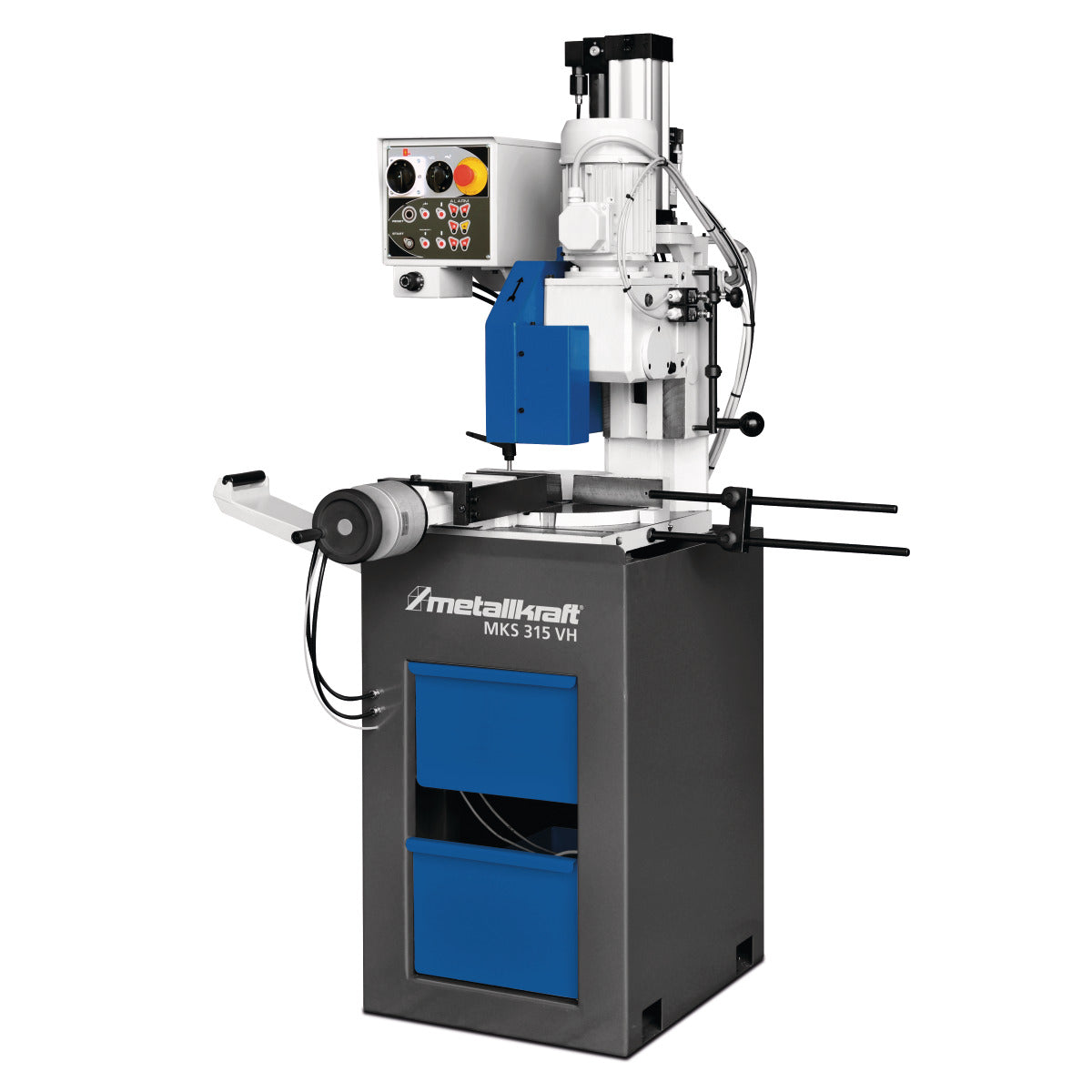

Metallkraft MKS 315 VH Semi-Automatic Vertical Metal Circular Saw (400v 3ph)

Metallkraft MKS 315 VH Semi-Automatic Vertical Metal Circular Saw (400v 3ph)

£9,594.00 GBP
£9,594.00 GBP
Sale Sold out

Two speeds, double mitre and quick-release vice with anti-burr device.

  •  Stable and robust construction
  •  Simple and easy operation
  •  Two cutting speeds
  •  Machine head, vertically guided, with dovetail guide and adjustable wedge strip, 45 ° to the left and 60 ° to the right, with locking at 45 °, 0 °, -45 °, -60 °
  •  Adjustable depth stop for the vertical stroke of the saw head
  •  Reduction gear quietly running in oil bath
  •  Coolant pump with coolant filter
  •  Coolant jet distribution for better lubrication of the saw blade
  •  Transversely displaceable pneumatic quick-action vise with Antrigratvorrichtung
  •  Chipbreaker for blade cleaning
  •  Electrical system in low voltage 24 volts, with emergency stop switch, main switch, speed selector switch, undervoltage release and overload protection
  •  Quality Made in Europe

DELIVERY CONTENTS

  •  Material support arm with roller
  •  Length stop 500 mm
  •  operating tool
  •  Chip remover T4
  •  without saw blade
  •  Coolant device with filter

    TECHNICAL SPEC

    General Features
    Saw blade speed(s) 33/66min¯¹ Saw blade diameter 315mm
    Mitre angle -45 – +60°

    Dimensions and Weights
    Length (product) approx. 1500mm Width/depth (product) approx. 650mm
    Net weight approx. 300kg Height (product) approx. 2000mm
    Electrical Data
    Drive motor output
    		 1.3/1.8kW Supply voltage
    		 400V
    Mains frequency 50Hz
    Cutting Capacity
    Cutting capacity 0° (round) solid material 70mm Cutting capacity 0° (round) pipe 100mm
    Cutting capacity 0° (square) pipe 90 x 90mm Cutting capacity 0° (rectangle) pipe 135 x 80mm
    Cutting capacity -45° (round) solid material 70mm Cutting capacity -45° (round) pipe 100mm
    Cutting capacity -45° (square) pipe 90 x 90mm Cutting capacity -45° (rectangle) pipe 100 x 80mm
    Cutting capacity +45° (round) solid material 70mm Cutting capacity +45° (round) pipe 100mm
    Cutting capacity +45° (square) pipe 90 x 90mm Cutting capacity +45° (rectangle) pipe 100 x 80mm
    Cutting capacity +60° (round) solid material 70mm Cutting capacity +60° (round) pipe 80mm
    Cutting capacity +60° (square) pipe 70 x 70mm Cutting capacity +60° (rectangle) pipe 70 x 80mm
