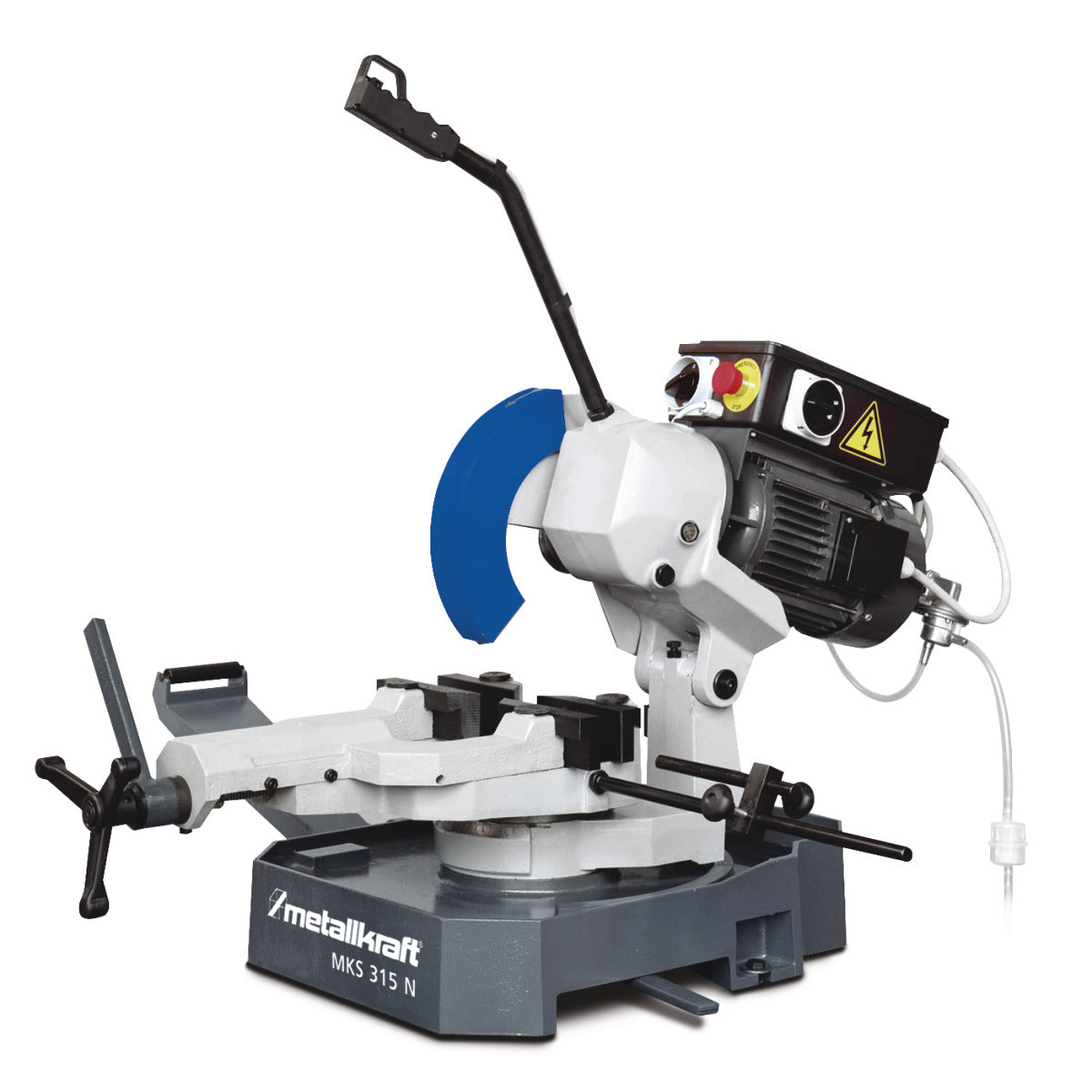

Metallkraft MKS 315 N Manual Metal-Cutting Circular Saw (3 Phase 400v)

Metallkraft MKS 315 N Manual Metal-Cutting Circular Saw (3 Phase 400v)

£3,474.00 GBP
£3,474.00 GBP
Sale Sold out

Two speeds and mitre-swivelling saw head and vice

  •  Two cutting speeds
  •  Rotatable machine head 45 ° to the left and 45 ° to the right
  •  Reduction gear running in oil bath
  •  Automatic membrane coolant pump with standard coolant filter
  •  Quick-action vise with antigraking device, swiveling 45 ° to the left and 45 ° to the right
  •  Vise longitudinally displaceable and thus suitable for longitudinal cuts and slits
  •  Movable guard ensures optimum safety when cutting
  •  Control handle with safety switch
  •  Electrical system in low voltage 24 volts, with emergency stop switch, main switch, speed selector switch and overload protection
  •  Quality Made in Europe

DELIVERY CONTENTS

  •  Coolant system
  •  substructure

    TECHNICAL SPEC

    General Features
    Saw blade speed(s) 40/80min¯¹ Saw blade diameter 315mm
    Mitre angle -45 – +45°

    Dimensions and Weights
    Length (product) approx. 1000mm Width/depth (product) approx. 1150mm
    Net weight approx. 165kg Height (product) approx. 1475mm
    Electrical Data
    Drive motor output
    		 1.5/2.2kW Supply voltage
    		 400V
    Mains frequency 50Hz

    Cutting Ranges
    Cutting capacity 0° (round) solid material 55mm Cutting capacity 0° (round) pipe 90mm
    Cutting capacity 0° (square) pipe 80 x 80mm Cutting capacity 0° (rectangle) pipe 115 x 70mm
    Cutting capacity -45° (round) solid material 50mm Cutting capacity -45° (round) pipe 80mm
    Cutting capacity -45° (square) pipe 70 x 70mm Cutting capacity -45° (rectangle) pipe 70 x 70mm
    Cutting capacity +45° (round) solid material 50mm Cutting capacity +45° (round) pipe 80mm
    Cutting capacity +45° (square) pipe 70 x 70mm Cutting capacity +45° (rectangle) pipe 70 x 70mm
