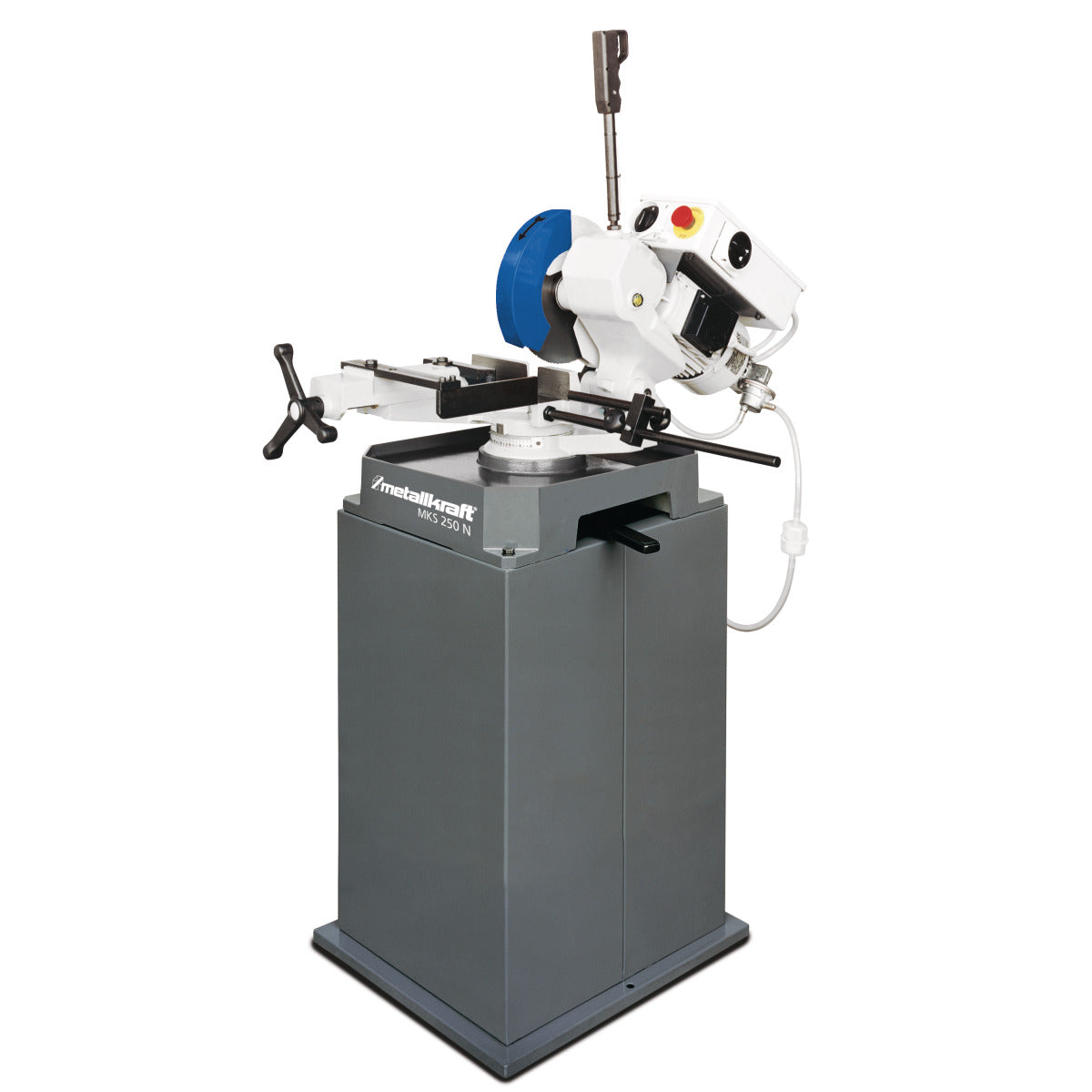

Metallkraft MKS 250 N Cutting Circular Saw Including Blade & Stand. (1ph 230v)

Metallkraft MKS 250 N Cutting Circular Saw Including Blade & Stand. (1ph 230v)

£2,394.00 GBP
£2,394.00 GBP
Sale Sold out

One and two speeds as well as mitre swivelling saw head and vice

  •  For steel
  •  two cutting speeds
  •  Reduction gear, silent in oil bath running
  •  automatic membrane coolant pump with standard coolant filter
  •  movable protection device ensures optimum safety when cutting
  •  Control handle with safety switch
  •  electrical system in low voltage 24 volts, with emergency stop switch, main switch, speed selector and overload protection
  •  Machine head rotatable by 45 ° on both sides
  •  45 ° swiveling quick-action vice on both sides
  •  Quick-action vice with double clamping device guarantees a precise and low-profile cut
  •  Quality Made in Europe

DELIVERY CONTENTS

  •  Coolant device with filter
  •  Length stop 500 mm
  •  operating tool
  •  HSS saw blade ZT4
  •  including substructure

    TECHNICAL SPEC

    General Features
    Saw blade speed(s) 40min¯¹ Saw blade diameter 250mm
    Mitre angle -45 – +45°

    Dimensions and Weights
    Length (product) approx. 800mm Width/depth (product) approx. 830mm
    Net weight approx. 83kg Height (product) approx. 755mm
    Electrical Data
    Drive motor output
    		 1.1kW Supply voltage
    		 230V
    Mains frequency 50Hz

    Cutting Ranges
    Cutting capacity 0° (round) solid material 40mm Cutting capacity 0° (round) pipe 70mm
    Cutting capacity 0° (square) pipe 70 x 70mm Cutting capacity 0° (rectangle) pipe 55 x 95mm
    Cutting capacity -45° (round) solid material 35mm Cutting capacity -45° (round) pipe 65mm
    Cutting capacity -45° (square) pipe 55 x 55mm Cutting capacity -45° (rectangle) pipe 50 x 60mm
    Cutting capacity +45° (round) solid material 35mm Cutting capacity +45° (round) pipe 65mm
    Cutting capacity +45° (square) pipe 55 x 55mm Cutting capacity +45° (rectangle) pipe 50 x 60mm
