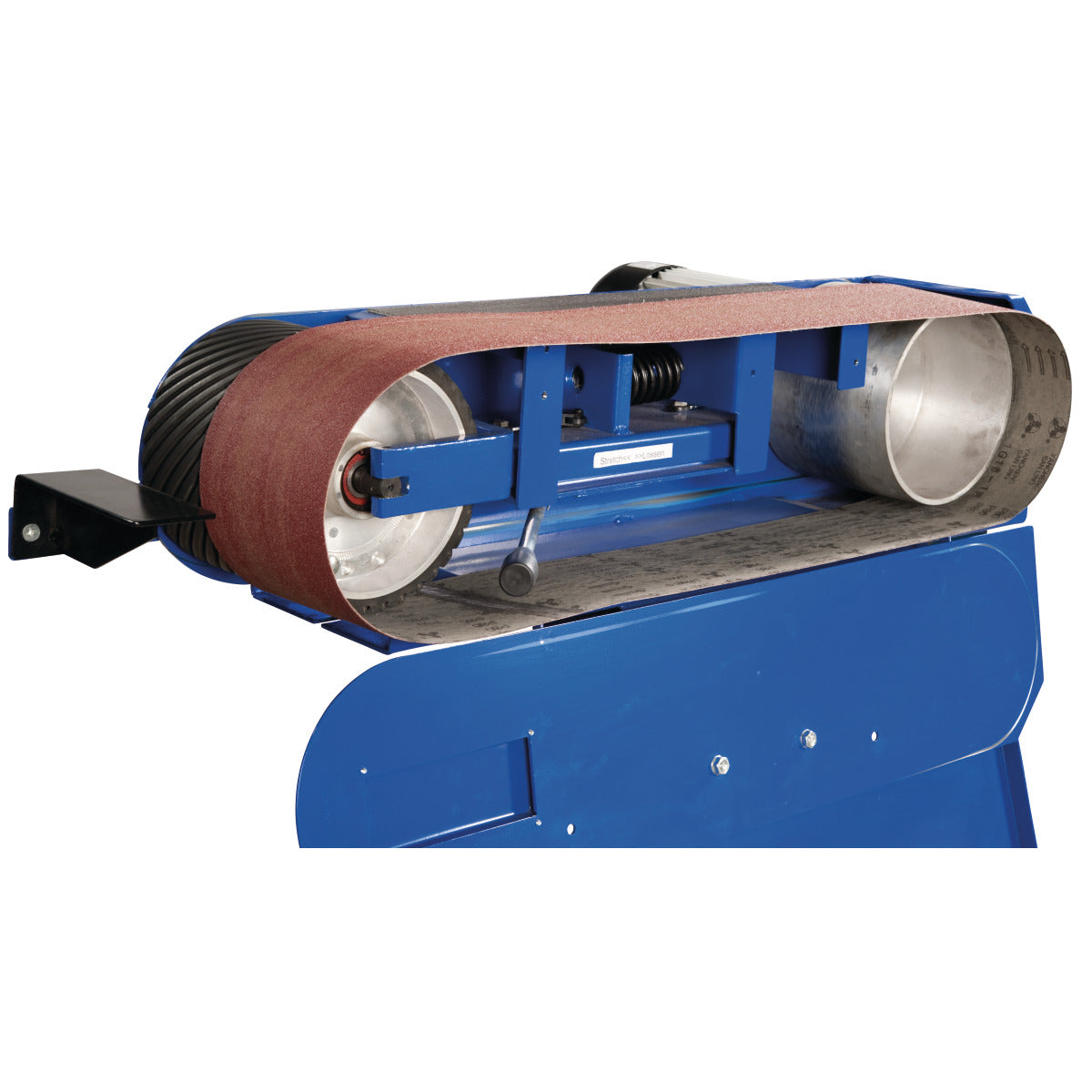

Metallkraft MBSM 150-200-2 Belt Sander (3 Phase 400v)

Metallkraft MBSM 150-200-2 Belt Sander (3 Phase 400v)

Regular price £1,260.00 GBP
Regular price Sale price £1,260.00 GBP
Sale Sold out

For sanding surfaces, edges and rounding off

  •  Powerful motors and vibration-free barrel for best grinding results
  •  With fold-away protective screen
  •  Seconds sanding belt change by quick clamping system
  •  Large surface grinding surface due to fold-away, upper sanding belt cover
  •  Can be used with and without suction
  •  With extraction nozzle directly on the spark box and on the rear belt reel
  •  Continuous face grinding surface after removal of add-on parts - allows grinding even of long workpieces
  •  Easy adjustment of the tape run via set screw
  •  Automatic re-tensioning of the sanding belt by spring-supported belt tensioning system
  •  With two belt speeds - for grinding steel and stainless steel
  •  Continuously tiltable sanding unit



DELIVERY CONTENTS
  • Sanding belt G80



TECHNICAL SPEC

Dimensions and Weights
Length (product) approx. 1070mm Width/Depth (product) approx. 415mm
Height (product) approx. 950mm Net Weight approx. 90kg
Electrical Data
Drive motor output 2.2/2.8kW Supply voltage 400V
Mains frequency
50Hz

Noise Emission


Emissions sound pressure level at workstation Lp (idling without extraction unit) 87dB(A)

Sanding Machine
Max. sanding width 150mm Sanding belt length 2000mm
Sanding belt width 150mm Circumferential belt speed(s) 14.5/29m/s
Contact wheel diameter 200mm

Extraction
Extraction duct nominal width outside 2 x 100mm
