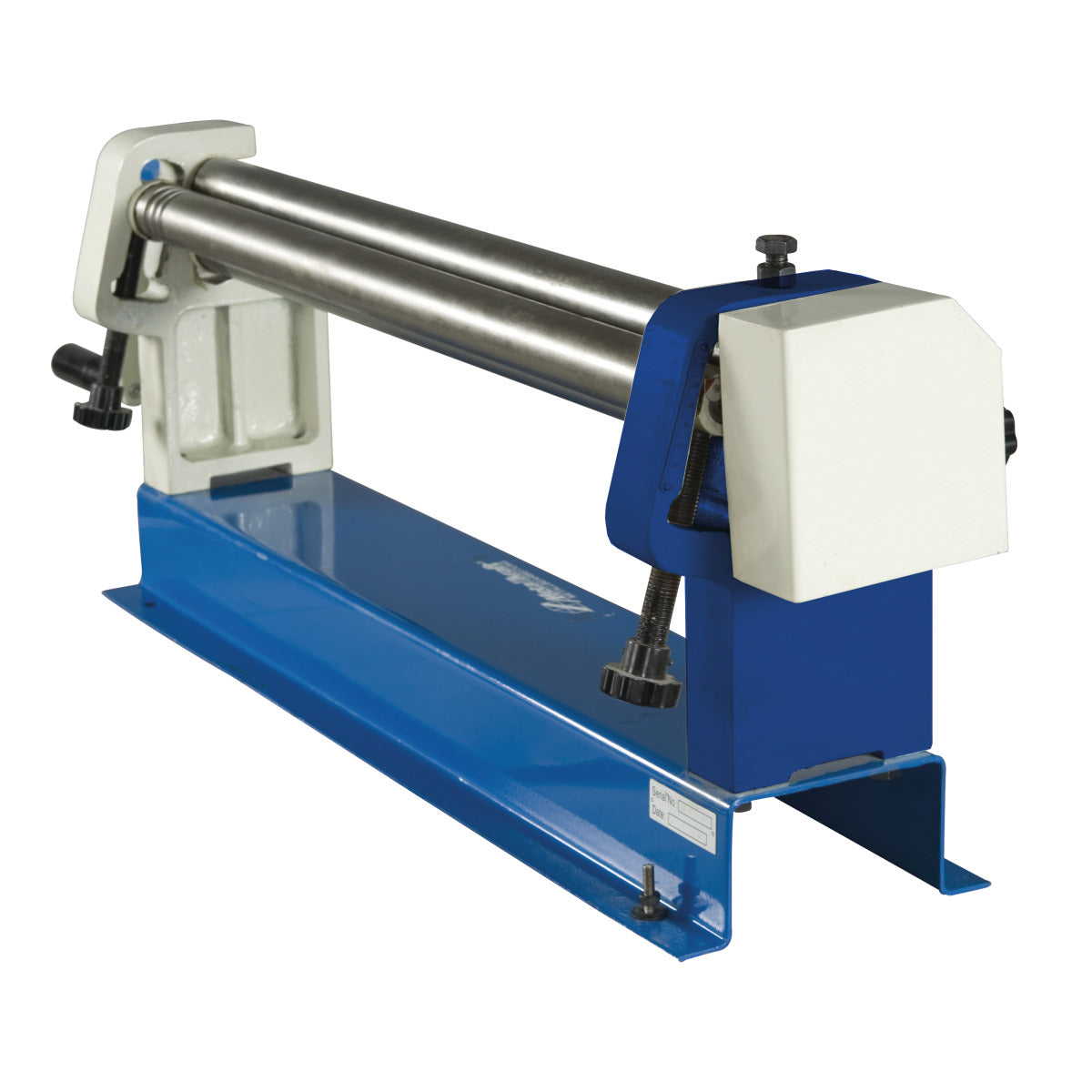

Metallkraft Manual 3 Roller Plate Bending Machine RBM 610-08

Metallkraft Manual 3 Roller Plate Bending Machine RBM 610-08

£462.00 GBP
£462.00 GBP
Sale Sold out
  • Rolls made of steel
  • Swing-out top roller for easier removal of the workpiece
  • Asymmetric roller arrangement for easy pre-bending
  • Tiltable side roller for conical bending
  • Clamping and side roller with wire insert groove
  • Roller drive via hand crank and gearbox
  • Particularly handy and therefore suitable for work in confined spaces
  • Due to the low wave strength optimally suitable for filigree applications
  • 3-roll bending machine for the production of all round shaped parts such as pipes, cylinders, etc.
  • Simple and solid construction

TECHNICAL DATA

Dimensions and Weights
Length (product) approx. 885mm Width/Depth (product) approx. 220mm
Height (product) approx. 340mm Net Weight approx. 37kg
Max. working width 610mm Top roller diameter 38mm
Wire insert groove diameter 4.8/6.4/8mm
Bending Performance
Max. pre-bending performance in steel 400N/mm²
 0.80mm Min. bending diameter
 60mm
