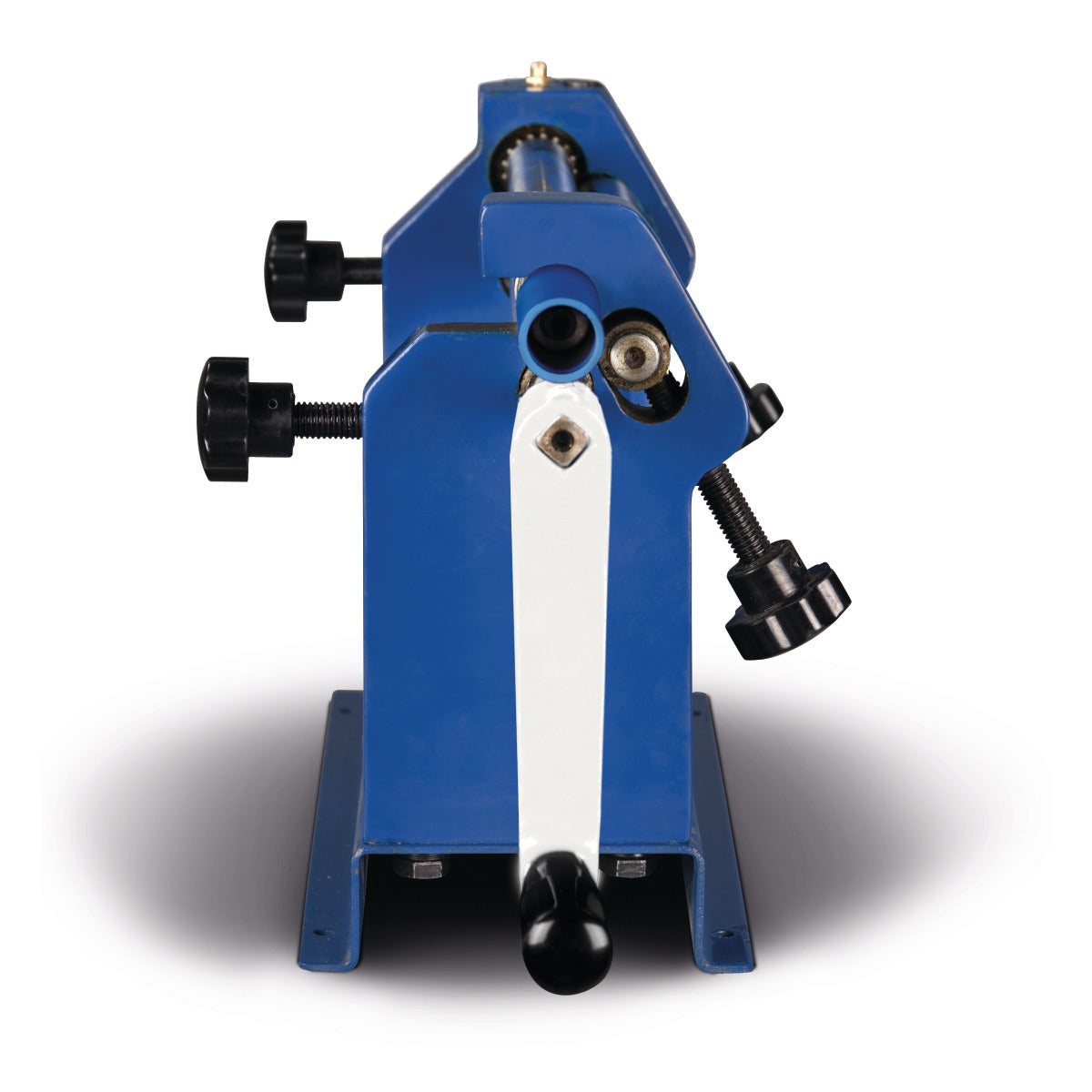

Metallkraft Manual 3 Roller Plate Bending Machine RBM 305

Metallkraft Manual 3 Roller Plate Bending Machine RBM 305

£264.00 GBP
£264.00 GBP
Sale Sold out
  • Rolls made of steel
  • Swing-out top roller for easier removal of the workpiece
  • Asymmetric roller arrangement for easy pre-bending
  • Tiltable side roller for conical bending
  • Clamping and side roller with wire insert groove
  • Roller drive via hand crank and gearbox
  • Particularly handy and therefore suitable for work in confined spaces
  • Due to the low wave strength optimally suitable for filigree applications
  • 3-roll bending machine for the production of all round shaped parts such as pipes, cylinders, etc.
  • Simple and solid construction



    TECHNICAL SPEC

    Dimensions and Weights
    Length (product) approx. 580mm Width/Depth (product) approx. 210mm
    Height (product) approx. 255mm Net Weight approx. 14kg
    Max. working width 305mm Top roller diameter 25mm
    Wire insert groove diameter 4/5/8mm
    Bending Performance
    Max. pre-bending performance in steel 400N/mm² 0.8mm Min. bending diameter
    		 40mm
