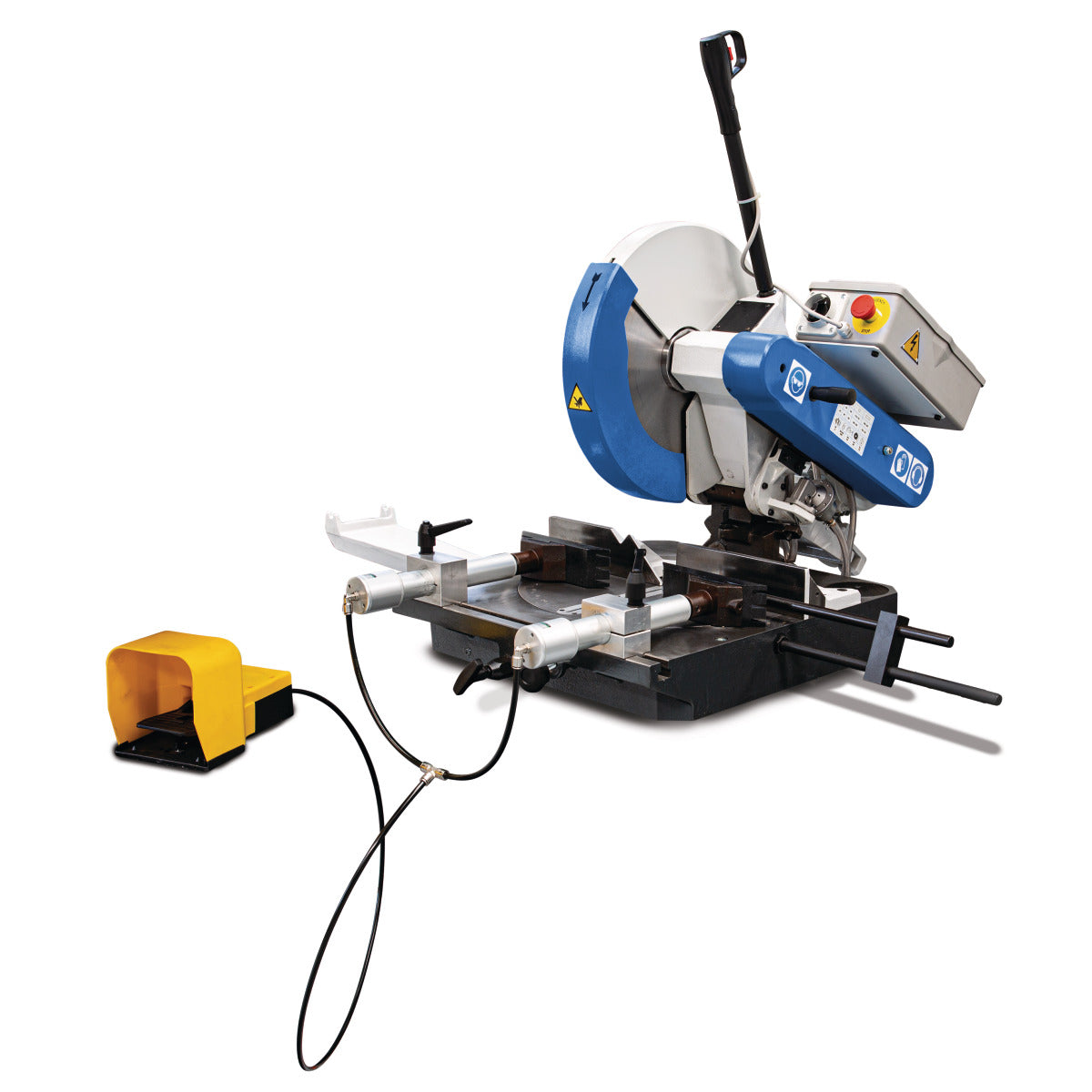

Metallkraft LMS 400 P Manual Light Metal Circular Saw (3 Phase 400v)

Metallkraft LMS 400 P Manual Light Metal Circular Saw (3 Phase 400v)

£5,034.00 GBP
£5,034.00 GBP
Sale Sold out

For cutting solid material and profiles made of aluminium and light metal alloys

  • Saw head swivelby by 45° to the left and right
  • Stable and robust construction
  • Precise cut
  • Turntable and saw shaft mounted on bearings
  • Quick-release screw sticks with plastic-equipped aluminium clamping jaws
  • Easy and hassle-free operation
  • Saw head for chiverge cut by 45° to the left tiltable
  • Two pneumatic vices
  • Control handle with safety switch

DELIVERY CONTENTS

  •  Length stop 500 mm
  •  operating tool

    TECHNICAL SPEC

    General Features
    Saw blade speed(s) 3000min¯¹ Saw blade diameter 400mm
    Mitre angle -45 – +45° Slope angle -45 – 0°
    Dimensions and Weights
    Length (product) approx. 1500mm Width/depth (product) approx. 1000mm
    Net weight approx. 210kg Height (product) approx. 900mm
    Electrical Data
    Drive motor output
    		 2.2kW Supply voltage
    		 400V
    Mains frequency 50Hz
    Cutting Capacity
    Cutting capacity 0° (round) solid material 60mm Cutting capacity 0° (round) pipe 140mm
    Cutting capacity 0° (square) pipe 110 x 110mm Cutting capacity 0° (rectangle) pipe 180 x 100mm
    Cutting capacity -45° (round) solid material 60mm Cutting capacity -45° (round) pipe 120mm
    Cutting capacity -45° (square) pipe 100 x 100mm Cutting capacity -45° (rectangle) pipe 150 x 100mm
    Cutting capacity +45° (round) solid material 60mm Cutting capacity +45° (round) pipe 120mm
    Cutting capacity +45° (square) pipe 100 x 100mm Cutting capacity +45° (rectangle) pipe 150 x 100mm
    Cutting capacity +60° (round) solid material 70mm Cutting capacity +60° (round) pipe 80mm
    Cutting capacity +60° (square) pipe 70 x 70mm Cutting capacity +60° (rectangle) pipe 70 x 80mm
