- For deburring with practical workpiece support and chip collecting container
- Convenient operation thanks to easily adjustable clamping device
- The rotating clamping jaws of the clamping device enable secure clamping of square tubes, round tubes and flat steel
- Adjustable grinding angles of 30 - 90 ° and 0 ° - 60 °

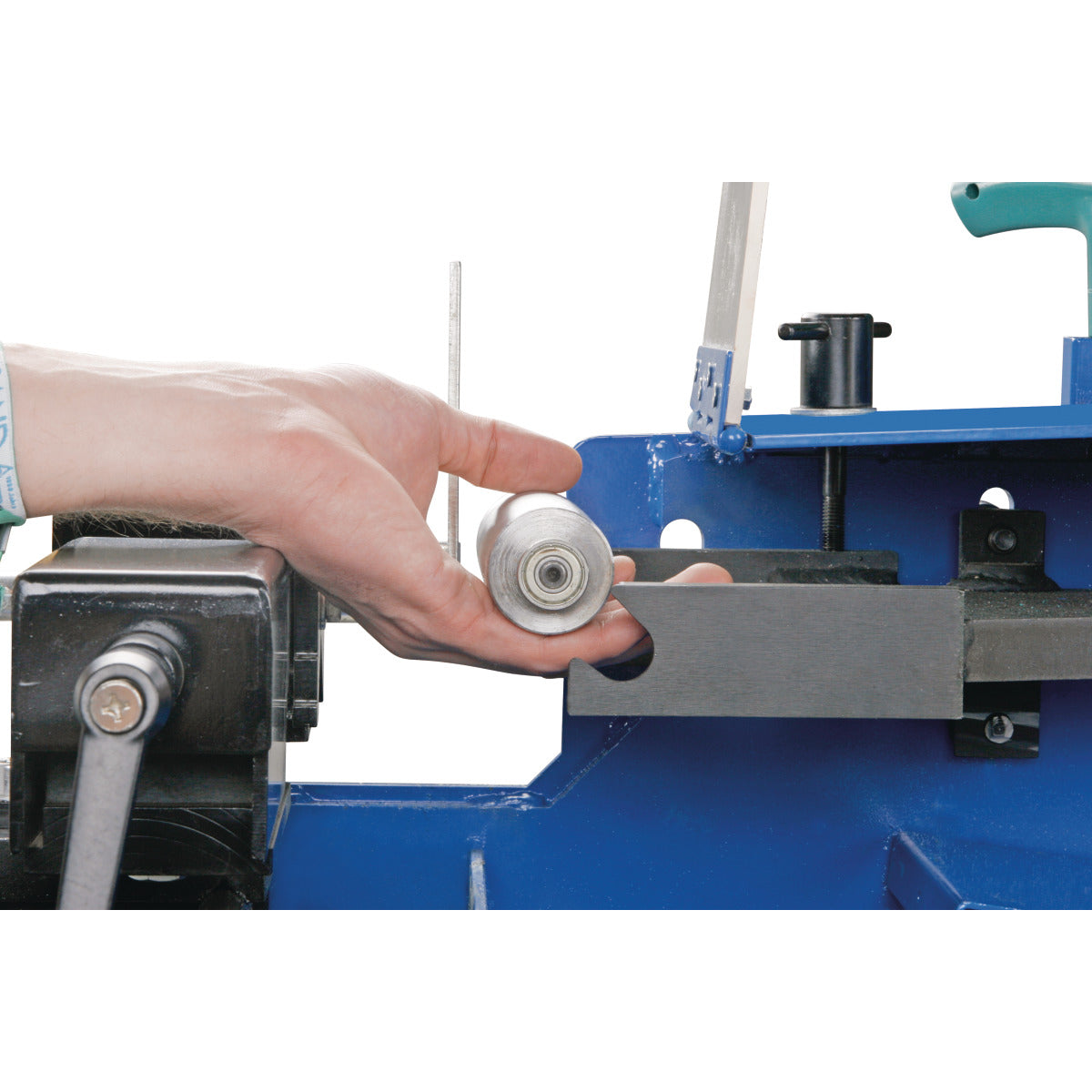

- Thanks to the optimized quick-change holder, the tensioner can be changed easily and quickly without tools
- Particularly durable due to larger and improved roller bearings
- Practical grinding wheel holders integrated in the base
- Extensive range of grinding wheels for different pipe diameters available as accessories
- Fast change between pipe grinding and belt grinding possible
- Powerful engine
- Almost all settings can be carried out without tools (operating tool included)
- Large, hinged protective glass with optimum field of vision
- Optimal adaptation to the respective material due to 2 belt speeds (15 m / s ideal for stainless steel and aluminum, 30 m / s perfect for steel)

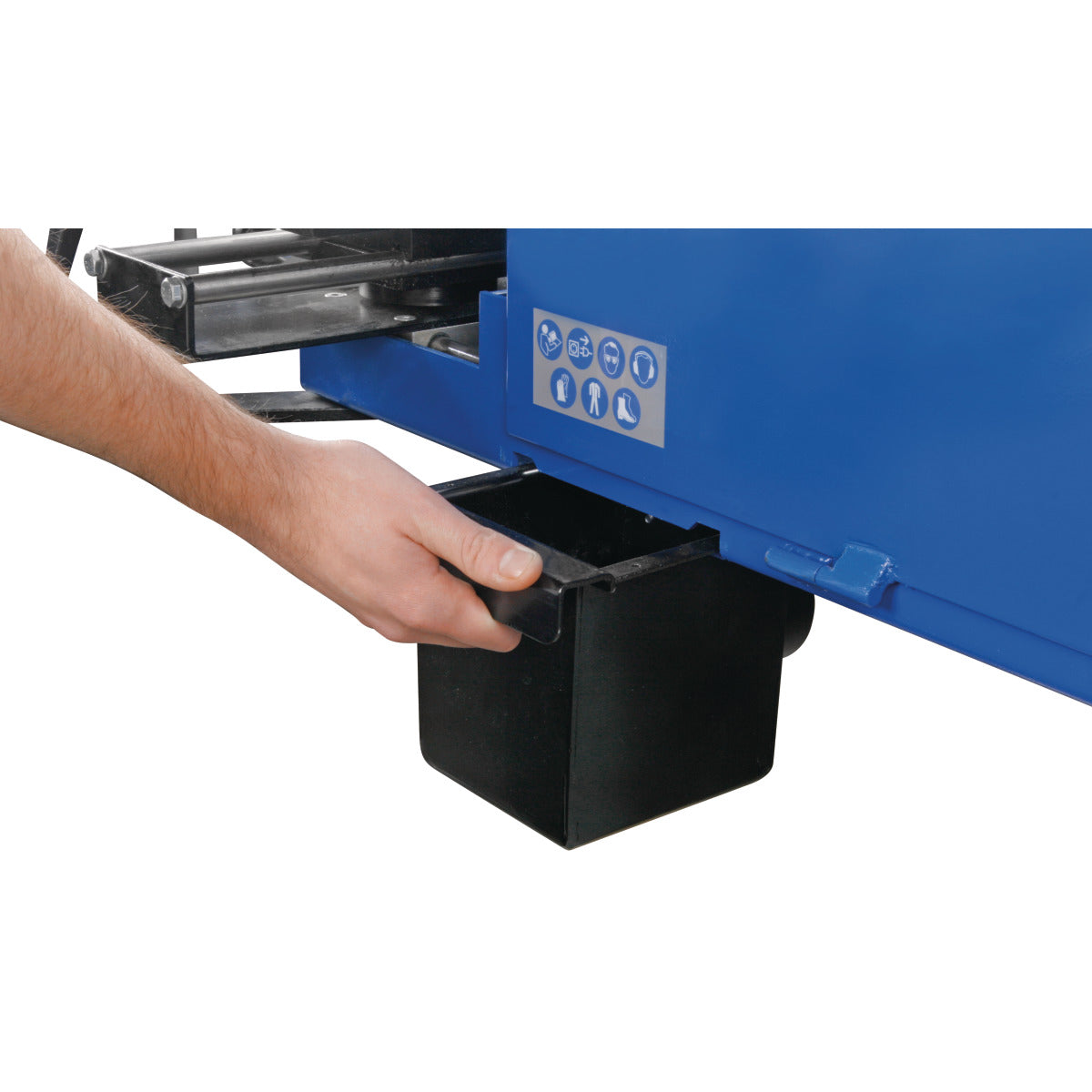

- With two easily removable chip collecting containers
- Extraction nozzle (Ø 70 mm) for extraction systems available
1
/
of
4
My Store

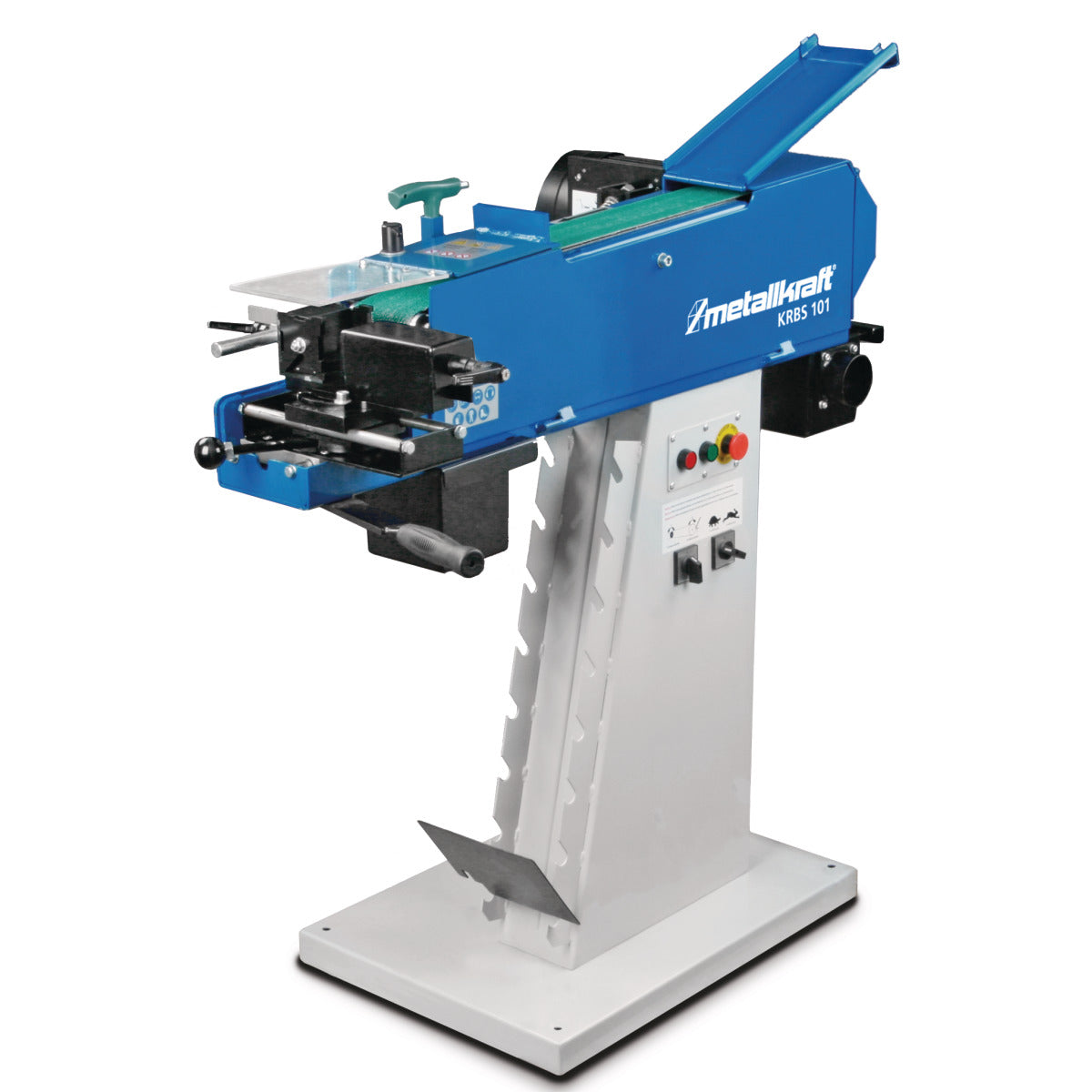

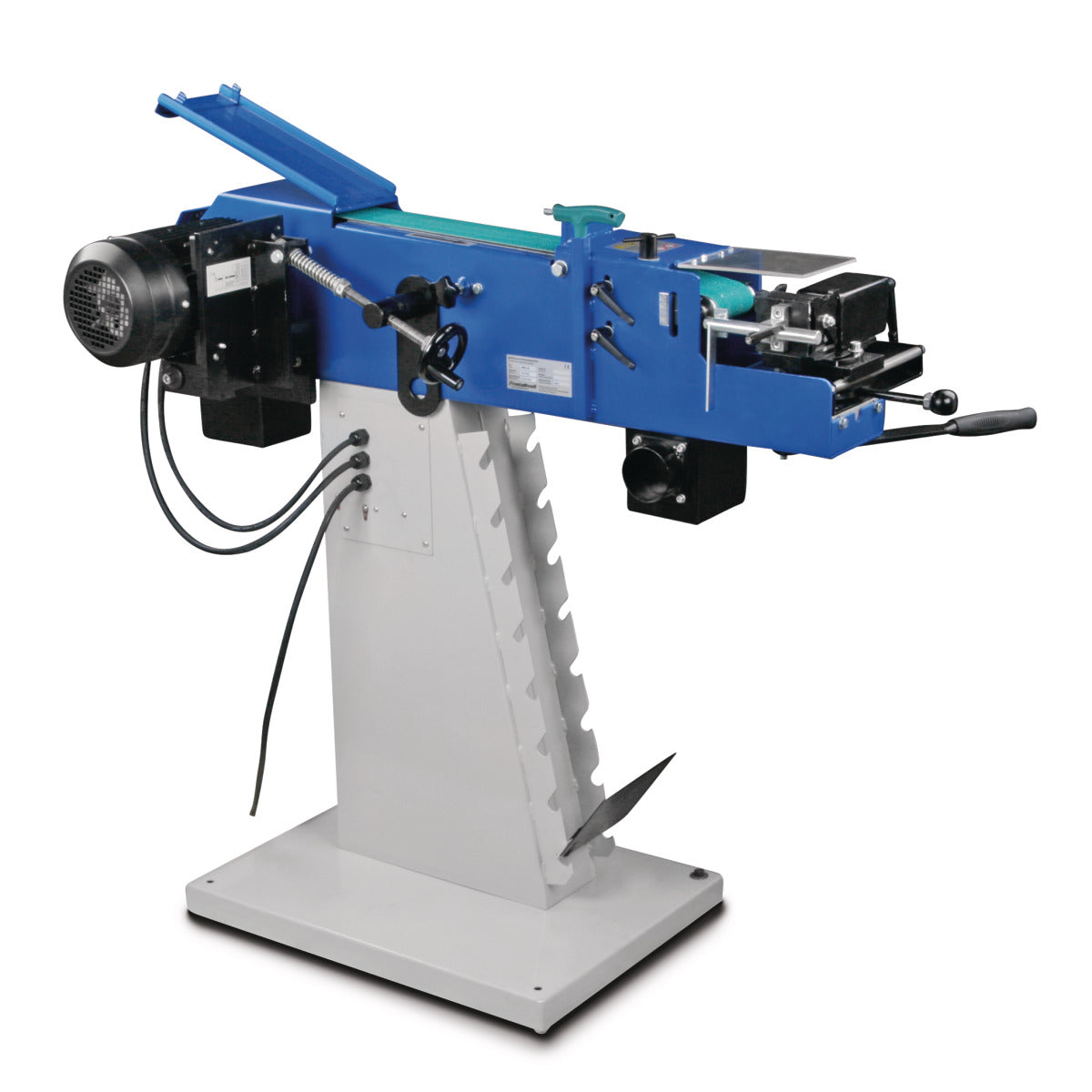

Metallkraft KRBS 101 Combined tube, profile and belt sander (3 Ph 400v)
Metallkraft KRBS 101 Combined tube, profile and belt sander (3 Ph 400v)
Regular price
£2,394.00 GBP
Regular price
Sale price
£2,394.00 GBP
Unit price
/
per
Couldn't load pickup availability
Share
DELIVERY CONTENTS
- 1x standard sanding belt grain K 40 for stainless steel & grey cast iron sanding
- 2 x chip collecting tanks
- 1 x wrench
- 1 x sanding roller 42 mm
TECHNICAL SPEC
| Dimensions and Weights | |||
| Length (product) approx. | 1250mm | Width/Depth (product) approx. | 750mm |
| Height (product) approx. | 1140mm | Net Weight approx. | 159kg |
| Electrical Data | |||
| Drive motor output | 2.5/3.3kW | Supply voltage | 400V |
| Mains frequency |
50Hz | Motor speed(s) | 1400/2800min¯¹ |
| Noise Emission | |||
| Emissions sound pressure level at workstation Lp (idling without extraction unit) | 87dB(A) | ||
| Sanding Machine | |||
| Sanding belt length | 2000mm | Sanding belt width | 100mm |
| Circumferential belt speed(s) | 150mm | Adjustable grinding angle | 30-90(0-60)° |
| Extraction | |||
| Extraction duct nominal width outside | 2 x 74mm | Extraction duct nominal width inside | 2 x 70mm |
