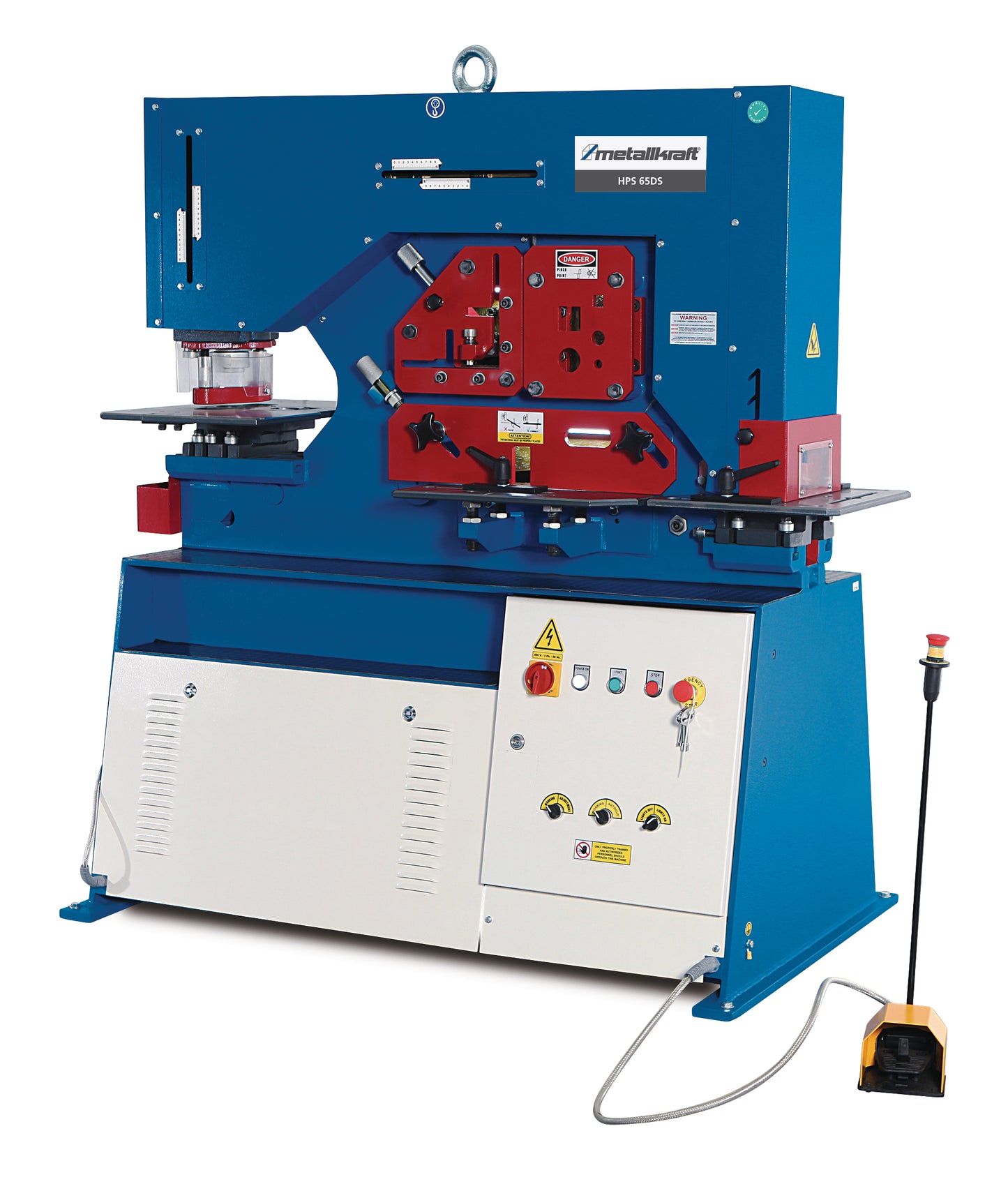

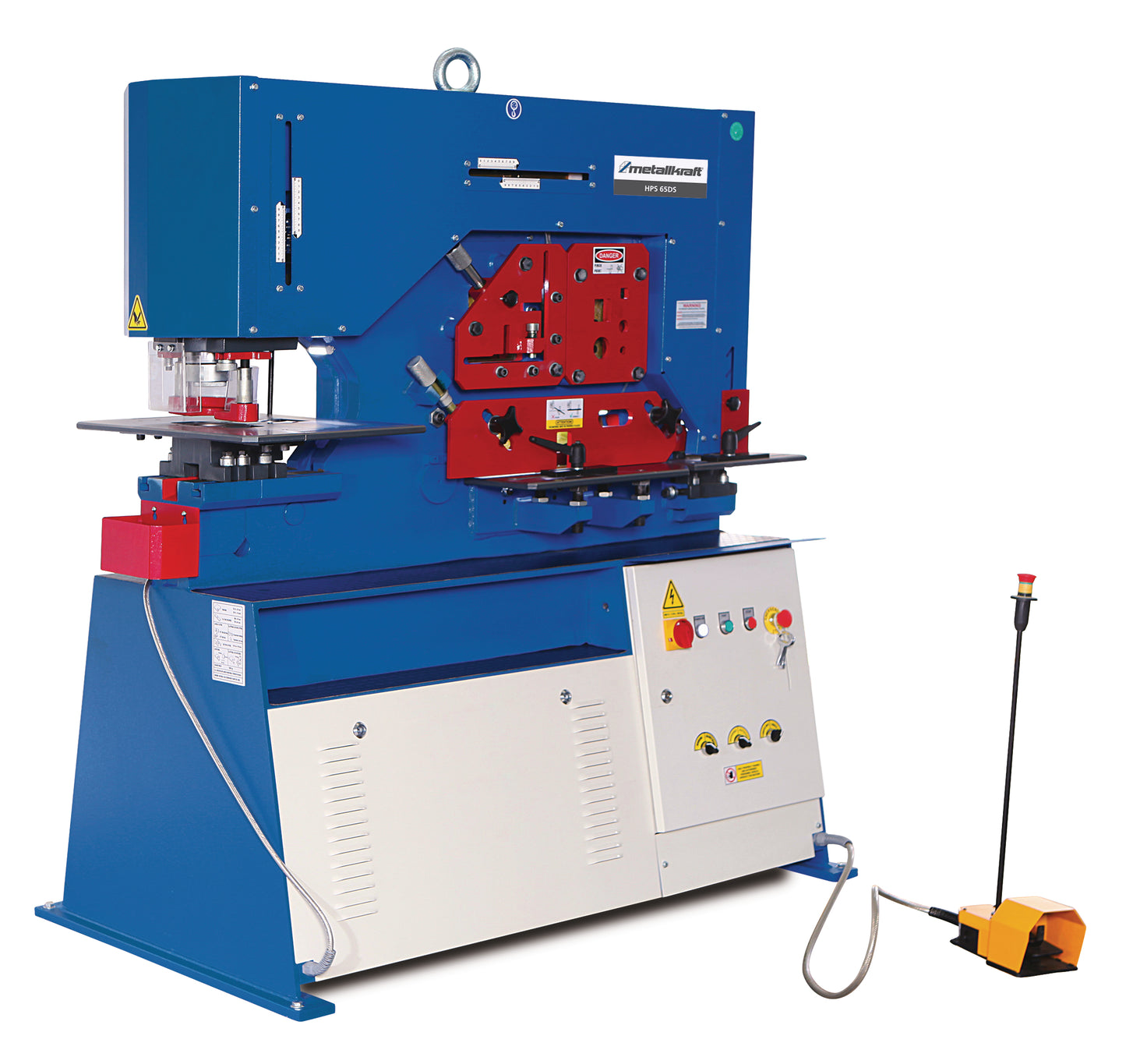

Metallkraft HPS 65DS - Hydraulic Sectional Steel Shears / Punching Machine

Combined machine with up to 5 processing stations and foot operation

• Punching station, flat steel shears, angle steel shears, sectional steel shears, available with notching station starting from HPS 45S
• DS series with two working cylinders and two foot pedals for simultaneous use with punching station and sectional steel shears
• Stepless adjustment of the stroke
• Larger reach for punching station with 620 mm optional, available from HPS 55DS
• Heavy and rigid welded construction
• Standard with notching knife starting from HPS 45S
• With powerful 400 Volt motor
• V-notching knife, oversized punching device and larger throat depth for punching station available on request
• Two-stage foot pedal for inching operation
• Stamps and dies No. 1, No. 2, No. 3, No. 30, No. 45, No. 60 can be used with the standard delivery scope of the machine. Use of punch and die No. 4 and No. 80 optional (except HPS 40S)

Advantages of punching over drilling:

• High time savings - cycle times
• No chips
• No cooling

Note:

• All hydraulic sectional shears are delivered with oil

DELIVERY CONTENTS

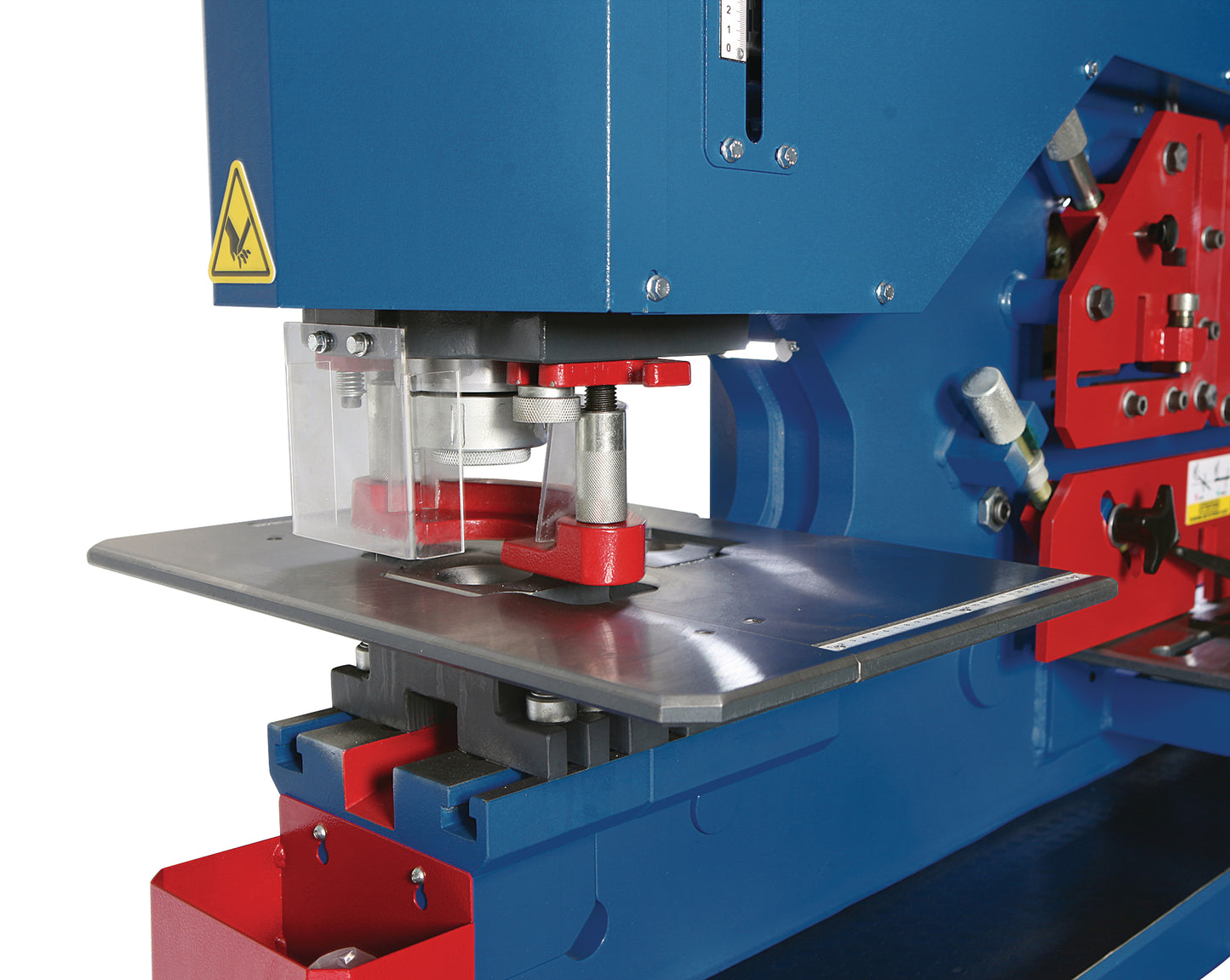

•  Punching station

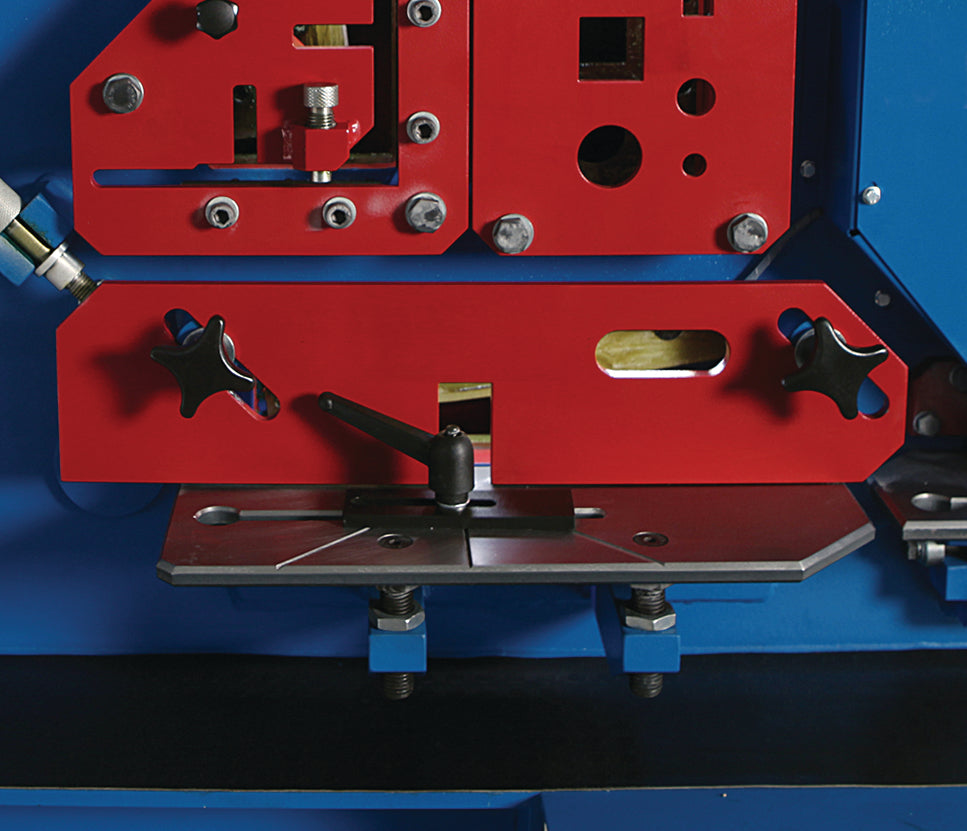

•  Flat shear

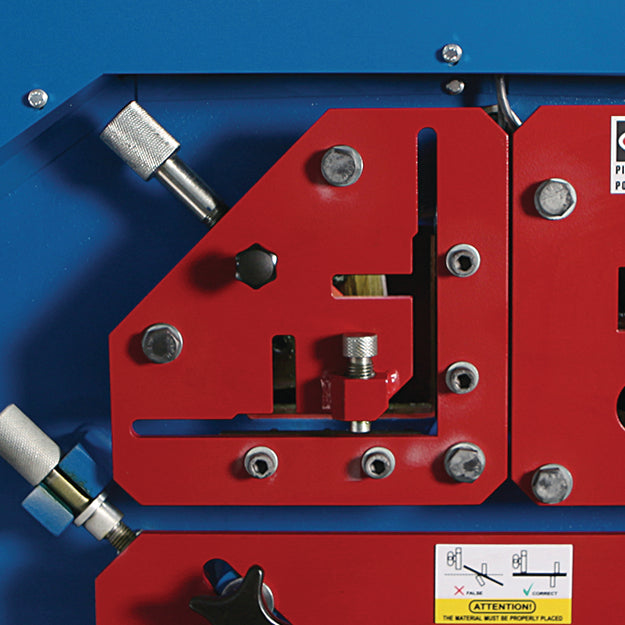

•  Angle Shear

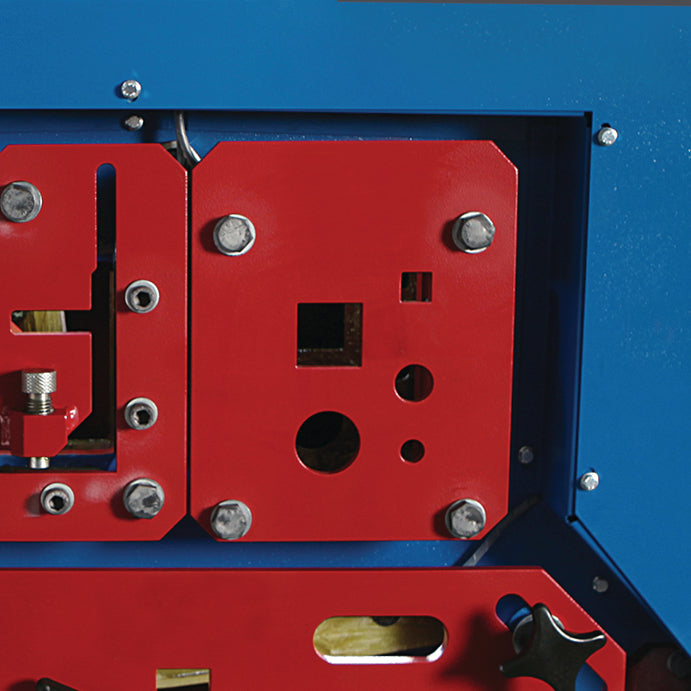

•  Section steel shears with round and square blade
•  Notching
•  Work light

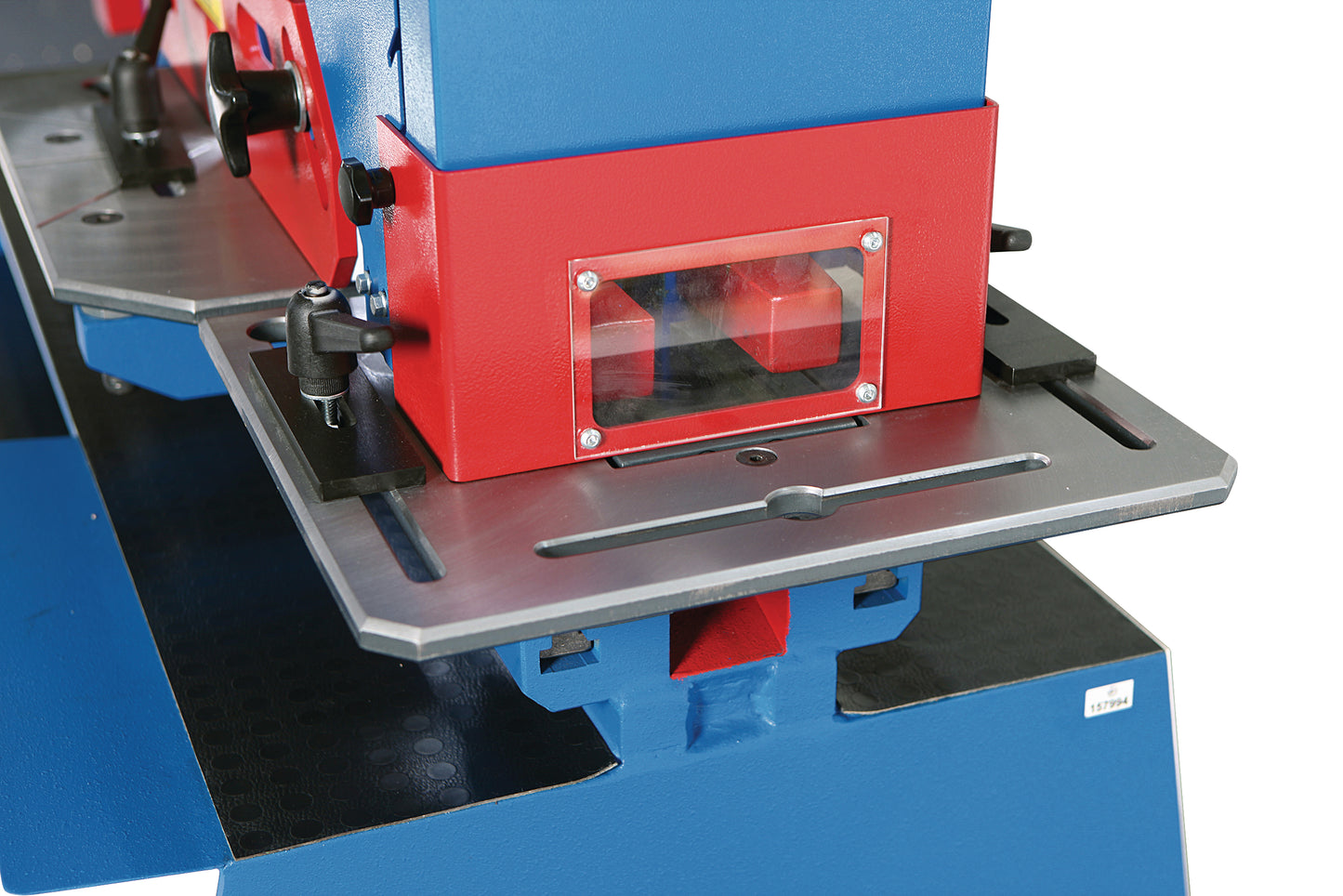

•  Electrical contact stroke
•  Stamp holder with bayonet lock
•  Stamp and Die Reductions # 1, # 2, # 3, # 30, # 45, # 60

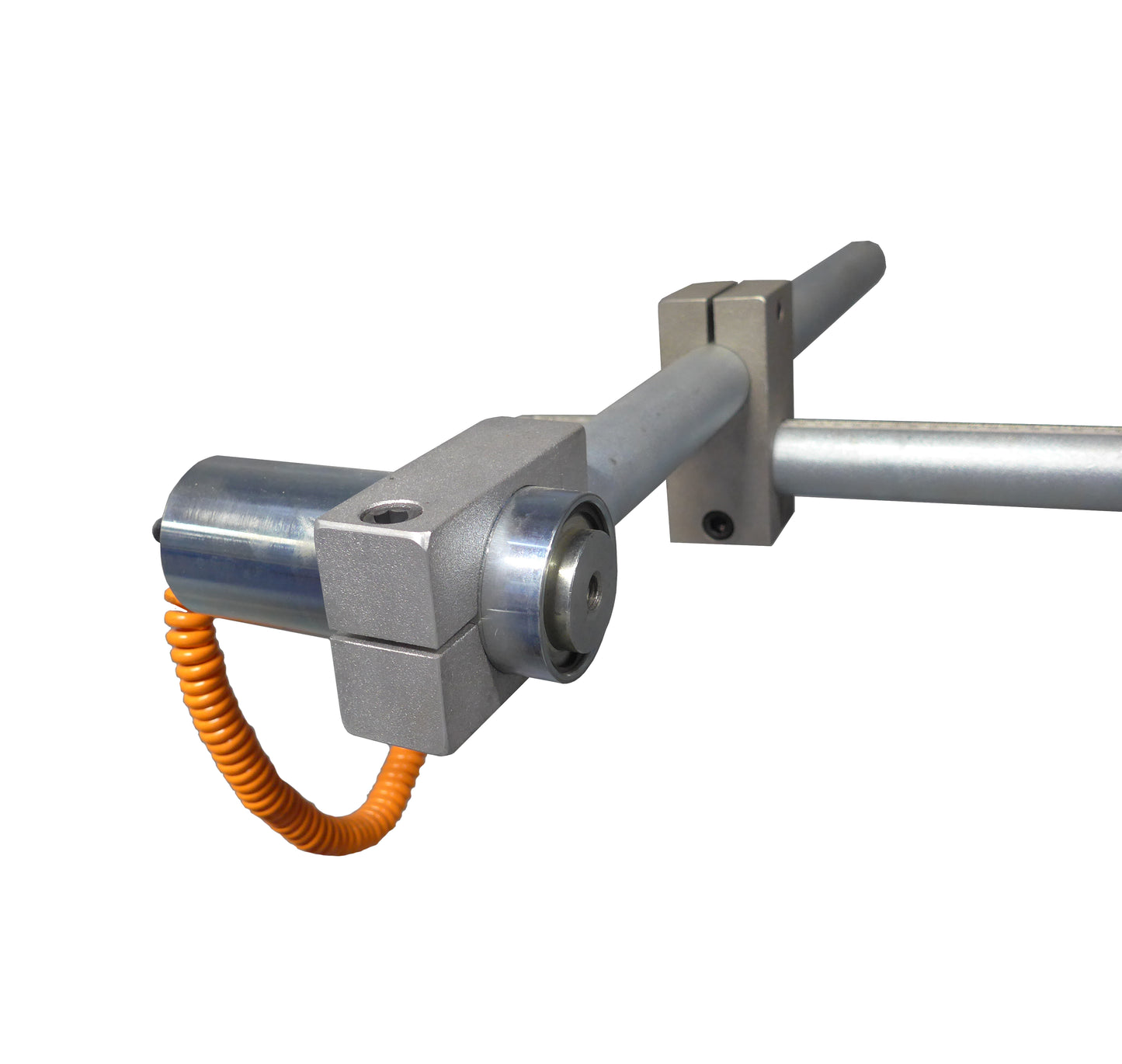

•  Punch with adjustable stop with scale, flat steel scissors and notch with adjustable stops
•  Hook wrench
•  2 working cylinders and 2 foot pedals
•  Hydraulic oil
