- Durable construction of tools and tool guides made of high-quality, hardened steel
- Manual operation via two foot pedals for flow and return
- Automatic mode by programming the front and rear travel end points
- Easy to change the die by quick change recording
- Foot pedal with digital display and emergency stop switch
1
/
of
4
My Store

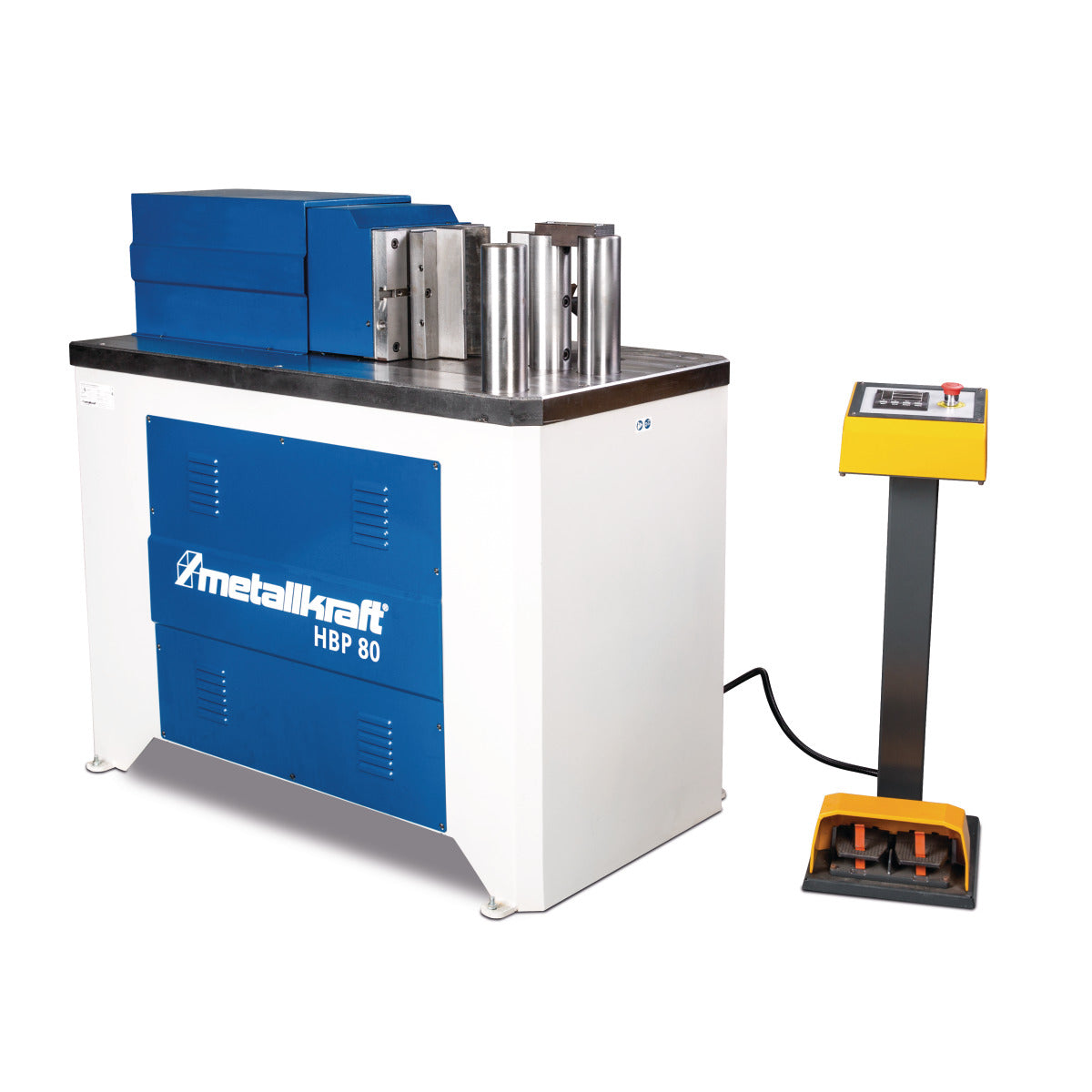

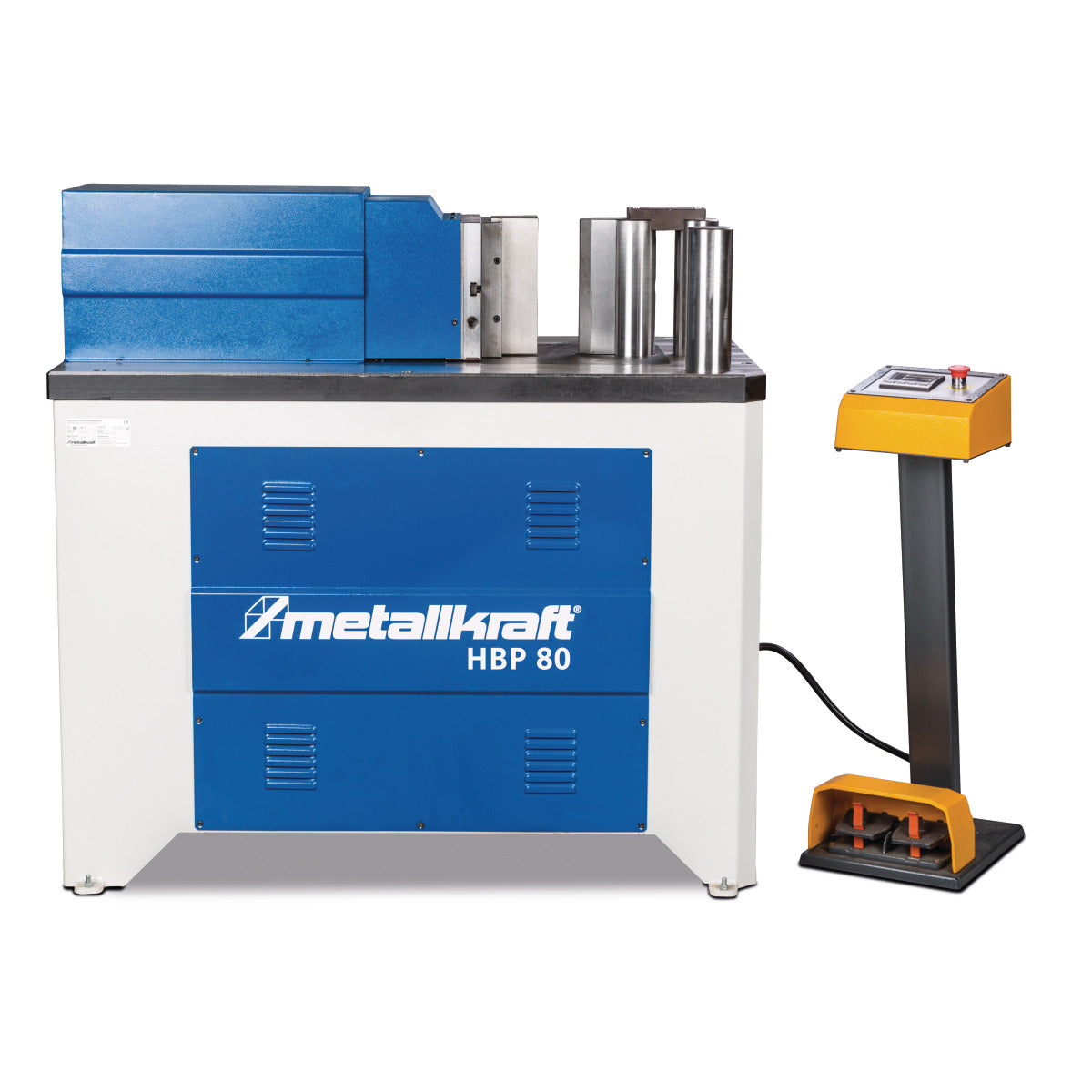

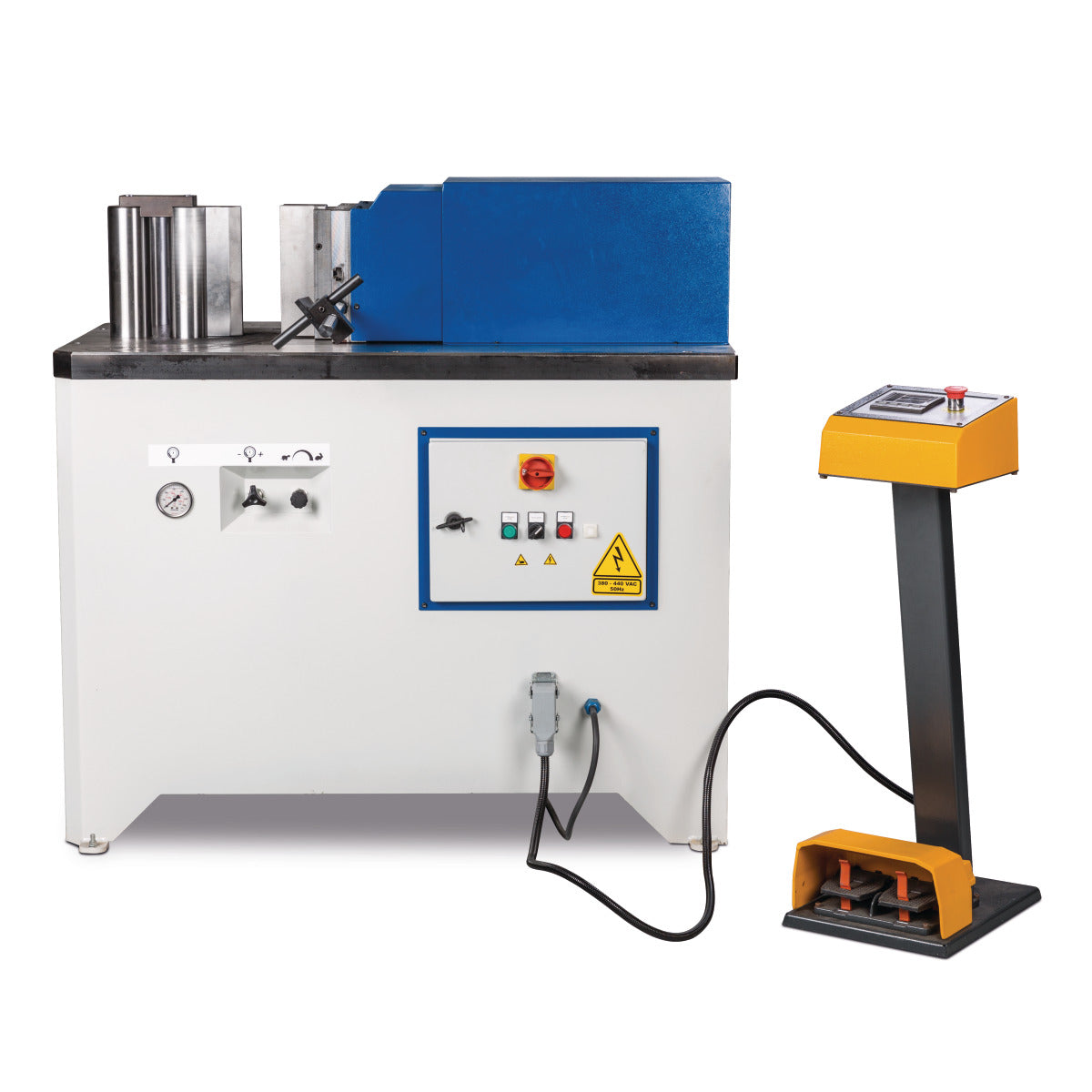

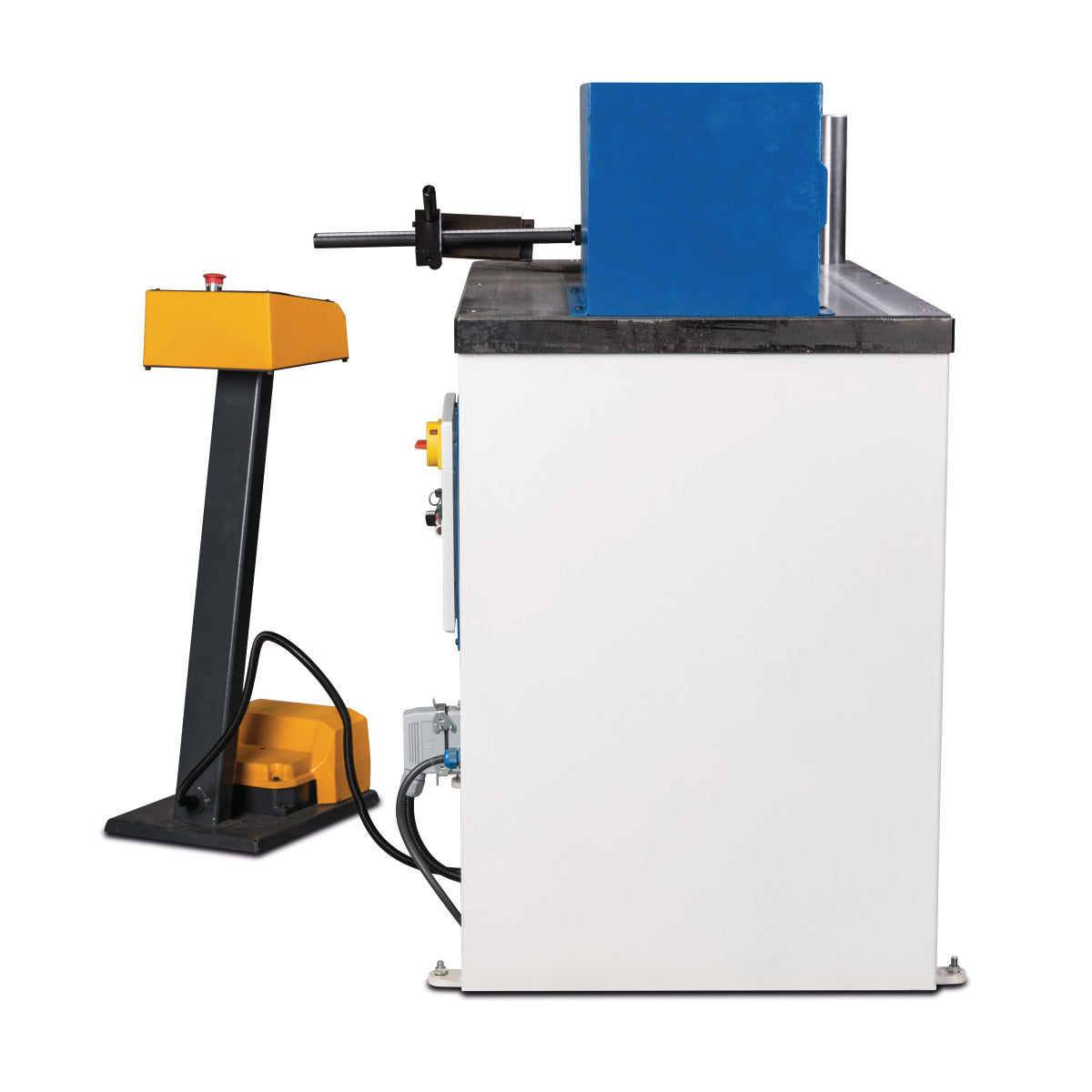

Metallkraft HBP 80 ton Horizontal Bending Press | 415v | 3 Phase
Metallkraft HBP 80 ton Horizontal Bending Press | 415v | 3 Phase
Regular price
£24,600.00 GBP
Regular price
Sale price
£24,600.00 GBP
Unit price
/
per
Couldn't load pickup availability
Share
Hydraulic and universally applicable with NC control for immersion depth
DELIVERY CONTENTS
-
Bending punch 68 °; Height = 300 mm; R = 5 mm
- Quick change die 60 °; Height = 300 mm; V = 60 mm
- Foot pedal with digital display
- Side stop 300 mm
TECHNICAL DATA
| General Features | |||
| Max pressure | 80t | Oil tank capacity |
120l |
| Bending capacity flat material | 300 x 20mm | Bending capacity tube material |
90 x 9mm |
| Explanation bending capacity round tubes |
Option required | Max. stroke | 285mm |
| Diameter of bolts | 105mm | Height of toolings | 300mm |
| Working speed |
10mm/s | Return speed | 10mm/s |
| Table length | 750mm | Table width | 1425mm |
| Working height | 930m | ||
| Dimensions and weights | |||
| Length (product) approx. | 1430mm | Width/depth (product) approx. | 750mm |
| Height (product) approx. | 1450mm | ||
| Electrical Data | |||
| Drive motor output | 10kW |
