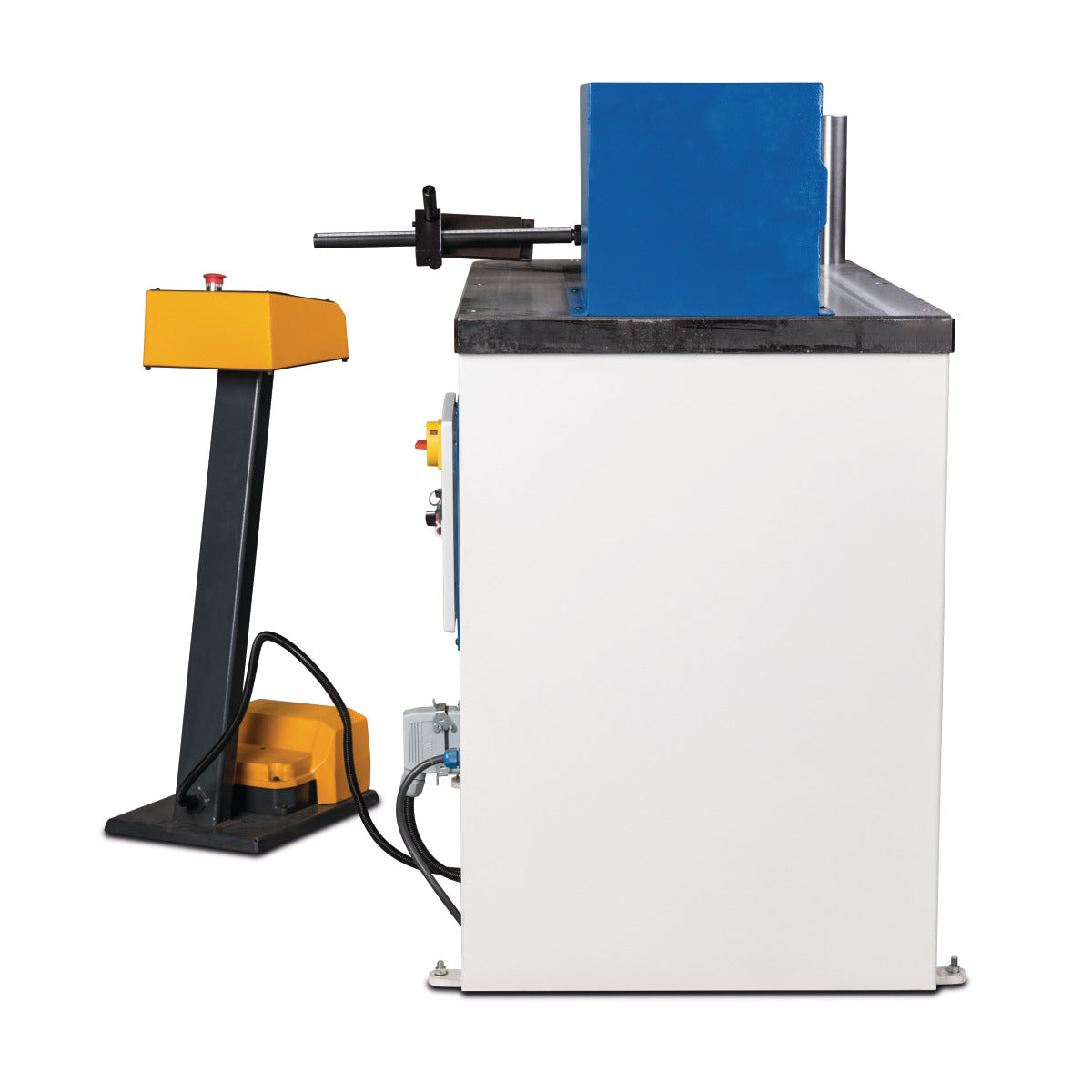

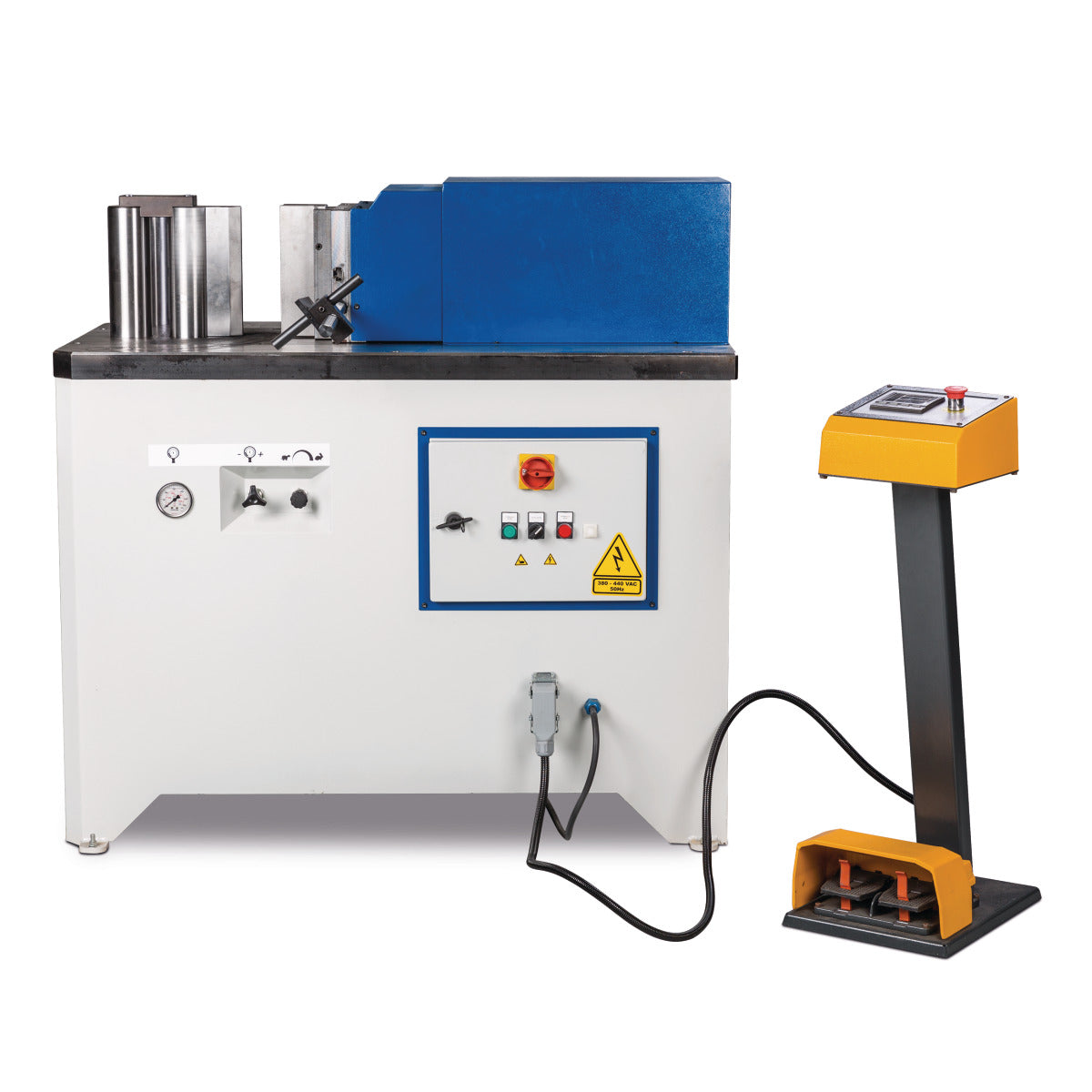

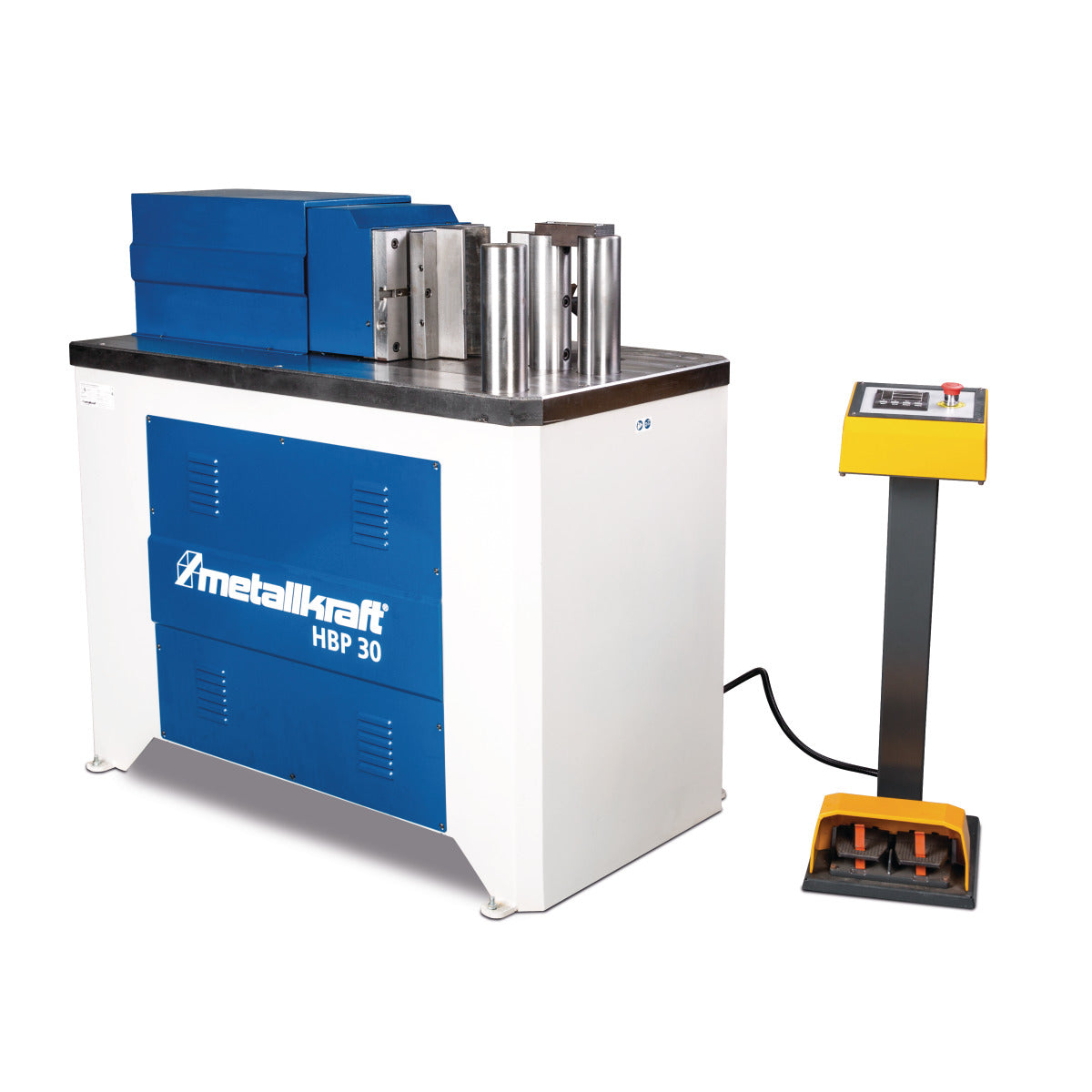

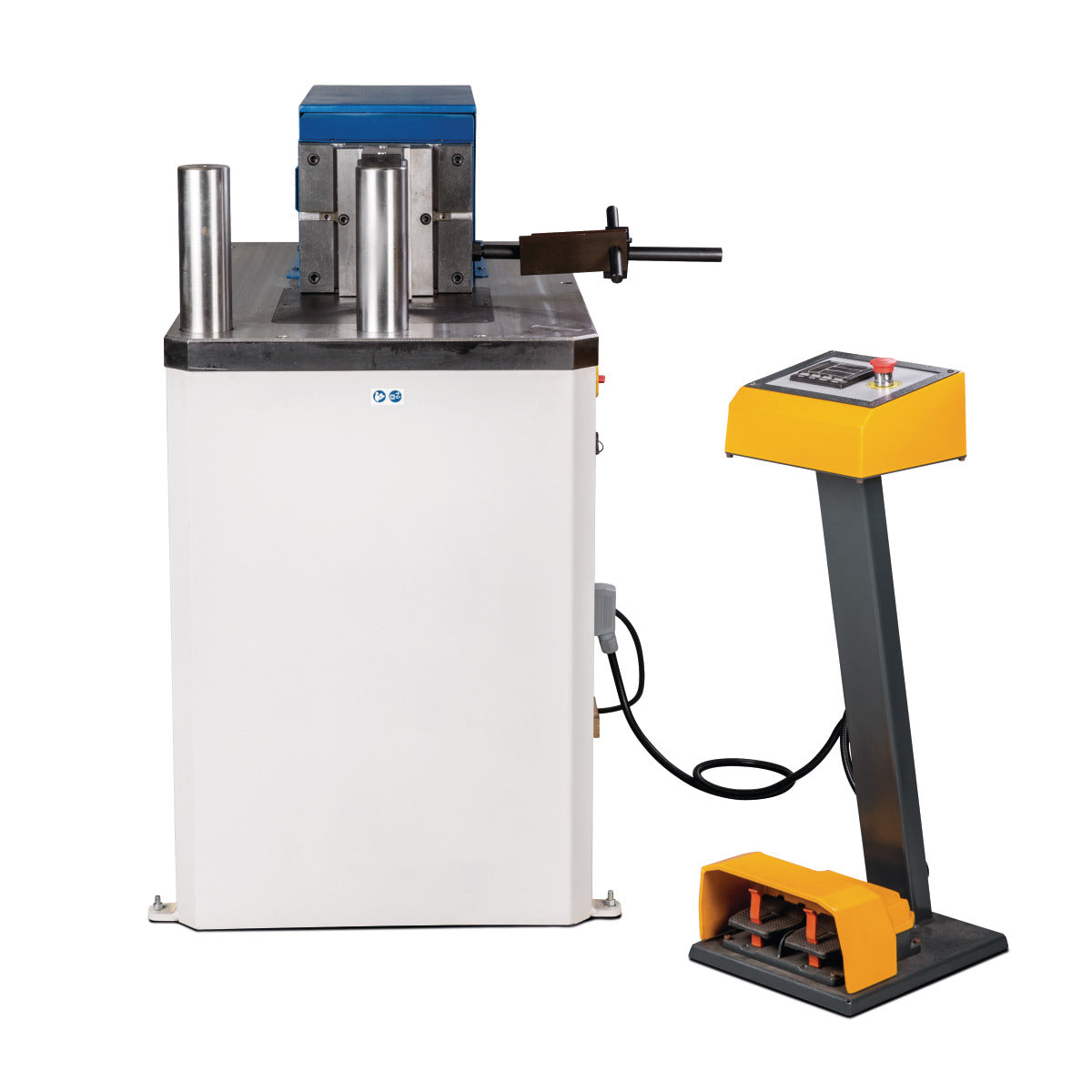

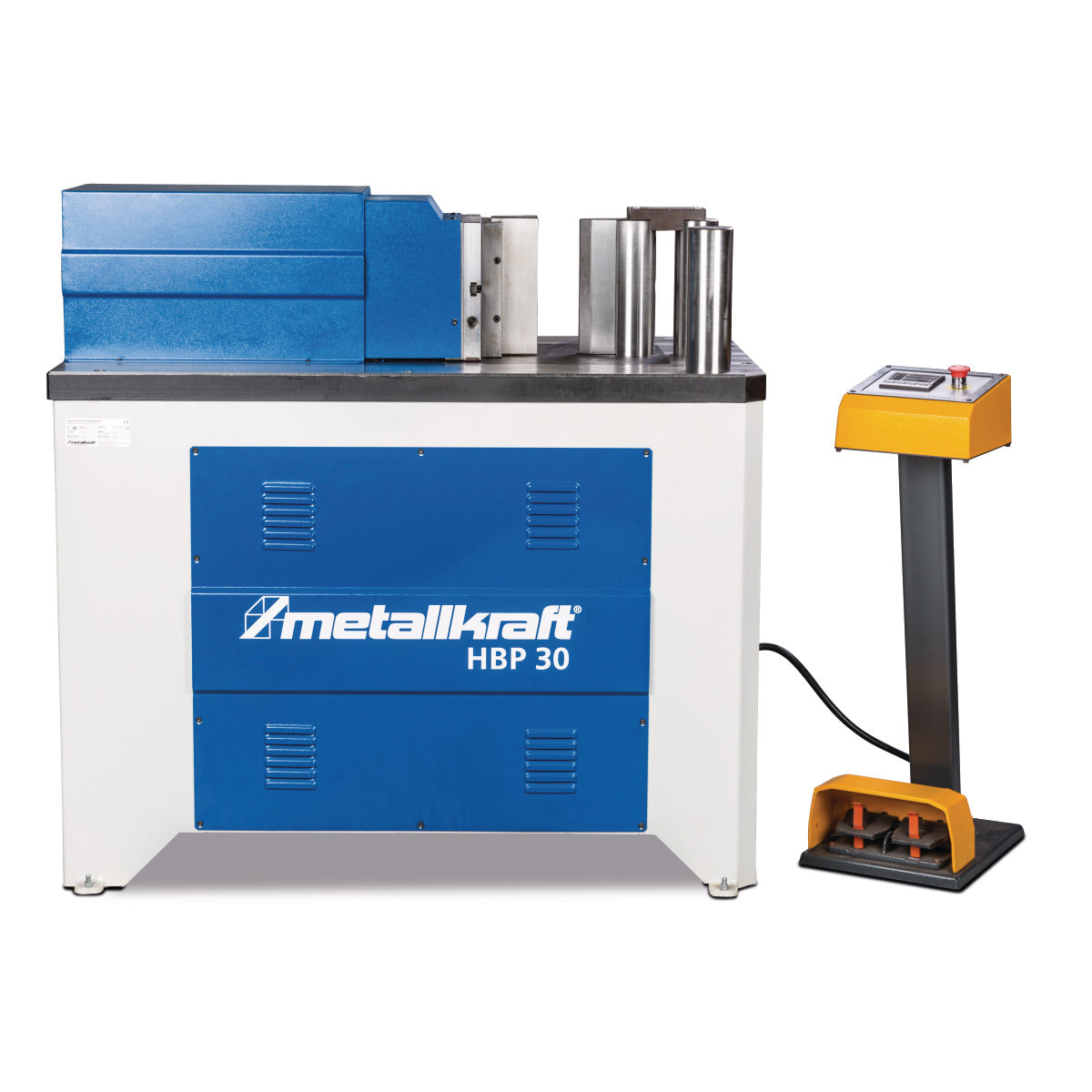

Metallkraft HBP 30 Horizontal Bending press (400v 3 Ph)

Metallkraft HBP 30 Horizontal Bending press (400v 3 Ph)

£13,080.00 GBP
£13,080.00 GBP
Sale Sold out
Hydraulic and universally applicable with NC control for immersion depth
  • Durable construction of tools and tool guides made of high-quality, hardened steel
  • Manual operation via two foot pedals for flow and return
  • Automatic mode by programming the front and rear travel end points
  • Easy to change the die by quick change recording

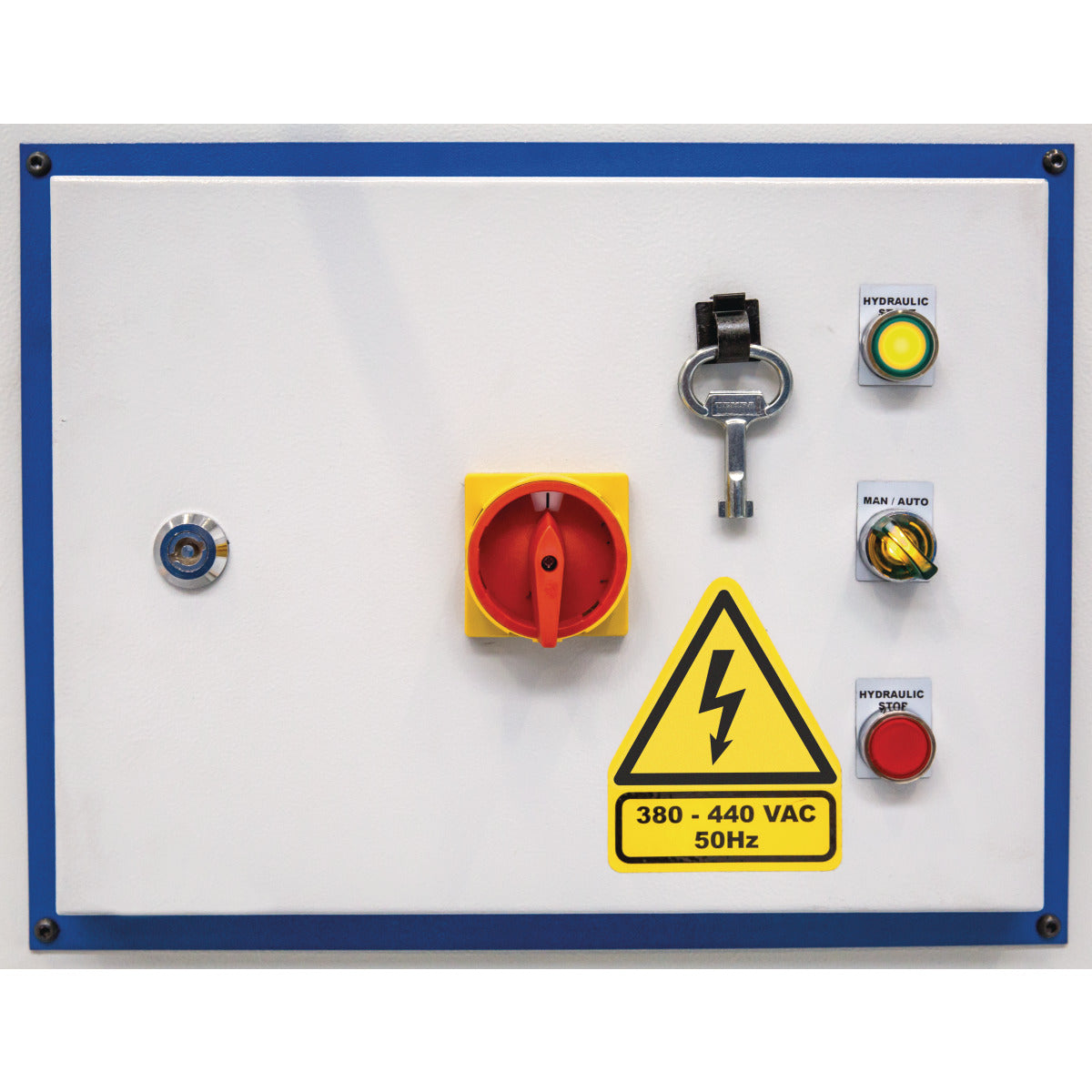

  • Foot pedal with digital display and emergency stop switch



DELIVERY CONTENTS

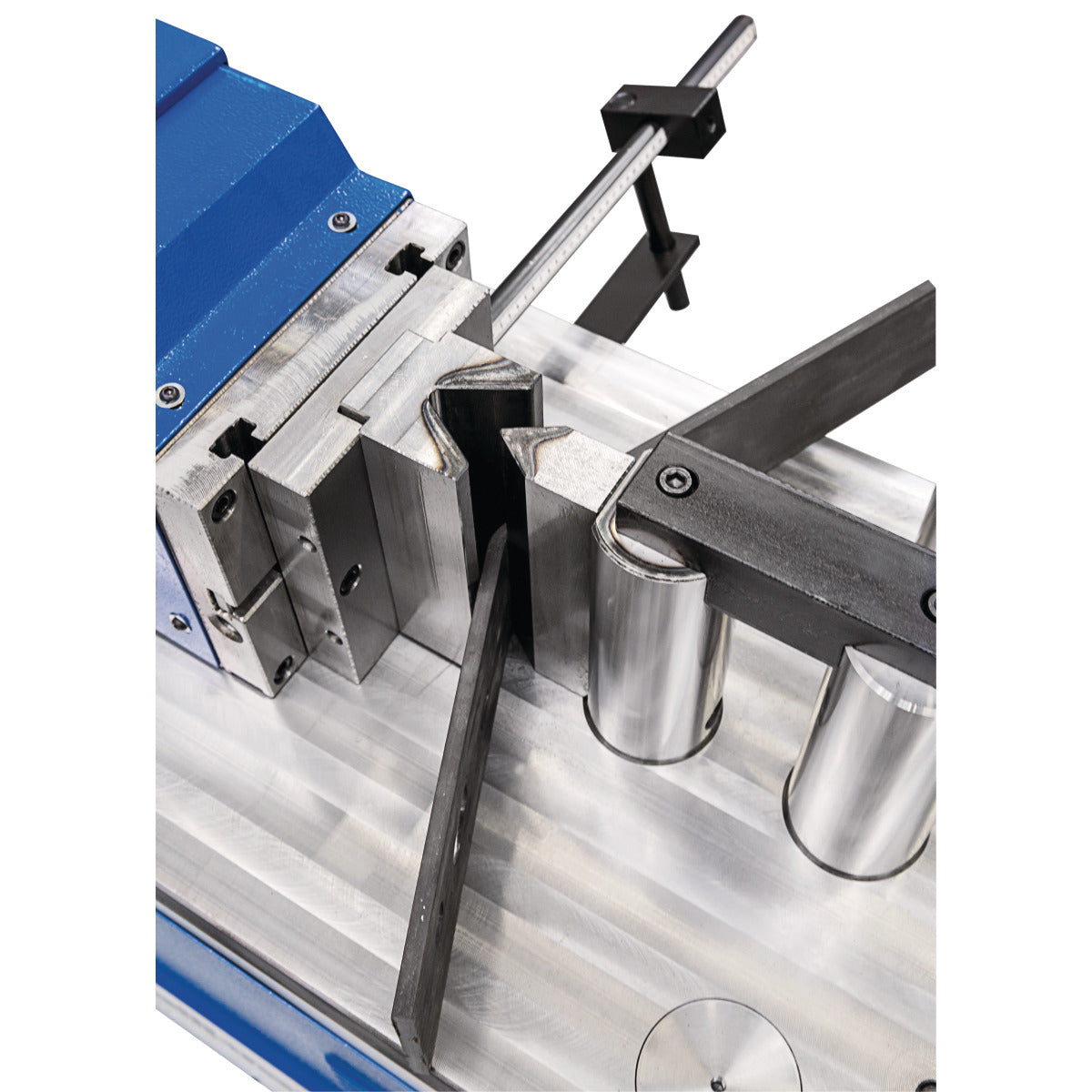

  •  Bending punch 68 °; Height = 250 mm; R = 5 mm
  •  Quick change die 60 °; Height = 250 mm; V = 60 mm
  •  Foot pedal with digital display

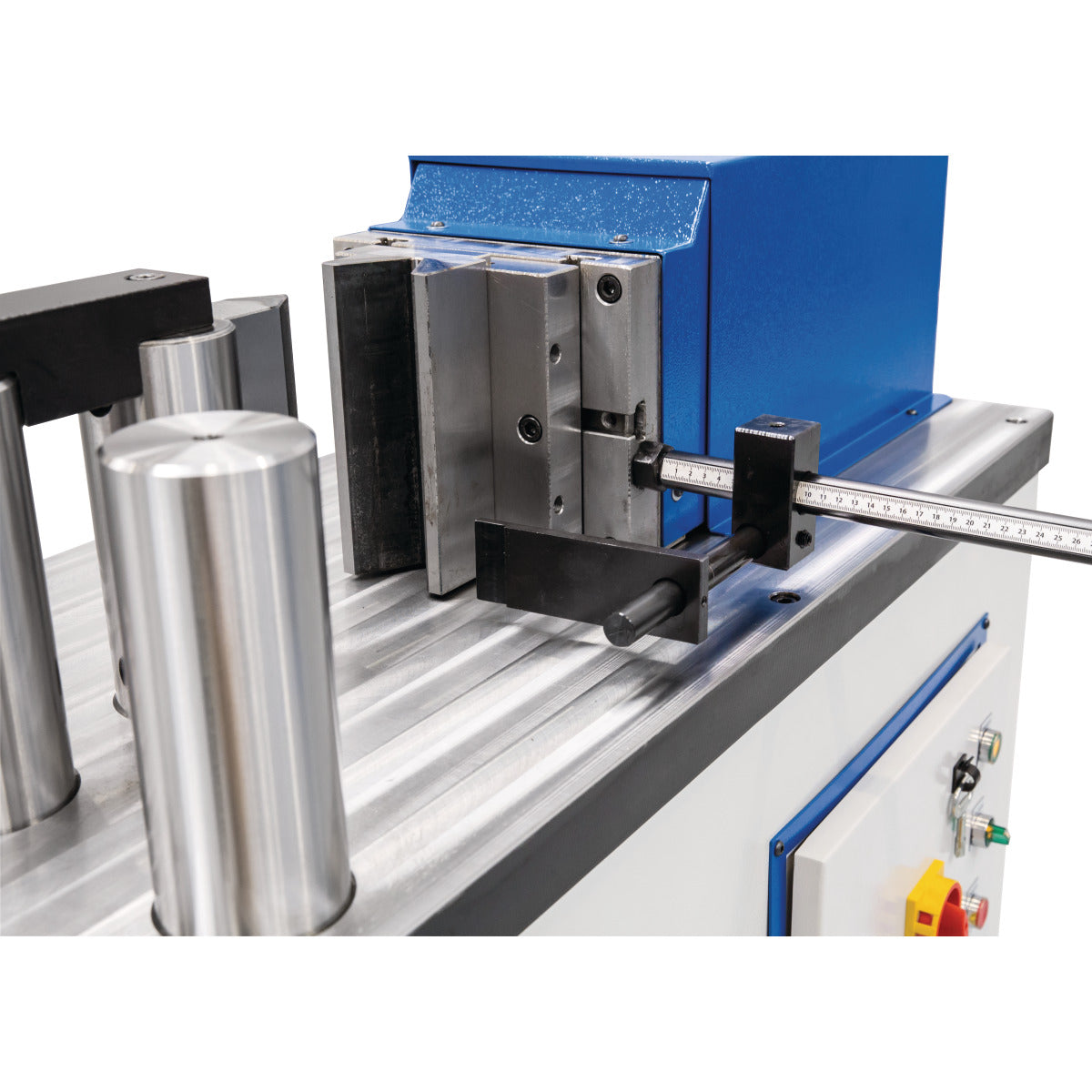

  •  Side stop 300 mm



    TECHNICAL DATA

    General Features
    Max pressure
    		 30t Oil tank capacity 40l
    Bending capacity flat material 250 x 18mm Bending capacity tube material 60 x 4.0mm
    Explanation bending capacity round tubes Option required Max. stroke 285mm
    Diameter of bolts 80mm Height of Toolings 250mm
    Working speed 10mm/s Return speed 10mm/s
    Table length 660mm Table width 1250mm
    Working height 930mm
    Dimensions and weights

    Length (product) approx. 1250mm Width/depth (product) approx. 650mm
    Height (product) approx. 1250mm Net weight approx. 1050kg
    Electrical Data


    Drive motor output 3kW
