Metallkraft HBP 20 ton Horizontal Bending Press (400v 3ph)

Metallkraft HBP 20 ton Horizontal Bending Press (400v 3ph)

£10,554.00 GBP
£10,554.00 GBP
Sale Sold out
  • Durable construction of tools and tool guides made of high-quality, hardened steel
  • Manual operation via two foot pedals for flow and return
  • Automatic mode by programming the front and rear travel end points
  • Easy to change the die by quick change recording

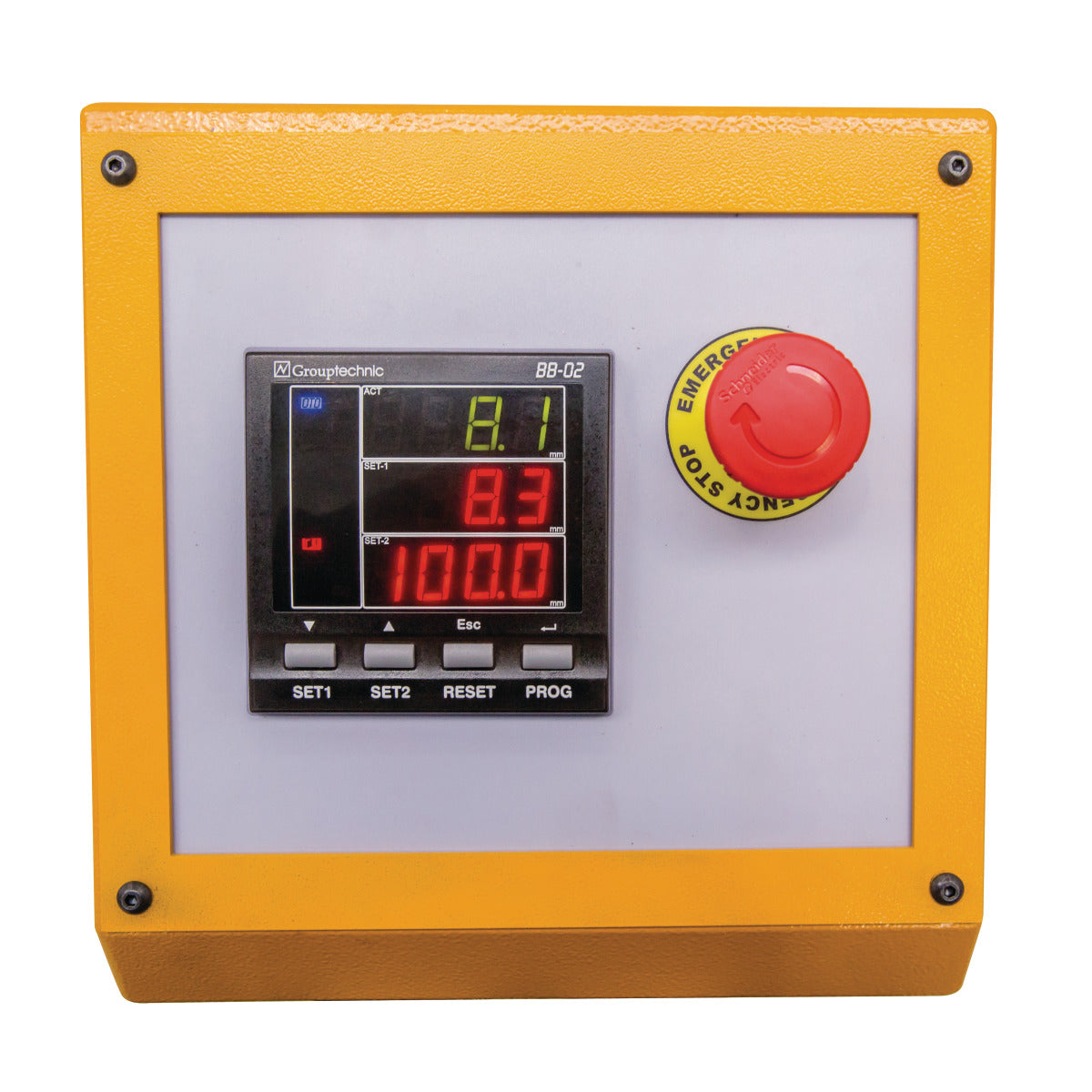

  • Foot pedal with digital display and emergency stop switch



DELIVERY CONTENTS

  •  Bending punch 68 °; Height = 200 mm; R = 5 mm
  •  Quick change die 60 °; Height = 150 mm; V = 60 mm
  •  Foot pedal with digital display
  •  Side stop 300 mm



    TECHNICAL DATA

    General Features
    Max pressure 20t Oil tank capacity 12l
    Bending capacity flat material 200 x 12mm
    		 Bending capacity tube material 48 x 4mm
    Explanation bending capacity round tubes Option required Max. stroke 185mm
    Diameter of bolts 80mm Height of Toolings 200mm
    Working speed 10mm/s Return speed 10mm/s
    Table length 480mm Table width 1060mm
    Working height 930mm
    Dimensions and weights

    Length (product) approx. 1150mm Width/depth (product) approx. 480mm
    Height (product) approx. 1200mm Net weight approx. 530kg
    Bending capacity


    Drive motor output 2.2kW
