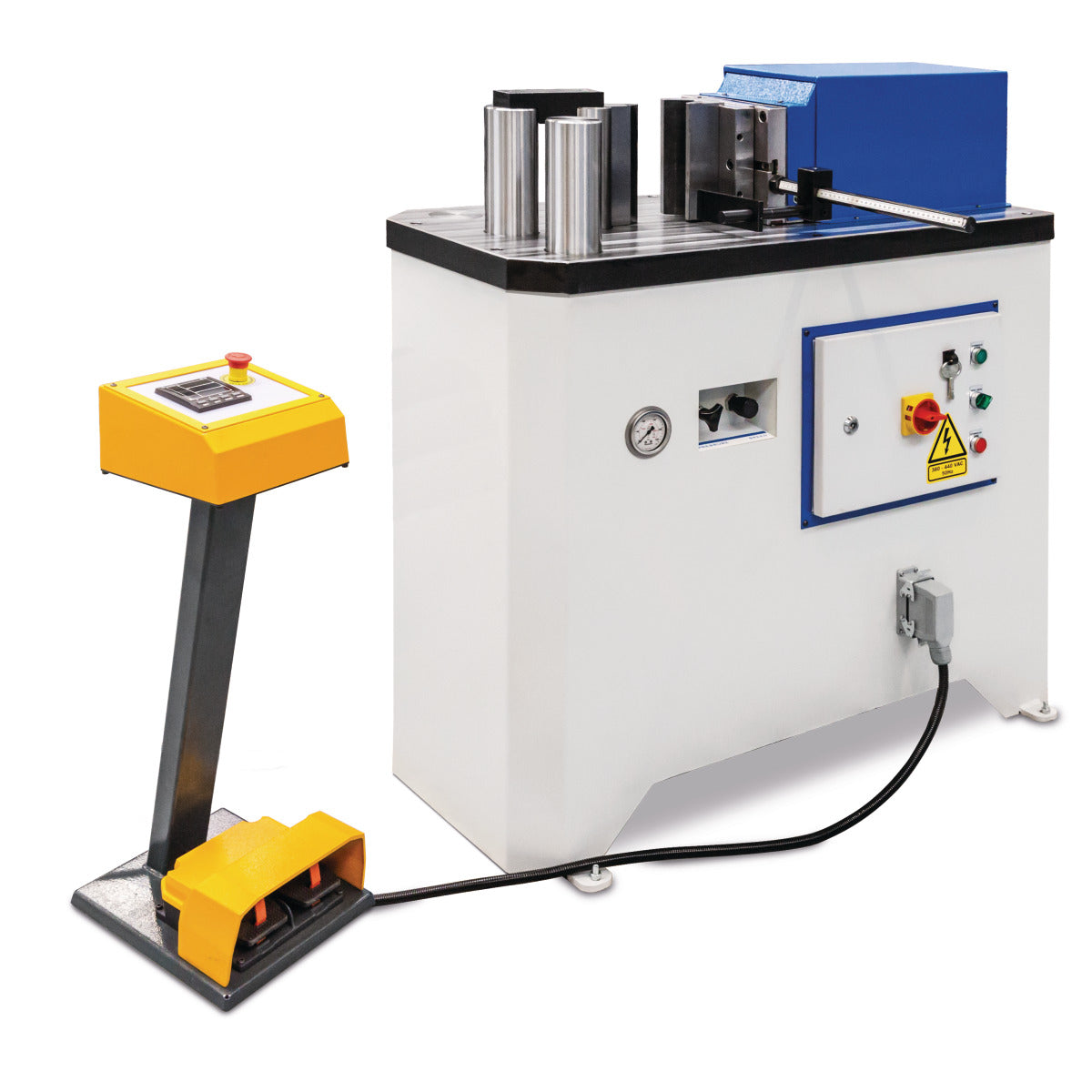

Metallkraft HBP 10 Horizontal Bending Press (3Ph 415v)

Metallkraft HBP 10 Horizontal Bending Press (3Ph 415v)

£8,634.00 GBP
£8,634.00 GBP
Sale Sold out
Hydraulic and universally applicable with NC control for immersion depth
  • Durable construction of tools and tool guides made of high-quality, hardened steel
  • Manual operation via two foot pedals for flow and return
  • Automatic mode by programming the front and rear travel end points
  • Easy to change the die by quick change recording

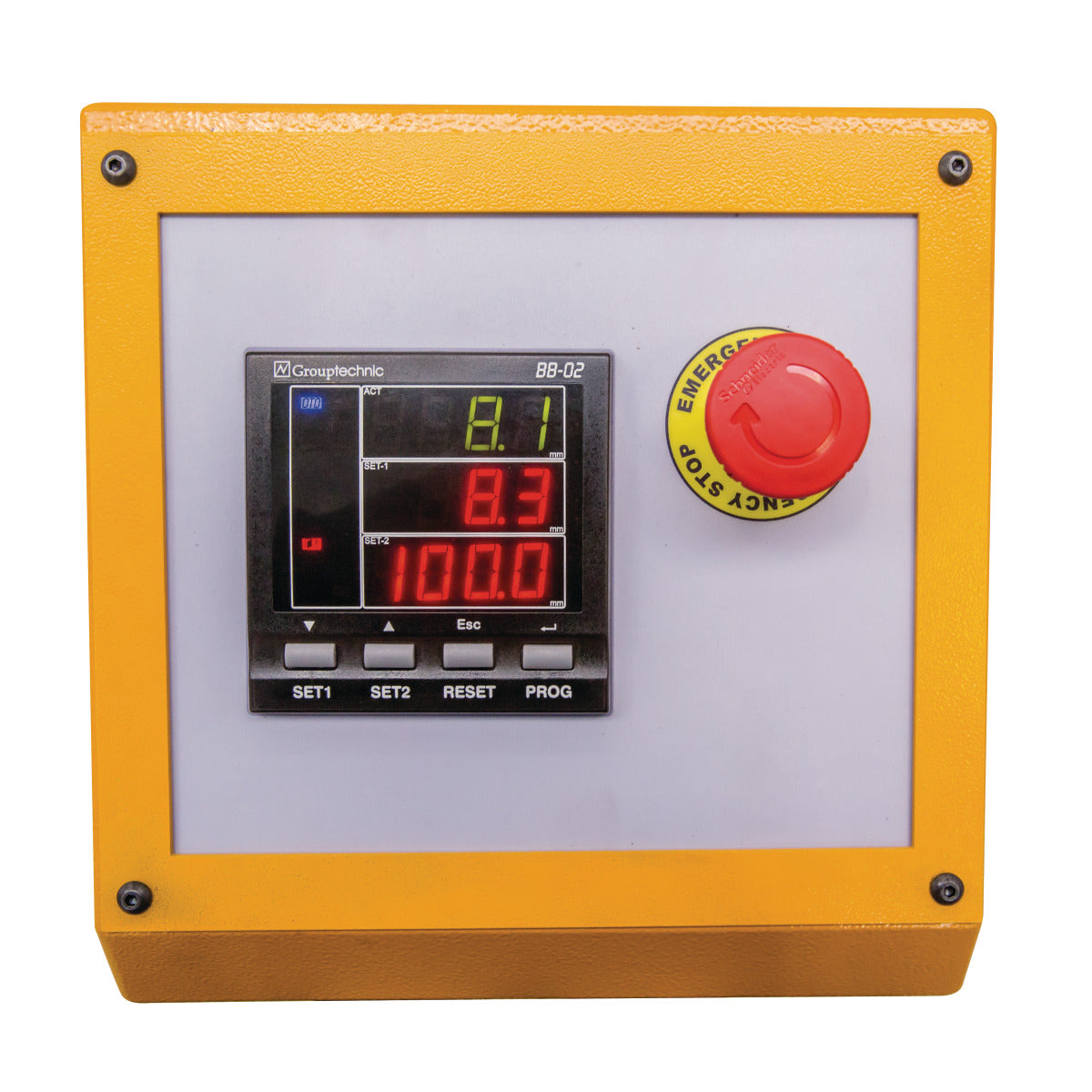

  • Foot pedal with digital display and emergency stop switch



DELIVERY CONTENTS

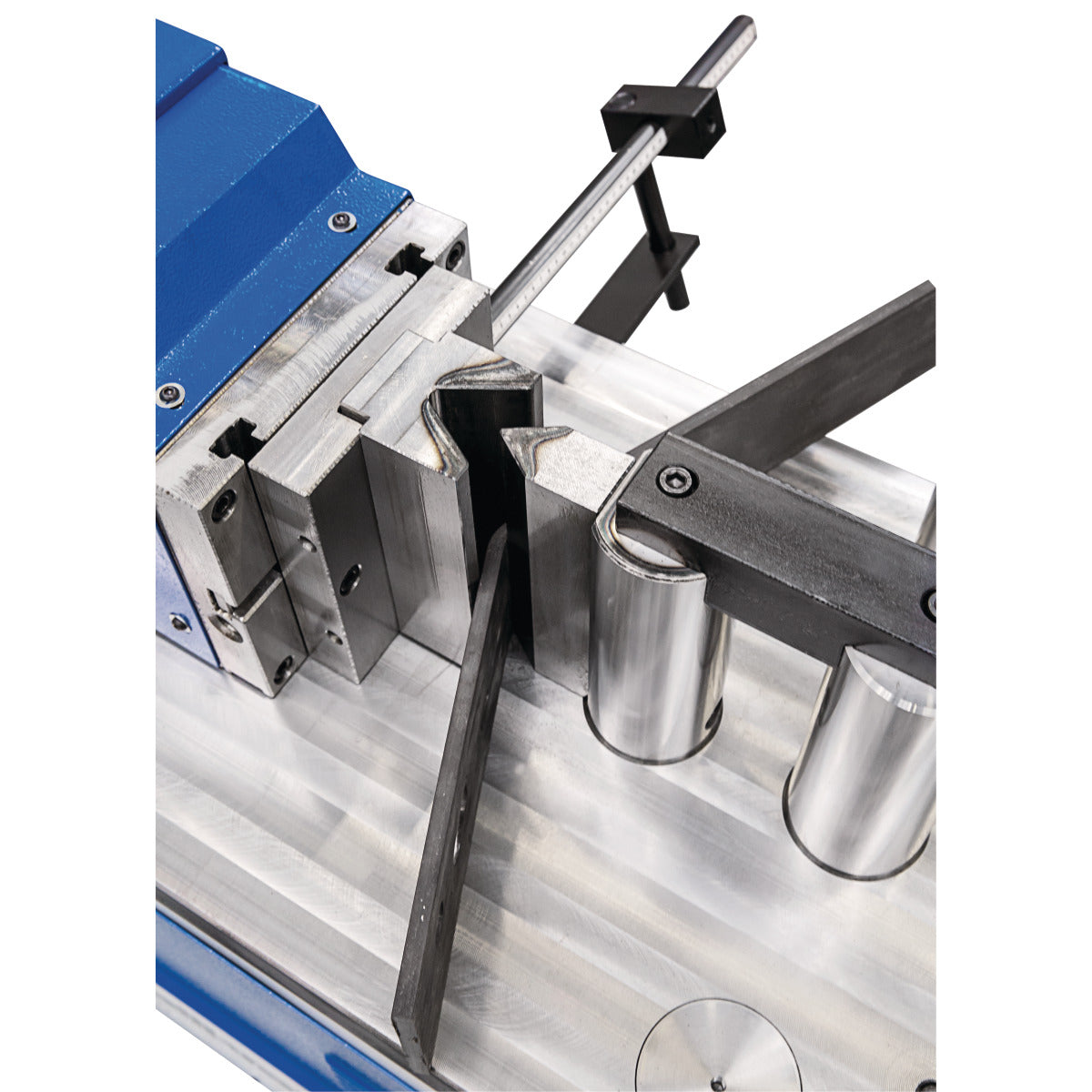

  •  Bending punch 60 °; Height = 150 mm; R = 6 mm
  •  Quick change die 60 °; Height = 150 mm; V = 60 mm
  •  Foot pedal with digital display

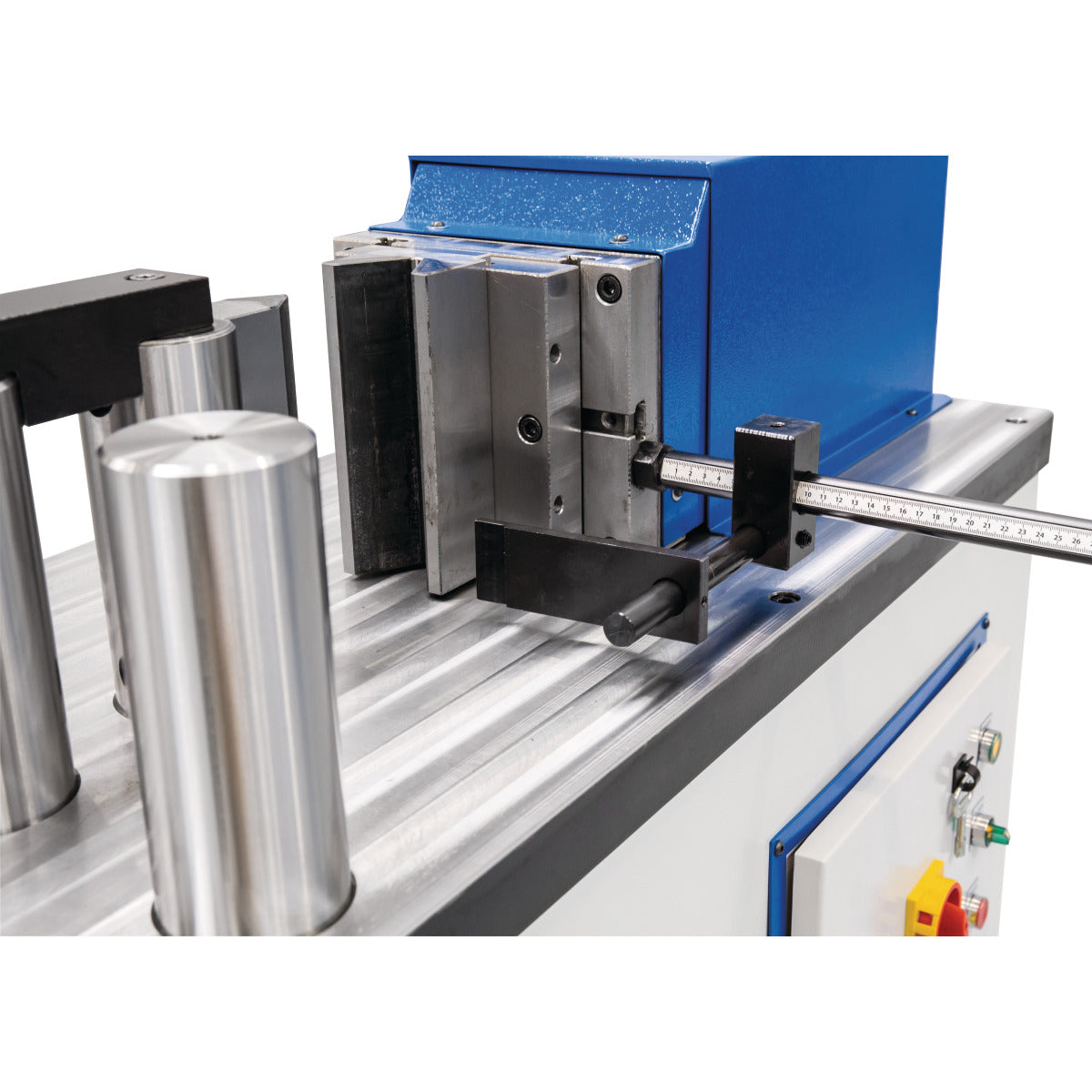

  •  Side stop 300 mm



    TECHNICAL DATA

    General Features
    Max pressure 10t Oil tank capacity 12l
    Bending capacity flat material 150 x 8mm
    		 Bending capacity tube material 42 x 3.2mm
    Explanation bending capacity round tubes Option required Max. stroke 185mm
    Diameter of bolts 60mm Height of Toolings 150mm
    Working speed 10mm/s Return speed 10mm/s
    Table length 450mm Table width 900mm
    Working height 915
    Dimensions and weights

    Length (product) approx. 900mm Width/depth (product) approx. 450mm
    Height (product) approx. 1130mm Net weight approx. 250kg
    Bending capacity


    Drive motor output 1.1kW
