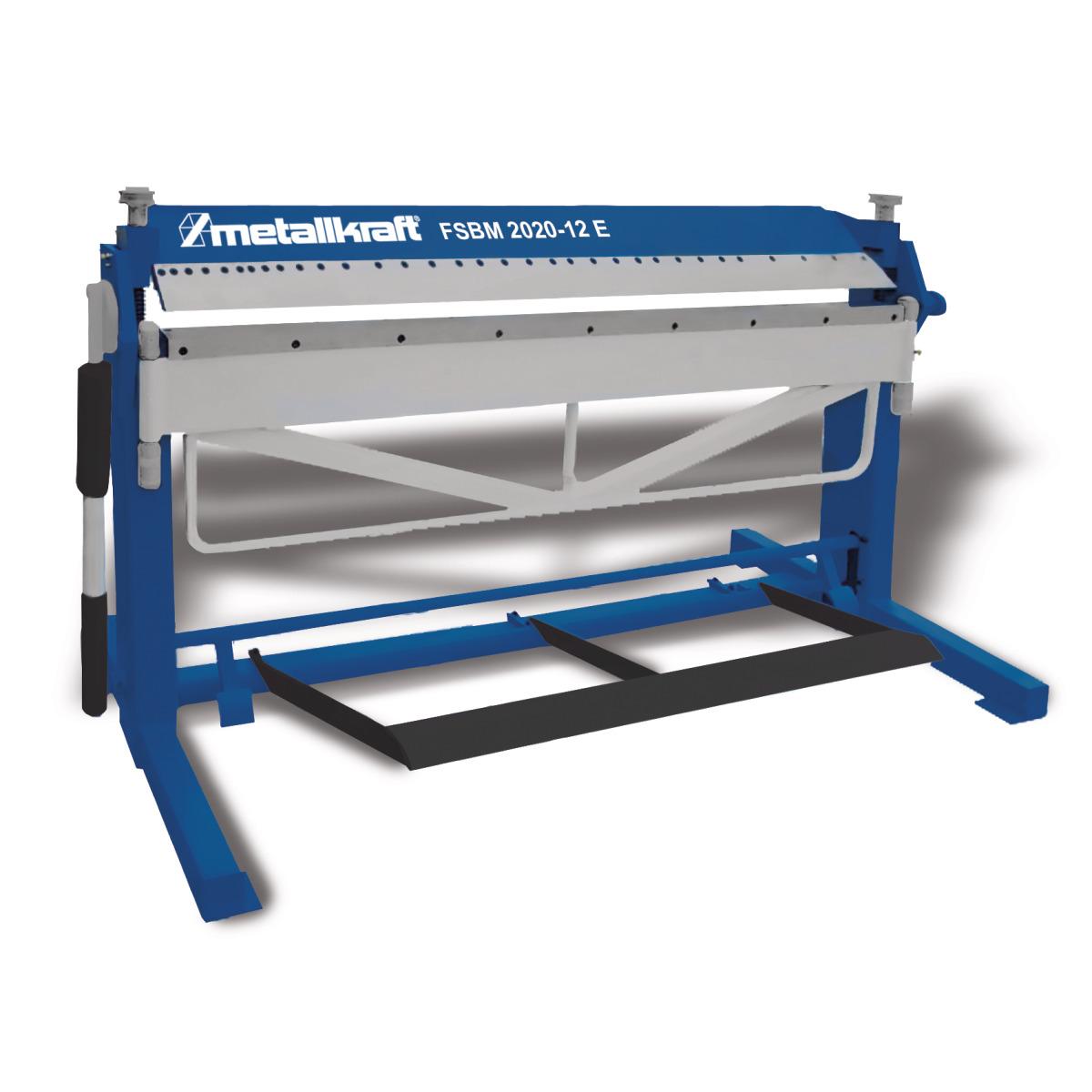

Metallkraft FSBM 2020-12 E Manual Swing Bending Machine
Metallkraft FSBM 2020-12 E Manual Swing Bending Machine
Regular price
£6,900.00 GBP
Regular price
Sale price
£6,900.00 GBP
Unit price
/
per
Couldn't load pickup availability
Share
With workpiece clamp by foot pedal
- The workpiece clamping by means of foot pedal thereby both hands remain free for the material supply
- Different tool variants available E, S2, HS2 and HSG
- The powerful auxiliary cylinder facilitates bending
- Next passage between top and bottom cheek of up to 25 mm
- Self-lubricating plain bearings
- Clamping pressure of the upper beam via non-slip thumbscrews easily adjustable
- Adjustment of material thickness by means of knurled screw
- Adjustable stop for bending angle
TECHNICAL DATA
| General Features | |||
| Max. working width | 2020mm | Max. bending angle |
135° |
| Segmentation | 25-30-35-40-45-50-75-100-150-200-250-270-500mm | ||
| Dimensions and weights | |||
| Length (product) approx. | 2290mm | Width/depth (product) approx. | 820mm |
| Height (product) approx. | 1180mm | Net weight approx. | 540kg |
| Bending capacity | |||
| Bending capacity 235 N/mm² | 1.2mm | Bending capacity 700 N/mm² | 0.7mm |
| Explanation bending capacity 700N/mm² | Hardened top tools are required to bend VA | Bending capacity aluminium | 1.4mm |
