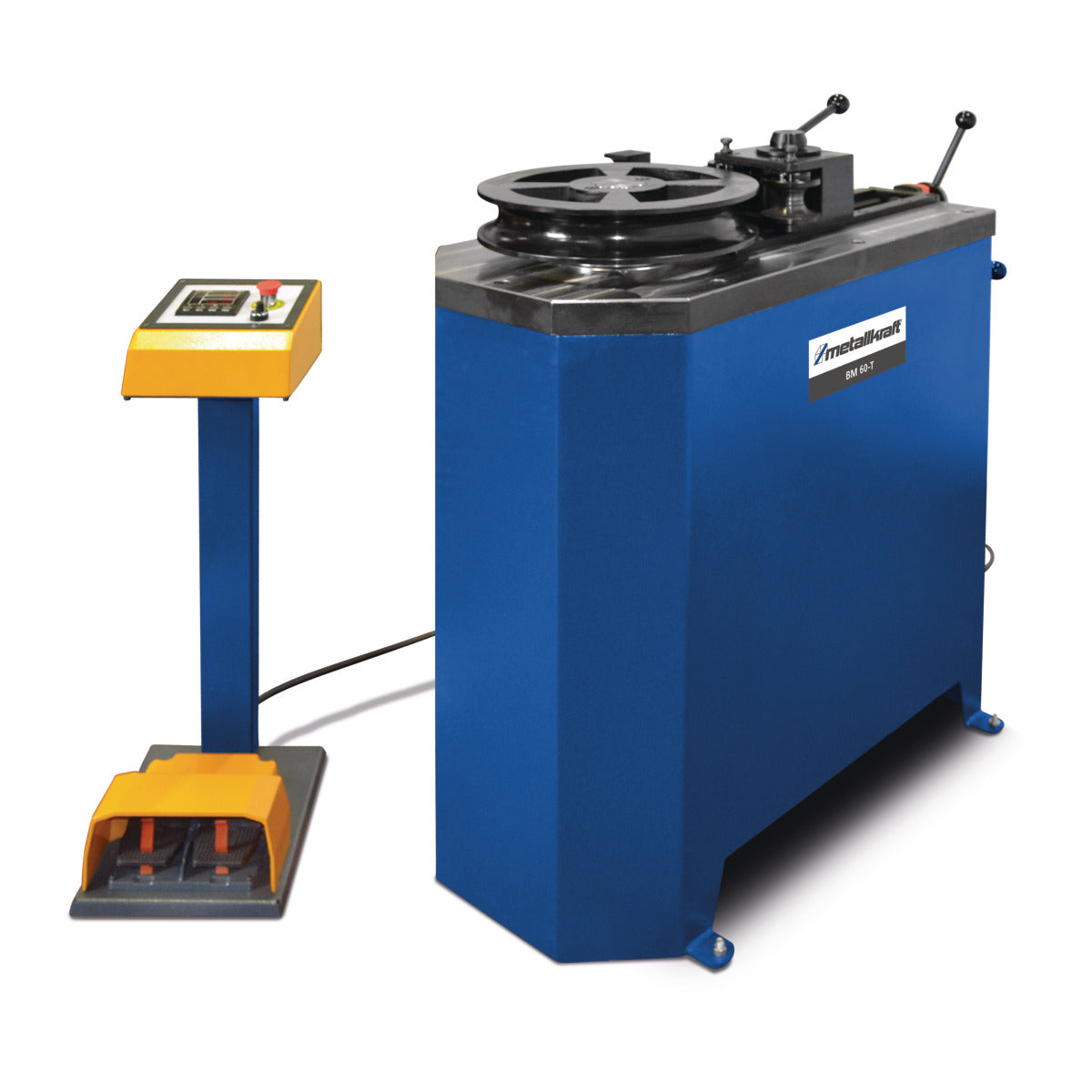

Metallkraft BM 60-T Mandrelless Tube Bending Machine (400v 3ph)
Metallkraft BM 60-T Mandrelless Tube Bending Machine (400v 3ph)
Regular price
£11,940.00 GBP
Regular price
Sale price
£11,940.00 GBP
Unit price
/
per
Couldn't load pickup availability
Share
NC-controlled with a powerful motor for high torque
- Powerful motor with inverter and reduction gear produces high torque

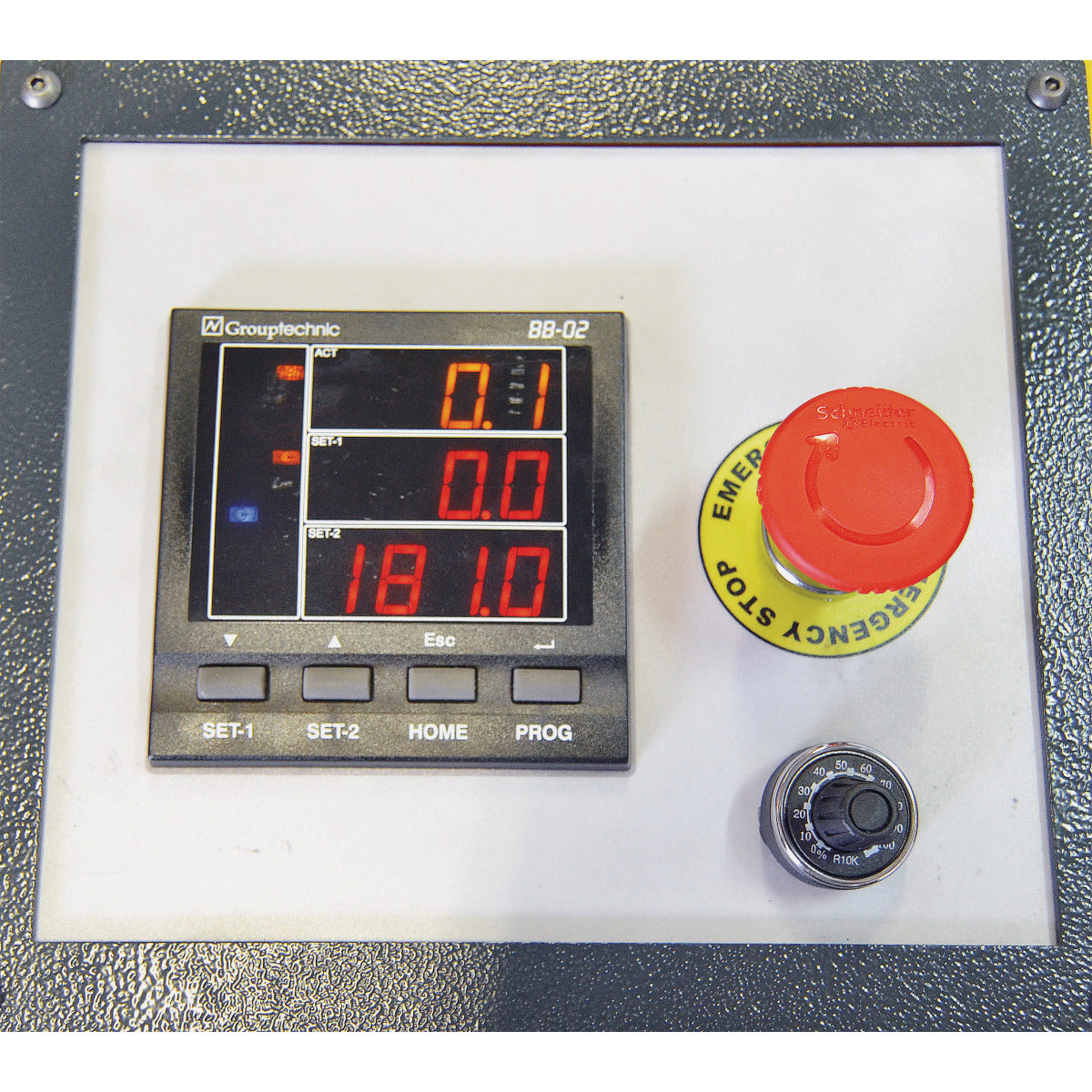

- NC control for setting the bending angle and the correction
- counter for high repeatability
- Mobile control panel with controls and pedals
- Fast tool change
- All shafts hardened and ground
- Material clamping is done manually
- Very good price / performance ratio
TECHNICAL DATA
| General Features | |||
| Type |
Stationary | Max. bending radius | 450mm |
| Max. bending angle | 180° | Bending speeds | 3 U/min |
| Torque | 9500Nm | ||
| Dimensions and weights | |||
| Length (product) approx. | 950mm | Width/depth (product) approx. | 480mm |
| Height (product) approx. | 1050mm | Net weight approx. | 500kg |
| Bending head height | 80mm | ||
| Bending perfomance | |||
| Bending performance tubular material 420 N/mm² (Ø x wall thickness) | 60 x 4mm | Bending performance tubular material 350 N/mm² (Ø x wall thickness) | 60 x 3mm |
| Bending performance tubular material 650 N/mm² (Ø x wall thickness) | 50 x 4mm | Bending performance solid material 420 N/mm² (Ø) | 30mm |
| Electrical Data | |||
| Drive motor output | 1.5kW |
Supply voltage |
400V |
| Mains frequency | 50Hz |
