Optimum OPTIdrill B 28H Drilling machine (3 Ph 400v)

Optimum OPTIdrill B 28H Drilling machine (3 Ph 400v)

£2,394.00 GBP
£2,394.00 GBP
Sale Sold out
  •  Smooth and powerful industrial electric motor
  •  Separate emergency stop impact switch
  •  Stable casting column
  •  depth stop
  •  Precisely machined drill table with diagonal T-slots and circumferential cooling water channel
  •  Drilling table 360 ​​° rotatable

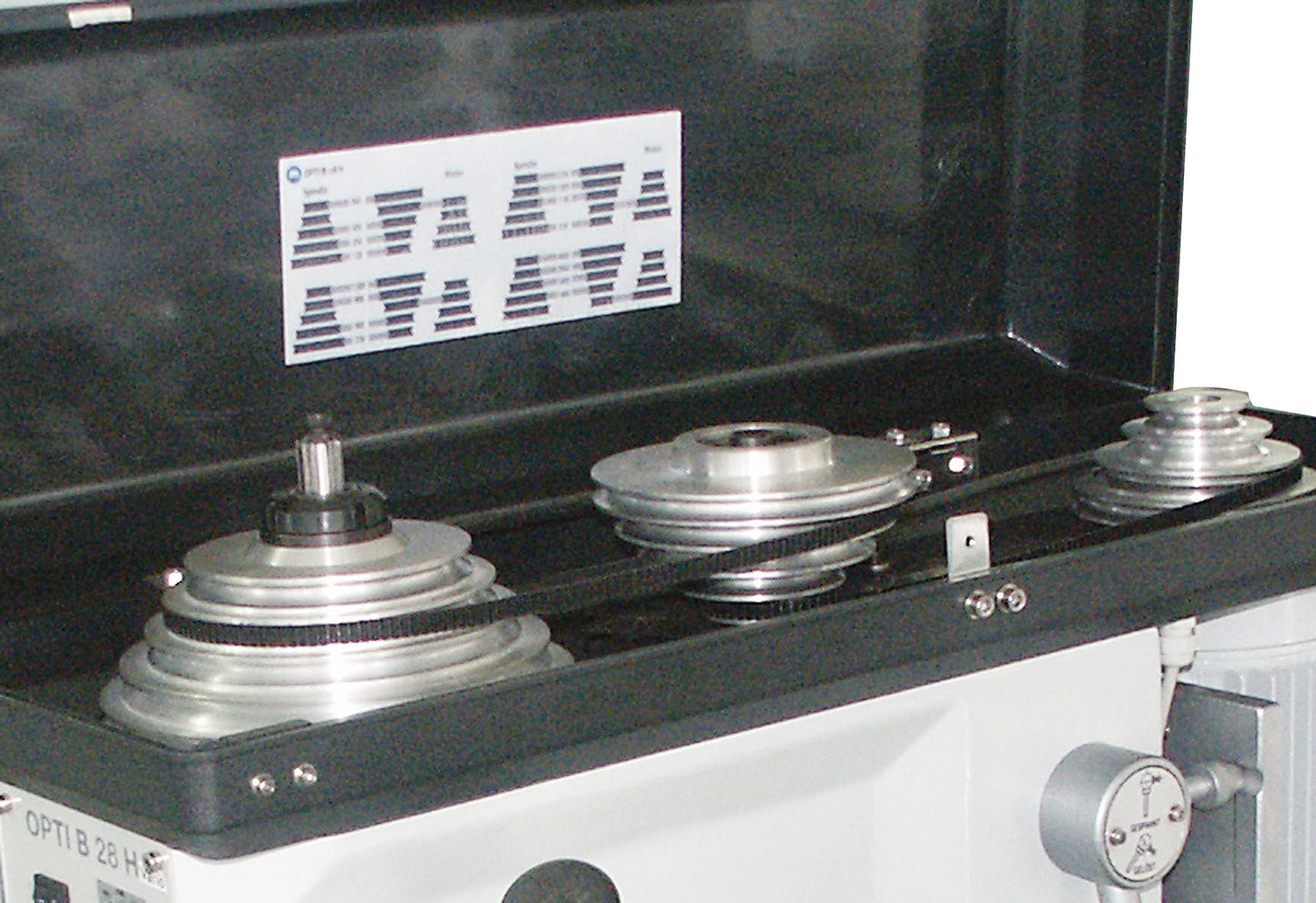

  •  V-belt cover with safety switch
  •  V-belt quick-clamping device
  •  Long, ergonomic cast aluminum sleeve lever cast in one piece (B 16H / B 24H with softgrip handles)
  •  Massive, large base plate with grooves, strongly ribbed on the back
  •  By swinging away the drilling table, base plate can be used as a work surface for particularly high workpieces
  •  Guaranteed concentricity measured better than 0.015 mm in the drill quill
  •  Drill spindle with precision ball bearings
  •  High-quality OPTIMUM keyless chuck in the standard scope of delivery
  •  Large, height-adjustable protective screen with safety switch
DELIVERY CONTENTS
  •  Keyless chuck (1 - 16 mm)
  •  Morse cone MK3 / B16
  •  T-nuts

TECHNICAL SPEC

Dimensions and Weights
Column diameter 92mm Length 698mm
Width/Depth 449mm Height 1721mm
Net Weight 142kg
Drilling Performance
Drilling performance steel 28mm Continuous drilling steel 24mm
Drilling Table
Drilling table length 340mm Drilling table width 360mm
Drilling table T-groove type Diagonal Drilling table T-groove size 14mm
Drilling table rotation 360° Max. distance spindle 860mm
Speed Range
Speed range 120-4000min¯¹ Number of gears 16 Steps
Electrical Data
Supply Voltage 400V Mains frequency 50Hz
Machine Base
Max. distance spindle 1285mm Machine base length 320mm
Machine base width 320mm Machine base T-groove size 14mm
Machine base T-groove n. 2 Machine base T-groove space 120mm
Spindle
Quill stroke 105mm Spindle chuck MK 3
Reach  200mm
Motor(s)
Spindle motor drive output 0.85kW Number of gear (spindle) 1 step
