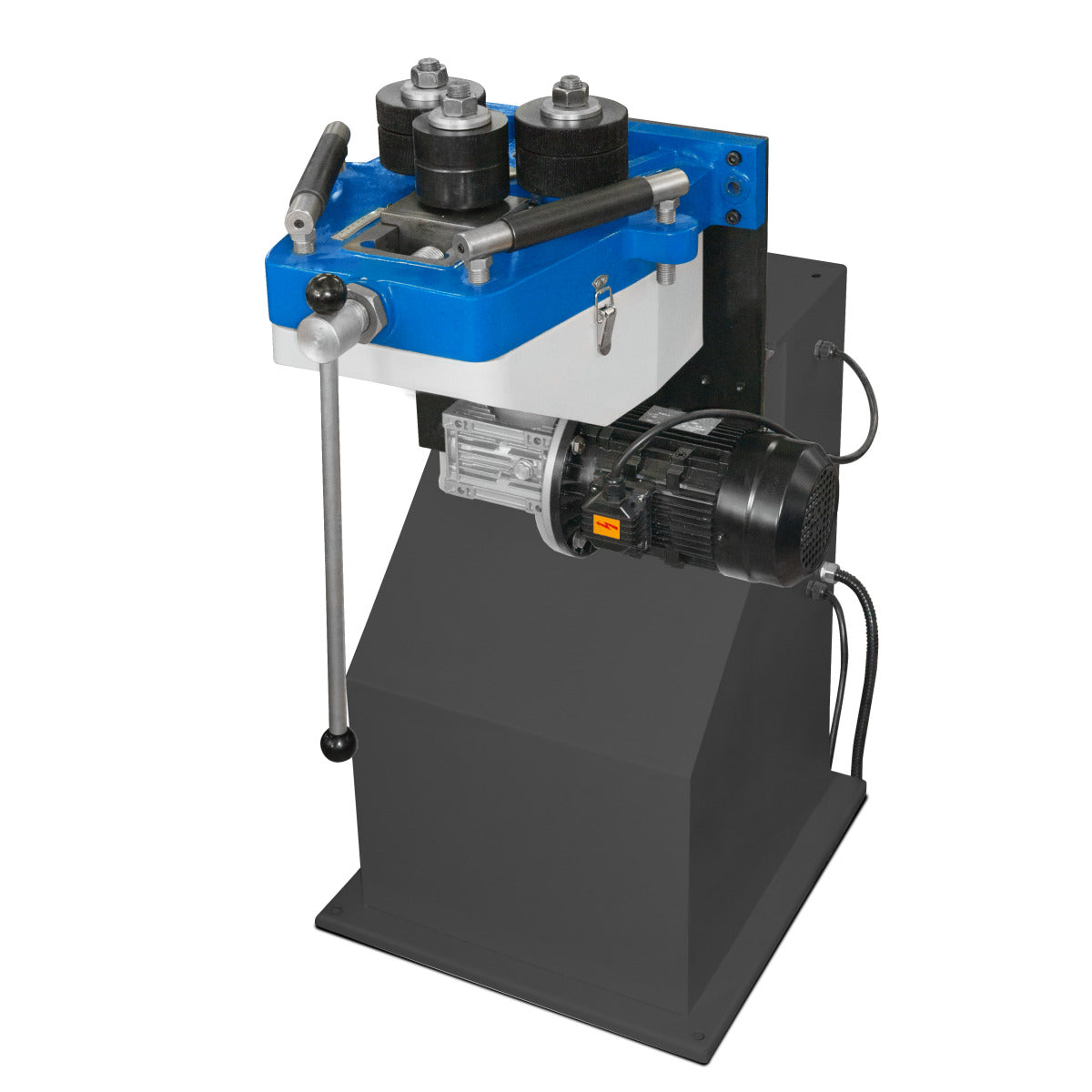

Metallkraft Motorized Ring Bending Machine PRM 10 E (3 Ph 400v)

Metallkraft Motorized Ring Bending Machine PRM 10 E (3 Ph 400v)

£2,754.00 GBP
£2,754.00 GBP
Sale Sold out
Can be used horizontally and vertically for profiles, tubes and solid material
  •  for round bending of square material
  •  stable construction, fixable to the ground
  •  Drive the two lower rollers by means of a hand crank
  •  Rolls hardened and ground
  •  Steel shafts, hardened and ground
  •  Delivery via upper roller



DELIVERY CONTENTS

  •  Standard bending rolls

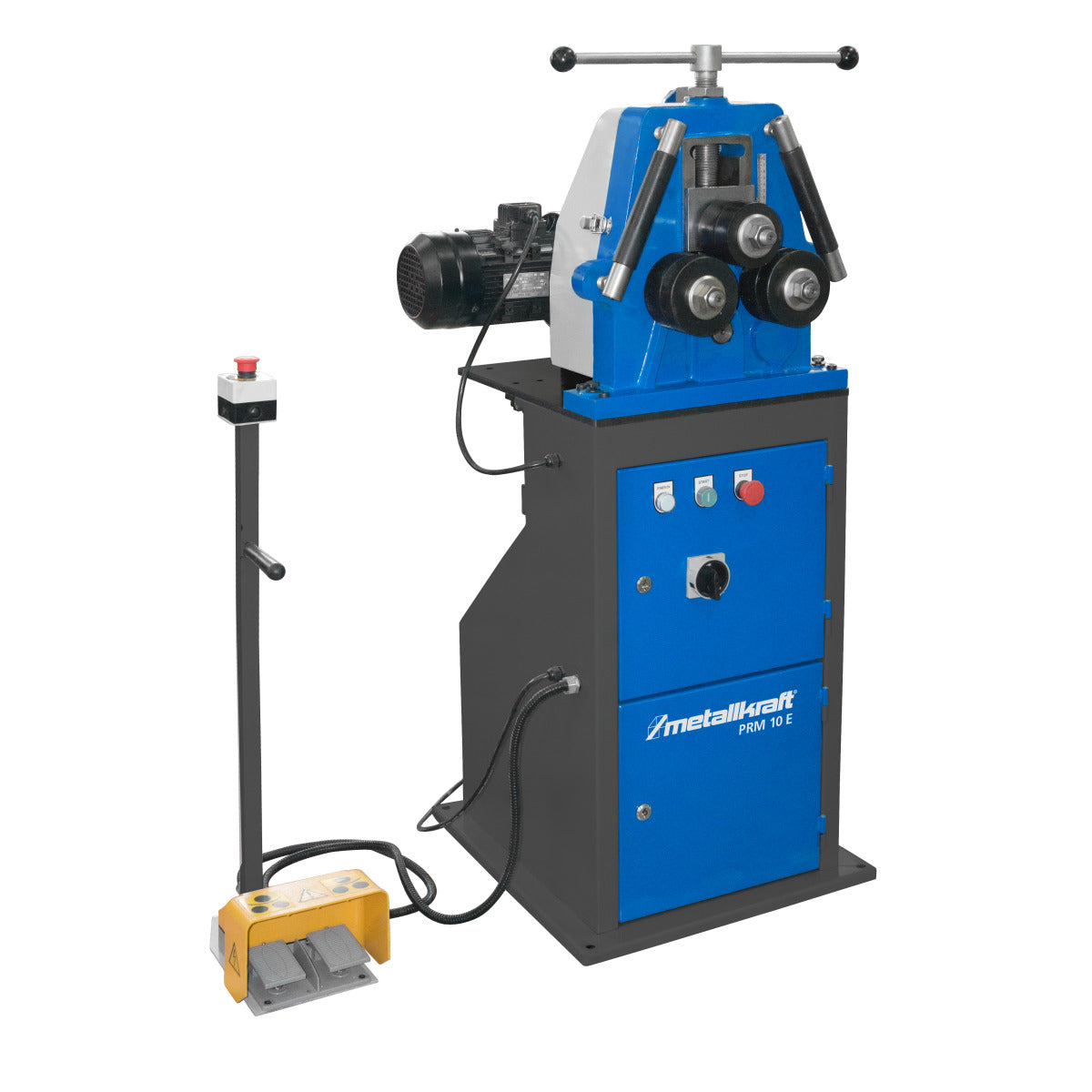

  •  mobile foot pedal for left-hand rotation with emergency stop
  •  straightening rollers
  •  substructure

TECHNICAL SPEC

Dimensions and Weights
Length (product) approx. 700mm Width/Depth (product) approx. 700mm
Height (product) approx. 1400mm Net Weight approx. 230kg

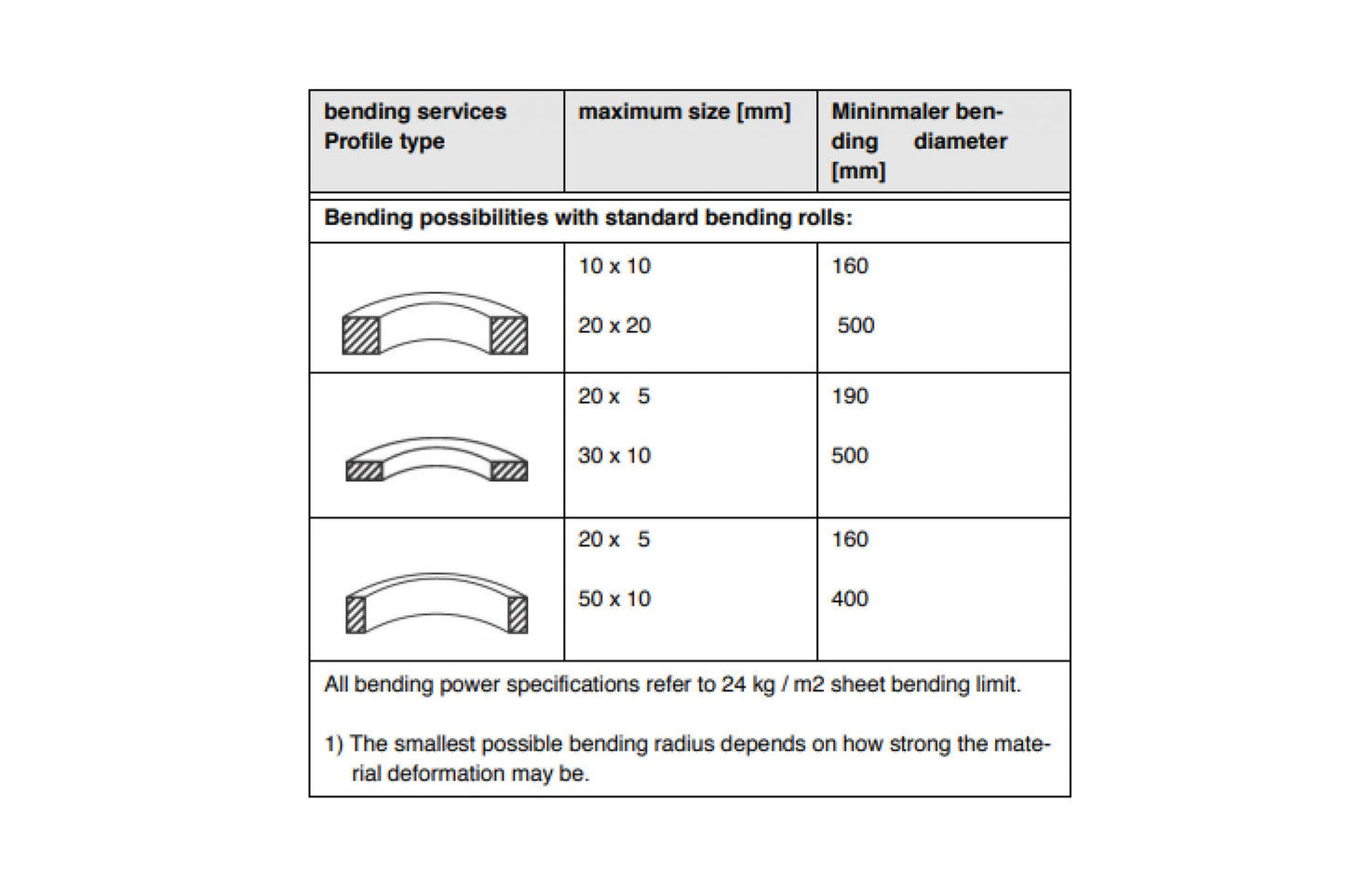

Bending Performances Profile Type Standard
Square material dimensions (yield point 24 kg/mm²) [1] 20mm Square material min. bending Ø (yield point 24 kg/mm²) [1] 500mm
Square material dimensions (yield point 24 kg/mm²) [2] 10mm Square material min. bending Ø (yield point 24 kg/mm²) [2] 160mm
Flat material light axis dimensions bending Ø (yield point 24 kg/mm²) [1] 50 x 10mm Flat material light axis min. bending Ø (yield point 24 kg/mm²) [1] 400mm
Flat material light axis dimensions bending Ø (yield point 24 kg/mm²) [2] 40 x 5mm Flat material light axis min. bending Ø (yield point 24 kg/mm²) [2] 160mm
Flat material heavy axis dimensions bending Ø (yield point 24 kg/mm²) [1] 30 x 10mm Flat material heavy axis min. bending Ø (yield point 24 kg/mm²) [1] 500mm
Flat material heavy axis dimensions bending Ø (yield point 24 kg/mm²) [2] 20 x 5mm Flat material heavy axis min. bending Ø (yield point 24 kg/mm²) [2] 190mm
UPN profile top rib dimensions (yield point 24 kg/mm²) [1] 35 x 4.5mm T profile top rib min. bending Ø (yield point 24 kg/mm²) [1] 600mm
UPN profile top rib dimensions (yield point 24 kg/mm²) [2] 30 x 4mm T profile top rib min. bending Ø (yield point 24 kg/mm²) [2] 400mm
Explanation for T profile rib above Additional spacers may be required UPN profile outside rib dimensions (yield point 24 kg/mm²) [1] 35 x 4.5mm
UPN profile outside rib dimensions (yield point 24 kg/mm²) [1] 600mm UPN profile outside rib dimensions (yield point 24 kg/mm²) [2] 30 x 4mm
T profile outside rib min. bending Ø (yield point 24 kg/mm²) [2] 400mm UPN profile inside rib dimensions (yield point 24 kg/mm²) [1] 35 x 4.5mm
T profile inside rib min. bending Ø (yield point 24 kg/mm²) [1] 600mm UPN profile inside rib dimensions (yield point 24 kg/mm²) [2] 30 x 4mm
T profile inside rib min. bending Ø (yield point 24 kg/mm²) [2] 400mm UPN profile outside leg dimensions (yield point 24 kg/mm²) [1] U40x20mm
UPN profile outside leg dimensions (yield point 24 kg/mm²) [1] 700mm UPN profile outside leg dimensions (yield point 24 kg/mm²) [2] U30mm
UPN profile outside leg min. bending Ø (yield point 24 kg/mm²) [2] 500mm UPN profile inside leg dimensions (yield point 24 kg/mm²) [1] U40x20mm
UPN profile inside leg min. bending Ø (yield point 24 kg/mm²) [1] 700mm UPN profile inside leg dimensions (yield point 24 kg/mm²) [2] 700mm
UPN profile inside leg min. bending Ø (yield point 24 kg/mm²) [2] 500mm
Bending performances profile type optional
Square tube dimensions (yield point 24 kg/mm²) [1] 30 x 2mm Square tube min. bending Ø (yield point 24 kg/mm²) [1] 900mm
Square tube dimensions (yield point 24 kg/mm²) [2] 20 x 2mm Square tube min. bending Ø (yield point 24 kg/mm²) [2] 600mm
Square tube heavy axis dimensions bending Ø (yield point 24 kg/mm²) [1] 38 x 20 x 2mm Square tube heavy axis min. bending Ø (yield point 24 kg/mm²) [1] 1000mm
Square tube heavy axis dimensions bending Ø (yield point 24 kg/mm²) [2] 30 x 15 x 1.5mm Square tube heavy axis min. bending Ø (yield point 24 kg/mm²) [2] 600mm
Round tube dimensions (yield point 24 kg/mm²) [1] 25.4 x 2mm Round tube min. bending Ø (yield point 24 kg/mm²) [1] 800mm
Round tube dimensions (yield point 24 kg/mm²) [2] 19.05 x 1.5mm Round tube min. bending Ø (yield point 24 kg/mm²) [2] 400mm
Round profile dimensions (yield point 24 kg/mm²) [1] 27mm Round profile min. bending Ø (yield point 24 kg/mm²) [1] 500mm
Round profile dimensions (yield point 24 kg/mm²) [2] 17mm Round profile min. bending Ø (yield point 24 kg/mm²) [2] 160mm
isosceles angle profile outside dimensions (yield point 24 kg/mm²) [1] 35 x 35 x 4mm isosceles angle profile outside leg min. bending Ø (yield point 24 kg/mm²) [1] 800mm
isosceles angle profile outside dimensions (yield point 24 kg/mm²) [2] 30 x 30 x 4mm isosceles angle profile outside leg min. bending Ø (yield point 24 kg/mm²) [2] 400mm
isosceles angle profile inside dimensions (yield point 24 kg/mm²) [1] 35 x 35 x 4mm isosceles angle profile inside leg min. bending Ø (yield point 24 kg/mm²) [1] 800mm
isosceles angle profile inside dimensions (yield point 24 kg/mm²) [2] 30 x 30 x 4mm isosceles angle profile inside leg min. bending Ø (yield point 24 kg/mm²) [2] 400mm
Electrical Data
Drive motor output 1.1kW Supply Voltage 400V
Machine Data
Shaft diameter top 30mm Shaft diameter bottom 30mm
Roller diameter top 98mm Roller diameter bottom 118mm
Speed 2.5m/min
