Metallkraft BMBS 360 x 500 HA-DG - Semi-Automatic Swing Frame Metal Bandsaw
Metallkraft BMBS 360 x 500 HA-DG - Semi-Automatic Swing Frame Metal Bandsaw
Regular price
£23,400.00 GBP
Regular price
Sale price
£23,400.00 GBP
Unit price
/
per
Couldn't load pickup availability
Share
For mitre cuts from + 60 ° to -60 ° with frequency converter
- For sawing hollow sections and solid materials made of steel, stainless steel, tool steel, non-ferrous metals and plastics
- Saw blade drive with low-maintenance, oil-lubricated worm gear
- With robust three-phase motor with overload protection

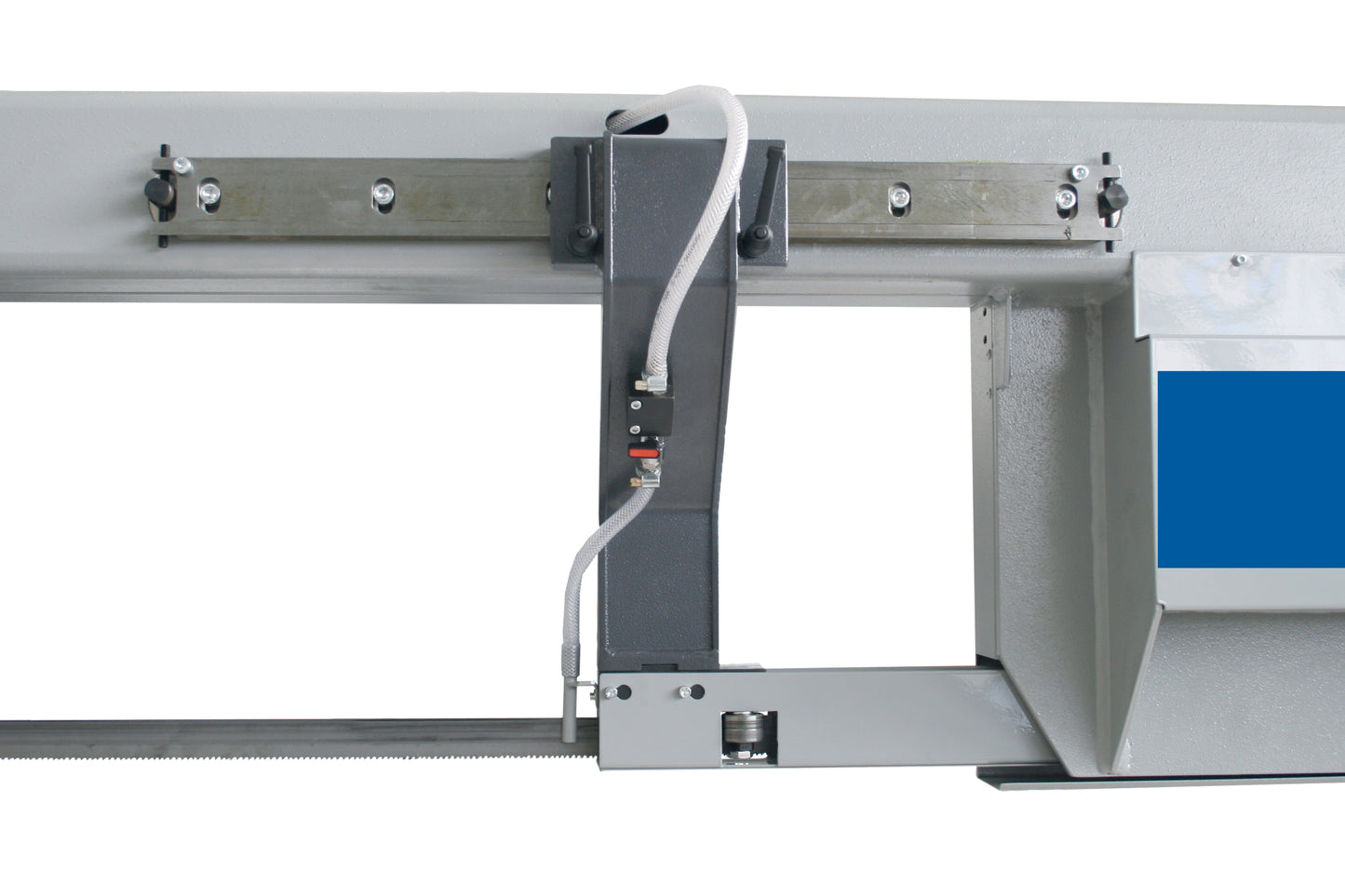

- Saw band guide with adjustable carbide plates for a precise cut
- With mechanical saw blade clamping and monitoring via microswitch
- Cooling system directly on saw band guides
- Standard with frequency converter for stepless adjustment of saw blade speed from 20 - 100 m/min
- Standard with BRP saw blade monitoring
- Chip clearing brush for optimal cleaning and maintenance of the saw band
- Digital angle display
- Swivel control panel
DELIVERY CONTENTS
- Saw band
- Operating tool
- Coolant pump
TECHNICAL SPEC
| Dimensions and Weights | |||
| Length (product) approx. | 2800mm | Width/depth (product) approx. | 1080mm |
| Height (product) approx. | 2340mm | Net weight approx. | 740kg |
| Electrical Data | |||
| Drive motor output |
3.0kW | Supply voltage |
400V |
| Mains frequency | 50Hz | ||
| Machine Data | |||
| Saw band speed(s) | 20 – 100m/min | Speed levels | Stepless |
| Saw band length | 4780mm | Saw band width | 34mm |
| Saw band thickness | 1.1mm | ||
| Cutting Ranges | |||
| Cutting range 0° round (tube) | 360mm | Cutting range 0° round (solid material) | 360mm |
| Cutting range 0° rectangular lying (hollow profile) | 500 x 350mm | Cutting range 0° bundle (tube) | 500 x 220mm |
| Cutting range -45° round (tube) | 360mm | Cutting range -45° round (solid material) | 360mm |
| Cutting range -45° rectangular horizontal (hollow profile) | 420 x 300mm | Cutting range -60° round (tube) | 300mm |
| Cutting range -60° round (solid material) | 300mm | Cutting range -60° rectangular horizontal (hollow profile) | 300 x 200mm |
| Cutting range +45° round (tube) | 360mm | Clamping range +45° round (full material) | 360mm |
| Cutting range +45° rectangular horizontal (hollow profile) | 420 x 260mm | Cutting range +60° round (tube) | 300mm |
| Cutting range +60° round (solid material) | 300mm | Cutting range +60° rectangular horizontal (hollow profile) | 250 x 280mm |
| Material Feed | |||
| Table height material feed | 812mm |
