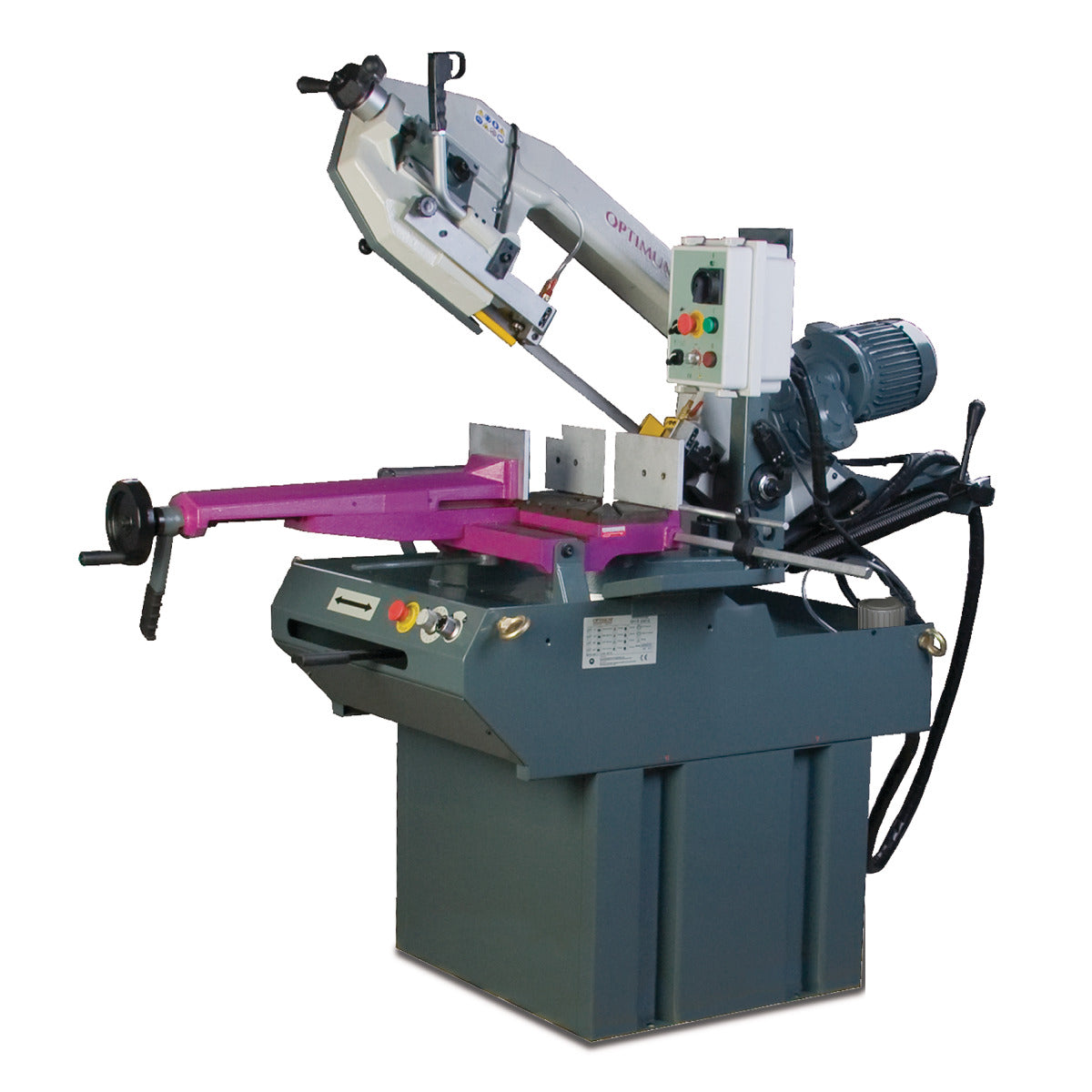

Optimum OPTIsaw S 300DG Large Pull Down Saw (3Ph 400v)
Optimum OPTIsaw S 300DG Large Pull Down Saw (3Ph 400v)
Regular price
£5,994.00 GBP
Regular price
Sale price
£5,994.00 GBP
Unit price
/
per
Couldn't load pickup availability
Share
Metal band saw with swivelling saw bow for economical and precise work
- Quiet running
- Heavy casting
- High cutting accuracy due to vibration-free running
- Ball-bearing saw band guide
- Chip brush
- Microswitch for automatic limit switch
- Pushbutton - Manual saw band - on the hand lever switches the saw blade running on and off
- As standard with high-quality bi-metal saw band
- Material stop with scaling
- Quick release vice adjustable via Handwheel. Clamping the workpiece with a handy quick-release lever
- Stable machine base
- Adjustable limit stops
- Double mitre
- With gear transmission
DELIVERY CONTENTS
- Material stop
- Bi-metal saw band
- Substructure
- Coolant pump
TECHNICAL SPEC
| Dimensions and Weights | |||
| Length (product) approx. | 1680mm | Width/depth (product) approx. | 700mm |
| Net weight approx. | 335kg | Height (product) approx. | 1600mm |
| Height max. (product) approx. | 1850mm | Max. width/depth (product) approx. | 1300mm |
| Electrical Data | |||
| Drive motor output |
1.5kW | Supply voltage |
400V |
| Mains frequency | 50Hz | Engine power coolant pump | 0.1kW |
| Machine Data | |||
| Saw band speed(s) | 45 / 90m/min | Saw band length | 2480mm |
| Saw band width | 27mm | Saw band thickness | 0.9mm |
| Cutting angle | -60 – +45° | Feed | infinitely variable |
| Lifting the saw bow | Manual | ||
| Cutting Ranges | |||
| Cutting range 0° round (solid material) | 255mm | Cutting range 0° square (solid material) | 190mm |
| Cutting range 0° rectangular lying (solid material) | 190 x 310mm | Cutting range -45° round (solid material) | 220mm |
| Cutting range -45° square (solid material) | 190mm | Cutting range -45° rectangular horizontal (solid material) | 135 x 190mm |
| Cutting range -60° round (solid material) | 135mm | Cutting range -60° square (solid material) | 135mm |
| Cutting range -60° rectangular horizontal (solid material) | 135 x 135mm | Clamping range +45° round (full material) | 215mm |
| Cutting range +45° square (solid material) | 190mm | Cutting range +45° rectangular horizontal (solid material) | 190 x 200mm |
