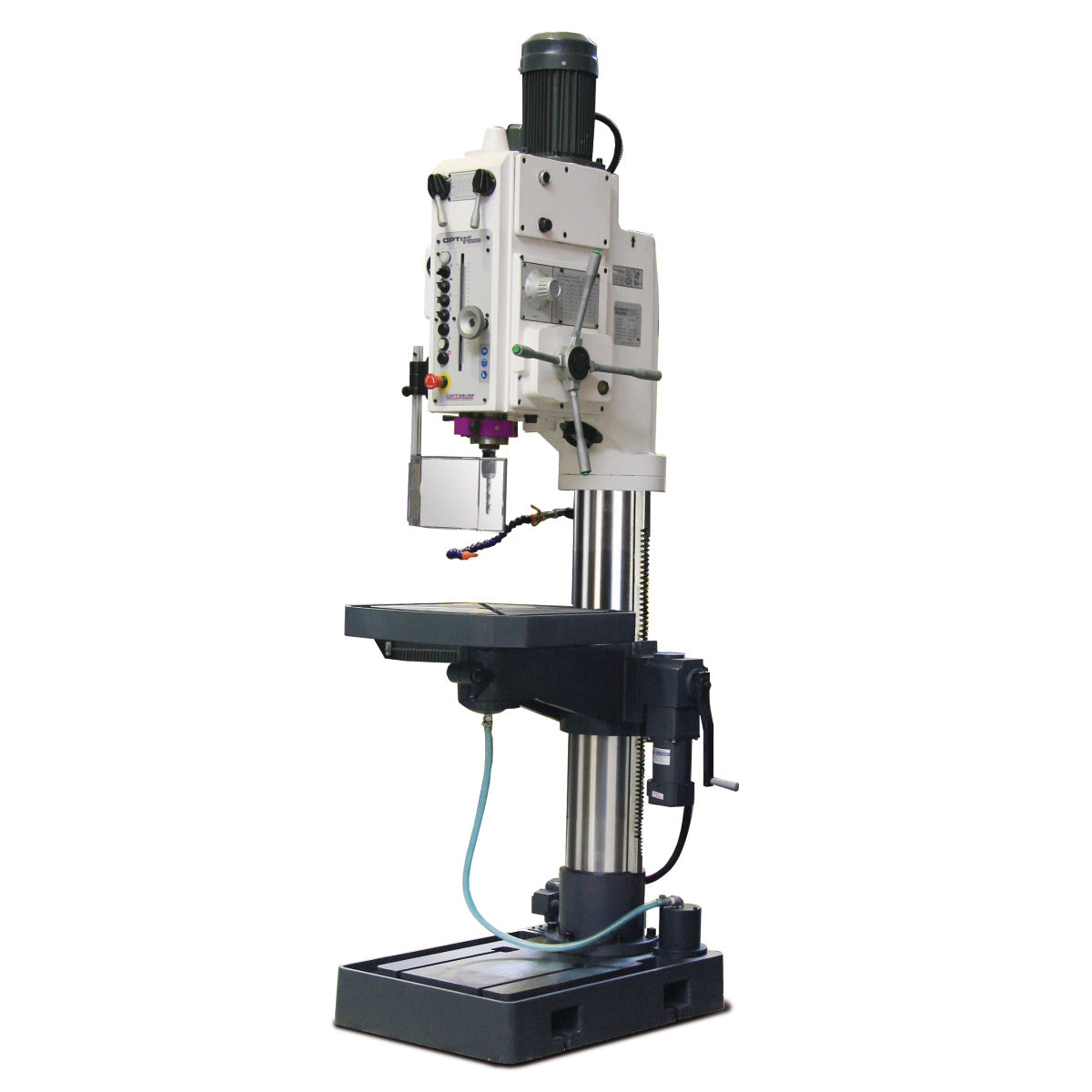

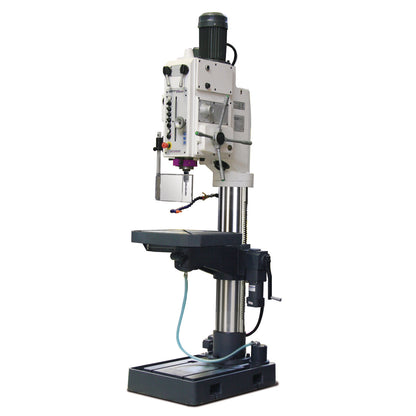

Optimum OPTIdrill B 50 GSM Drilling machine (3 Ph 400v)
Optimum OPTIdrill B 50 GSM Drilling machine (3 Ph 400v)
Regular price
£13,140.00 GBP
Regular price
Sale price
£13,140.00 GBP
Unit price
/
per
Couldn't load pickup availability
Share
- Heavy, solid cast construction
- Smooth running due to polished gear wheels running in oil bath
- High concentricity due to hardened and ground main spindle
- Two-stage drive motor
- Forward/reverse operation
- Automatic gear lubrication via oil pump

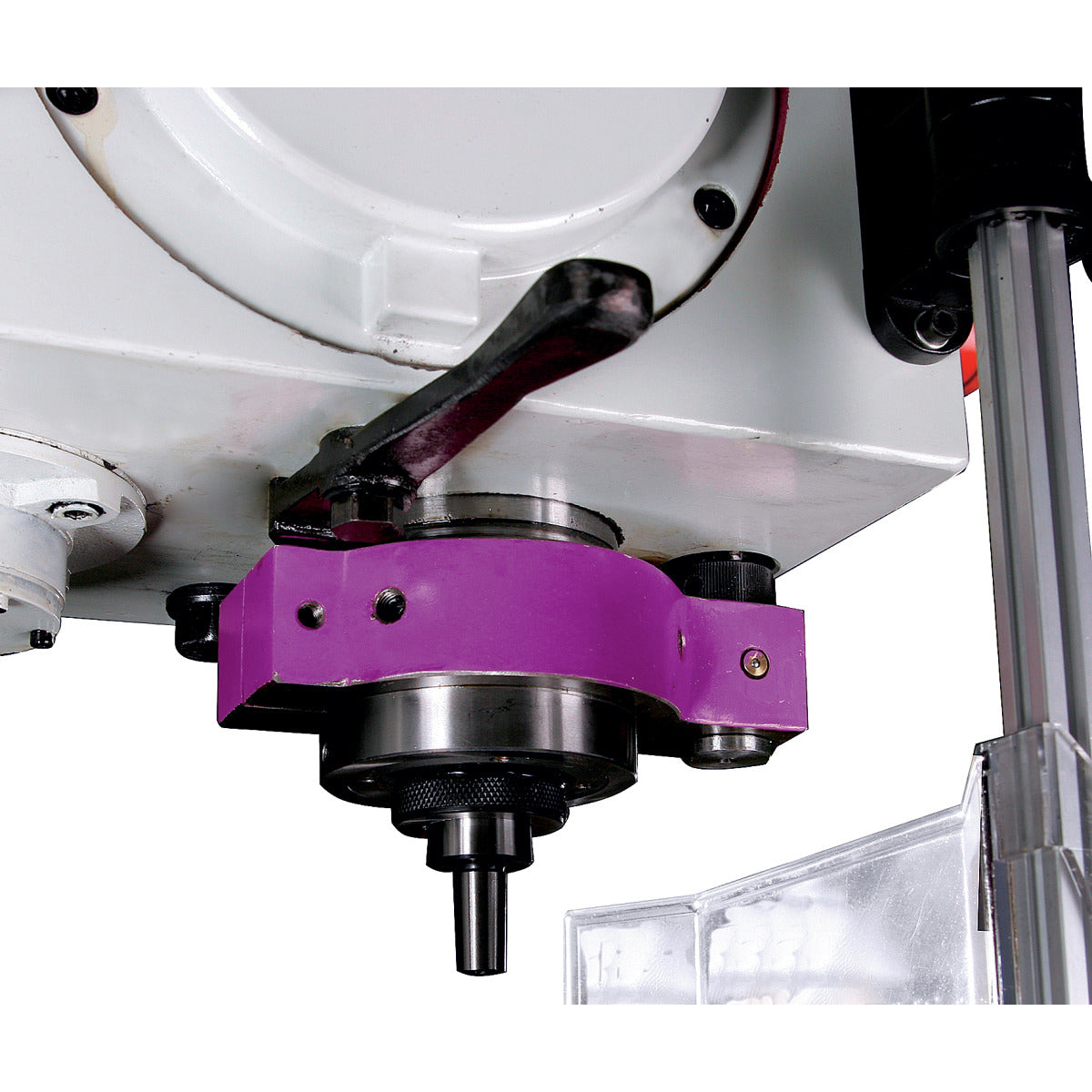

- Threading attachment
- Main switch and motor protection switch
- Motorized table height adjustment
- Machine light integrated in the drill head
- Large, height-adjustable protective screen with safety switch for the utmost protection of the user
- Large dimensioned, solid drill table, precisely worked with parallel T-slots and circumferential cooling water channel, strongly ribbed on the back, 360° rotatable
- Coolant system and external coolant tank can be removed for easy and complete emptying
- Chip filter according to Machinery Directive
- Extremely stable, thick-walled cast-iron column - column diameter 200 mm - for high power consumption
- Solid base plate with parallel T-slots, precision surface finish
DELIVERY CONTENTS
- Keyless drill chuck (1 - 16 mm)
- Morse taper MK 4 / B16
- T-slots
TECHNICAL SPEC
| Dimensions and Weights | |||
| Column diameter | 200mm | Length | 935mm |
| Width/Depth | 775mm | Height | 2460mm |
| Net Weight | 950kg | ||
| Drilling Performance | |||
| Drilling performance steel | 50mm | Continuous drilling performance steel | 45mm |
| Thread tapping steel | M42 | ||
| Drilling Table | |||
| Drilling table length | 600mm | Drilling table width | 600mm |
| Drilling table T-groove type | Diagonal | Drilling table T-groove size | 18mm |
| Drilling table rotation | ± 90° | Max. distance spindle | 800mm |
| Drilling table T-groove number | 2 | Drilling table load bearing capacity | 300kg |
| Speed Range | |||
| Speed range | 54-2090min¯¹ | Number of gears | 18 Steps |
| Electrical Data | |||
| Supply Voltage | 400V | Mains frequency | 50Hz |
| Drive motor output | 2.4 / 3.0kW | ||
| Machine Base | |||
| Max. distance spindle | 1300mm | Machine base length | 600mm |
| Machine base width | 520mm | Machine base T-groove size | 18mm |
| Machine base T-groove n. | 2 | Machine base T-groove space | 280mm |
| Spindle | |||
| Quill stroke | 230mm | Spindle chuck | MT 4 |

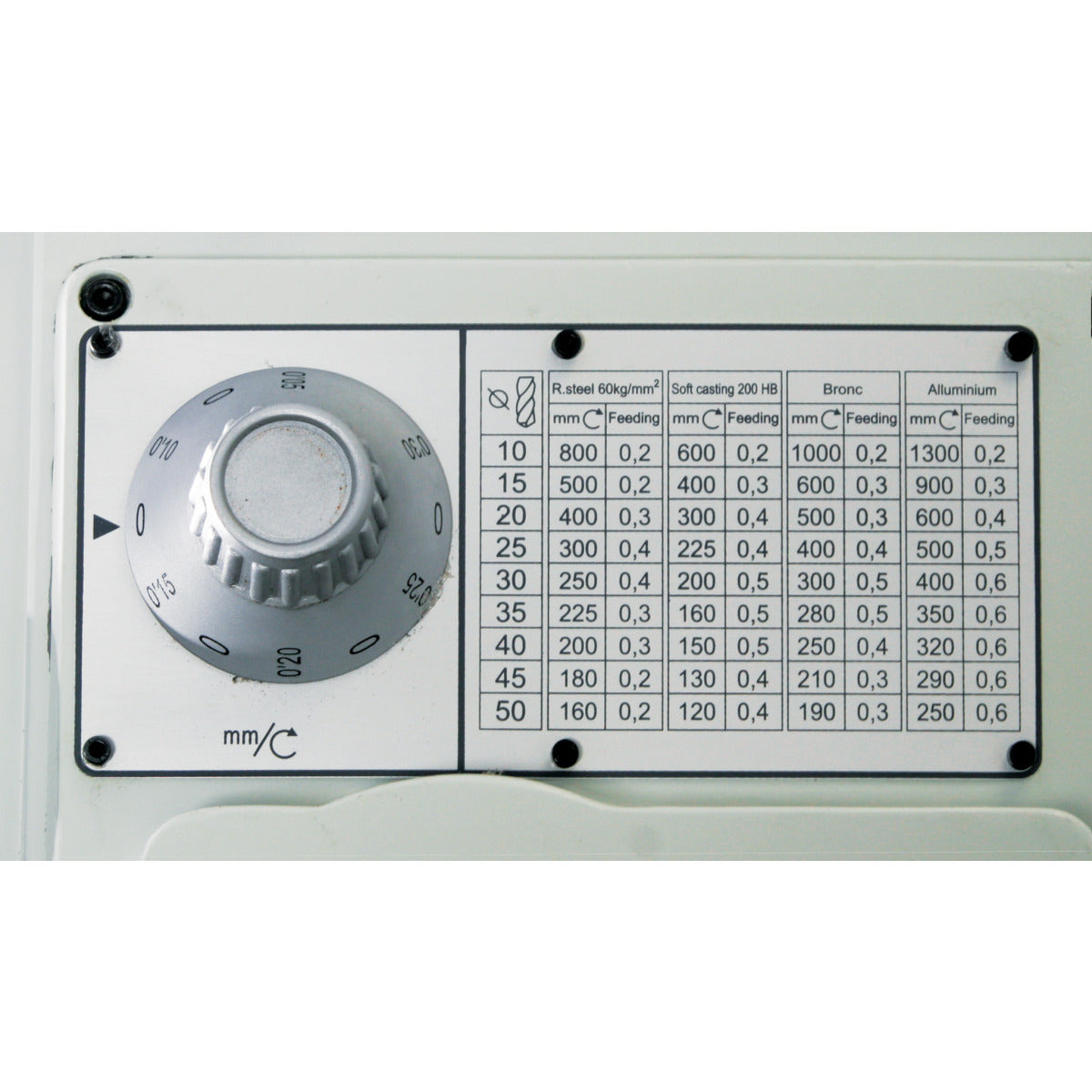

| Reach | 375mm | Quill feed speed | 0.05 - 0.3mm / rev |
| Quill feed gears | 6 steps | ||
| Motor(s) | |||
| Coolant pump drive motor output | 40W |
