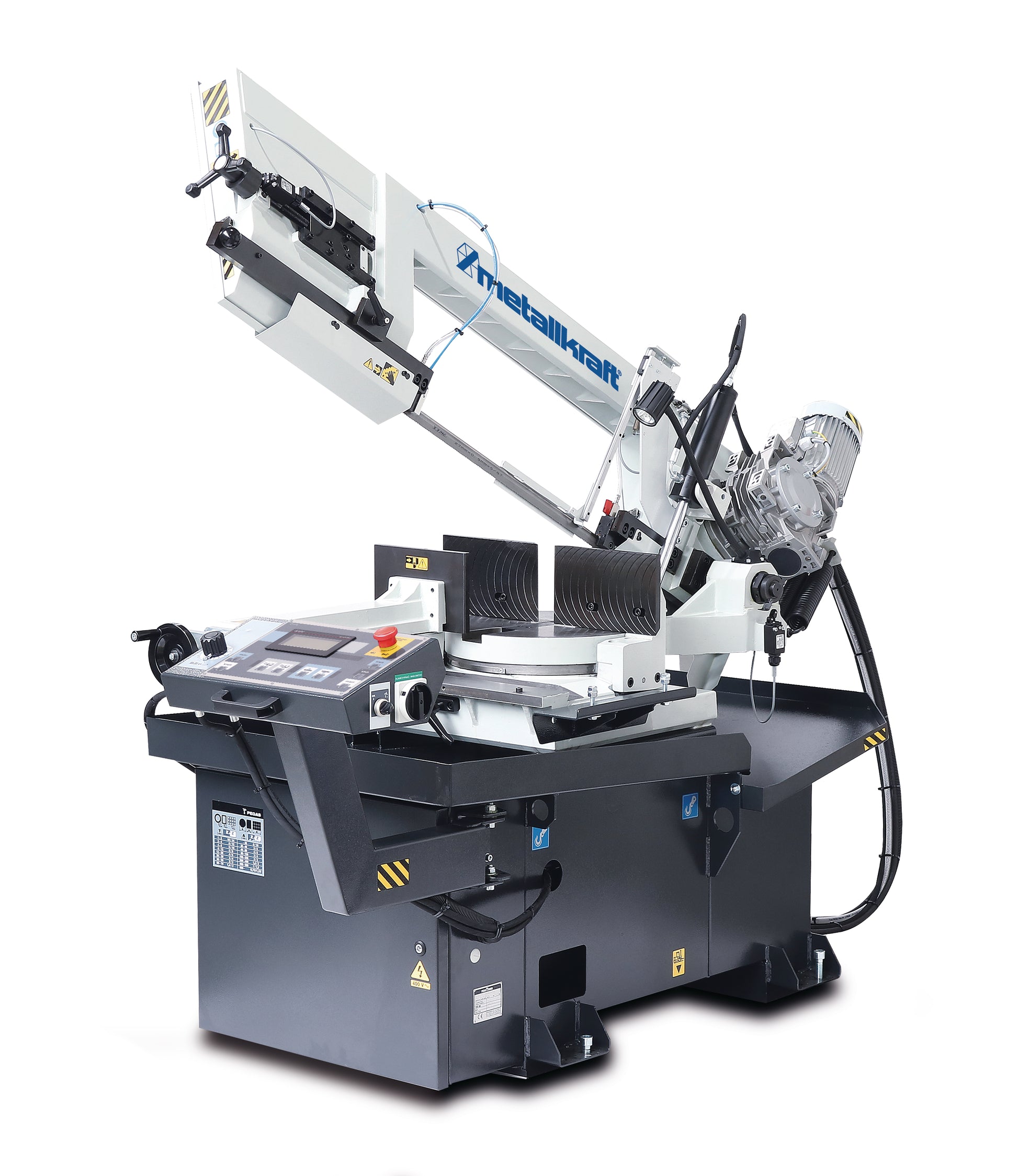

Metallkraft BMBS 300 x 320 HA-DG - Semi-Automatic Swing Frame Metal Bandsaw
Metallkraft BMBS 300 x 320 HA-DG - Semi-Automatic Swing Frame Metal Bandsaw
Regular price
£13,500.00 GBP
Regular price
Sale price
£13,500.00 GBP
Unit price
/
per
Couldn't load pickup availability
Share
For mitre cuts from + 60° to -45° with frequency converter
- For sawing hollow sections and solid materials made of steel, stainless steel, tool steel, non-ferrous metals and plastics
- Sawing functions hydraulically controlled
- Saw blade drive with low-maintenance, oil-lubricated worm gear
- With robust three-phase motor with overload protection
- Bearing mounted turntable
- After starting the cutting cycle, the vice clamps automatically - after completion of the process it goes back to the starting position (HA-DG)
- Saw arm tilted by 25°, thus longer blade life
- Swivelling saw arm from + 60° to -45°
- With chip removal brush for optimal cleaning and maintenance of the saw blade
- With frequency converter: allows stepless adjustment of saw blade speed from 20 - 100 m / min.
- BRP saw blade monitoring
- Hydraulic vice with manual quick release for lateral adjustment
- Limit switches control the upper and lower position of the saw arm
- No adjustment of the upper end point necessary
- Cut scan function with integrated sensor
- HM saw band guides
- Swivel control panel
DELIVERY CONTENTS
- Saw band
- Operating tool
- Length stop 1 meter
- Coolant pump
TECHNICAL SPEC
| Dimensions and Weights | |||
| Length (product) approx. | 2050mm | Width/depth (product) approx. | 1170mm |
| Height (product) approx. | 2040mm | Net weight approx. | 605kg |
| Electrical Data | |||
| Drive motor output |
2.4kW | Supply voltage |
400V |
| Mains frequency | 50Hz | ||
| Machine Data | |||
| Saw band speed(s) | 20 – 100m/min | Speed levels | Stepless |
| Saw band length | 3660mm | Saw band width | 27mm |
| Saw band thickness | 0.9mm | ||
| Cutting Ranges | |||
| Cutting range 0° round (tube) | 300mm | Cutting range 0° round (solid material) | 300mm |
| Cutting range 0° rectangular lying (hollow profile) | 320 x 290mm | Cutting range 0° bundle (tube) | 320 x 160mm |
| Cutting range -45° round (tube) | 300mm | Cutting range -45° round (solid material) | 300mm |
| Cutting range -45° rectangular horizontal (hollow profile) | 300 x 280mm | Cutting range -60° round (tube) | 200mm |
| Cutting range -60° round (solid material) | 200mm | Cutting range -60° rectangular horizontal (hollow profile) | 190 x 200mm |
| Cutting range +45° round (tube) | 270mm | Clamping range +45° round (full material) | 270mm |
| Cutting range +45° rectangular horizontal (hollow profile) | 270 x 200mm | ||
| Material Feed | |||
| Table height material feed | 800mm |
